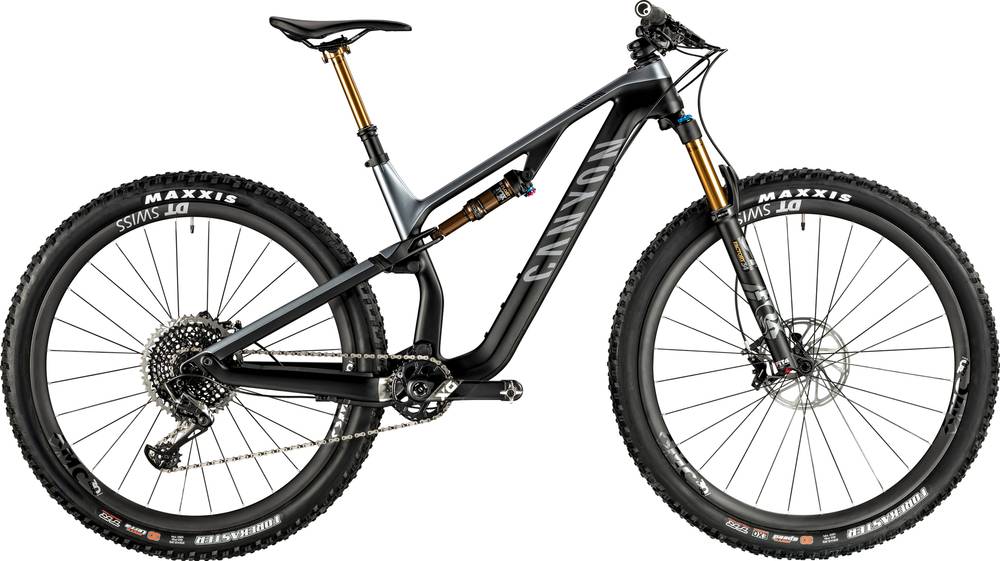

Canyon Neuron CF 9.0 LTD 2019
2019 Mountain
Estimate price |
5,390$
Weight | 12.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" / 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Fox Factory Float 34
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 166cm
SM
164cm - 175cm
MD
173cm - 183cm
LG
181cm - 193cm
XL
191cm - 202cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Neuron CF, Material: Carbon, Travel: 130 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Suspension Fork
FOX 34 Factory, Travel: 130 mm, Technology: FIT4, Axle Dimension: 15 x 110 mm
Rear Shock
FOX FLOAT DPS Factory, Length: 210 x 50 mm
Drivetrain
Rear Derailleur
SRAM XO1 Eagle
Shift Levers
SRAM X01 Eagle Trigger 12s
Cassette
SRAM XG-1295 Eagle 10-50 12s
Crank
SRAM X01 Eagle DUB 30T, Material: Carbon 30
Bottom Bracket
SRAM BSA DUB
Pedals
None included
Wheels
Rims
DT Swiss XMC 1200 XD, Rim Material: Carbon, Inner Width: 30 mm, Freewheel: Ratchet, Weight: 835 g
Tires
MAXXIS Forekaster 2.35'', Casing: Exo, Compound: 3C Maxx Speed
Brakes
Brakes
SRAM Guide RSC
Disk Rotors
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Cockpit
Stem
Canyon V12
Handlebar
Canyon H23 Carbon Riserbar, Material: Carbon, Rise: 15 mm
Grips
Ergon GA20
Seat
Saddle
Iridium Trail
Seatpost
FOX Transfer Factory
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.452 mm | 1.409 mm | 1.418 mm | 1.375 mm | 1.376 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 692 mm | 717 mm | 730 mm | 753 mm | 785 mm |
| Rake | 51 mm | 52 mm | 53 mm | 52 mm | 52 mm |
| Trail | 95 mm | 94 mm | 98 mm | 99 mm | 99 mm |
| Stack | 578 mm | 589 mm | 614 mm | 623 mm | 651 mm |
| Reach | 398 mm | 418 mm | 433 mm | 453 mm | 473 mm |
| Top Tube Length | 558 mm | 581 mm | 603 mm | 626 mm | 654 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 400 mm | 445 mm | 480 mm | 520 mm |
| Head Tube Angle | 67 ° | 67 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 88 mm | 100 mm | 102 mm | 112 mm | 143 mm |
| Chainstay Length | 430 mm | 430 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1121 mm | 1146 mm | 1167 mm | 1190 mm | 1222 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 785 mm | 762 mm | 780 mm | 785 mm | 796 mm |
| Front Travel | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Rear Travel | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 173 cm | 181 cm | 191 cm |
| Rider Max Height | 166 cm | 175 cm | 183 cm | 193 cm | 202 cm |
About this model
Neuron CF 9.0 LTD is part of the Canyon Neuron model. There are 68 bikes that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Canyon Neuron AL 6.0 SL 2019 is the most economical model, with a starting price of 1999$. Canyon Neuron CF 9.0 Unlimited US 2019 on the other hand costs 7000$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2019 and its price was 4989$. Comparing the average cost of a Trail bike to this one, you will see that Neuron CF 9.0 LTD price is 80.63% higher.
Trail bikes average weight
The average weight for Trail bikes is 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Canyon Neuron CF 9.0 LTD it’s weighing 12.2 kg (26.9 lbs). At this weight, is a bit lighter than average. To sum up, it’s 6.39% lighter than the average weight of Trail bikes.
Neuron CF 9.0 LTD components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Canyon Neuron CF 9.0 LTD bike has the FOX FLOAT DPS Factory model installed, and has a travel of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Canyon Neuron CF 9.0 LTD 2019, has a 27.5″ carbon model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Canyon Neuron CF 9.0 LTD bike has 5 sizes, in the range of 155 cm – 202 cm (5.09 ft – 6.63 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
