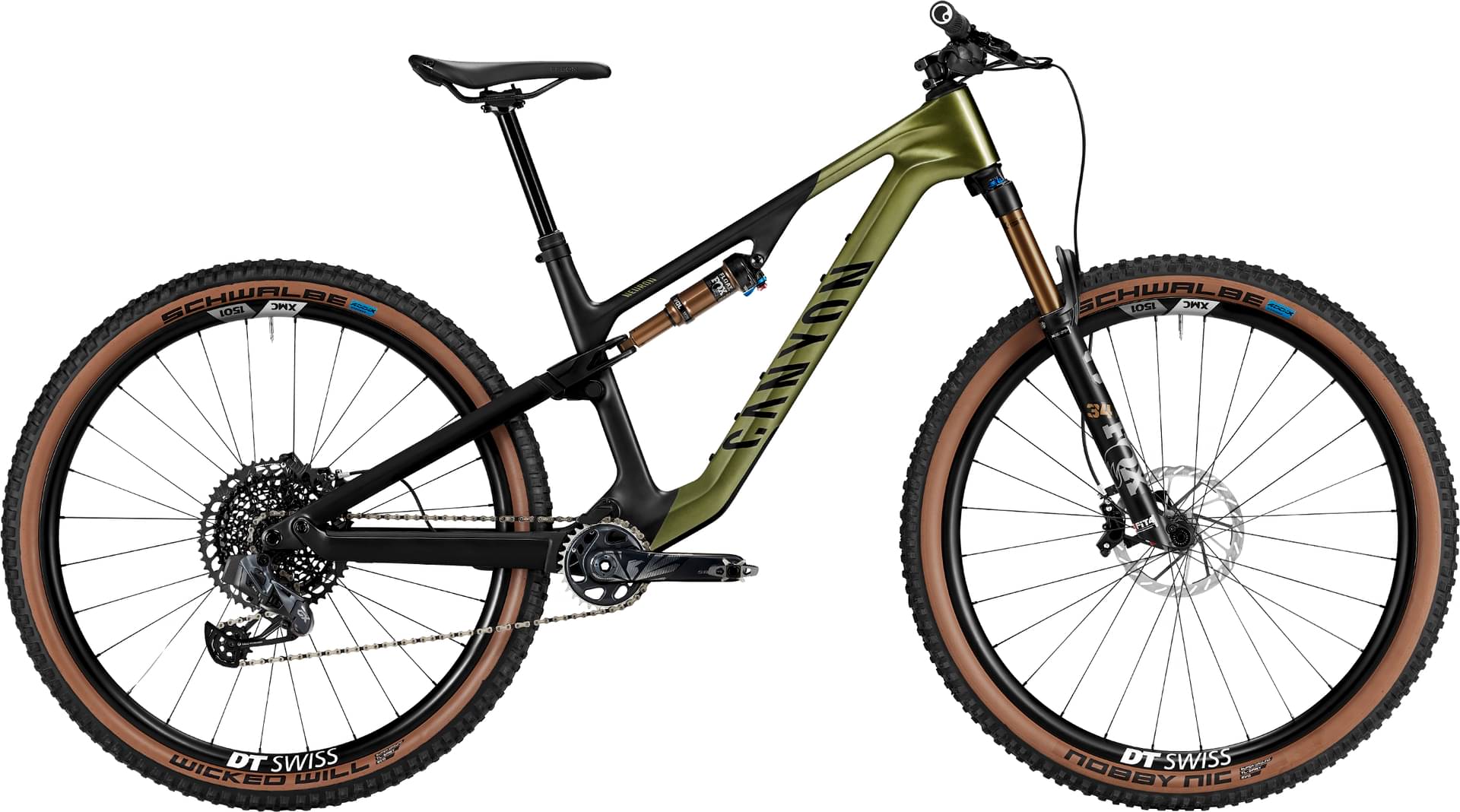

Canyon Neuron CF 9 SL 2023
2023 Mountain
Estimate price |
4,999$
Weight | 13 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Fork Fox Factory Float 34
-
Groupset GX Eagle AXS, X1 -
Suspension Full -
Battery SRAM Powerpack -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Neuron, Superlight carbon full-suspension MTB frame featuring a balanced geometry which combines trail capability with all-day comfort., Axle dimension: 12x148 mm, Material: Carbon (CF)
Suspension Fork
FOX 34 Float Factory FIT4, Axle dimension: 15x110 mm, Stanchion Diameter: 34 mm, Travel: 140 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm

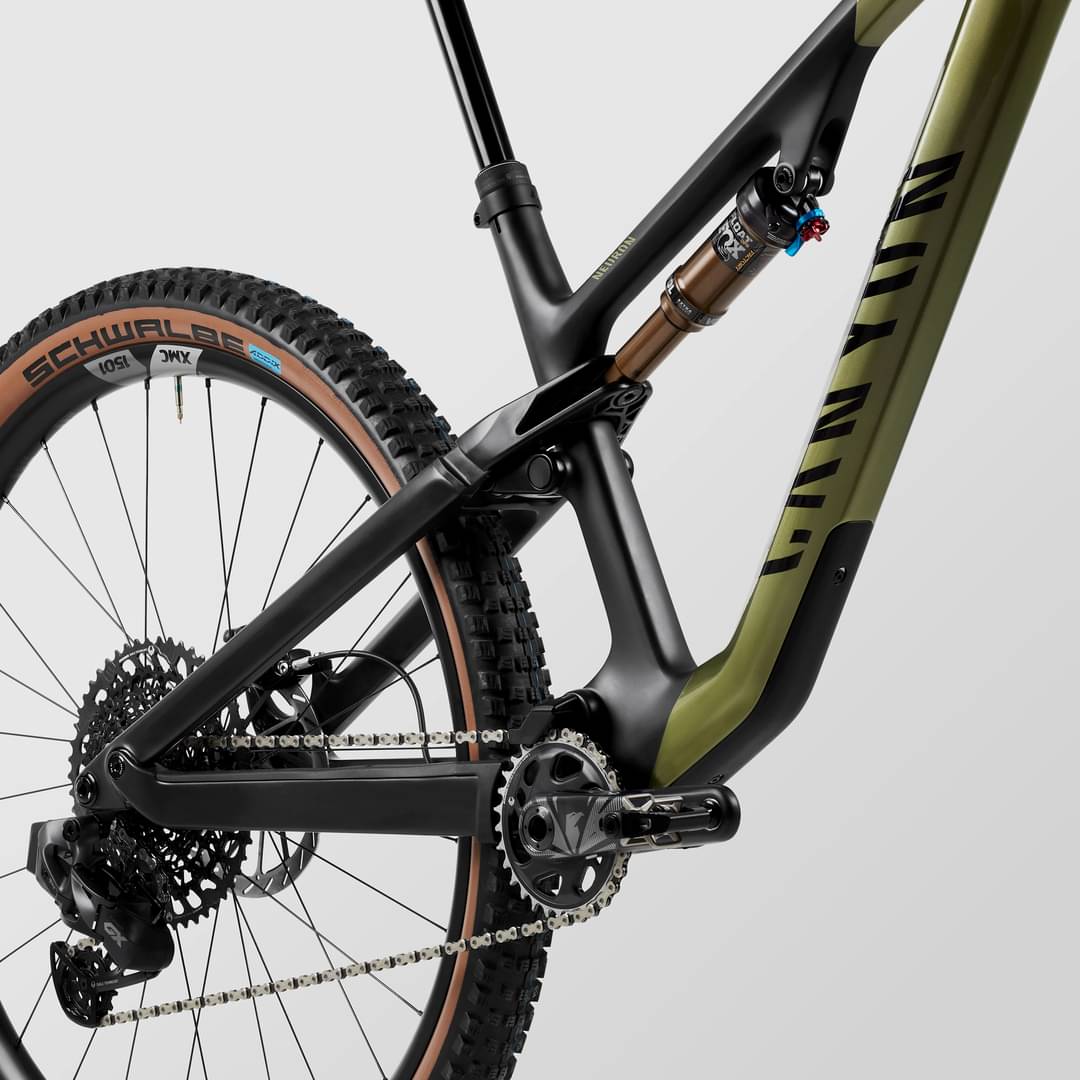

Rear Shock
FOX Float DPS Factory
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS
Shift Levers
SRAM GX Eagle AXS
Cassette
SRAM GX Eagle, 12-speed (10-52), Number of sprockets: 12
Crank
SRAM X1 C Eagle 30T, Number of chainrings: 1
Bottom Bracket
SRAM BSA DUB, Bottom bracket standard: BSA 73, Weight: 87 g

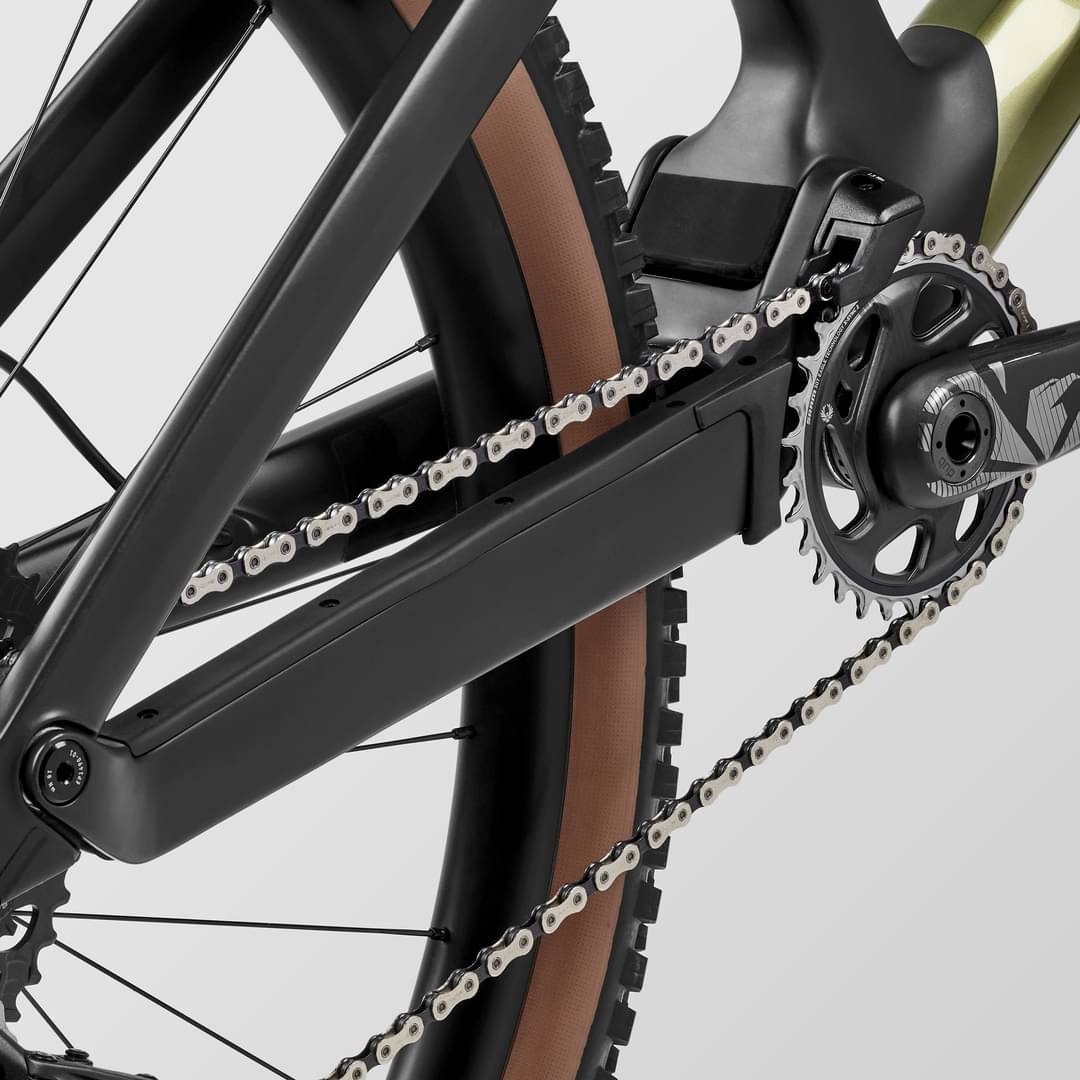

Chain
SRAM X01 Eagle Chain 12s
Chain Guide
Canyon EP1538-01 Chain Guide
Pedals
None included
Wheels
Rims
DT Swiss XMC 1501, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Rim height: 25 mm, Inner width: 30 mm, Weight: 864 g | DT Swiss XMC 1501, Axle dimension: 12x148 mm, Rotor mount: IS 6-bolt, Rim height: 25 mm, Inner width: 30 mm, Weight: 940 g
Tires
Schwalbe Nobby Nic 29x2.4" bronze skin, Width: 2.4" | Schwalbe Wicked Will 29x2.4" bronze skin, Width: 2.4"
Brakes
Brakes
SRAM Code RSC
Cockpit

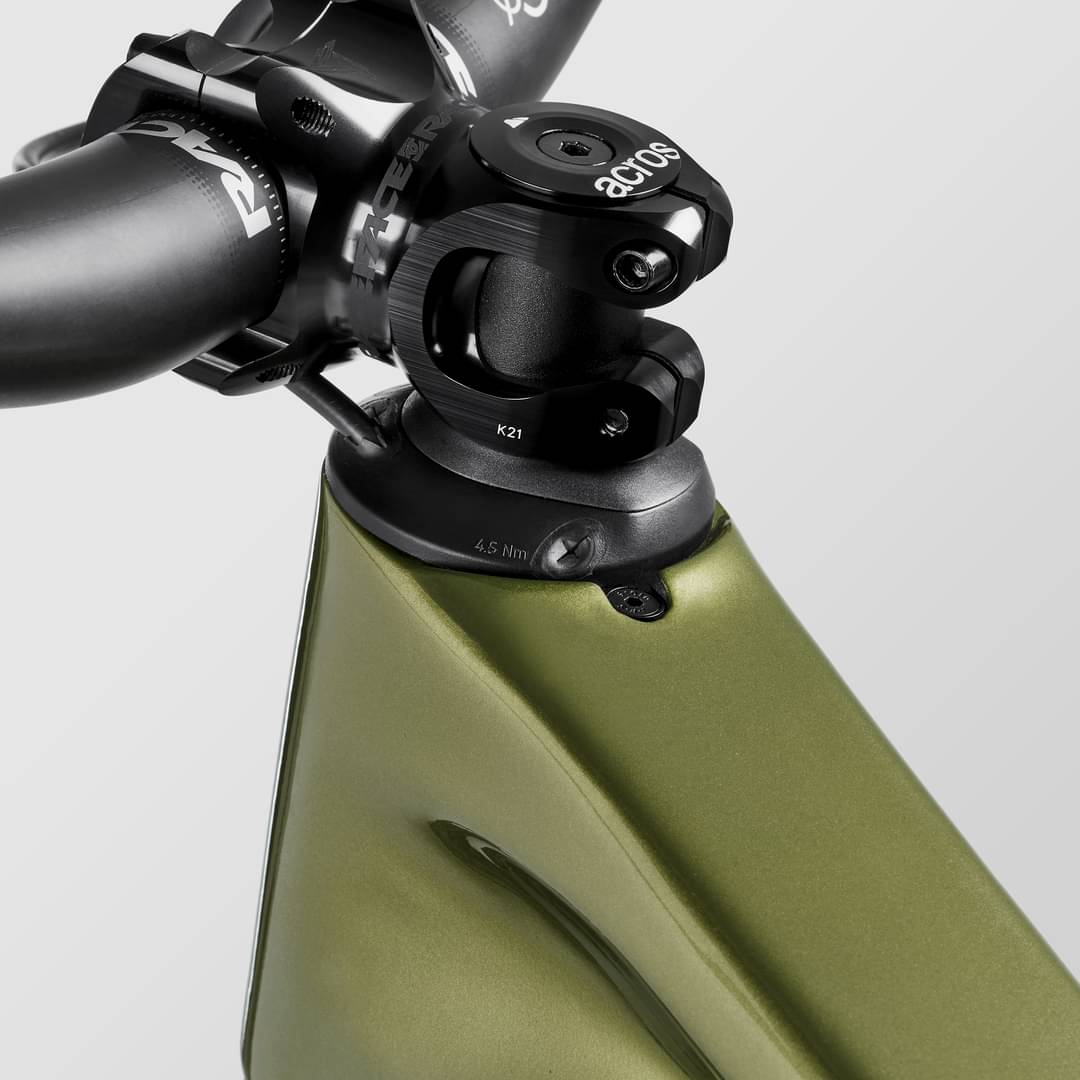

Stem
Race Face Turbine R, Fork steer tube diameter: 1 1/8"
Handlebar
Race Face Next 35, Clamping diameter: 35,0 mm, Width: 760 mm, Rise: 20 mm
Grips
Ergon GA20
Seat
Saddle
Ergon SM10 Sport Men, Gender: Male, Weight: 400 g
Seatpost
Canyon G5, Clamp diameter: 30,9 mm, Material: Aluminium (AL)
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.38 mm | 1.37 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 710 mm | 735 mm | 766 mm | 797 mm | 834 mm |
| Rake | 42 mm | 43 mm | 44 mm | 44 mm | 43 mm |
| Trail | 112 mm | 111 mm | 119 mm | 119 mm | 120 mm |
| Stack | 594 mm | 603 mm | 633 mm | 646 mm | 663 mm |
| Reach | 417 mm | 437 mm | 462 mm | 487 mm | 517 mm |
| Top Tube Length | 563 mm | 586 mm | 618 mm | 646 mm | 681 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 390 mm | 390 mm | 425 mm | 460 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 125 mm | 143 mm |
| Chainstay Length | 437 mm | 437 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1146 mm | 1171 mm | 1210 mm | 1241 mm | 1278 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 763 mm | 766 mm | 784 mm | 790 mm | 797 mm |
| Front Travel | 140 mm | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 193 cm | cm |
About this model
Neuron CF 9 SL completes the Canyon Neuron model. There are 68 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Canyon Neuron 5 2023 is the most affordable bike of this model and has a price of 2099$. On the other hand, Canyon Neuron CF SLX LTD 2023, is the most expensive and costs 6901$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Canyon released this model in 2023, its price was 4999$. If we compare this with the average Trail bike cost we notice that the price is 80.99% more expensive.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Neuron CF 9 SL weighs 13 kg (28.66 lbs) and is slightly heavier than the average. In short, the average Trail bike weight is 0.15% lower than this one.
Overview of components
Fork
Canyon Neuron CF 9 SL 2023 bike is equipped with the Fox Factory Float 34 fork, and has 140mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, Canyon Neuron CF 9 SL 2023, has a 27.5″ carbon model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Neuron CF 9 SL has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
