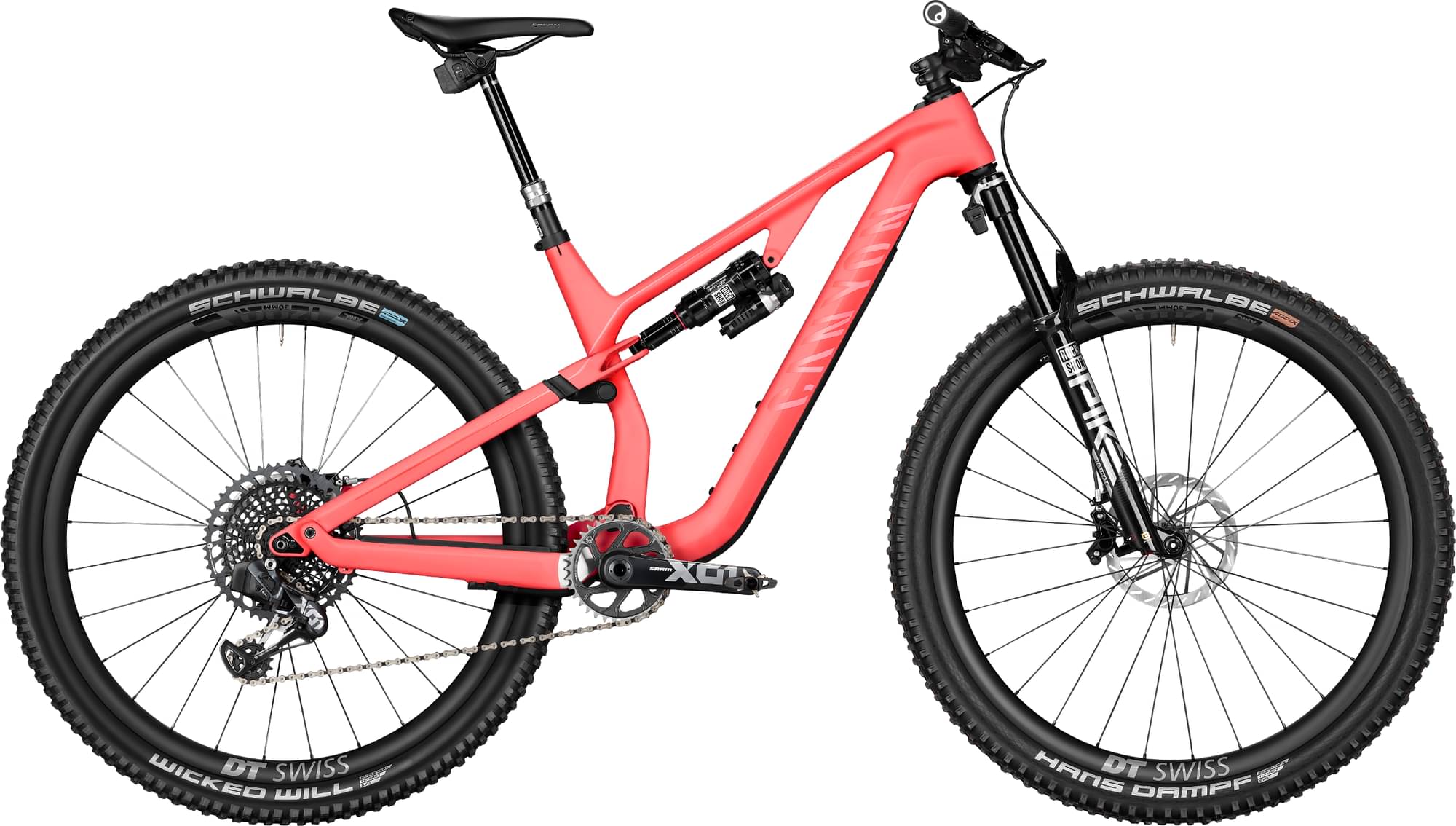

Canyon Neuron CF SLX LTD 2022
2022 Mountain
Estimate price |
9,174$
Weight | 13.32 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Pike Ultimate Flight Attendant
-
Groupset X01 Eagle AXS -
Suspension Full, Electronic -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
181cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Neuron CF SLX, Top-end full-carbon frame. Category: 3., Material: Carbon (CF)
Suspension Fork
Rock Shox Pike Ultimate Flight Attendant, Light air-spring fork., Through axle dimensions: 15x110 mm, Travel: 140 mm, Fork steer tube diameter: 1 1/8" - 1 1/4"
Rear Shock
Rock Shox Super Deluxe Ultimate Flight Attendant, Responsive air-sprung rear shock., Rear wheel travel: 130 mm, Eye-to-eye/stroke: 210 x 50 mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS, Precise 1x12 rear derailleur with wireless AXS technology.
Shift Levers
SRAM Eagle AXS Rocker 12s
Cassette
SRAM XG Eagle 10-52, All the range you need to climb the biggest mountains, courtesy of SRAM's 10-52, 12-speed cassette.
Crank
SRAM X01 Eagle AXS DUB, Lightweight, robust direct-mount carbon crank with 32-tooth chainring. Crank arm length: 175 mm., Number of chainrings: 1
Bottom Bracket
SRAM BSA DUB, SRAM BSA bottom bracket with DUB (Durable Unified Bottom Bracket) technology for optimal power transfer. With sealed cartridge bearings for dependable protection against dirt and moisture. Shell width: 68 / 73 mm.
Chain
SRAM GX Eagle 12-speed, FLOW LINK inner plate design reduces friction, solid pin construction, PowerLock tool-less master link
Pedals
None included
Wheels
Rims
DT Swiss XMC1200 29", Light, durable, premium 29-inch carbon wheel. Tubeless-ready. Internal rim width: 30 mm. Axle dimensions: boost, 15 x 110 mm., Rotor Mount: IS 6-bolt | DT Swiss XMC 1200 XD, Light, durable, high-end 29-inch carbon wheel. Tubeless-ready. With reliable Ratchet EXP freewheel. Internal rim width: 30 mm. Axle dimensions: 12 x 148 mm., Rotor Mount: IS 6-bolt
Tires
Schwalbe Hans Dampf 2.35", The original all-rounder, the Hans Dampf rolls quick yet offers reliable traction in a wide range of conditions. | Schwalbe Wicked Will, SuperTrail, Addix SpeedGrip, 2.4", Width: 2.4"
Brakes
Brakes
SRAM Code RSC, Powerful rear brake. With tool-free reach and bite point adjustment. | SRAM Code RSC, Dependable front brake. With tool-free reach and bite point adjustment.
Disk Rotors
SRAM HS2 180 mm
Cockpit
Stem
Canyon V12, Robust Canyon aluminium stem. Length: 60 mm. Clamp diameter: 31.8 mm.
Handlebar
Canyon H23 Carbon Riserbar, Ergonomic Canyon carbon handlebar. Width: 760 mm. Rise: 15 mm. Clamp diameter: 31.8 mm., Width: 760 mm
Grips
Ergon GA20, High-grade lock-on grips providing comfort and control in equal measure.
Seat
Saddle
Ergon SM10 Sport Men
Seatpost
RockShox Reverb AXS, Wireless seatpost with AXS technology. With handlebar remote and 150 mm of stepless height adjustment., Clamp diameter: 30,9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.38 mm | 1.38 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm |
| Front Center | 730 mm | 753 mm | 785 mm |
| Rake | 47 mm | 46 mm | 46 mm |
| Trail | 108 mm | 109 mm | 109 mm |
| Stack | 608 mm | 617 mm | 645 mm |
| Reach | 427 mm | 447 mm | 467 mm |
| Top Tube Length | 597 mm | 620 mm | 648 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 445 mm | 480 mm | 520 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 102 mm | 112 mm | 143 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1161 mm | 1184 mm | 1216 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm |
| Standover Height | 778 mm | 782 mm | 793 mm |
| Front Travel | 140 mm | 140 mm | 140 mm |
| Rear Travel | 130 mm | 130 mm | 130 mm |
| Wheels | 29" | 29" | 29" |
| Rider Max Height | 183 cm | 193 cm | cm |
About this model
Neuron CF SLX LTD belongs to the Canyon Neuron model. Canyon released 68 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Canyon Neuron 5 2022 is the most economical model, with a starting price of 2299$. Canyon Neuron CF SLX LTD 2022 on the other hand costs 8493$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8493$. If we compare this with the average Trail bike cost we notice that the price is 207.49% more expensive.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly heavier than average, Neuron CF SLX LTD has a weight of 13.32 kg (29.37 lbs). In short, the average Trail bike weight is 2.62% lower than this one.
Overview of components
Fork
The fork installed on this bike is the RockShox Pike Ultimate Flight Attendant model. The travel on this model is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the Rock Shox Super Deluxe Ultimate Flight Attendant model, with a travel of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
As for the wheels, Canyon Neuron CF SLX LTD 2022, has a 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Dropper post
Canyon Neuron CF SLX LTD includes a dropper post. Therefore, climbing or descending will be a breeze.
