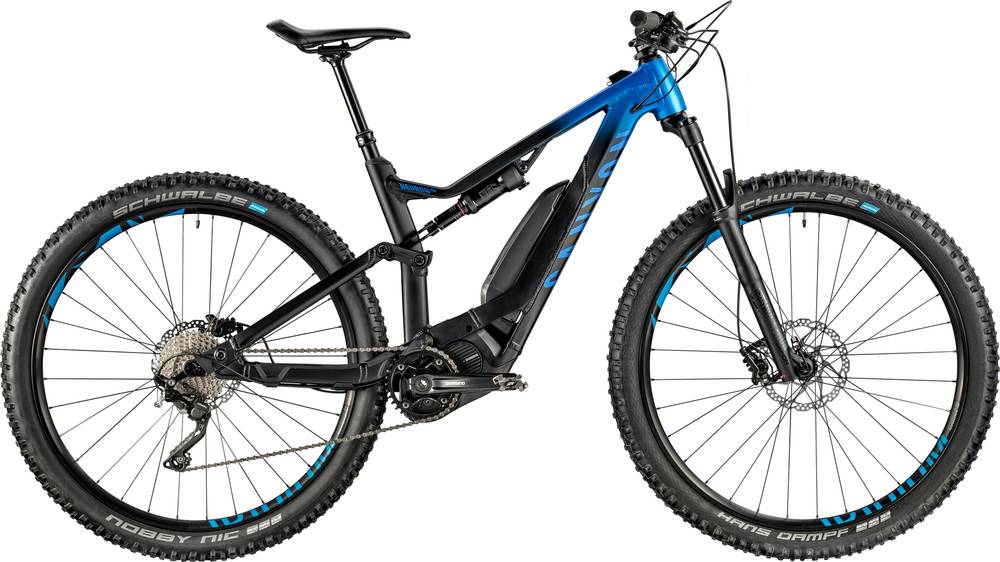

Canyon Neuron:ON 5.0 2019
2019 E-bike
Estimate price |
3,325$
Weight | 22.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Recon Silver RL
-
Groupset XT, Deore -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano Steps E8010 504 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 175cm
MD
173cm - 184cm
LG
182cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Neuron:On, Material: Aluminium 6061, Travel: 130 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Suspension Fork
RockShox Recon RL, Travel: 130 mm, Axle Dimension: 15 x 110 mm
Rear Shock
RockShox Deluxe R, Length: 210 x 50 mm
Drivetrain
Rear Derailleur
Shimano Deore XT M786 SGS
Shift Levers
Shimano Deore M6000 10s, Clamp: I-Spec II
Cassette
Shimano HG500 11-36 10s
Crank
Shimano E8000
Chain
Shimano CN-HG 54 10s
Wheels
Rims
Alexrims EM30 | Shimano MT400 SH11, Rim Material: Aluminium, Inner Width: 30 mm
Tires
Schwalbe Nobby Nic 2.6'', Compound: Addix Speedgrip, Technology: Tubeless Easy
Brakes
Brakes
Shimano MT501
Disk Rotors
Shimano RT54, Disc Mount: Centerlock
Cockpit
Stem
Race Face Ride
Handlebar
Race Face Ride Riserbar, Material: Aluminium, Rise: 20 mm
Grips
Canyon Lock-On
Seat
Saddle
Canyon SD:ON
Seatpost
Iridium Dropper
Motor & Battery
Motor
Shimano Steps E8000
Battery
Shimano Steps E8010 504 Wh
Remote
Shimano Steps E7000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.41 mm | 1.41 mm | 1.38 mm | 1.35 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 699 mm | 721 mm | 734 mm | 760 mm | 785 mm |
| Rake | 51 mm | 51 mm | 52 mm | 52 mm | 52 mm |
| Trail | 100 mm | 100 mm | 99 mm | 99 mm | 99 mm |
| Stack | 587 mm | 591 mm | 617 mm | 631 mm | 644 mm |
| Reach | 398 mm | 418 mm | 438 mm | 458 mm | 478 mm |
| Top Tube Length | 565 mm | 587 mm | 614 mm | 638 mm | 662 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 420 mm | 430 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66.3 ° | 66.3 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 441 mm | 441 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1139 mm | 1161 mm | 1175 mm | 1201 mm | 1226 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 763 mm | 767 mm | 782 mm | 788 mm | 791 mm |
| Front Travel | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Rear Travel | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 175 cm | 184 cm | 192 cm | cm |
Model Overview
Neuron:ON 5.0 is part of the Canyon E Neuronon model. Canyon launched 27 e-bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Canyon Neuron:ON 5.0 2019 is the most affordable e-bike of this model and has a price of 3078$. On the other hand, Canyon Neuron:ON 7.0 2019, is the most expensive and costs 4140$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Canyon Neuron:ON 5.0 price was 3078$. Comparing this to the average Trail e-bike price, we see that the price is 9.32% smaller.
Trail e-bikes average weight
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly lighter than average, Neuron:ON 5.0 has a weight of 22.7 kg (50.04 lbs). To sum up, it’s 4.41% lighter than the average weight of Trail e-bikes.
Overview of components
Fork
The Neuron:ON 5.0 comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Canyon Neuron:ON 5.0 e-bike has the RockShox Deluxe R model installed, and has a travel of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Canyon Neuron:ON 5.0 2019, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Neuron:ON 5.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
