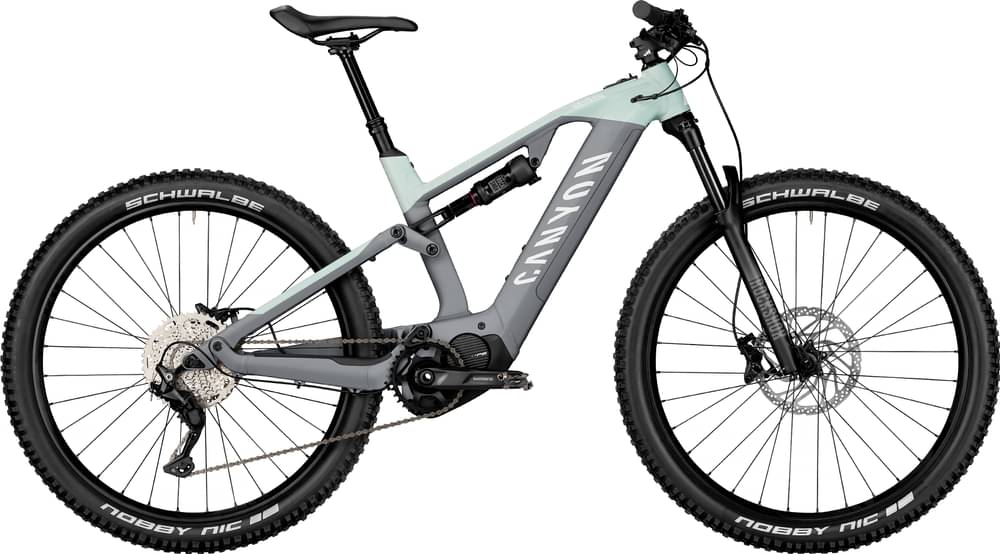

Canyon Neuron:ON 7 WMN 2022
2022 E-bike
Estimate price |
4,243$
Weight | 23.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 120mm -
Travel Rear 130mm -
Fork RockShox Judy
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano STEPS 504-Wh Battery, Lithium-Ion battery, IPX5 water resistant, 3.1 Kg, adaptor for external charging not included -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 173cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Neuron:ON, Aluminium frame, 130mm of rear suspension on Med-XL frames (125mm travel on XS-SM frames), award-winning Triple Phase Suspension design, internal battery, Boost 148 rear spacing, post-style brake mount (180)
Suspension Fork
RockShox Judy Silver, 130mm, 130mm of front suspension. 29er fork. Boost 110 spacing. 30mm stanchions, TurnKey compression lockout, adjustable rebound damping
Rear Shock
RockShox Deluxe Select R, 210x50, 130mm of rear suspension. The Deluxe Select delivers proven damping performance in a lightweight package, highly tunable DebonAir™ spring, adjustable rebound damping.
Drivetrain
Rear Derailleur
Shimano Deore, 10-speed, 10/11-speed, max cassette size: 46T. Weight: 331 g, Shadow RD+ chain stabilizing system
Shift Levers
Shimano Deore, 10-speed, Rear derailleur shifter, 10-speed, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 10-degrees rotation adjustment, 133 g
Cassette
Shimano Deore, 10-speed (11-46), All-steel cog design, Shimano HG freehub compatible, Gear range: 11-46T, weight: 360 g,
Crank
Shimano STEPS e-MTB crank arms, Designed for the rigors of E-MTB riding, 24mm spindle, 170mm crank arms
Bottom Bracket
STEPS, press-fit
Wheels
Rims
Rodi TRYP 30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, Iridium 30 aluminum rim, 30mm inner rim width | TRYP 30 | Shimano MT400, Shimano MT400 rear hub with Boost 148 spacing, TRYP 30 aluminum rim, 30mm inner rim width
Tires
Schwalbe Nobby Nic Performance, 2.6, 29x2.6"
Brakes
Brakes
Shimano MT420 4-piston, front brake, Shimano 4-piston caliper provide 20% more stopping power than equivalent 2-piston version | Shimano MT410 2-piston, rear brake, Deore-caliber, 2-piston disc brake, resin pads
Disk Rotors
Shimano Tourney TX front rotor, A big Shimano RT830 brake rotor delivers equally big stopping power. | Shimano EM300 STEPS rear rotor, 203mm, Specifically designed to work with E-MTB speed sensors. Center lock mounting for quick installation/removal. Resin pad only.
Cockpit
Stem
Canyon:ON Stem, 35mm clamp diameter, 60mm length
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 760mm width, 35mm clamp diameter, 20mm rise
Grips
Canyon Lock-On Grips
Seat
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Seatpost
Iridium Dropper Post, Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter.
Motor & Battery
Motor
Shimano Steps EP8 Motor
Battery
Shimano STEPS 504-Wh Battery, Lithium-Ion battery, IPX5 water resistant, 3.1 Kg, adaptor for external charging not included
Remote
Shimano Steps SC-E7000 Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.43 mm | 1.44 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 341 mm |
| Front Center | 694 mm | 714 mm | 736 mm |
| Rake | 40 mm | 30 mm | 51 mm |
| Trail | 111 mm | 122 mm | 100 mm |
| Stack | 581 mm | 604 mm | 622 mm |
| Reach | 402 mm | 422 mm | 432 mm |
| Top Tube Length | 548 mm | 556 mm | 593 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 440 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 67.5 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 437 mm |
| Wheelbase | 1125 mm | 1145 mm | 1171 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 33 mm |
| Standover Height | 763 mm | 769 mm | 795 mm |
| Front Travel | 120 mm | 120 mm | 130 mm |
| Rear Travel | 130 mm | 130 mm | 130 mm |
| Wheels | 27" | 27" | 29" |
| Rider Max Height | 161 cm | 173 cm | cm |
Model Overview
Neuron:ON 7 WMN belongs to the Canyon E Neuronon model. There are 27 e-bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Canyon Neuron:ON 7 WMN 2022 has a starting price of 3928$. Canyon Neuron:ON 9 2022 on the other hand is the most expensive at 4671$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 3928$. In conclusion, this e-bike price is 16.73% more expensive than the price of the average Trail e-bike.
Average weight for Trail e-bikes
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Canyon Neuron:ON 7 WMN it’s weighing 23.5 kg (51.81 lbs). At this weight, is slightly lighter than average. To sum up, it’s 0.85% lighter than the average weight of Trail e-bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The Neuron:ON 7 WMN comes factory-installed with the RockShox Judy fork. This has a travel range of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this e-bike is RockShox Deluxe Select R, with a travel distance of 130mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the Neuron:ON 7 WMN model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Neuron:ON 7 WMN comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
Canyon Neuron:ON 7 WMN includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
