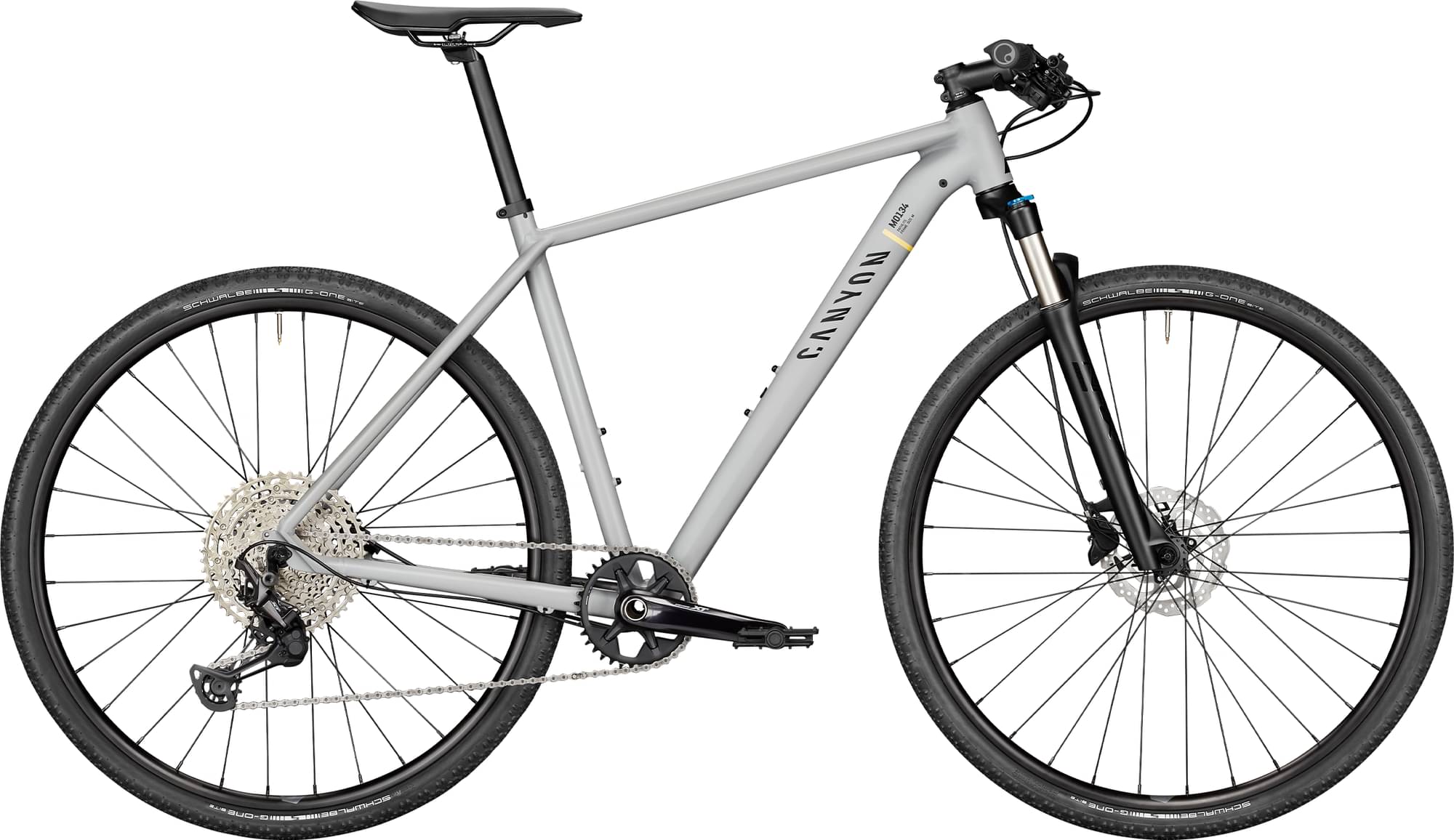

Canyon Pathlite 6 2022
2022 Urban
Estimate price |
1,375$
Weight | 12.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 75mm -
Fork Suntour NRX D
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Pathlite AL
Suspension Fork
SR Suntour NRX-D Air
Drivetrain
Rear Derailleur
Shimano Deore XT M8100 12speed, Precise 1x12 drivetrain.
Shift Levers
Shimano Deore M6100 12s, Right shift lever. Shifts up to 3 gears at a time.
Cassette
Shimano Deore M6100 12speed, Cassette packed with trickle-down performance features. Hyperglide+ tech provides fast, smooth shifting. Beam spider construction cuts weights and boosts stiffness. Gear range: 10-51.
Crank
Shimano XT M8100 36
Bottom Bracket
Shimano BSA BB52
Chain
Shimano CN-M6100 12s
Wheels
Rims
Alexrims DP23 | Shimano M4050 | Alexrims DP23 | Shimano MT401-B S12
Tires
Schwalbe G-One Bite 40mm, More comfort even on harder descents
Brakes
Brakes
Shimano MT200
Disk Rotors
Shimano RT10, Rotor diameter: 160 mm.
Cockpit
Stem
Iridium
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Grips
Ergon GA3, Premium grips design for extra hand support.
Seat
Saddle
Canyon Sport Saddle EP1249
Seatpost
Iridium, Diameter: 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.52 mm | 1.54 mm | 1.54 mm | 1.57 mm | 1.57 mm |
| Front Center | 633 mm | 638 mm | 647 mm | 664 mm | 674 mm | 700 |
| Rake | 46 mm | 47 mm | 47 mm | 46 mm | 46 mm | 47 mm |
| Trail | 71 mm | 70 mm | 70 mm | 72 mm | 72 mm | 70 mm |
| Stack | 572 mm | 594 mm | 609 mm | 628 mm | 646 mm | 670 mm |
| Reach | 379 mm | 392 mm | 396 mm | 407 mm | 411 mm | 428 mm |
| Top Tube Length | 554 mm | 574 mm | 582 mm | 599 mm | 608 mm | 632 mm |
| Seat Tube Angle | 73.3 ° | 73.3 ° | 73.3 ° | 73.3 ° | 73.3 ° | 73.3 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 125 mm | 145 mm | 170 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1061 mm | 1063 mm | 1072 mm | 1089 mm | 1099 mm | 1125 mm |
| Bottom Bracket Drop | 44 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 770 mm | 796 mm | 818 mm | 843 mm | 867 mm | 893 mm |
| Front Travel | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 27" | 29" | 29" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 191 cm | 197 cm | cm |
About this model
Pathlite 6 belongs to the Canyon Pathlite model. Canyon released 41 bikes variations of this model so far. Take a sneak peek at all Canyon Pathlite bikes models from 2022, by clicking here.
Model range prices
Canyon Pathlite 5 WMN 2022 is the cheapest bike model and costs 1061$. Canyon Pathlite 7 2022 is the most expensive one and costs 1698$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Fitness bikes
According to our math, the average price for a trustworthy Fitness bike is 656$. However, even though the average price of a Fitness bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Canyon Pathlite 6 price was 1273$. In conclusion, this bike price is 94.05% higher than the price of the average Fitness bike.
Average weight for Fitness bikes
On a deeper look, we notice that the average weight of a Fitness bike is 11.24 kg (24.78 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Pathlite 6 weighs 12.7 kg (28 lbs) and is considerably heavier than the average. In short, the average Fitness bike weight is 12.99% lower than this one.
Pathlite 6 components
Fork
The Suntour NRX D is included from the factory. It has a travel distance of 75mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, Canyon Pathlite 6 2022, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
