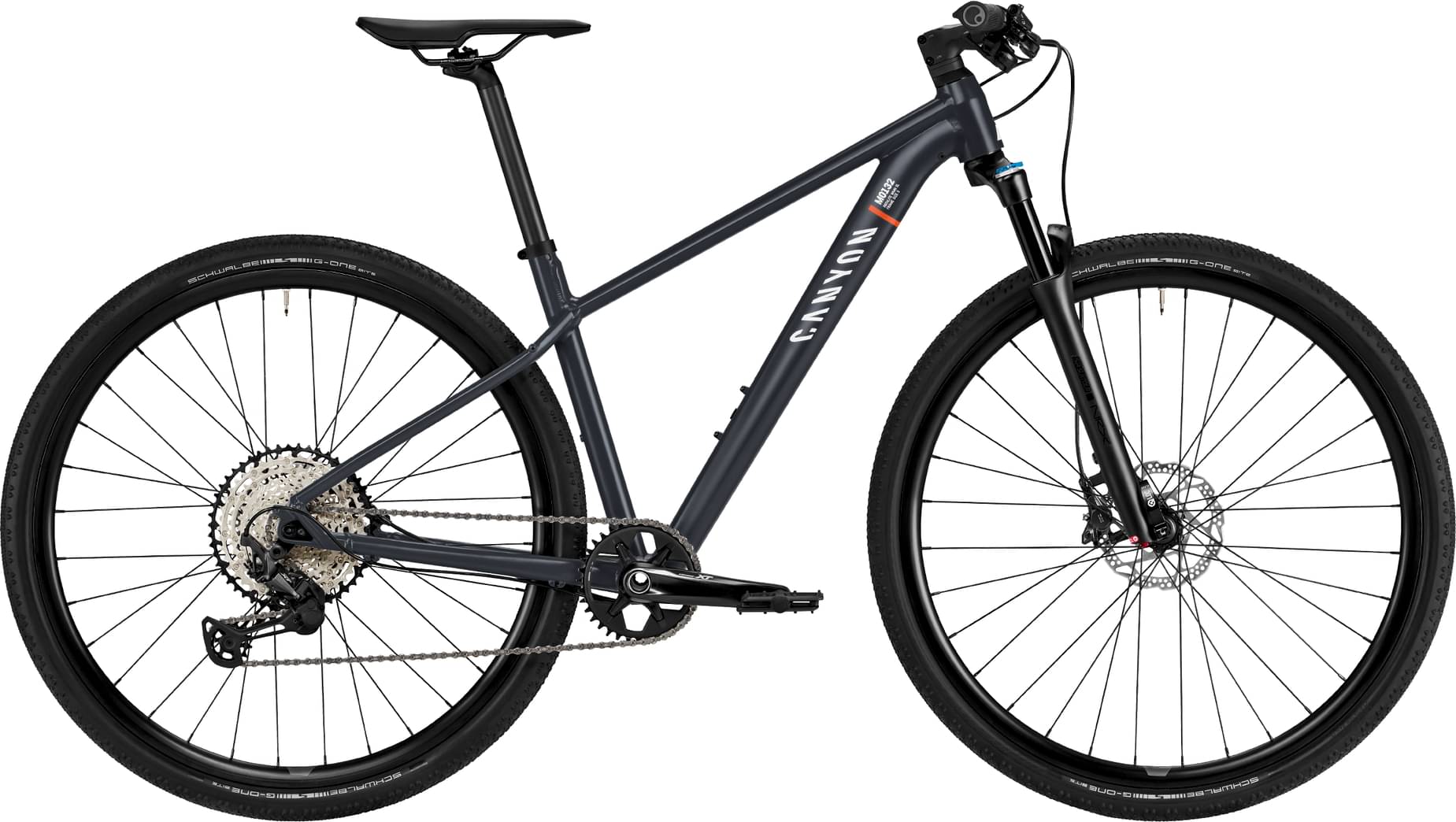

Canyon Pathlite 7 mid-step 2023
2023 Urban
Estimate price |
1,719$
Weight | 11.96 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour NRX E
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
163cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components

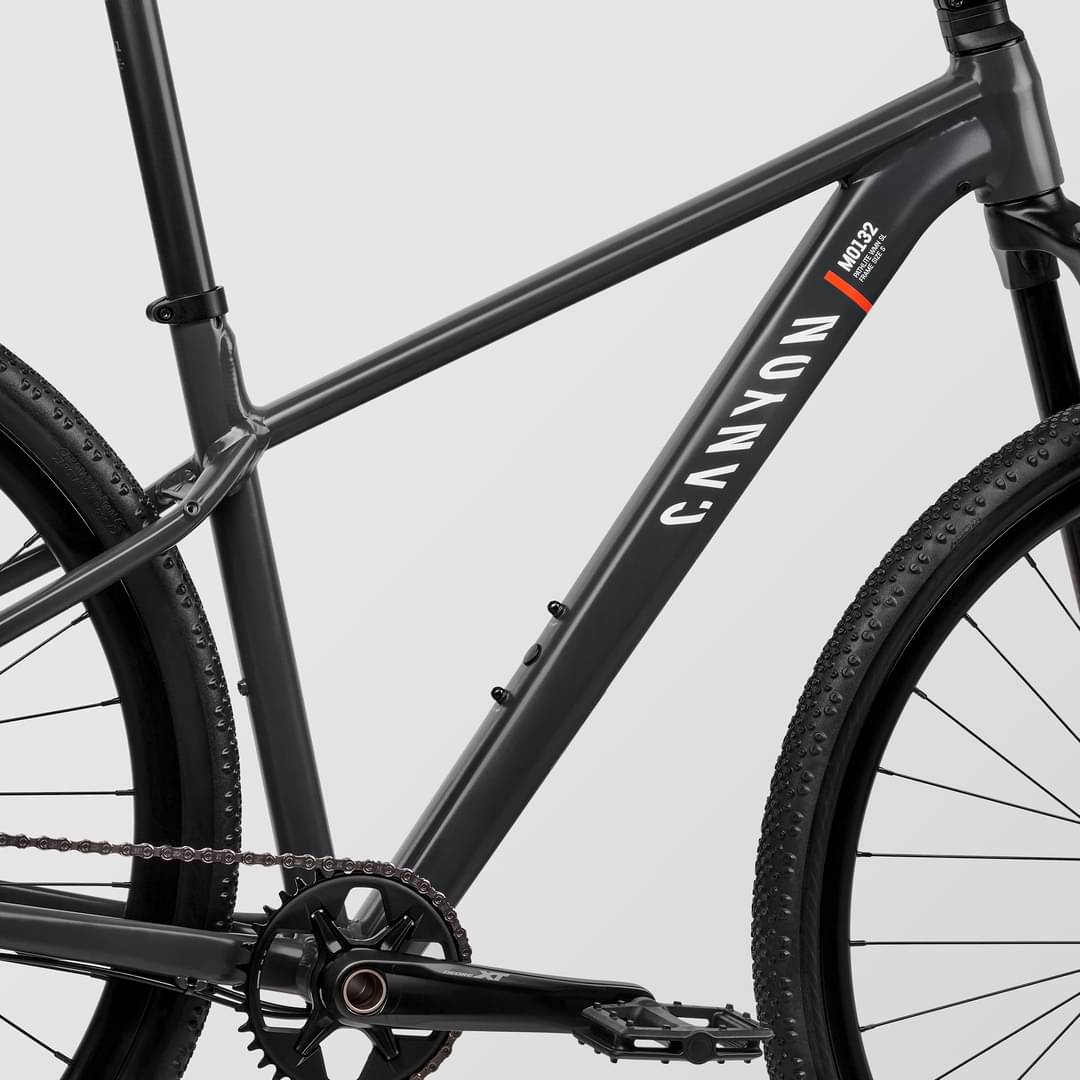

Frame
Frame
Canyon Pathlite AL SL WMN, Axle dimension: 12x142 mm, Material: Aluminium (AL)
Suspension Fork
SR Suntour NRX-E Air, Axle dimension: 15x110 mm, Stanchion Diameter: 30 mm, Travel: 75 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 2.20 kg

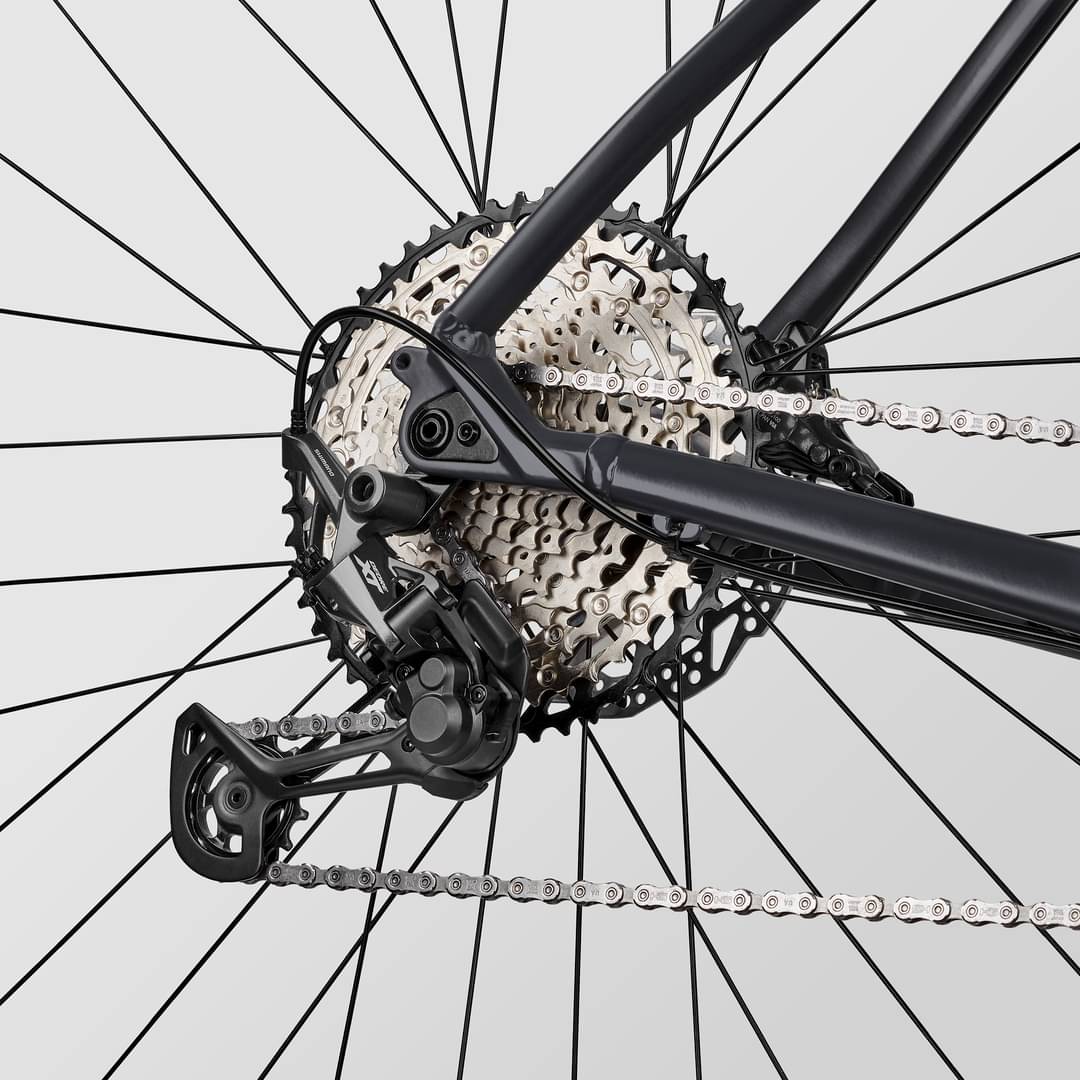

Drivetrain
Rear Derailleur
Shimano Deore XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano SLX M7100
Cassette
Shimano SLX M7100, Number of sprockets: 12 | Shimano CS-M7100 MTB 12-speed Cassette
Crank
Shimano XT M8100 36T, Number of chainrings: 1
Bottom Bracket
Shimano Pressfit BB-MT500, Bottom bracket standard: PF 89,5/92, Weight: 200 g | Ceramicspeed BB92 Shimano PressFit Bottom Bracket | Shimano MTB BB-MT800-PA 89.5/92 Press-Fit Bottom Bracket
Chain
Shimano CN-M6100 | Shimano SM-CN910 12-speed Quick-Link Chain Connector | Shimano CN-M6100 Deore 12-speed Chain 138 Links
Wheels
Rims
Alexrims GX26P, Rotor mount: Center Lock, Rim height: 26 mm | Alexrims GX26P, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 26 mm, Inner width: 23 mm
Tires
Schwalbe G-One Bite 45mm, Width: 45mm, Weight: 540 g | Schwalbe G-One R Super Race 28" x 45mm Gravel Tyre
Brakes
Brakes
Shimano Deore XT M8100

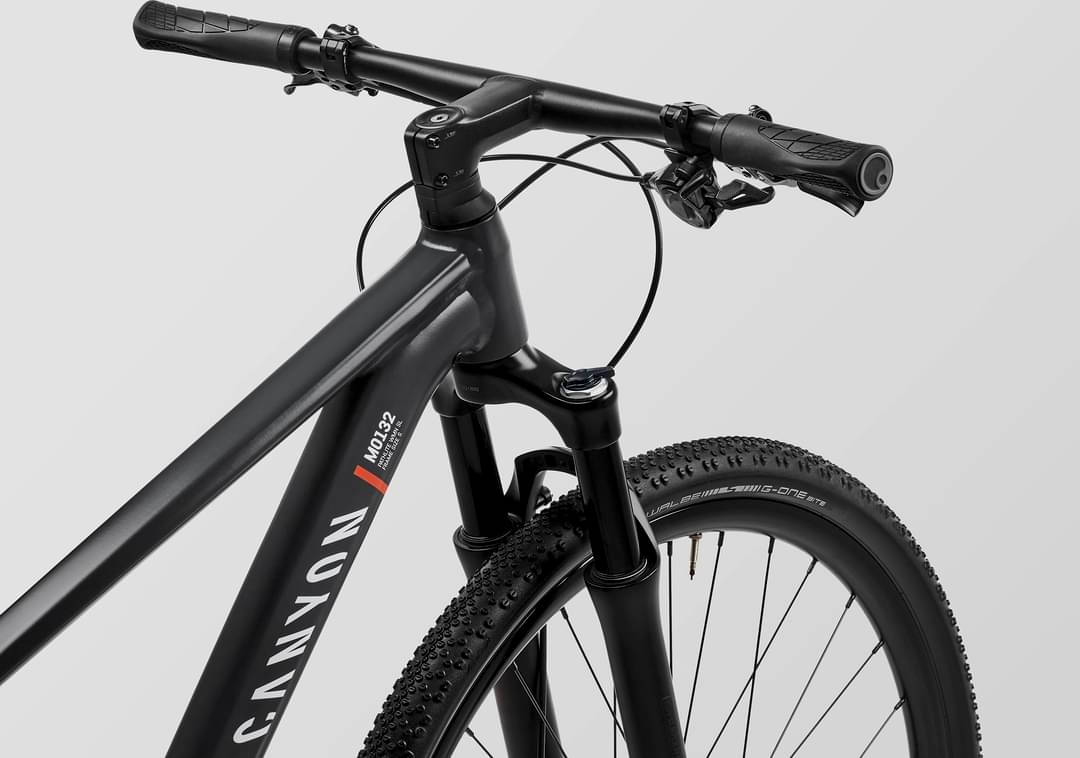

Cockpit
Grips
Ergon GA3
Seat
Saddle
Canyon Sport Saddle EP1249
Seatpost
Canyon SP0041 VCLS CF, Material: Carbon, Setback: 20 mm, Technology: VCLS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.56 mm | 1.6 mm |
| Front Center | 619 mm | 623 mm | 637 mm |
| Rake | 46 mm | 46 mm | 45 mm |
| Trail | 71 mm | 72 mm | 73 mm |
| Stack | 585 mm | 605 mm | 629 mm |
| Reach | 374 mm | 387 mm | 393 mm |
| Top Tube Length | 550 mm | 568 mm | 581 mm |
| Seat Tube Angle | 73.25 ° | 73.25 ° | 73.25 ° |
| Seat Tube Length | 385 mm | 425 mm | 455 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 96 mm | 94 mm | 119 mm |
| Chainstay Length | 422 mm | 427 mm | 427 mm |
| Wheelbase | 1037 mm | 1042 mm | 1056 mm |
| Bottom Bracket Drop | 44 mm | 62 mm | 62 mm |
| Standover Height | 720 mm | 753 mm | 781 mm |
| Front Travel | 75 mm | 75 mm | 75 mm |
| Wheels | 650 | 700 | 700 |
| Rider Max Height | 165 cm | 175 cm | cm |
About this model
Pathlite 7 mid-step is part of the Canyon Pathlite model. Canyon released 45 bikes variations of this model so far. Take a sneak peek at all Canyon Pathlite bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Canyon Pathlite 4 WMN 2023 has a starting price of 740$. Canyon Pathlite 7 mid-step 2023 on the other hand is the most expensive at 1587$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Fitness bikes average price
If you want to purchase a solid Fitness bike, it is important to know that the average cost is 656$. However, you could also get a good Fitness bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Canyon released this model in 2023, its price was 1587$. Comparing the average cost of a Fitness bike to this one, you will see that Pathlite 7 mid-step price is 141.92% more expensive.
Fitness bikes average weight
The average weight for Fitness bikes is 11.24 kg (24.78 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Pathlite 7 mid-step weighs 11.96 kg (26.37 lbs) and is a bit heavier than the average. In conclusion, the average Fitness bike weighs 6.41% less than Pathlite 7 mid-step.
Overview of components

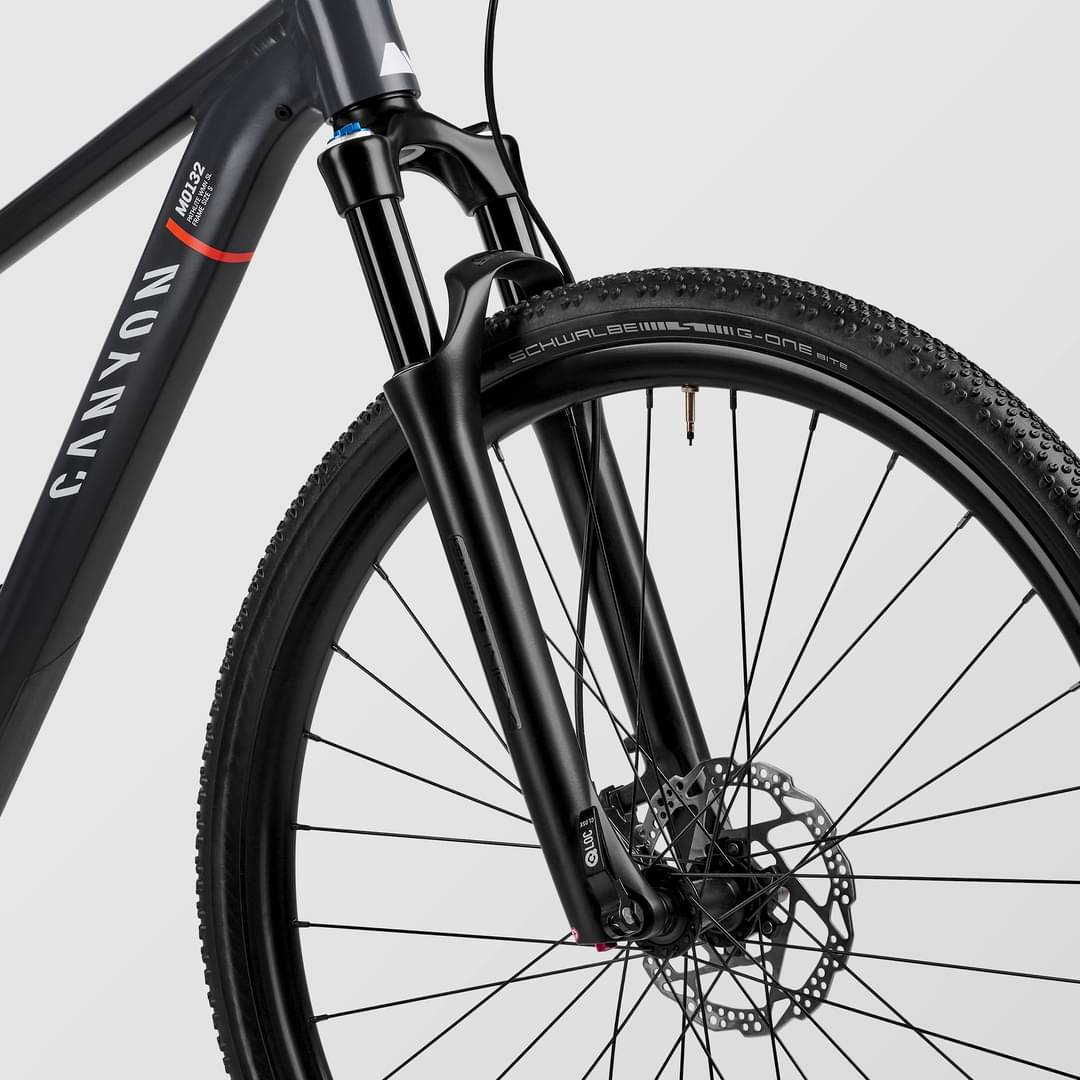

Fork
Canyon Pathlite 7 mid-step 2023 bike is equipped with the Suntour NRX E fork, and has 75mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the Pathlite 7 mid-step bike is equipped with the aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Pathlite 7 mid-step comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
