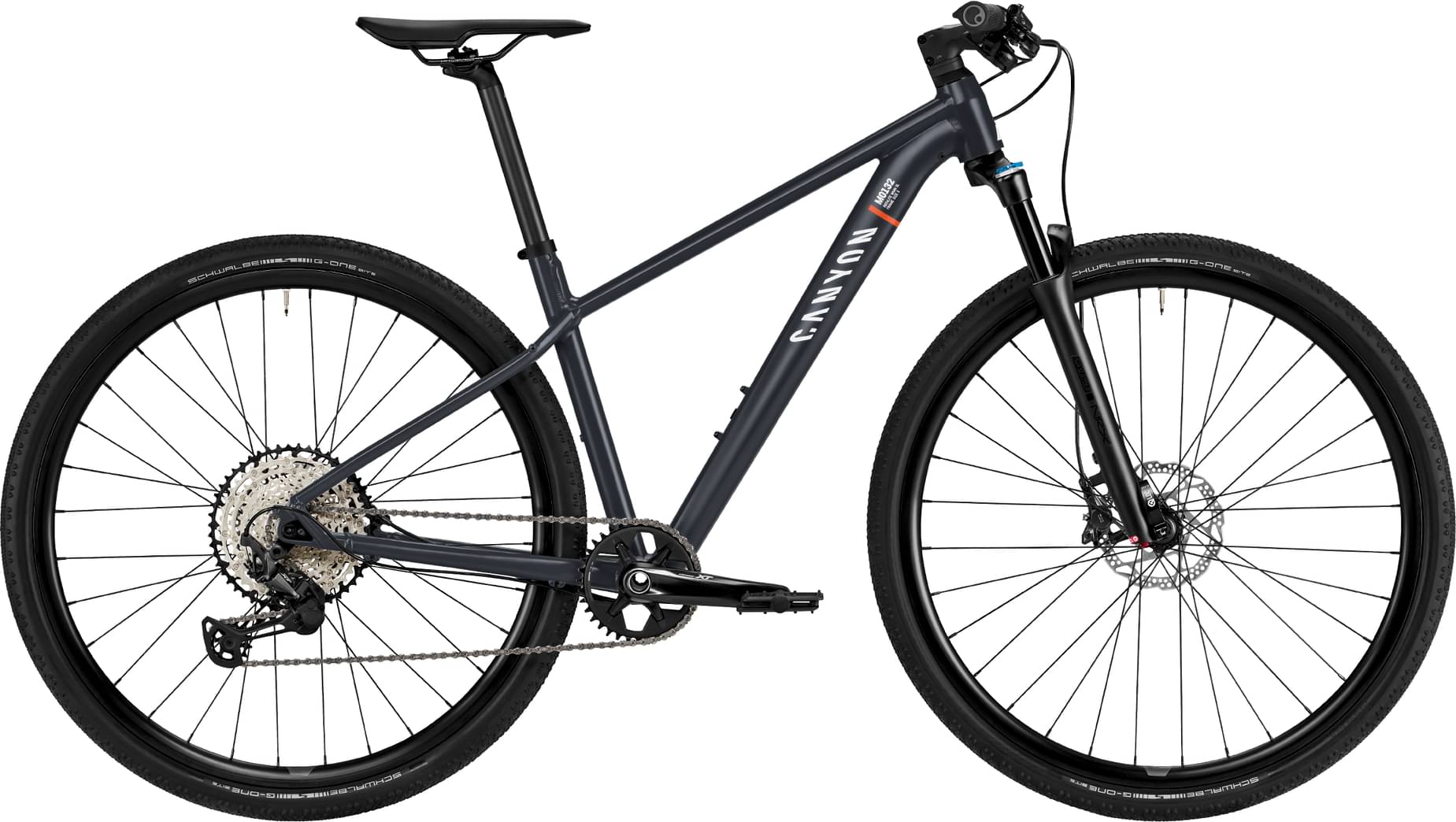

Canyon Pathlite 7 WMN 2023
2023 Urban
Estimate price |
1,719$
Weight | 11.96 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour NRX E
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
163cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components

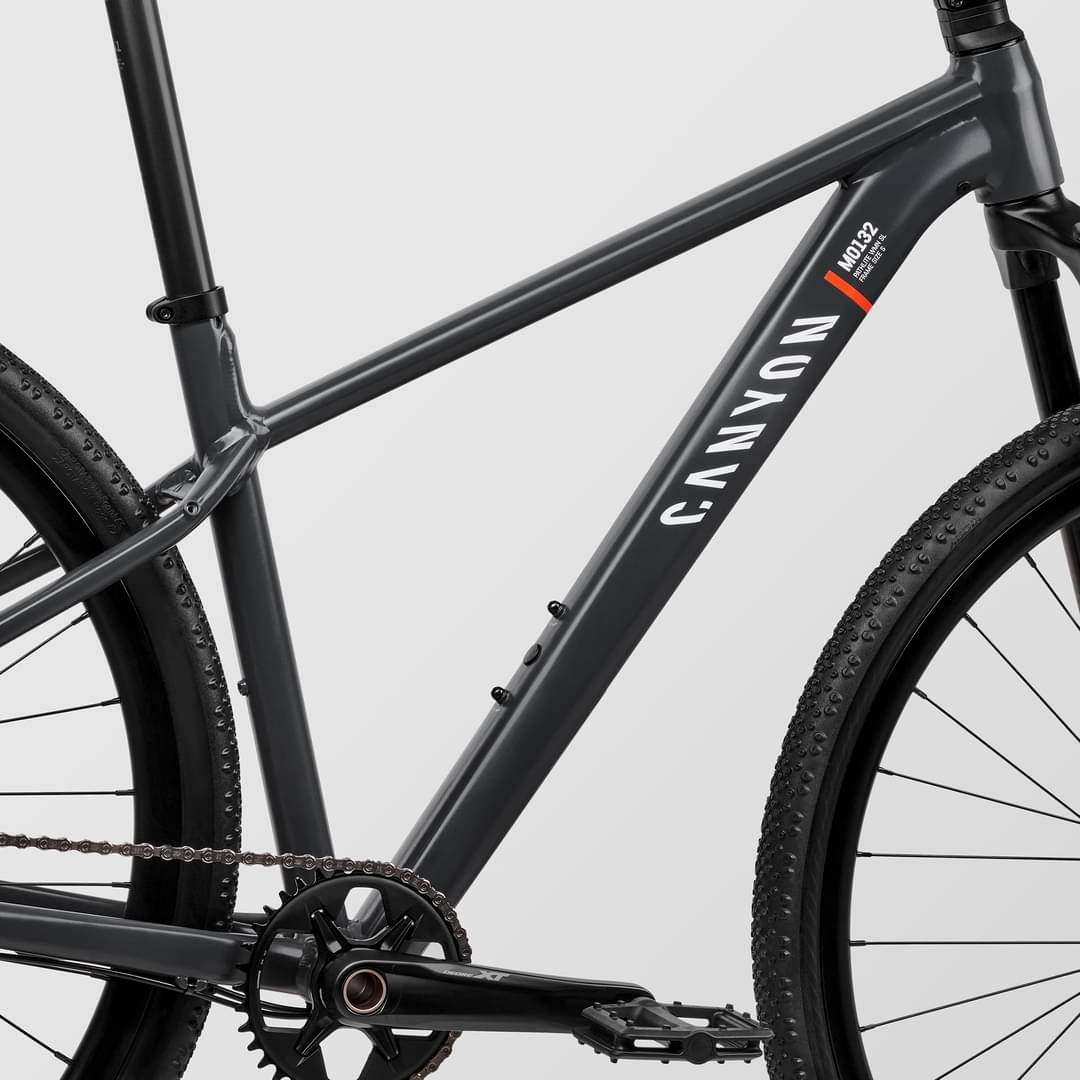

Frame
Frame
Canyon Pathlite AL SL WMN, Axle dimension: 12x142 mm, Material: Aluminium (AL)
Suspension Fork
SR Suntour NRX-E Air, Axle dimension: 15x110 mm, Stanchion Diameter: 30 mm, Travel: 75 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 2.20 kg
Drivetrain

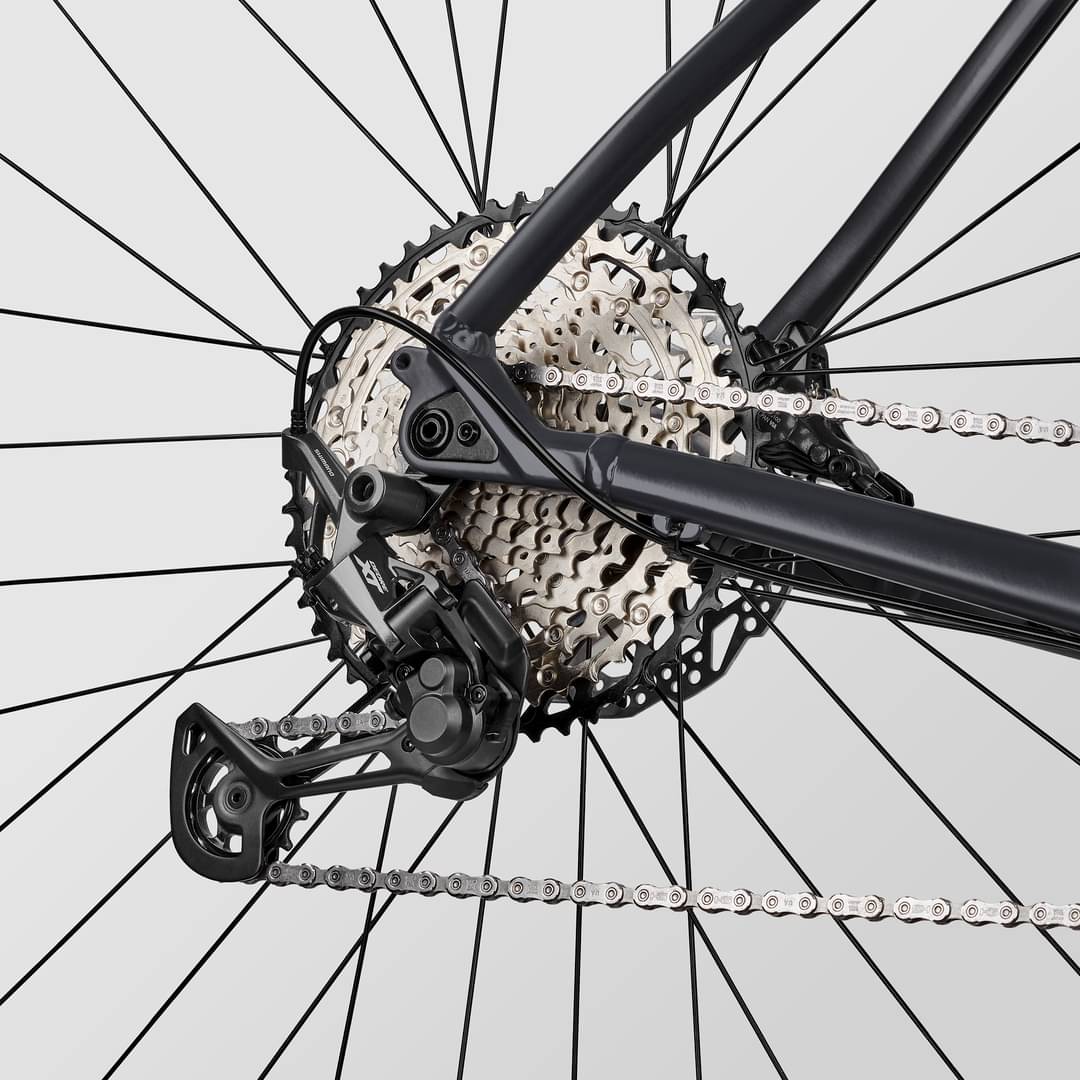

Rear Derailleur
Shimano DEORE XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano SLX M7100
Cassette
Shimano SLX M7100, Number of sprockets: 12 | Shimano CS-M7100 MTB 12-speed Cassette
Crank
Shimano XT M8100 36T, Number of chainrings: 1
Bottom Bracket
Shimano Pressfit BB-MT500, Bottom bracket standard: PF 89,5/92, Weight: 200 g | Ceramicspeed BB92 Shimano PressFit Bottom Bracket | Shimano MTB BB-MT800-PA 89.5/92 Press-Fit Bottom Bracket
Chain
Shimano CN-M6100 | Shimano SM-CN910 12-speed Quick-Link Chain Connector | Shimano CN-M6100 Deore 12-speed Chain 138 Links
Wheels
Rims
Alexrims GX26P, Rotor mount: Center Lock, Rim height: 26 mm | Alexrims GX26P, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 26 mm, Inner width: 23 mm
Tires
Schwalbe G-One Bite 45mm, Width: 45mm, Weight: 540 g | Schwalbe G-One R Super Race 28" x 45mm Gravel Tyre
Brakes
Brakes
Shimano Deore XT M8100

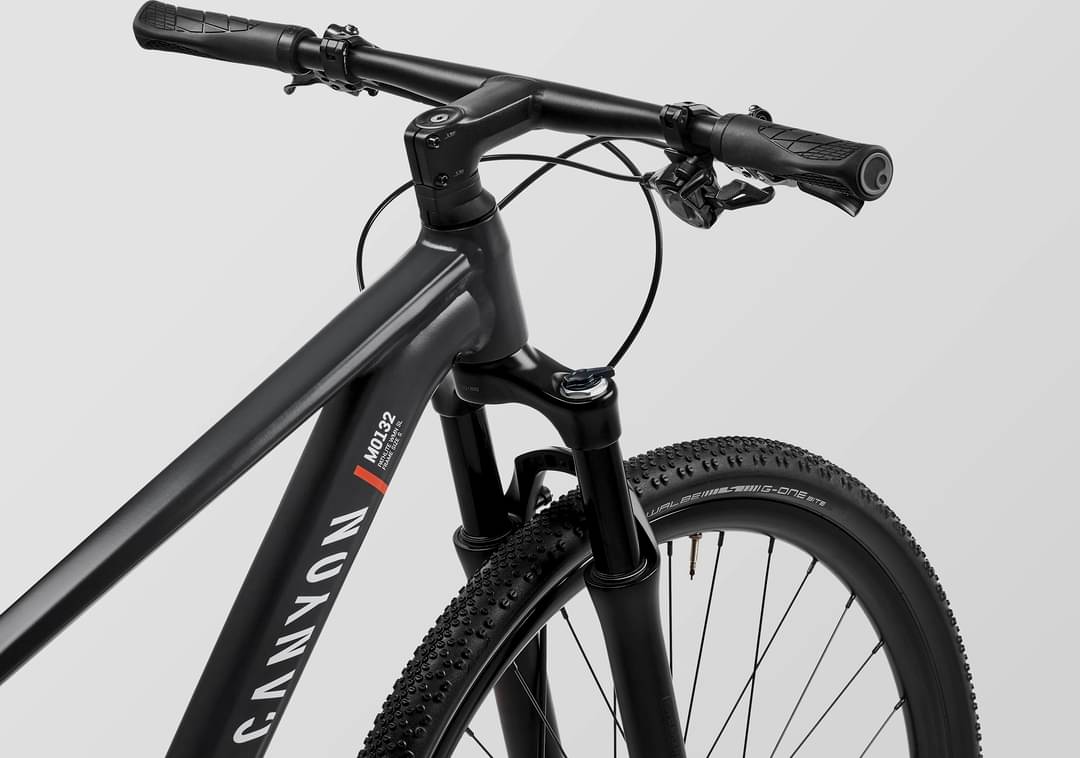

Cockpit
Grips
Ergon GA3
Seat
Saddle
Canyon Sport Saddle EP1249
Seatpost
Canyon SP0041 VCLS CF, Material: Carbon, Setback: 20 mm, Technology: VCLS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.56 mm | 1.6 mm |
| Front Center | 619 mm | 623 mm | 637 mm |
| Rake | 46 mm | 46 mm | 45 mm |
| Trail | 71 mm | 72 mm | 73 mm |
| Stack | 585 mm | 605 mm | 629 mm |
| Reach | 374 mm | 387 mm | 393 mm |
| Top Tube Length | 550 mm | 568 mm | 581 mm |
| Seat Tube Angle | 73.25 ° | 73.25 ° | 73.25 ° |
| Seat Tube Length | 385 mm | 425 mm | 455 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 96 mm | 94 mm | 119 mm |
| Chainstay Length | 422 mm | 427 mm | 427 mm |
| Wheelbase | 1037 mm | 1042 mm | 1056 mm |
| Bottom Bracket Drop | 44 mm | 62 mm | 62 mm |
| Standover Height | 720 mm | 753 mm | 781 mm |
| Front Travel | 75 mm | 75 mm | 75 mm |
| Wheels | 650 | 700 | 700 |
| Rider Max Height | 165 cm | 175 cm | cm |
Model Overview
Pathlite 7 WMN is a Canyon Pathlite model. There are 41 bikes that carry this model name. Take a sneak peek at all Canyon Pathlite bikes models from 2023, by clicking here.
Model range prices
Canyon Pathlite 4 WMN 2023 is the cheapest bike model and costs 742$. Canyon Pathlite 7 WMN 2023 is the most expensive one and costs 1592$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Fitness bikes average price
If you want to purchase a solid Fitness bike, it is important to know that the average cost is 656$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fitness bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1592$. Doing a quick comparison, we notice that Pathlite 7 WMN price is 142.68% more expensive than the average cost of a Fitness bike.
Average weight for Fitness bikes
On a deeper look, we notice that the average weight of a Fitness bike is 11.24 kg (24.78 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 11.96 kg (26.37 lbs), the Pathlite 7 WMN model is a bit heavier than average. To sum up, it’s 6.41% heavier than the average weight of Fitness bikes.
Overview of components

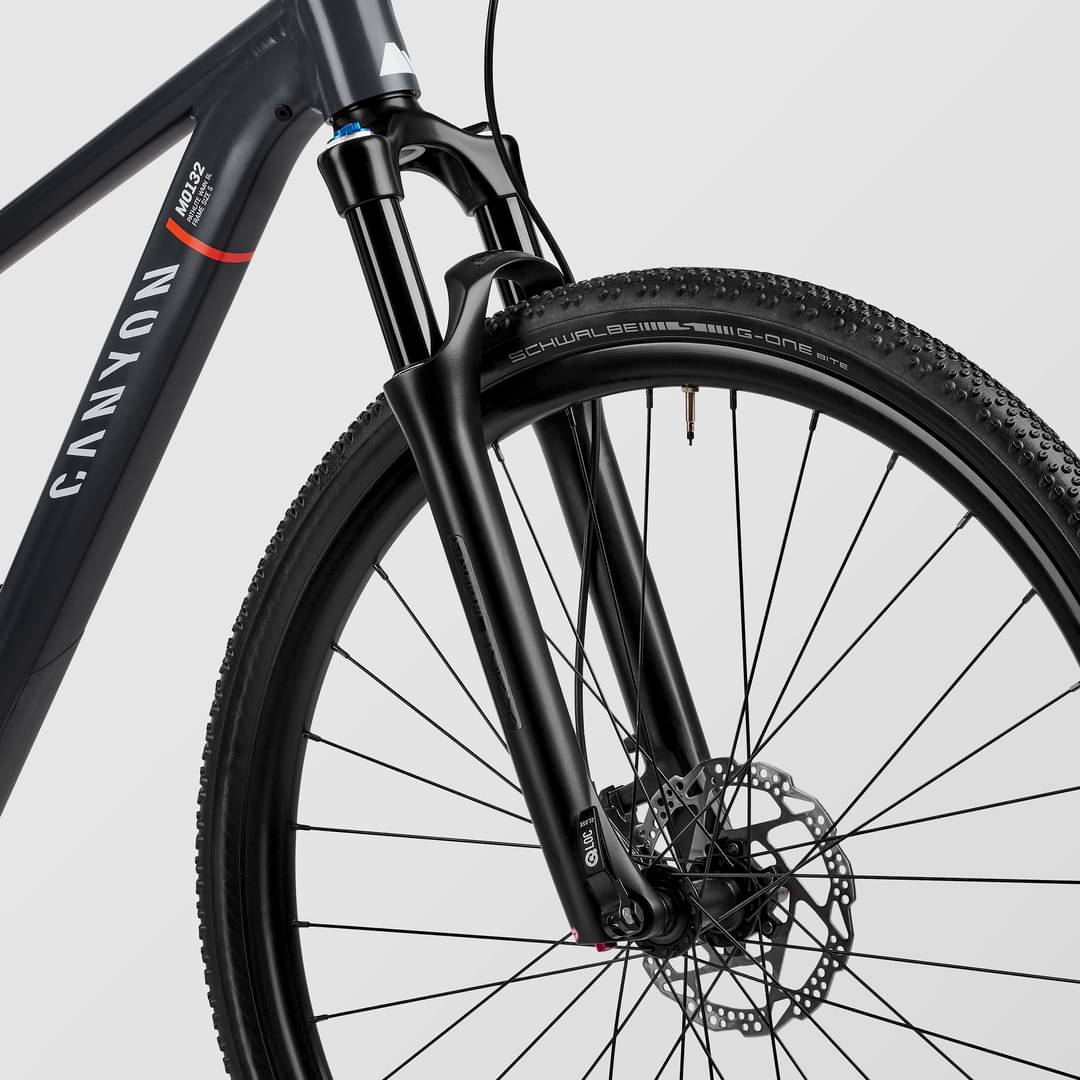

Fork
This bike has the Suntour NRX E fork installed. The fork’s travel is 75mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the Pathlite 7 WMN bike is equipped with the aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Pathlite 7 WMN comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
