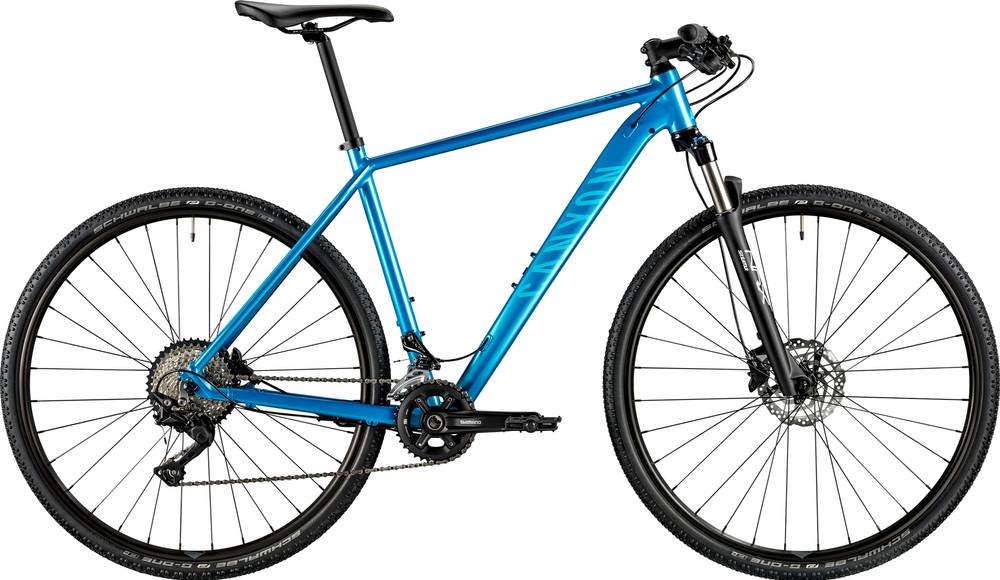

Canyon Pathlite AL 4.0 2020
2020 Urban
Estimate price |
1,031$
Weight | 12.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 700c -
Travel Front 75mm -
Fork SunTour NRX D
-
Groupset Deore, Shimano -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
167cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Pathlite AL, Material: Aluminium, Axle Dimension: 10 x 135 mm, Brake Mount: Post Mount, Interface: 40 mm Kickstand Mount
Suspension Fork
SR Suntour NRX-D Coil, Travel: 75 mm, Technology: LO, Axle Dimension: 9 x 100 mm, Steerer: 1 1/8''
Drivetrain
Rear Derailleur
Shimano Deore M6000 GS
Front Derailleur
Shimano Deore M6020
Shift Levers
Shimano Deore M6000 2/3s | Shimano Deore M6000 10s
Cassette
Shimano HG500 11-42 10s
Crank
Shimano MT500 36/26 36/26
Bottom Bracket
Shimano BSA BB52
Chain
KMC X10-93 10s
Wheels
Rims
Iridium / Shimano TX505 | Iridium / Shimano TX505 SH11
Tires
Schwalbe G-One Bite 40 mm
Brakes
Brakes
Shimano MT200
Disk Rotors
Shimano RT10, Disc Mount: Centerlock
Cockpit
Stem
Iridium
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Grips
Iridium
Headset
Femin FP-H863
Seat
Saddle
Iridium Fitness
Seatpost
Iridium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.52 mm | 1.54 mm | 1.54 mm | 1.57 mm | 1.57 mm |
| Front Center | 633 mm | 638 mm | 647 mm | 664 mm | 674 mm | 700 |
| Rake | 46 mm | 47 mm | 47 mm | 46 mm | 46 mm | 47 mm |
| Trail | 71 mm | 70 mm | 70 mm | 72 mm | 72 mm | 70 mm |
| Stack | 572 mm | 594 mm | 609 mm | 628 mm | 646 mm | 670 mm |
| Reach | 379 mm | 392 mm | 396 mm | 407 mm | 411 mm | 428 mm |
| Top Tube Length | 554 mm | 574 mm | 582 mm | 599 mm | 608 mm | 632 mm |
| Seat Tube Angle | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 125 mm | 145 mm | 170 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1061 mm | 1063 mm | 1072 mm | 1089 mm | 1099 mm | 1125 mm |
| Bottom Bracket Drop | 44 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Front Travel | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 169 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
Model Overview
Pathlite AL 4.0 completes the Canyon Pathlite model. Canyon launched 41 bikes of this model so far. You can easily view all of the Canyon Pathlite bikes models from 2020, here.
Model range prices
Canyon Pathlite AL 4.0 2020 is the cheapest bike model and costs 955$. Canyon Pathlite AL SL 8.0 2020 is the most expensive one and costs 1804$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Fitness bikes
According to our math, the average price for a trustworthy Fitness bike is 656$. However, you could also get a good Fitness bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 955$. If we compare this with the average Fitness bike cost we notice that the price is 45.58% higher.
Average weight for Fitness bikes
Fitness bikes have an average weight of 11.24 kg (24.78 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
considerably heavier than average, Pathlite AL 4.0 has a weight of 12.9 kg (28.44 lbs). In short, the average Fitness bike weight is 14.77% lower than this one.
Pathlite AL 4.0 components
Fork
The Pathlite AL 4.0 comes factory-installed with the SunTour NRX D fork. This has a travel range of 75mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The Pathlite AL 4.0 2020 bike is equipped with aluminum wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Pathlite AL 4.0 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
