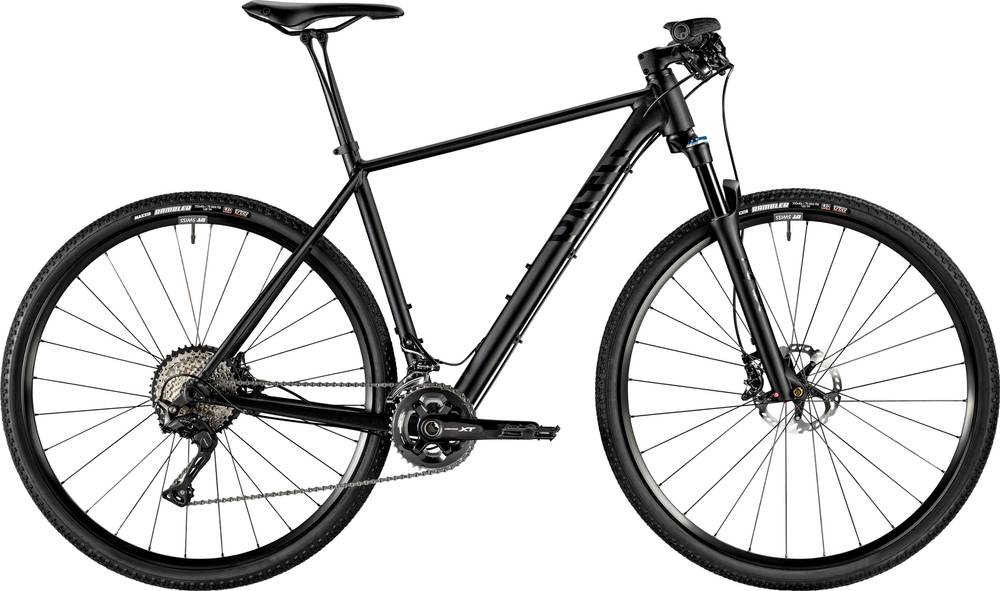

Canyon Pathlite SL 8.0 2019
2019 Urban
Estimate price |
1,977$
Weight | 11.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 700c -
Travel Front 75mm -
Fork SunTour NRX E
-
Groupset XT -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
167cm - 179cm
MD
177cm - 185cm
LG
182cm - 191cm
XL
188cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Pathlite AL SL, Material: Aluminium, Axle Dimension: 12 x 142 mm, Brake Mount: Post Mount
Suspension Fork
SR Suntour NRX-E Air, Travel: 75 mm, Axle Dimension: 15 x 100 mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8000 SGS
Front Derailleur
Shimano Deore XT M8020
Shift Levers
Shimano Deore XT M8000 11s, Clamp: I-Spec II
Cassette
Shimano SLX M7000 11-42 11s
Crank
Shimano Deore XT M8000 38/28 38/28
Bottom Bracket
Shimano Pressfit BB-MT800
Chain
Shimano CN-HG601 11s
Wheels
Rims
DT Swiss X 1850 SH11, Rim Material: Aluminium, Inner Width: 22.5 mm, Freewheel: 3 Pawl
Tires
MAXXIS Rambler F120 40mm
Brakes
Brakes
Shimano Deore XT M8000
Disk Rotors
Shimano RT81, Disc Mount: Centerlock
Cockpit
Grips
Ergon GS2
Seat
Saddle
Ergon SMC4
Seatpost
Canyon S14 VCLS 2.0 CF, Material: Carbon, Setback: -2 mm / 10 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.51 mm | 1.52 mm | 1.54 mm | 1.58 mm | 1.57 mm |
| Front Center | 632 mm | 638 mm | 645 mm | 663 mm | 675 mm | 700 |
| Rake | 46 mm | 46 mm | 47 mm | 46 mm | 46 mm | 46 mm |
| Trail | 71 mm | 72 mm | 70 mm | 72 mm | 72 mm | 72 mm |
| Stack | 570 mm | 593 mm | 600 mm | 625 mm | 649 mm | 672 mm |
| Reach | 379 mm | 392 mm | 396 mm | 407 mm | 411 mm | 428 mm |
| Top Tube Length | 553 mm | 573 mm | 579 mm | 598 mm | 609 mm | 633 mm |
| Seat Tube Angle | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 92 mm | 92 mm | 101 mm | 127 mm | 152 mm | 176 mm |
| Chainstay Length | 412 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1040 mm | 1047 mm | 1054 mm | 1073 mm | 1085 mm | 1110 mm |
| Bottom Bracket Drop | 44 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Front Travel | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 169 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
About this model
Pathlite SL 8.0 completes the Canyon Pathlite model. Canyon released 41 bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Canyon Pathlite 4.0 2019 is the most affordable bike of this model and has a price of 689$. On the other hand, Canyon Pathlite SL 8.0 2019, is the most expensive and costs 1804$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Fitness bikes average price
Our math shows that the average cost of a dependable Fitness bike is 656$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Canyon released this model in 2019, its price was 1804$. Comparing this to the average Fitness bike price, we see that the price is 175% more expensive.
Average weight for Fitness bikes
Fitness bikes weigh an average of 11.24 kg (24.78 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 11.3 kg (24.91 lbs), Canyon bike is slightly heavier than average. In other words, this model is 0.53% heavier than the average Fitness bike.
Overview of components
Fork
This bike has the SunTour NRX E fork installed. The fork’s travel is 75mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the Pathlite SL 8.0 model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Pathlite SL 8.0 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
