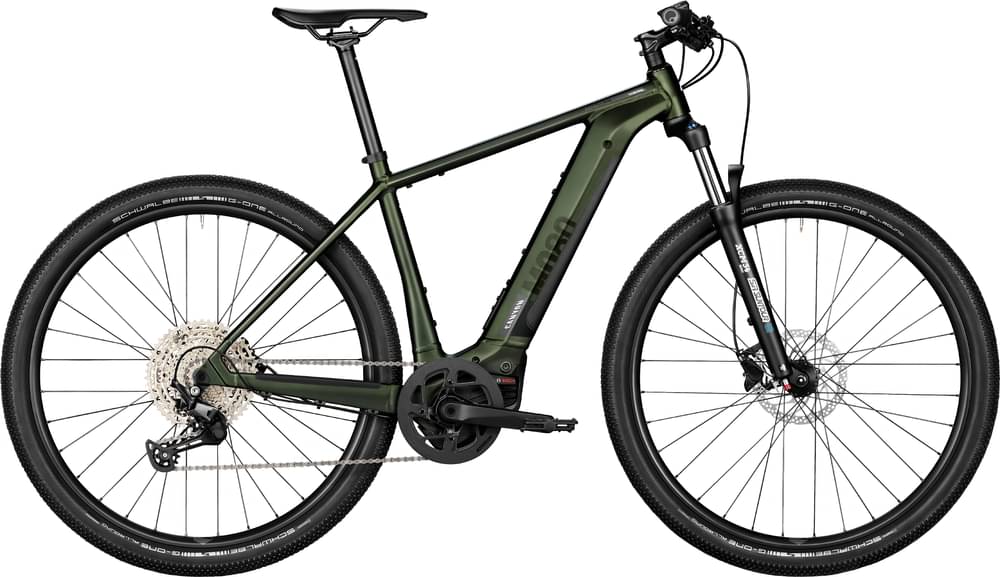

Canyon Pathlite:ON 4 2022
2022 E-bike
Estimate price |
2,866$
Weight | 22.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 500 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 175cm
MD
173cm - 185cm
LG
183cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Pathlite:ON
Suspension Fork
Suntour XCM34, 100mm
Drivetrain
Rear Derailleur
Shimano Deore M5100 11s
Shift Levers
Shimano Deore M5100
Cassette
Shimano Deore M5100 11s 11-51
Crank
FSA CK-220 GEN4 ISIS
Chain
Shimano CN-HG601 11s, Chain featuring SIL-TEC ultra-low friction surface treatment for precise shifting and improved durability.
Wheels
Rims
Alexrims MD25 | Kun Teng XC8F | Alexrims MD25 | Kun Teng 2H3MR
Tires
Schwalbe G-One Allround 57mm
Brakes
Brakes
Shimano MT200
Disk Rotors
Shimano RT30 | Shimano EM300, Disc Mount: Centerlock
Cockpit
Stem
Iridium
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Grips
Ergon GA3, Premium grips with miniwing design for extra hand support.
Seat
Saddle
Canyon Sport Saddle EP1249
Seatpost
Iridium
Motor & Battery
Motor
Bosch Performance Line CX (Gen4)
Battery
Bosch PowerTube 500 Wh
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.63 mm | 1.63 mm | 1.6 mm | 1.61 mm |
| Front Center | 623 mm | 631 mm | 646 mm | 673 mm | 714 mm |
| Rake | 44 mm | 44 mm | 51 mm | 51 mm | 50 mm |
| Trail | 76 mm | 76 mm | 71 mm | 71 mm | 73 mm |
| Stack | 616 mm | 621 mm | 636 mm | 657 mm | 703 mm |
| Reach | 374 mm | 380 mm | 391 mm | 410 mm | 436 mm |
| Top Tube Length | 555 mm | 562 mm | 581 mm | 606 mm | 646 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.23 ° | 73.23 ° | 73.24 ° |
| Seat Tube Length | 440 mm | 465 mm | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70.2 ° | 70.2 ° | 70.2 ° |
| Head Tube Length | 92 mm | 98 mm | 92 mm | 114 mm | 163 mm |
| Chainstay Length | 449 mm | 449 mm | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1064 mm | 1072 mm | 1104 mm | 1131 mm | 1173 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 64 mm | 64 mm | 64 mm |
| Standover Height | 753 mm | 798 mm | 834 mm | 856 mm | 891 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 650 | 650 | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 175 cm | 185 cm | 193 cm | cm |
Model Overview
Pathlite:ON 4 belongs to the Canyon E Pathliteon model. Canyon launched 44 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Canyon Pathlite:ON 4 2022 has a starting price of 2653$. Canyon Pathlite:ON 9.0 2022 on the other hand is the most expensive at 5308$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Fitness e-bikes
According to our calculations, the average cost of a Fitness e-bike that is reliable is 2351$. However, you could also get a good Fitness e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2653$. Comparing the average cost of a Fitness e-bike to this one, you will see that Pathlite:ON 4 price is 12.85% higher.
Average weight for Fitness e-bikes
On a deeper look, we notice that the average weight of a Fitness e-bike is 22.85 kg (50.38 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 22.5 kg (49.6 lbs), Canyon e-bike is slightly lighter than average. To sum up, it’s 1.56% lighter than the average weight of Fitness e-bikes.
Overview of components
Fork
The Pathlite:ON 4 comes factory-installed with the SunTour XCM fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on Pathlite:ON 4 are the aluminum type. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
