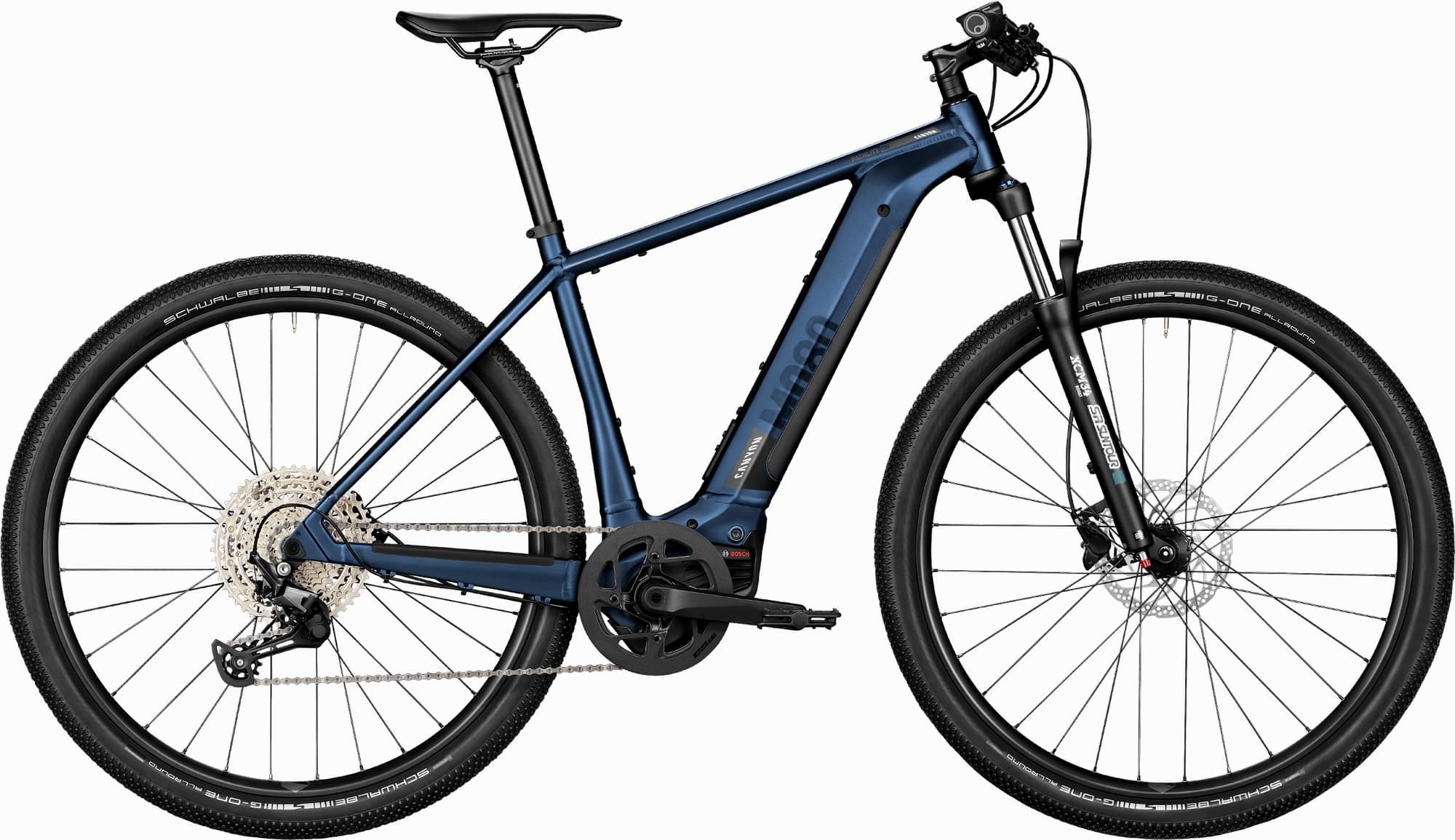

Canyon Pathlite:ON 4 2023
2023 E-bike
Estimate price |
2,866$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 175cm
MD
173cm - 185cm
LG
183cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Pathlite:ON, Axle dimension: 12x148 mm, Material: Aluminium (AL)
Suspension Fork
Suntour XCM34, 100mm, Travel: 100 mm
Drivetrain
Rear Derailleur
Shimano Deore M5100 11s, Cage length: long
Shift Levers
Shimano Deore M5100 11s
Cassette
SunRace CSMS8 11s 11-51T, Number of sprockets: 11
Crank
FSA CK-220 GEN4 ISIS
Chain
Shimano CN-HG601 11s, Chain featuring SIL-TEC ultra-low friction surface treatment for precise shifting and improved durability.
Wheels
Rims
Alexrims MD25 | Shimano MT400, Rotor mount: Center Lock, Wheelsize: 29" | Alexrims MD25 | Shimano MT400 SH11, Rotor mount: Center Lock, Wheelsize: 29"
Tires
Schwalbe G-One Allround 57mm, Width: 2.25"
Brakes
Brakes
Promax DC925, Number of pistons: 2
Cockpit
Stem
Iridium, Iridium, Fork steer tube diameter: 1 1/8"
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Grips
Ergon GA3, Premium grips design for extra hand support.
Seat
Saddle
Canyon Sport Saddle EP1249, Canyon Sport Saddle
Seatpost
Iridium, Clamp diameter: 30,9 mm, Material: Aluminium (AL)
Motor & Battery
Motor
Bosch Performance Line CX
Battery
Bosch PowerTube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.63 mm | 1.63 mm | 1.6 mm | 1.61 mm |
| Front Center | 623 mm | 631 mm | 646 mm | 673 mm | 714 mm |
| Rake | 44 mm | 44 mm | 51 mm | 51 mm | 50 mm |
| Trail | 76 mm | 76 mm | 71 mm | 71 mm | 73 mm |
| Stack | 616 mm | 621 mm | 636 mm | 657 mm | 703 mm |
| Reach | 374 mm | 380 mm | 391 mm | 410 mm | 436 mm |
| Top Tube Length | 555 mm | 562 mm | 581 mm | 606 mm | 646 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.23 ° | 73.23 ° | 73.24 ° |
| Seat Tube Length | 440 mm | 465 mm | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70.2 ° | 70.2 ° | 70.2 ° |
| Head Tube Length | 92 mm | 98 mm | 92 mm | 114 mm | 163 mm |
| Chainstay Length | 449 mm | 449 mm | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1064 mm | 1072 mm | 1104 mm | 1131 mm | 1173 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 64 mm | 64 mm | 64 mm |
| Standover Height | 753 mm | 798 mm | 834 mm | 856 mm | 891 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 175 cm | 185 cm | 193 cm | cm |
Model Overview
Pathlite:ON 4 is a Canyon E Pathliteon model. There are 44 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Canyon Pathlite:ON 4 2023 has a starting price of 2653$. Canyon Pathlite:ON 9 LTD SUV 2023 on the other hand is the most expensive at 5839$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Fitness e-bikes average price
If you want to purchase a solid Fitness e-bike, it is important to know that the average cost is 2351$. However, this doesn’t mean that if you spend less money on a Fitness e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Canyon released this model in 2023, its price was 2653$. Doing a quick comparison, we notice that Pathlite:ON 4 price is 12.85% higher than the average cost of a Fitness e-bike.
Pathlite:ON 4 components
Fork
Canyon Pathlite:ON 4 2023 e-bike is equipped with the Suntour XCM fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Canyon Pathlite:ON 4 2023, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Pathlite:ON 4 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
