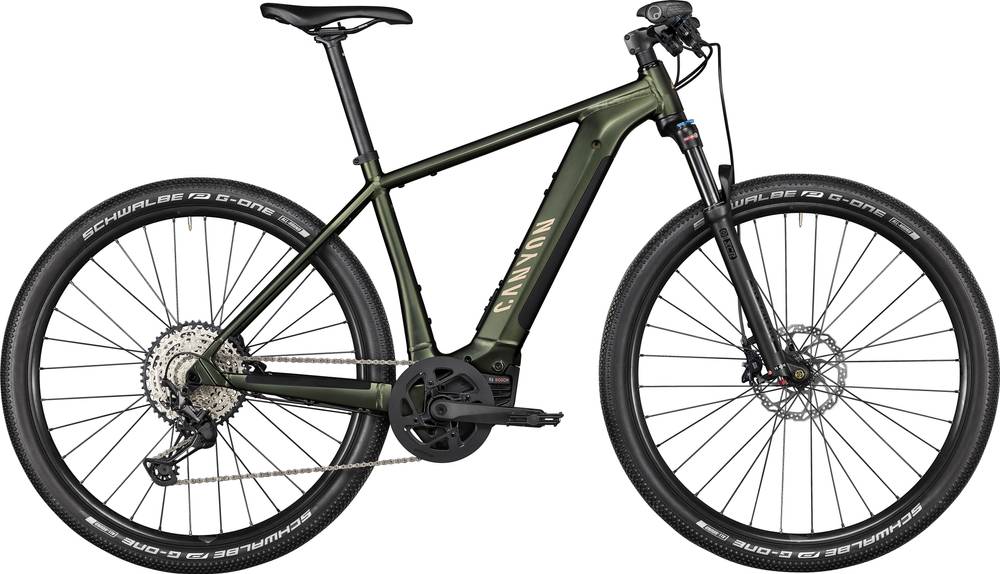

Canyon Pathlite:ON 6.0 2020
2020 E-bike
Estimate price |
3,325$
Weight | 21.15 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 29" -
Travel Front 100mm -
Fork SunTour XCR 34
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
169cm - 177cm
MD
175cm - 185cm
LG
183cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Pathlite:ON, Material: Aluminium, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180, Interface: 40 mm Kickstand Mount
Suspension Fork
SR Suntour XCR34 Air
Drivetrain
Rear Derailleur
Shimano Deore XT M8100 SGS
Shift Levers
Shimano SLX M7100 12s, Clamp: I-Spec EV
Cassette
Shimano SLX M710012 10-51 12s
Crank
FSA CK-220 GEN4 ISIS
Wheels
Rims
Alexrims MD25 | Shimano MT400 | Alexrims MD25 | Shimano MT510 SH12
Tires
Schwalbe G-One Allround 57 mm
Brakes
Brakes
Shimano SLX M7100
Disk Rotors
Shimano RT54 | Shimano EM300, Disc Mount: Centerlock
Cockpit
Grips
Ergon GS2
Seat
Saddle
Iridium One Fitness
Seatpost
Iridium
Motor & Battery
Motor
Bosch Performance Line CX (Gen4)
Battery
Bosch PowerTube 500 Wh
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.63 mm | 1.63 mm | 1.6 mm | 1.61 mm |
| Front Center | 623 mm | 631 mm | 646 mm | 673 mm | 714 mm |
| Rake | 44 mm | 44 mm | 51 mm | 51 mm | 50 mm |
| Trail | 76 mm | 76 mm | 71 mm | 71 mm | 73 mm |
| Stack | 616 mm | 621 mm | 636 mm | 657 mm | 703 mm |
| Reach | 374 mm | 380 mm | 391 mm | 410 mm | 436 mm |
| Top Tube Length | 555 mm | 562 mm | 581 mm | 606 mm | 646 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.2 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 440 mm | 465 mm | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70.2 ° | 70.2 ° | 70.2 ° |
| Head Tube Length | 92 mm | 98 mm | 92 mm | 114 mm | 163 mm |
| Chainstay Length | 449 mm | 449 mm | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1064 mm | 1072 mm | 1104 mm | 1131 mm | 1173 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 64 mm | 64 mm | 64 mm |
| Standover Height | 753 mm | 798 mm | 834 mm | 856 mm | 891 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 650 | 650 | 29" | 29" | 29" |
| Rider Max Height | 171 cm | 177 cm | 185 cm | 193 cm | cm |
About this model
Pathlite:ON 6.0 completes the Canyon E Pathliteon model. 44 e-bikes variations carry this model name so far. Take a sneak peek at all Canyon E Pathliteon e-bikes models from 2020, by clicking here.
Model range prices
Canyon Pathlite:ON 5.0 2020 is the most economical model, with a starting price of 2760$. Canyon Pathlite:ON 9.0 2020 on the other hand costs 5308$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Fitness e-bikes average price
Our math shows that the average cost of a dependable Fitness e-bike is 2351$. However, this doesn’t mean that if you spend less money on a Fitness e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Canyon Pathlite:ON 6.0 price was 3078$. Doing a quick comparison, we notice that Pathlite:ON 6.0 price is 30.92% more expensive than the average cost of a Fitness e-bike.
Fitness e-bikes average weight
Fitness e-bikes have an average weight of 22.85 kg (50.38 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 21.15 kg (46.63 lbs), the Pathlite:ON 6.0 model is a bit lighter than average. In short, the average Fitness e-bike weight is 8.04% higher than this one.
Overview of components
Fork
The SunTour XCR 34 is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The Pathlite:ON 6.0 2020 e-bike is equipped with aluminum wheels when leaving the factory. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Pathlite:ON 6.0 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
