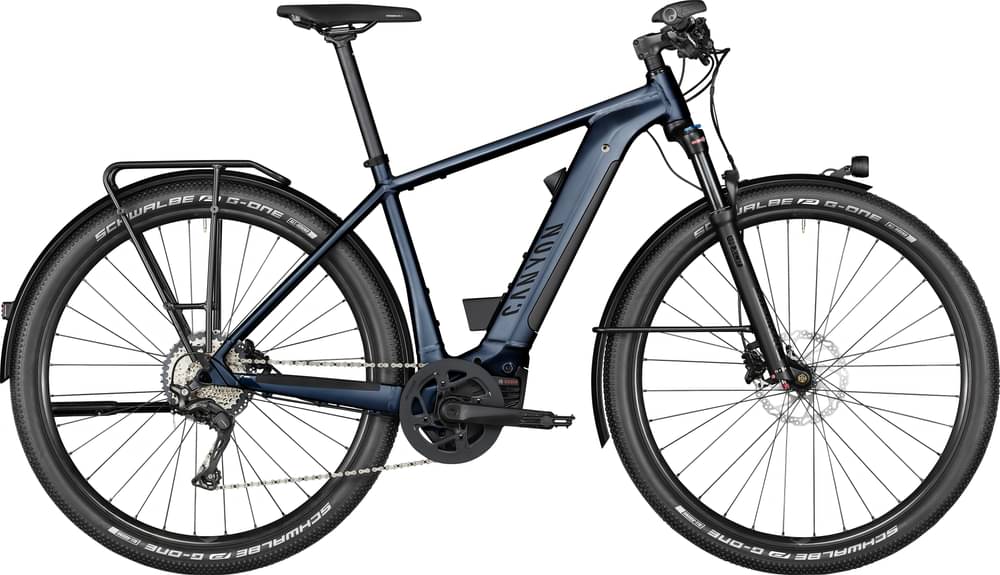

Canyon Pathlite:ON 8.0 2020
2020 E-bike
Estimate price |
5,045$
Weight | 27.04 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 29" -
Travel Front 100mm -
Fork SunTour XCR 34
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 Wh | Bosch PowerPack 500 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
173cm - 185cm
LG
183cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Pathlite:ON, Material: Aluminium, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180, Interface: 40 mm Kickstand Mount
Suspension Fork
SR Suntour XCR34 Air
Drivetrain
Rear Derailleur
Shimano Deore XT, 11-fach
Shift Levers
Shimano SLX M7000 11s, Clamp: I-Spec II
Cassette
Shimano SLX M7000 11-42 11s
Crank
FSA CK-220 GEN4 ISIS
Chain
KMC X11-93 | KMC X11-93 11-speed
Wheels
Rims
Alexrims MD25 | Shimano MT400 | Alexrims MD25 | Shimano MT400 SH11
Tires
Schwalbe G-One Allround 57 mm
Brakes
Brakes
Shimano MT500
Disk Rotors
Shimano EM300, Disc Mount: Centerlock | Shimano RT54
Cockpit
Grips
Ergon GS2
Seat
Saddle
Fizik Essenza
Seatpost
Iridium
Motor & Battery
Motor
Bosch Performance Line CX (Gen4)
Battery
Bosch PowerTube 500 Wh | Bosch PowerPack 500 Wh
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.64 mm | 1.62 mm | 1.63 mm |
| Front Center | 631 mm | 646 mm | 673 mm | 714 mm |
| Rake | 44 mm | 51 mm | 51 mm | 50 mm |
| Trail | 76 mm | 71 mm | 71 mm | 73 mm |
| Stack | 612 mm | 627 mm | 648 mm | 694 mm |
| Reach | 371 mm | 382 mm | 401 mm | 427 mm |
| Top Tube Length | 553 mm | 572 mm | 597 mm | 637 mm |
| Seat Tube Angle | 73.5 ° | 73.2 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 465 mm | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 69.5 ° | 70.2 ° | 70.2 ° | 70.2 ° |
| Head Tube Length | 98 mm | 92 mm | 114 mm | 163 mm |
| Chainstay Length | 440 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1063 mm | 1095 mm | 1122 mm | 1164 mm |
| Bottom Bracket Drop | 63 mm | 64 mm | 64 mm | 64 mm |
| Standover Height | 789 mm | 825 mm | 847 mm | 882 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 650 | 29" | 29" | 29" |
| Rider Max Height | 175 cm | 185 cm | 193 cm | cm |
About this model
Pathlite:ON 8.0 is a Canyon E Pathliteon model. Canyon launched 44 e-bikes of this model so far. You can easily view all of the Canyon E Pathliteon e-bikes models from 2020, here.
Model range prices
Canyon Pathlite:ON 5.0 2020 is the most affordable e-bike of this model and has a price of 2760$. On the other hand, Canyon Pathlite:ON 9.0 2020, is the most expensive and costs 5308$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Fitness e-bikes average price
If you want to purchase a solid Fitness e-bike, it is important to know that the average cost is 2351$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fitness e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2020 and its price was 4671$. Comparing this to the average Fitness e-bike price, we see that the price is 98.68% higher.
Fitness e-bikes average weight
On a deeper look, we notice that the average weight of a Fitness e-bike is 22.85 kg (50.38 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Canyon Pathlite:ON 8.0 it’s weighing 27.04 kg (59.61 lbs). At this weight, is much heavier than average. In conclusion, the average Fitness e-bike weighs 18.34% less than Pathlite:ON 8.0.
Pathlite:ON 8.0 components
Fork
This e-bike has the SunTour XCR 34 fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Canyon Pathlite:ON 8.0 2020, has a aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
