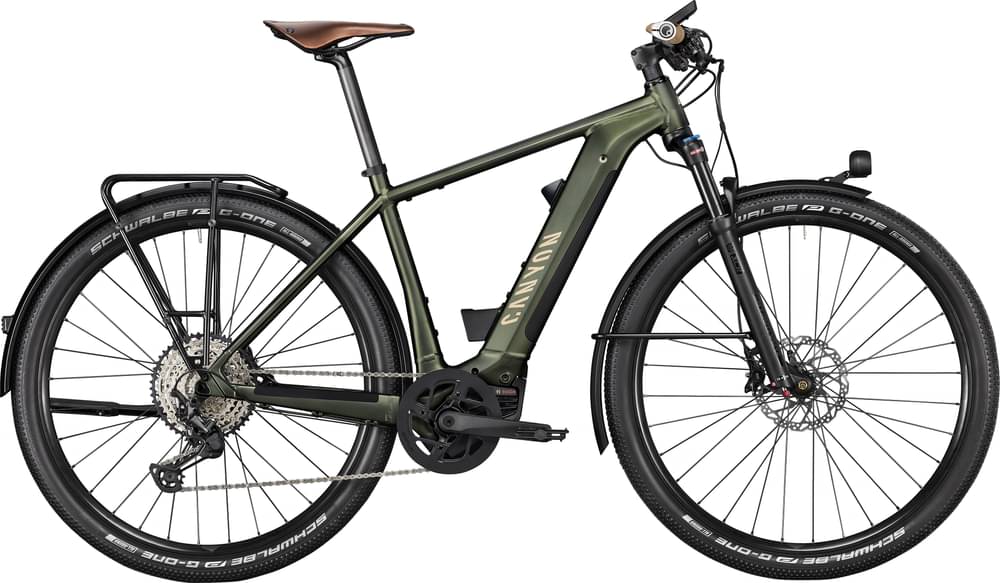

Canyon Pathlite:ON 9.0 2021
2021 E-bike
Estimate price |
5,734$
Weight | 27.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 29" -
Travel Front 100mm -
Fork SunTour XCR 34
-
Groupset XT, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 500 Wh | Bosch PowerPack 500 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
173cm - 185cm
LG
183cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Pathlite:ON, Material: Aluminium, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180, Interface: 40 mm Kickstand Mount
Suspension Fork
SR Suntour XCR34 Air
Drivetrain
Rear Derailleur
Shimano Deore XT, 12-speed, Precise 1x12 drivetrain.
Shift Levers
Shimano Deore XT, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 20-degrees rotation adjustment, 130 g
Cassette
Shimano SLX, 12-speed (10-51), Cassette size: 10-51T. Gear range: 510%.
Crank
FSA CK-220 GEN4 ISIS
Chain
Shimano CN-M7100 12s
Wheels
Rims
Alexrims MD25 | Shimano MT400 | Alexrims MD25 | Shimano MT510 SH12
Tires
Schwalbe G-One Allround 57 mm
Brakes
Brakes
Shimano Deore XT M8100
Disk Rotors
Shimano EM300, Disc Mount: Centerlock | Shimano RT54
Cockpit
Grips
Ergon GP1 BioKork
Seat
Saddle
Brooks C17
Seatpost
Canyon SP0041 VCLS CF, Material: Carbon, Setback: 20 mm, Technology: VCLS
Motor & Battery
Motor
Bosch Performance Line CX (Gen4)
Battery
Bosch PowerTube 500 Wh | Bosch PowerPack 500 Wh
Remote
Bosch Nyon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.64 mm | 1.62 mm | 1.63 mm |
| Front Center | 631 mm | 646 mm | 673 mm | 714 mm |
| Rake | 44 mm | 51 mm | 51 mm | 50 mm |
| Trail | 76 mm | 71 mm | 71 mm | 73 mm |
| Stack | 612 mm | 627 mm | 648 mm | 694 mm |
| Reach | 371 mm | 382 mm | 401 mm | 427 mm |
| Top Tube Length | 553 mm | 572 mm | 597 mm | 637 mm |
| Seat Tube Angle | 73.5 ° | 73.2 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 465 mm | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 69.5 ° | 70.2 ° | 70.2 ° | 70.2 ° |
| Head Tube Length | 98 mm | 92 mm | 114 mm | 163 mm |
| Chainstay Length | 440 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1063 mm | 1095 mm | 1122 mm | 1164 mm |
| Bottom Bracket Drop | 63 mm | 64 mm | 64 mm | 64 mm |
| Standover Height | 789 mm | 825 mm | 847 mm | 882 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 650 | 29" | 29" | 29" |
| Rider Max Height | 175 cm | 185 cm | 193 cm | cm |
About this model
Pathlite:ON 9.0 is a Canyon E Pathliteon model. 44 e-bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Canyon Pathlite:ON 6 2021 is the cheapest e-bike model and costs 3004$. Canyon Pathlite:ON 9.0 2021 is the most expensive one and costs 5308$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Fitness e-bikes
If you want to purchase a solid Fitness e-bike, it is important to know that the average cost is 2351$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Canyon Pathlite:ON 9.0 price was 5308$. Comparing this to the average Fitness e-bike price, we see that the price is 125.78% more expensive.
Fitness e-bikes average weight
On a deeper look, we notice that the average weight of a Fitness e-bike is 22.85 kg (50.38 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Pathlite:ON 9.0 weighs 27.5 kg (60.63 lbs) and is much heavier than the average. In other words, this model is 20.35% heavier than the average Fitness e-bike.
Pathlite:ON 9.0 components
Fork
The Pathlite:ON 9.0 comes factory-installed with the SunTour XCR 34 fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the Pathlite:ON 9.0 model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Pathlite:ON 9.0 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
