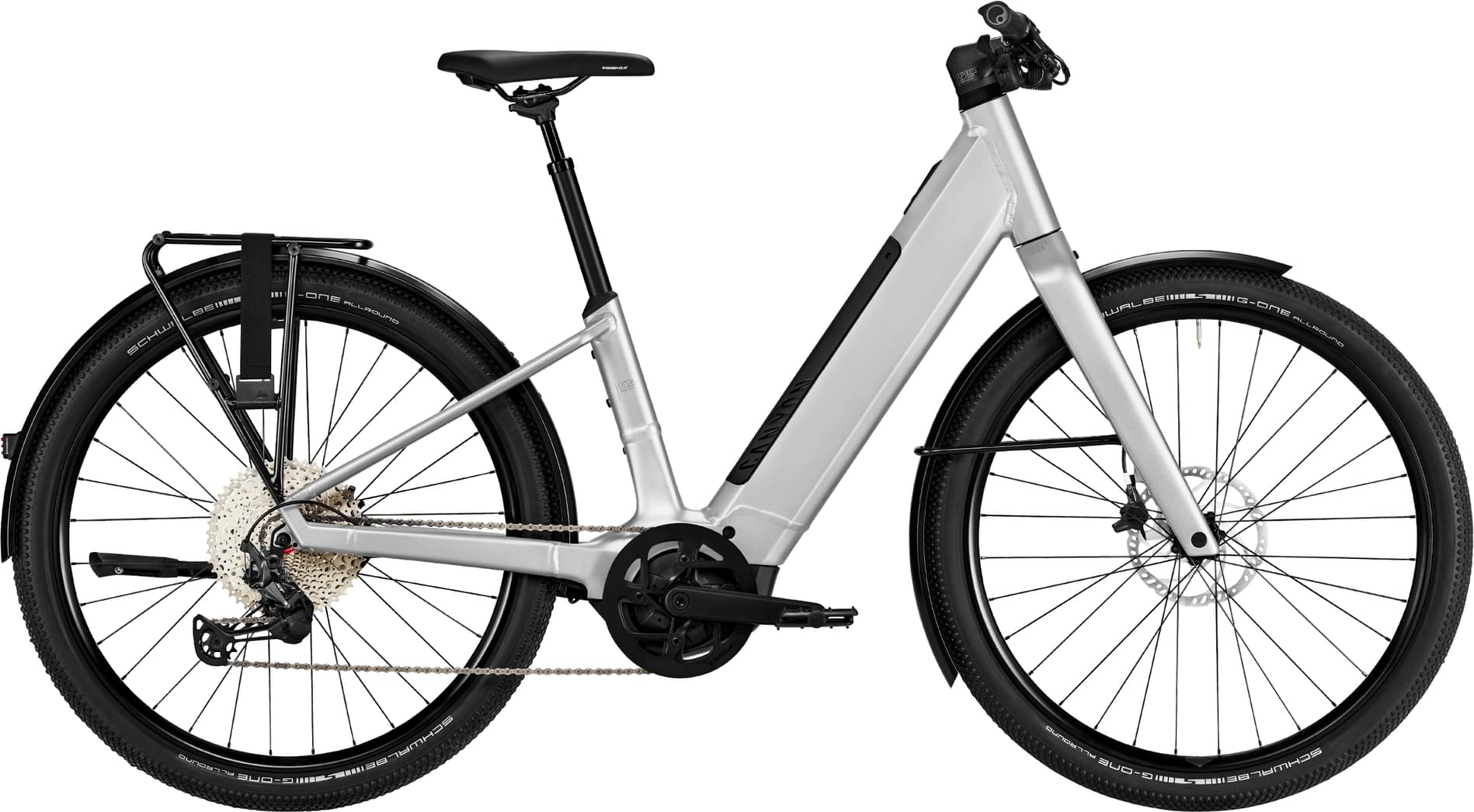

Canyon Precede:ON 6 step-through 2023
2023 E-bike
Estimate price |
3,440$
Weight | 23.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset XT, Deore -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube 500Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 171cm
MD
169cm - 181cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Precede:ON, Material: Aluminium (AL)
Suspension Fork
Canyon FK0093 Disc, Robust, sleek carbon fork., Fork steer tube diameter: 1 1/8", Material: Carbon (CF), Weight: 400 g
Drivetrain

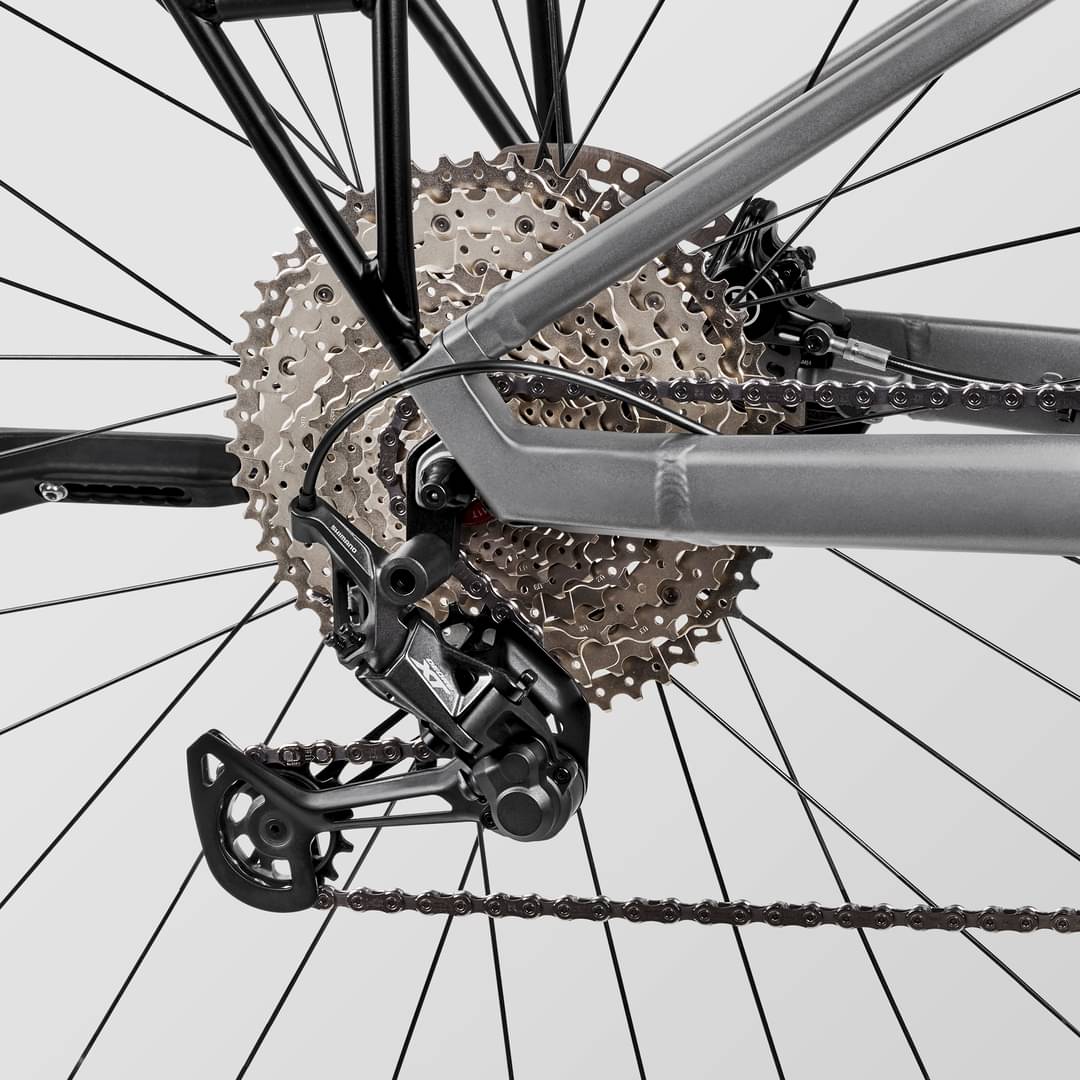

Rear Derailleur
Shimano DEORE XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano DEORE M6100

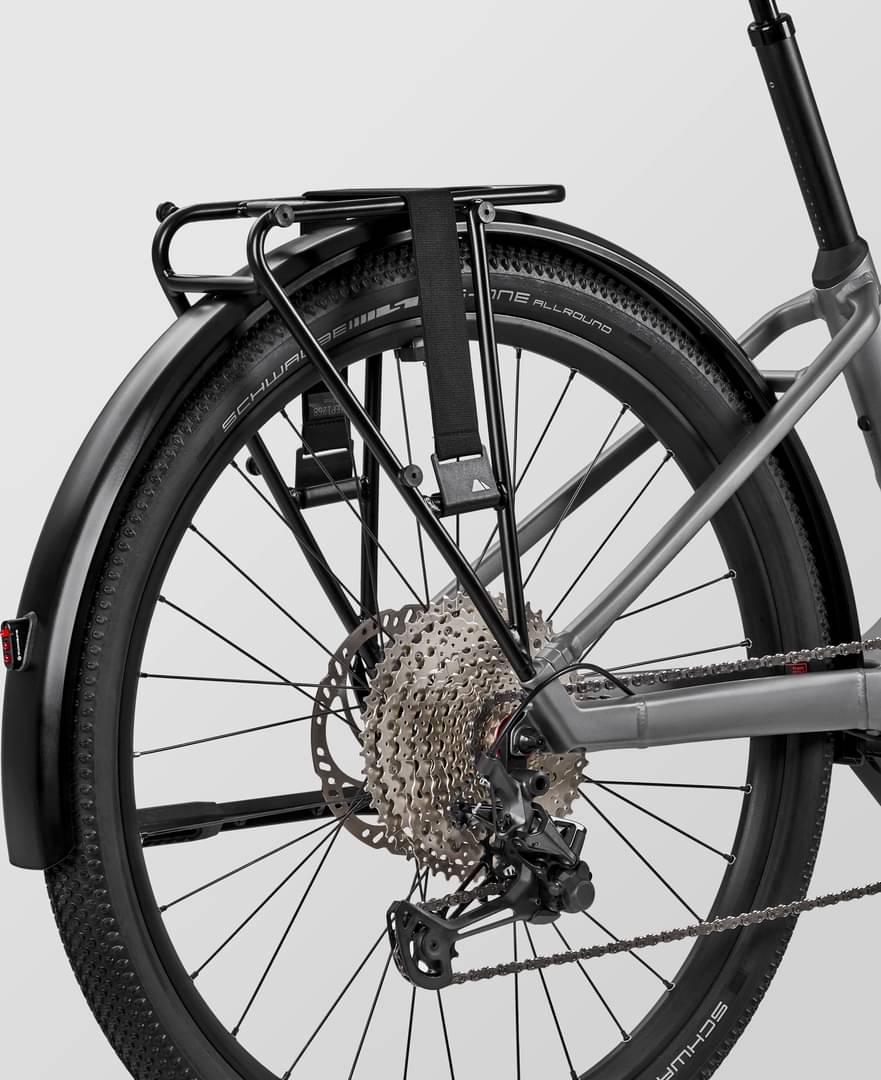

Cassette
SunRace CSMZ800 12s 11-51T, Number of sprockets: 12 | Shimano CS-M6100 Deore 12-speed Cassette 10-51
Crank
Miranda Delta, Number of chainrings: 1
Chain
Shimano CN-M6100 | Shimano SM-CN910 12-speed Quick-Link Chain Connector | Shimano CN-M6100 Deore 12-speed Chain 138 Links
Wheels
Rims
Alexrims MD25 | Promax DR815F, Rim height: 20 mm, Inner width: 25 mm, Weight: 875 g | Alexrims MD25 | Promax DB606R SH11, Rim height: 20 mm, Inner width: 25 mm, Weight: 837 g
Tires
Schwalbe G-One Allround 57mm, Width: 2.25", Weight: 500 g
Brakes
Brakes
Magura MT thirty rear, Number of pistons: 2
Cockpit
Grips
Ergon GA3
Seat
Saddle
SR Royal Essenza+
Seatpost
Iridium Suspension Post, Clamp diameter: 30,9 mm, Material: Aluminium (AL)
Motor & Battery

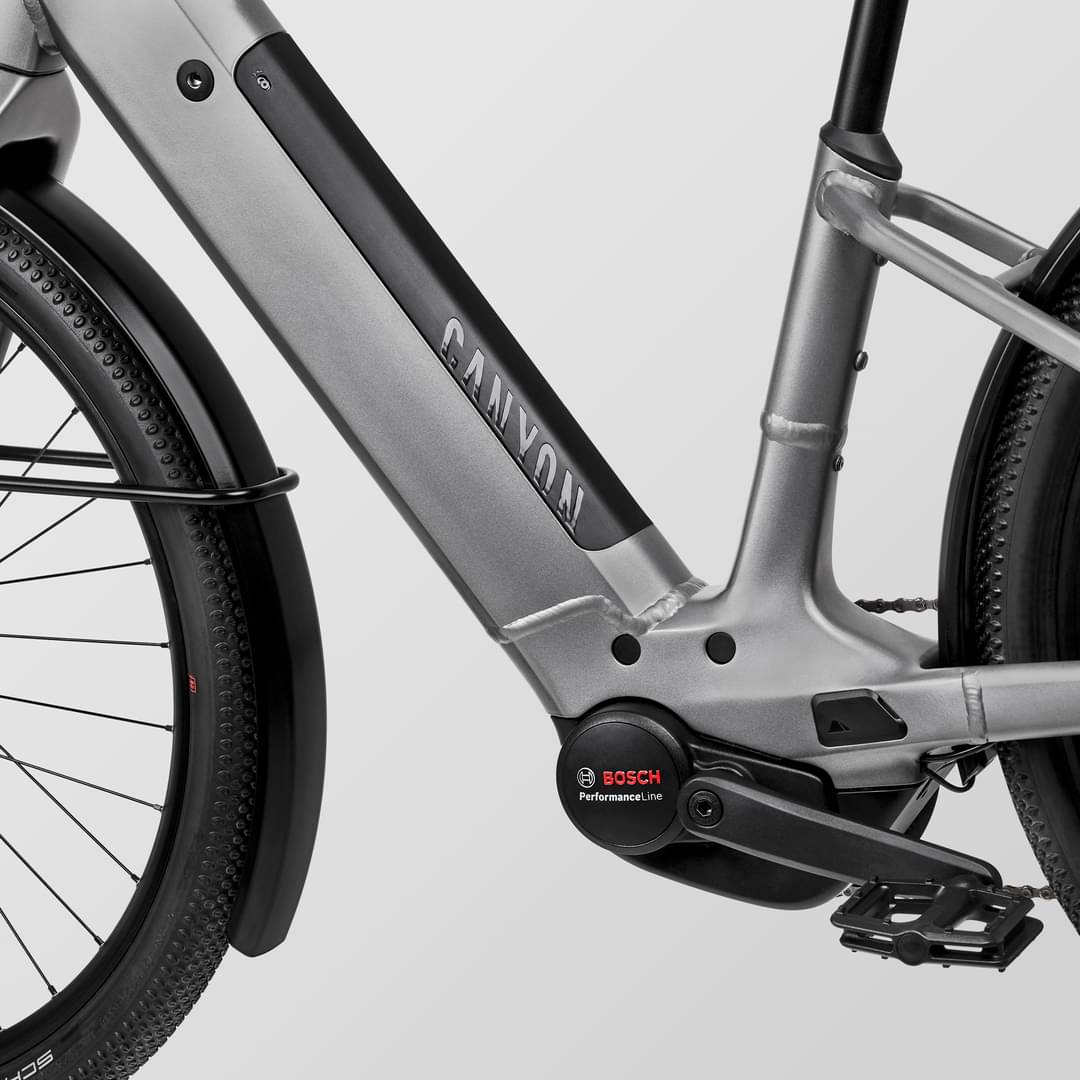

Motor
Bosch Performance Line

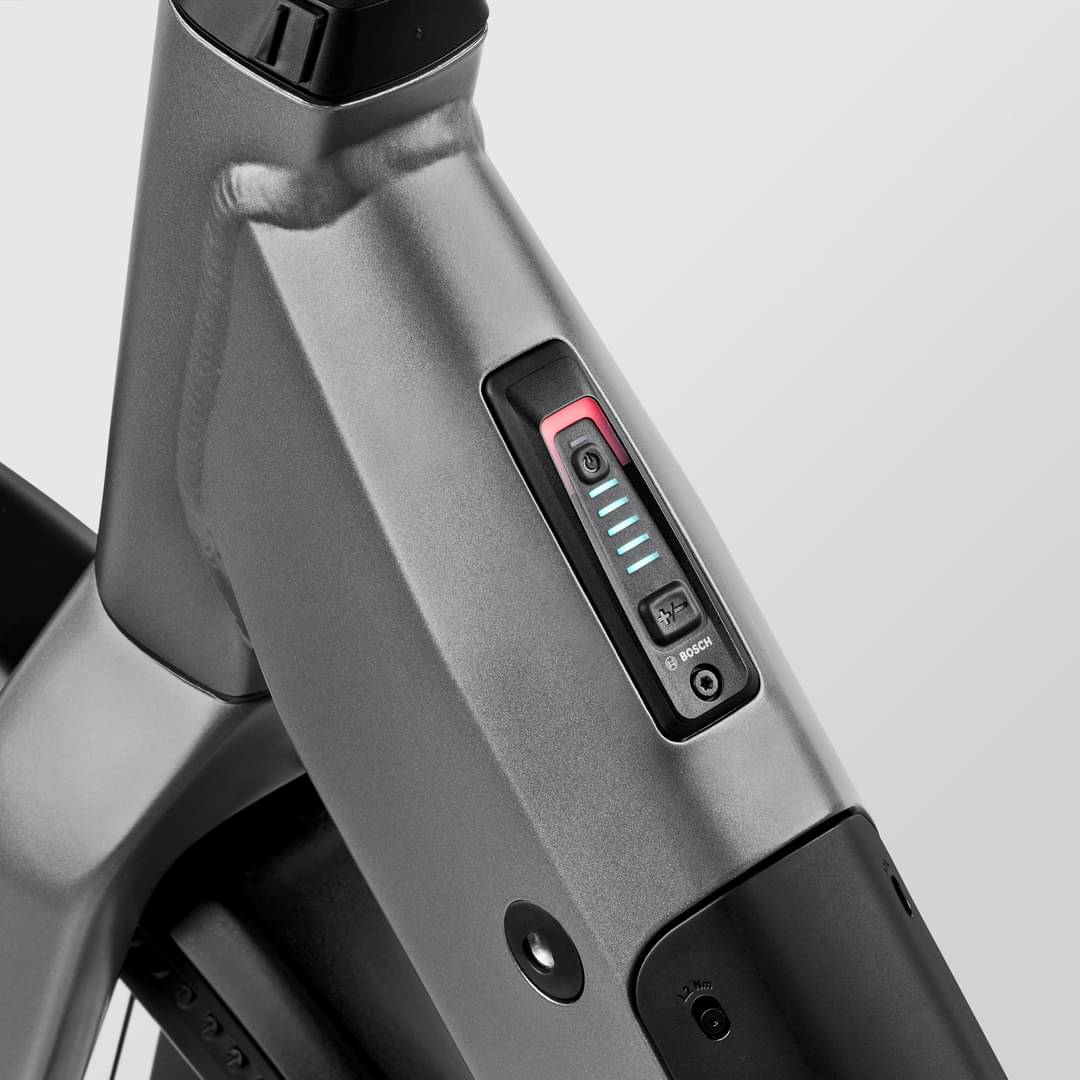

Battery
Bosch PowerTube 500Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.62 mm | 1.59 mm | 1.54 mm |
| Front Center | 640 mm | 659 mm | 659 mm | 719 mm |
| Rake | 42 mm | 42 mm | 22 mm | 42 mm |
| Trail | 85 mm | 85 mm | 106 mm | 85 mm |
| Stack | 620 mm | 630 mm | 644 mm | 670 mm |
| Reach | 374 mm | 389 mm | 405 mm | 434 mm |
| Top Tube Length | 550 mm | 568 mm | 588 mm | 625 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 365 mm | 404 mm | 440 mm | 485 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 176 mm | 186 mm | 202 mm | 229 mm |
| Chainstay Length | 504 mm | 504 mm | 504 mm | 504 mm |
| Wheelbase | 1134 mm | 1153 mm | 1153 mm | 1213 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 514 mm | 514 mm | 514 mm | 514 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Max Height | 161 cm | 171 cm | 181 cm | cm |
About this model
Precede:ON 6 step-through is part of the Canyon E Precedeon model. Canyon launched 28 e-bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Canyon Precede:ON 5 step-through 2023 is the most affordable e-bike of this model and has a price of 2599$. On the other hand, Canyon Precede:ON CF 9 2023, is the most expensive and costs 5308$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 3184$. Comparing the average cost of a Commuter e-bike to this one, you will see that Precede:ON 6 step-through price is 23.94% more expensive.
Commuter e-bikes average weight
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 23.6 kg (52.03 lbs), the Precede:ON 6 step-through model is a bit lighter than average. In short, the average Commuter e-bike weight is 6.78% higher than this one.
Precede:ON 6 step-through components
Fork material
Precede:ON 6 step-through has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on Precede:ON 6 step-through are the aluminum type. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Precede:ON 6 step-through comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
