Canyon Precede:ON 7 step-through 2023
2023 E-bike
Estimate price |
4,013$
Weight | 24.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Suspension Rigid -

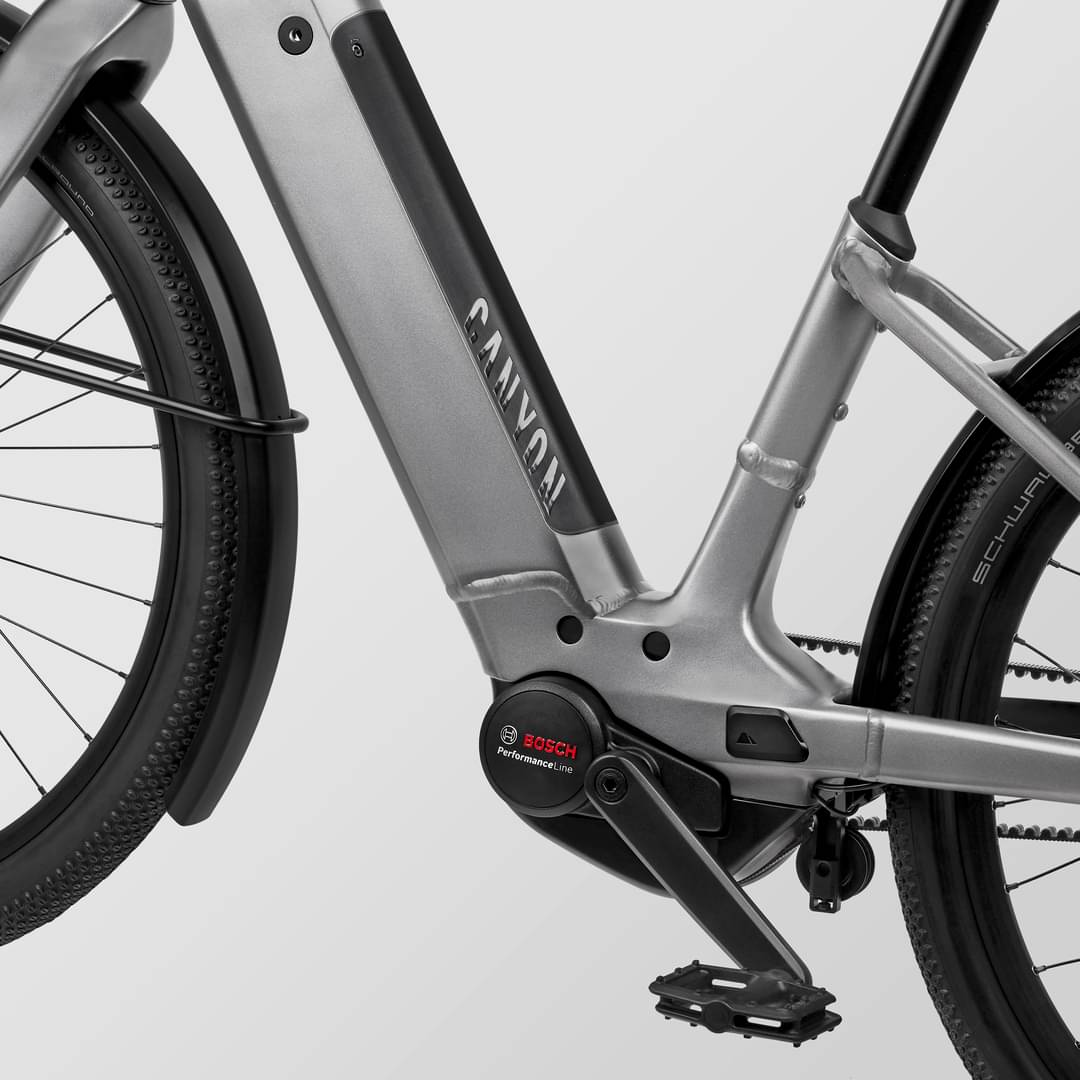

Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube 500Wh -

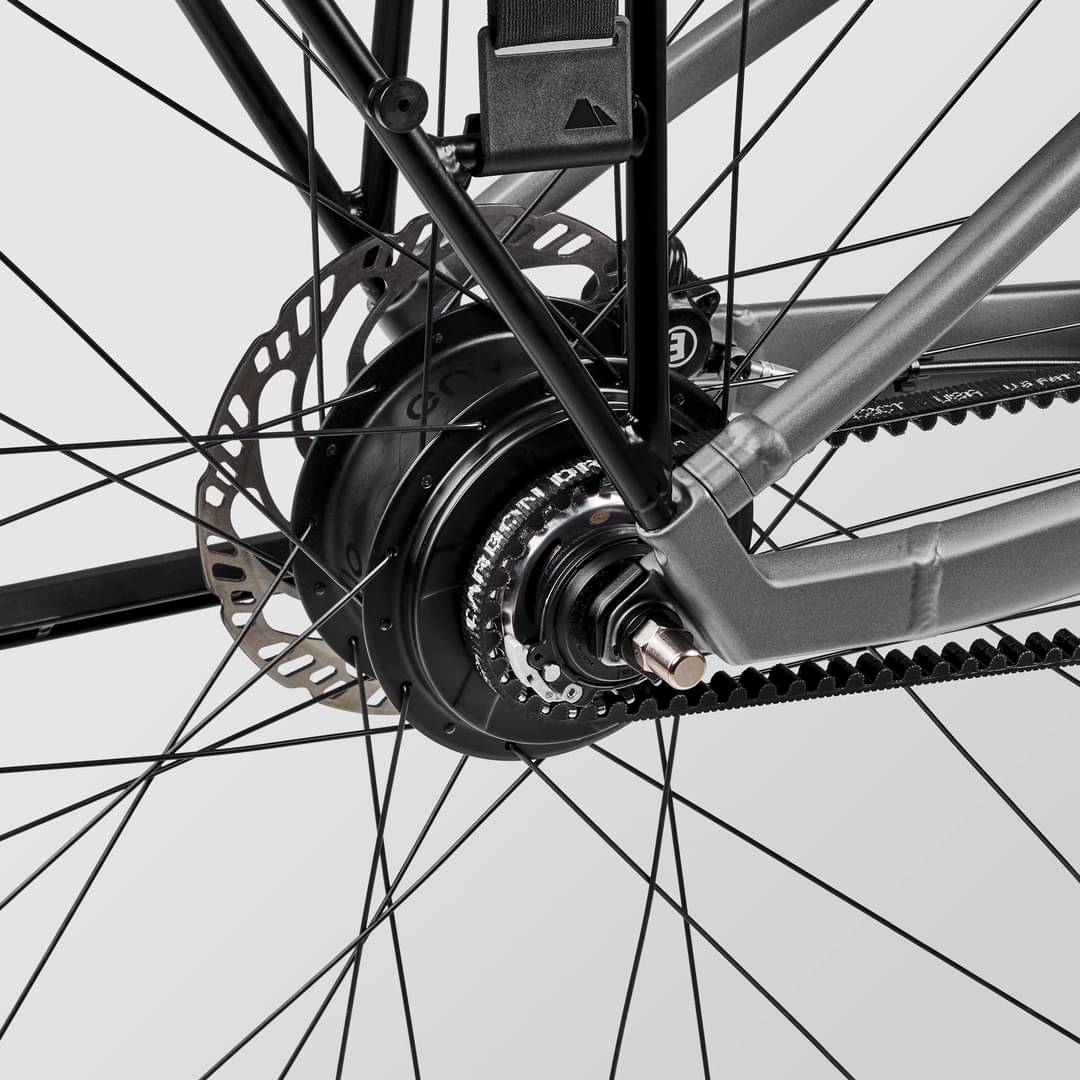

Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 171cm
MD
169cm - 181cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Precede:ON, Material: Aluminium (AL)
Suspension Fork
Canyon FK0093 Disc, Robust, sleek carbon fork., Fork steer tube diameter: 1 1/8", Material: Carbon (CF), Weight: 400 g
Drivetrain
Shift Levers
Enviolo Twist Pro
Cassette
Gates CDX 24T, Number of sprockets: 1
Crank
Miranda Delta, Number of chainrings: 1
Chain
Gates CDX Belt
Chain Guide
Gates Belt Tensioner | Canyon EP1329-01 | Canyon EP1331-01 | Canyon EP1335-01 Insert
Wheels
Rims
Alexrims MD25 | Shimano MT400, Rotor mount: Center Lock, Rim height: 20 mm, Rim material: Aluminium, Weight: 882 g | Alexrims MD25 | Enviolo Trekking, Rotor mount: Center Lock, Rim height: 20 mm, Weight: 2.99 kg
Tires
Schwalbe G-One Allround 57mm, Width: 2.25", Weight: 500 g
Brakes
Brakes
Magura MT thirty rear, Number of pistons: 2
Cockpit
Grips
Ergon GA30 Twist Shift Supernova down left
Seat
Saddle
SR Royal Essenza+
Seatpost
Iridium Suspension Post, Clamp diameter: 30,9 mm, Material: Aluminium (AL)
Motor & Battery
Motor
Bosch Performance Line
Battery
Bosch PowerTube 500Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.62 mm | 1.59 mm | 1.54 mm |
| Front Center | 640 mm | 659 mm | 659 mm | 719 mm |
| Rake | 42 mm | 42 mm | 22 mm | 42 mm |
| Trail | 85 mm | 85 mm | 106 mm | 85 mm |
| Stack | 620 mm | 630 mm | 644 mm | 670 mm |
| Reach | 374 mm | 389 mm | 405 mm | 434 mm |
| Top Tube Length | 550 mm | 568 mm | 588 mm | 625 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 365 mm | 404 mm | 440 mm | 485 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 176 mm | 186 mm | 202 mm | 229 mm |
| Chainstay Length | 504 mm | 504 mm | 504 mm | 504 mm |
| Wheelbase | 1134 mm | 1153 mm | 1153 mm | 1213 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 514 mm | 514 mm | 514 mm | 514 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Max Height | 161 cm | 171 cm | 181 cm | cm |
About this model
Precede:ON 7 step-through belongs to the Canyon E Precedeon model. 28 e-bikes variations carry this model name so far. Take a sneak peek at all Canyon E Precedeon e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Canyon Precede:ON 5 step-through 2023 has a starting price of 2599$. Canyon Precede:ON CF 9 2023 on the other hand is the most expensive at 5308$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3715$. In conclusion, this e-bike price is 44.61% higher than the price of the average Commuter e-bike.
Commuter e-bikes average weight
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly lighter than average, Precede:ON 7 step-through has a weight of 24.5 kg (54.01 lbs). To sum up, it’s 2.86% lighter than the average weight of Commuter e-bikes.
Precede:ON 7 step-through components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The Precede:ON 7 step-through 2023 e-bike is equipped with aluminum wheels when leaving the factory. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Precede:ON 7 step-through comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
