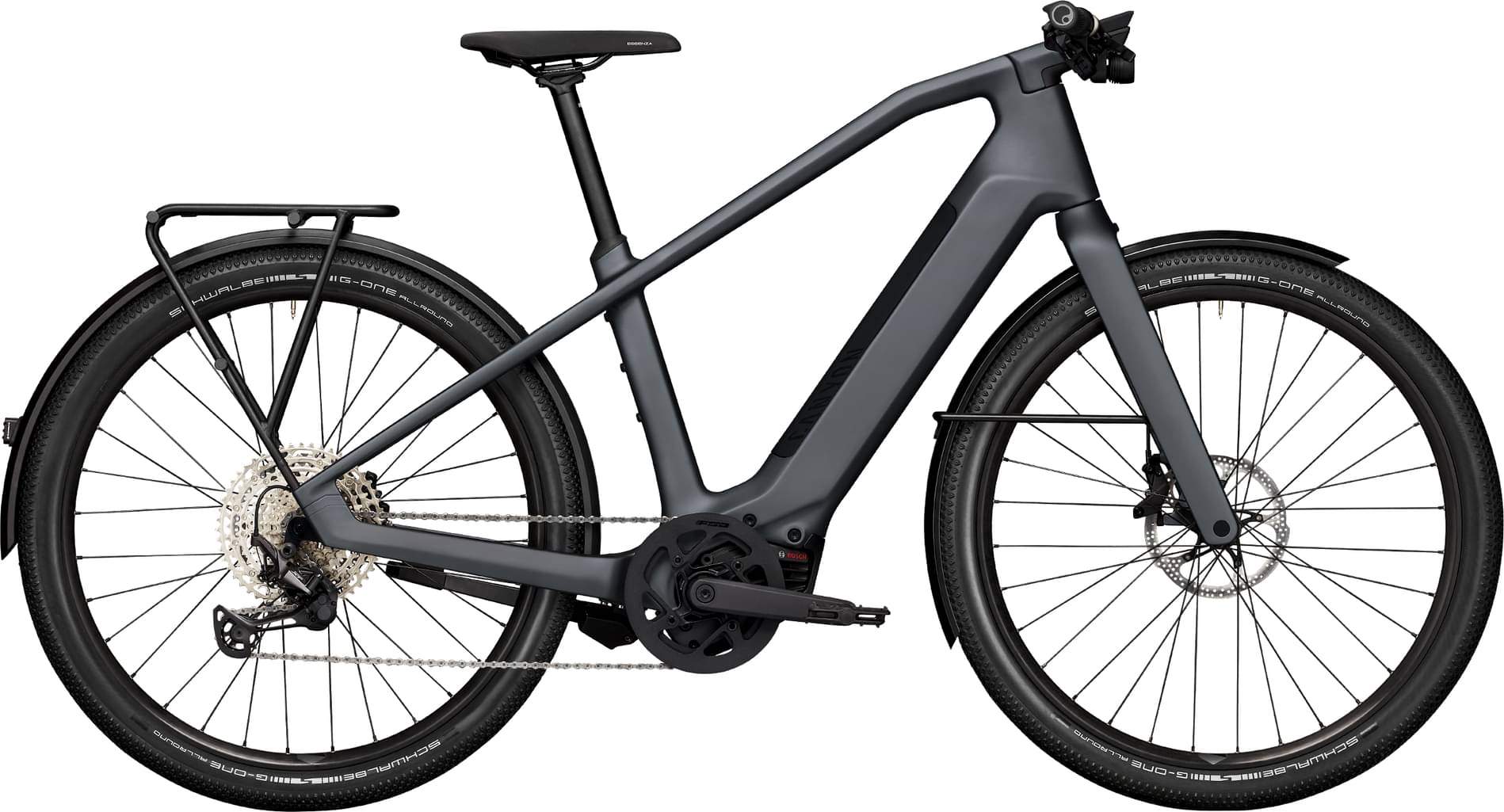

Canyon Precede:ON CF 8 2023
2023 E-bike
Estimate price |
3,999$
Weight | 21.06 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset XT, Deore -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch Powertube 500Wh BBP286 vertical -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
179cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Precede:ON CF, Material: Carbon (CF), Weight: 1.80 kg
Suspension Fork
Canyon FK0052 Disc, Fork steer tube diameter: 1 1/8", Material: Carbon (CF), Weight: 600 g
Drivetrain
Rear Derailleur
Shimano DEORE XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano Deore M6100 12s
Cassette
Shimano DEORE M6100, Number of sprockets: 12
Crank
Miranda Delta
Chain
Shimano CN-M6100
Wheels
Tires
Schwalbe G-One Allround 57mm, Width: 30mm
Brakes
Brakes
Canyon GP0164 brakes integrated by TRP

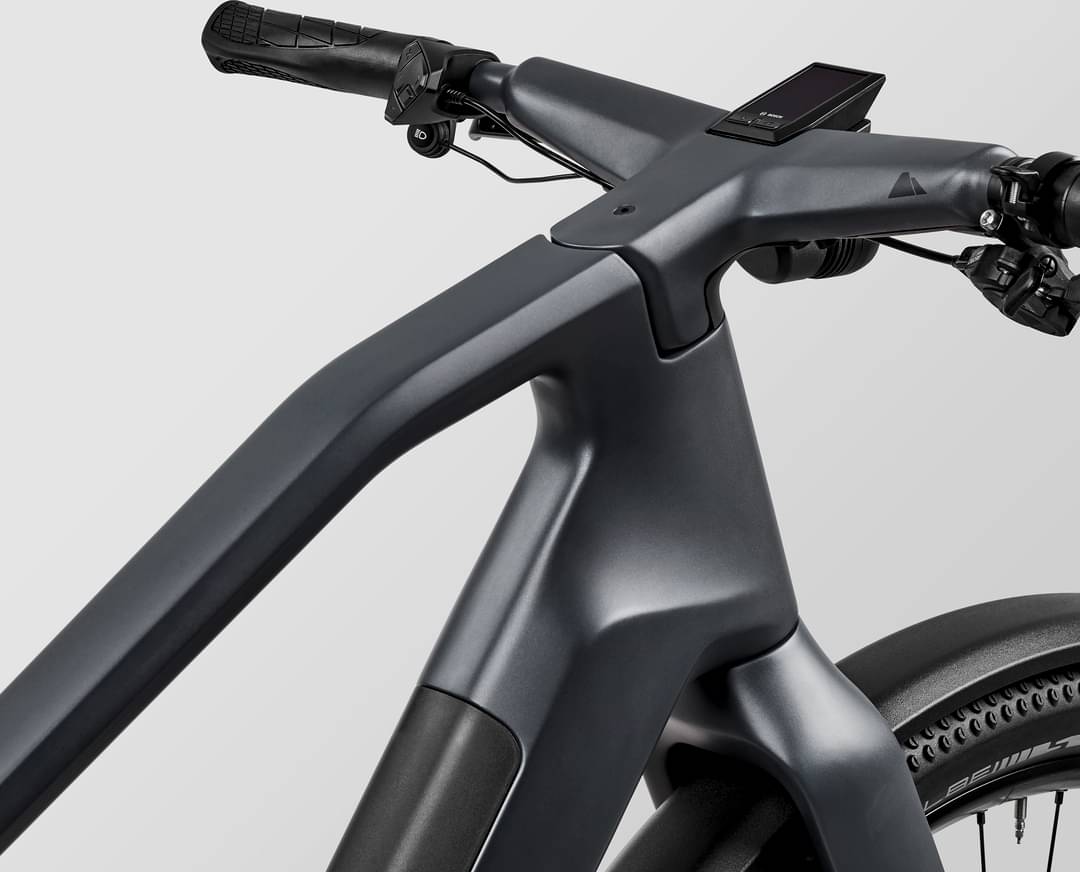

Cockpit
Grips
Ergon GA3
Seat
Saddle
SR Royal Essenza, Gender: Unisex, Weight: 10 g
Seatpost
Iridium, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 280 g
Motor & Battery

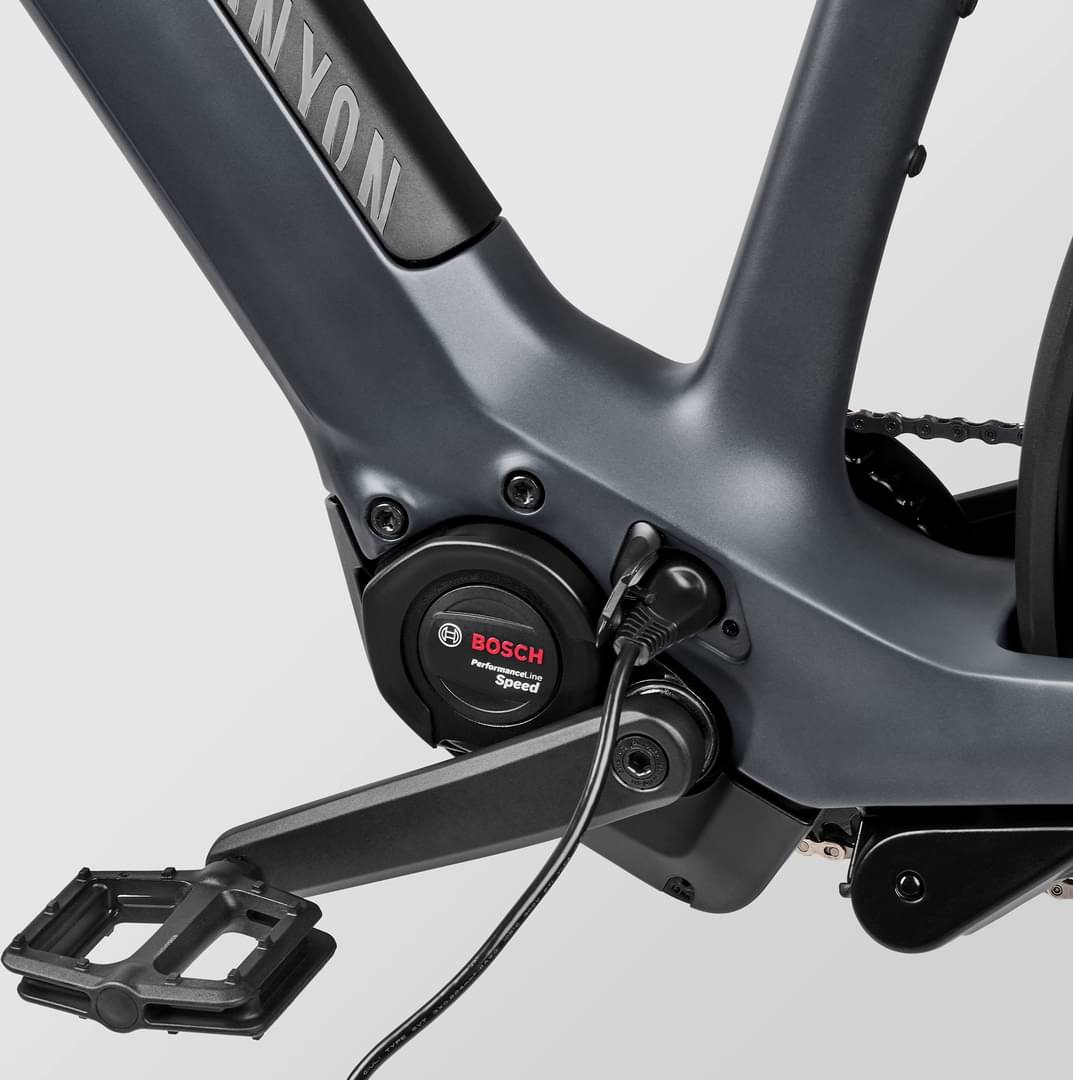

Motor
Bosch Performance Line Speed 28mph
Battery
Bosch Powertube 500Wh BBP286 vertical
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.51 mm | 1.53 mm |
| Front Center | 635 mm | 671 mm | 712 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 63 mm | 63 mm | 63 mm |
| Stack | 620 mm | 664 mm | 711 mm |
| Reach | 418 mm | 440 mm | 466 mm |
| Top Tube Length | 591 mm | 628 mm | 668 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 440 mm | 485 mm | 535 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 148 mm | 194 mm | 243 mm |
| Chainstay Length | 505 mm | 505 mm | 505 mm |
| Wheelbase | 1128 mm | 1165 mm | 1206 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm |
| Standover Height | 791 mm | 814 mm | 854 mm |
| Wheels | 650 | 650 | 650 |
| Rider Max Height | 181 cm | 191 cm | cm |
About this model
Precede:ON CF 8 completes the Canyon E Precedeon model. Canyon released 28 e-bikes variations of this model so far. You can easily view all of the Canyon E Precedeon e-bikes models from 2023, here.
Model range prices
Canyon Precede:ON 5 step-through 2023 is the most economical model, with a starting price of 2599$. Canyon Precede:ON CF 9 2023 on the other hand costs 5308$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Canyon Precede:ON CF 8 price was 3999$. Comparing the average cost of a Commuter e-bike to this one, you will see that Precede:ON CF 8 price is 55.66% more expensive.
Commuter e-bikes average weight
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 21.06 kg (46.43 lbs), Canyon e-bike is much lighter than average. In other words, this model is 19.66% lighter than the average Commuter e-bike.
Overview of components
Fork material
Precede:ON CF 8 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The Precede:ON CF 8 2023 e-bike is equipped with wheels when leaving the factory. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Precede:ON CF 8 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
