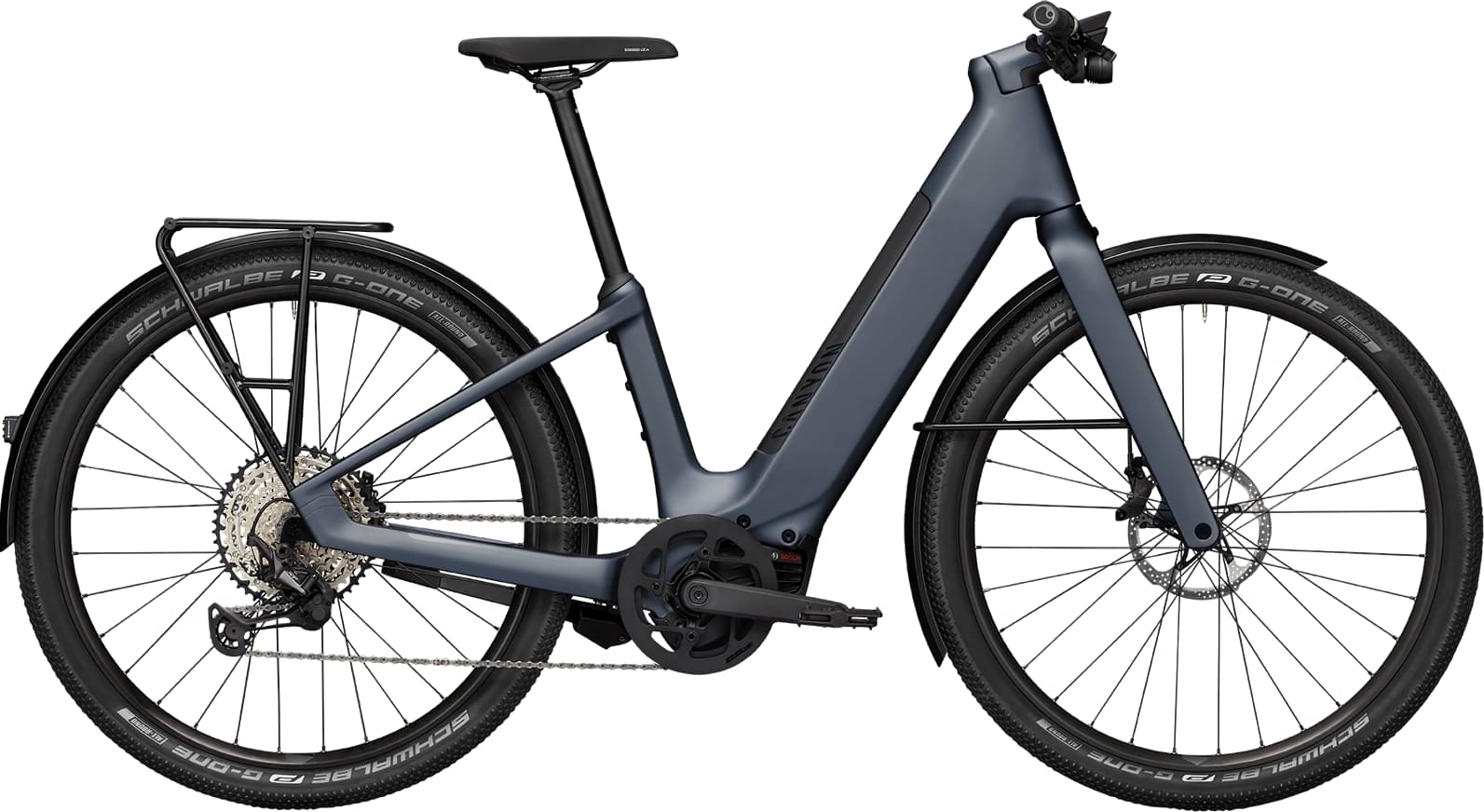

Canyon Precede:ON CF 8 ST 2022
2022 E-bike
Estimate price |
4,931$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset XT, Deore -
Suspension Rigid -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 171cm
MD
169cm - 181cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Precede:ON CF, Material: Carbon (CF)
Suspension Fork
Canyon FK0052 Disc
Drivetrain
Rear Derailleur
Shimano Deore XT M8100 12speed, Precise 1x12 drivetrain.
Shift Levers
Shimano Deore M6100 12s, Right shift lever. Shifts up to 3 gears at a time.
Cassette
Shimano Deore M6100 12speed, Cassette packed with trickle-down performance features. Hyperglide+ tech provides fast, smooth shifting. Beam spider construction cuts weights and boosts stiffness. Gear range: 10-51.
Crank
Miranda Delta
Chain
Shimano CN-M6100 12s
Wheels
Rims
Alexrims MD25 | Shimano MT400, Rotor Mount: Center Lock | Alexrims MD25 | Shimano MT410 SH12, Rotor Mount: Center Lock
Tires
Schwalbe G-One Allround 57mm, Width: 2.25"
Brakes
Brakes
Canyon GP0164 brakes integrated by TRP
Disk Rotors
Tektro R180C01E 180mm Center Lock
Cockpit
Grips
Ergon GA3, Premium grips design for extra hand support.
Seat
Saddle
Selle Royal Essenza, Gender: Male
Seatpost
Iridium, Clamp diameter: 30,9 mm
Motor & Battery
Motor
Bosch Performance Line CX
Battery
Bosch PowerTube
Remote
Bosch Kiox
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.59 mm | 1.56 mm | 1.52 mm |
| Front Center | 613 mm | 621 mm | 635 mm | 671 mm |
| Rake | 43 mm | 43 mm | 42 mm | 42 mm |
| Trail | 71 mm | 65 mm | 63 mm | 63 mm |
| Stack | 607 mm | 617 mm | 631 mm | 657 mm |
| Reach | 374 mm | 389 mm | 405 mm | 433 mm |
| Top Tube Length | 546 mm | 564 mm | 584 mm | 621 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 365 mm | 400 mm | 440 mm | 485 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 148 mm | 154 mm | 167 mm | 194 mm |
| Chainstay Length | 498 mm | 498 mm | 498 mm | 498 mm |
| Wheelbase | 1099 mm | 1107 mm | 1121 mm | 1158 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Max Height | 161 cm | 171 cm | 181 cm | cm |
Model Overview
Precede:ON CF 8 ST belongs to the Canyon E Precedeon model. 28 e-bikes variations carry this model name so far. You can easily view all of the Canyon E Precedeon e-bikes models from 2022, here.
Model range prices
Canyon Precede:ON 5 ST 2022 is the cheapest e-bike model and costs 2760$. Canyon Precede:ON CF 9 step-through 2022 is the most expensive one and costs 5308$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2022 and its price was 4565$. In conclusion, this e-bike price is 77.7% more expensive than the price of the average Commuter e-bike.
Overview of components
Wheels
When it comes to wheels, the Precede:ON CF 8 ST e-bike is equipped with the aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
