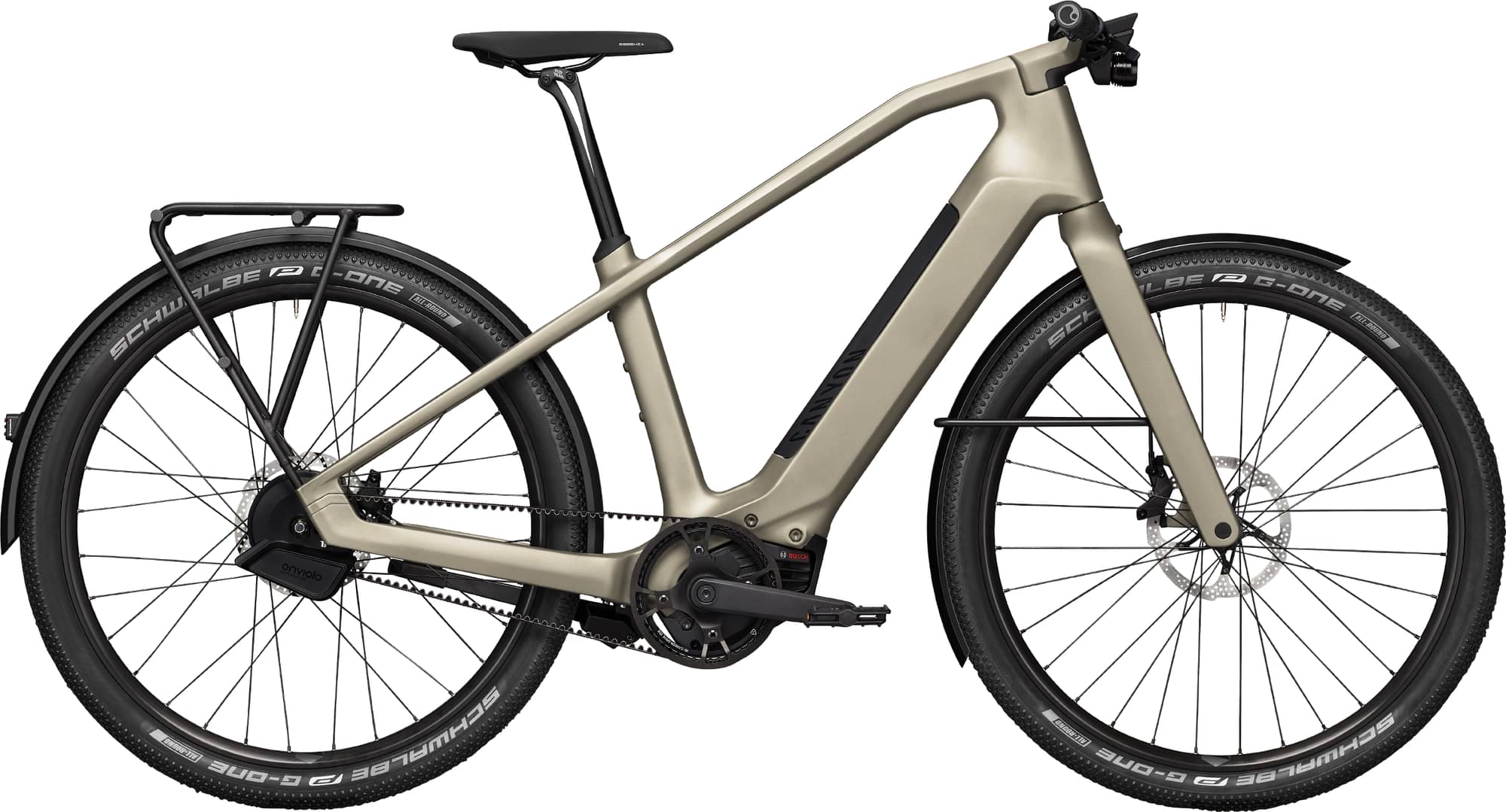

Canyon Precede:ON CF 9 2022
2022 E-bike
Estimate price |
5,734$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Suspension Rigid -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
179cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Precede:ON CF, Material: Carbon (CF)
Suspension Fork
Canyon FK0052 Disc
Drivetrain
Cassette
Gates CDX 24T
Crank
Miranda Delta
Chain
Gates CDX Belt
Wheels
Rims
Alexrims MD25 | Shimano MT400, Rotor Mount: Center Lock | Alexrims MD25 | Enviolo CA Automatiq, Rotor Mount: IS 6-bolt
Tires
Schwalbe G-One Allround 57mm, Width: 2.25"
Brakes
Brakes
Canyon GP0164 brakes integrated by TRP
Disk Rotors
Tektro R180C01E 180mm Center Lock | Tektro R180S01E 180mm 6-Hole
Cockpit
Grips
Ergon GA3, Premium grips design for extra hand support.
Seat
Saddle
Selle Royal Essenza, Gender: Male
Seatpost
Canyon S25 VCLS 2.0 CF, Material: Carbon, Setback: -2 mm / 10 mm, Technology: VCLS 2.0 | Fliphead, Weight: 235 g
Motor & Battery
Motor
Bosch Performance Line CX
Battery
Bosch PowerTube
Remote
Bosch Kiox
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.51 mm | 1.53 mm |
| Front Center | 635 mm | 671 mm | 712 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 63 mm | 63 mm | 63 mm |
| Stack | 620 mm | 664 mm | 711 mm |
| Reach | 418 mm | 440 mm | 466 mm |
| Top Tube Length | 591 mm | 628 mm | 668 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 440 mm | 485 mm | 535 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 148 mm | 194 mm | 243 mm |
| Chainstay Length | 505 mm | 505 mm | 505 mm |
| Wheelbase | 1128 mm | 1165 mm | 1206 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm |
| Standover Height | 791 mm | 814 mm | 854 mm |
| Wheels | 650 | 650 | 650 |
| Rider Max Height | 181 cm | 191 cm | cm |
About this model
Precede:ON CF 9 is a Canyon E Precedeon model. Canyon released 28 e-bikes variations of this model so far. You can easily view all of the Canyon E Precedeon e-bikes models from 2022, here.
Model range prices
Canyon Precede:ON 5 ST 2022 is the cheapest e-bike model and costs 2760$. Canyon Precede:ON CF 9 step-through 2022 is the most expensive one and costs 5308$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Canyon Precede:ON CF 9 price was 5308$. In conclusion, this e-bike price is 106.62% higher than the price of the average Commuter e-bike.
Precede:ON CF 9 components
Wheels size
As for the wheels, Canyon Precede:ON CF 9 2022, has a aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Precede:ON CF 9 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
