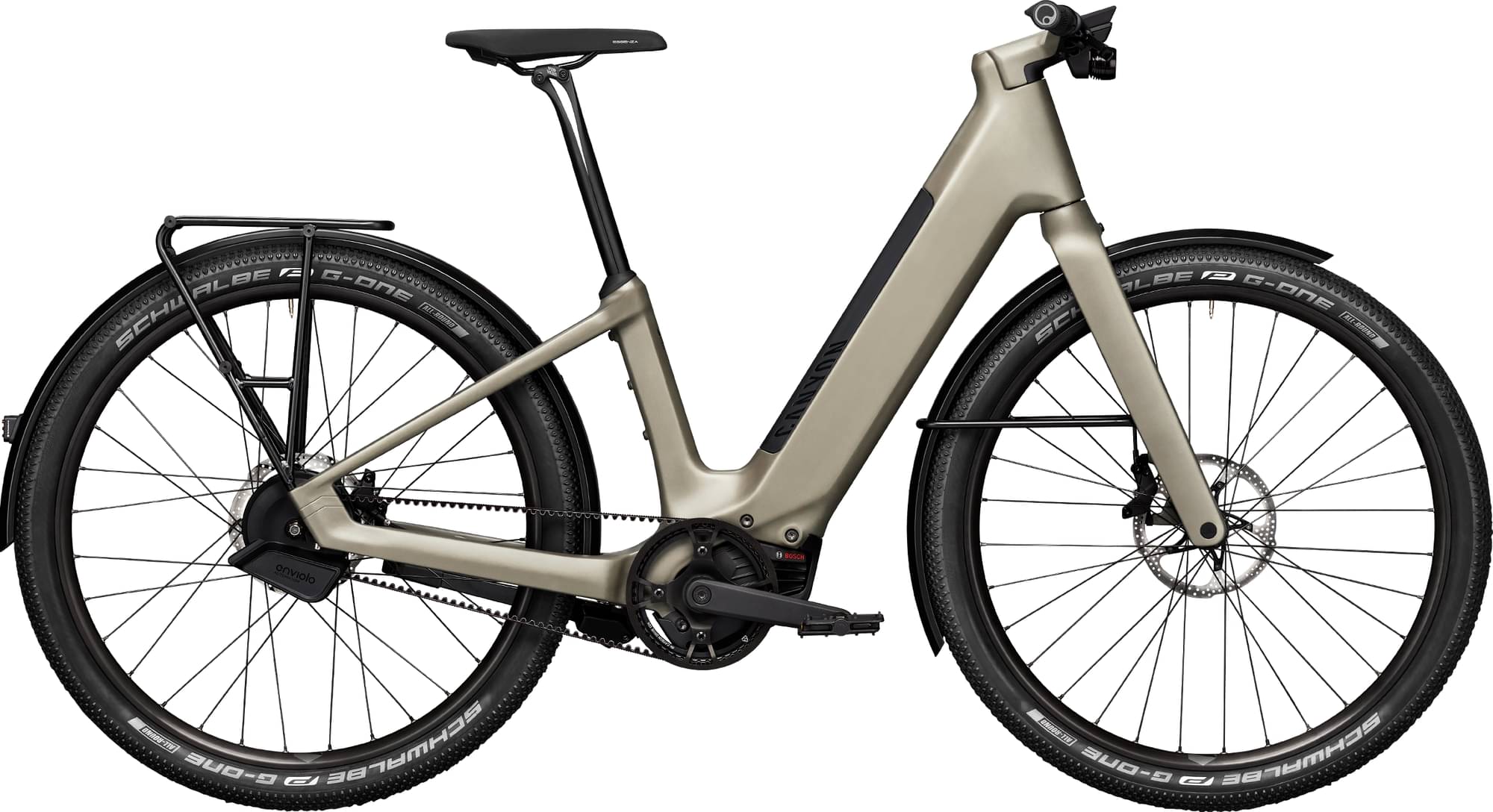

Canyon Precede:ON CF 9 ST 2022
2022 E-bike
Estimate price |
5,734$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Suspension Rigid -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 171cm
MD
169cm - 181cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Precede:ON CF, Material: Carbon (CF)
Suspension Fork
Canyon FK0052 Disc
Drivetrain
Cassette
Gates CDX 24T
Crank
Miranda Delta
Chain
Gates CDX Belt
Wheels
Rims
Alexrims MD25 | Shimano MT400, Rotor Mount: Center Lock | Alexrims MD25 | Enviolo CA Automatiq, Rotor Mount: IS 6-bolt
Tires
Schwalbe G-One Allround 57mm, Width: 2.25"
Brakes
Brakes
Canyon GP0164 brakes integrated by TRP
Disk Rotors
Tektro R180C01E 180mm Center Lock | Tektro R180S01E 180mm 6-Hole
Cockpit
Grips
Ergon GA3, Premium grips design for extra hand support.
Seat
Saddle
Selle Royal Essenza, Gender: Male
Seatpost
Canyon S25 VCLS 2.0 CF, Material: Carbon, Setback: -2 mm / 10 mm, Technology: VCLS 2.0 | Fliphead, Weight: 235 g
Motor & Battery
Motor
Bosch Performance Line CX
Battery
Bosch PowerTube
Remote
Bosch Kiox
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.59 mm | 1.56 mm | 1.52 mm |
| Front Center | 613 mm | 621 mm | 635 mm | 671 mm |
| Rake | 43 mm | 43 mm | 42 mm | 42 mm |
| Trail | 71 mm | 65 mm | 63 mm | 63 mm |
| Stack | 607 mm | 617 mm | 631 mm | 657 mm |
| Reach | 374 mm | 389 mm | 405 mm | 433 mm |
| Top Tube Length | 546 mm | 564 mm | 584 mm | 621 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 365 mm | 400 mm | 440 mm | 485 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 148 mm | 154 mm | 167 mm | 194 mm |
| Chainstay Length | 498 mm | 498 mm | 498 mm | 498 mm |
| Wheelbase | 1099 mm | 1107 mm | 1121 mm | 1158 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Max Height | 161 cm | 171 cm | 181 cm | cm |
About this model
Precede:ON CF 9 ST is part of the Canyon E Precedeon model. There are 28 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Canyon Precede:ON 5 ST 2022 is the most affordable e-bike of this model and has a price of 2760$. On the other hand, Canyon Precede:ON CF 9 step-through 2022, is the most expensive and costs 5308$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Canyon released this model in 2022, its price was 5308$. In conclusion, this e-bike price is 106.62% more expensive than the price of the average Commuter e-bike.
Overview of components
Wheels
The Precede:ON CF 9 ST 2022 e-bike is equipped with aluminum wheels when leaving the factory. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Precede:ON CF 9 ST is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
