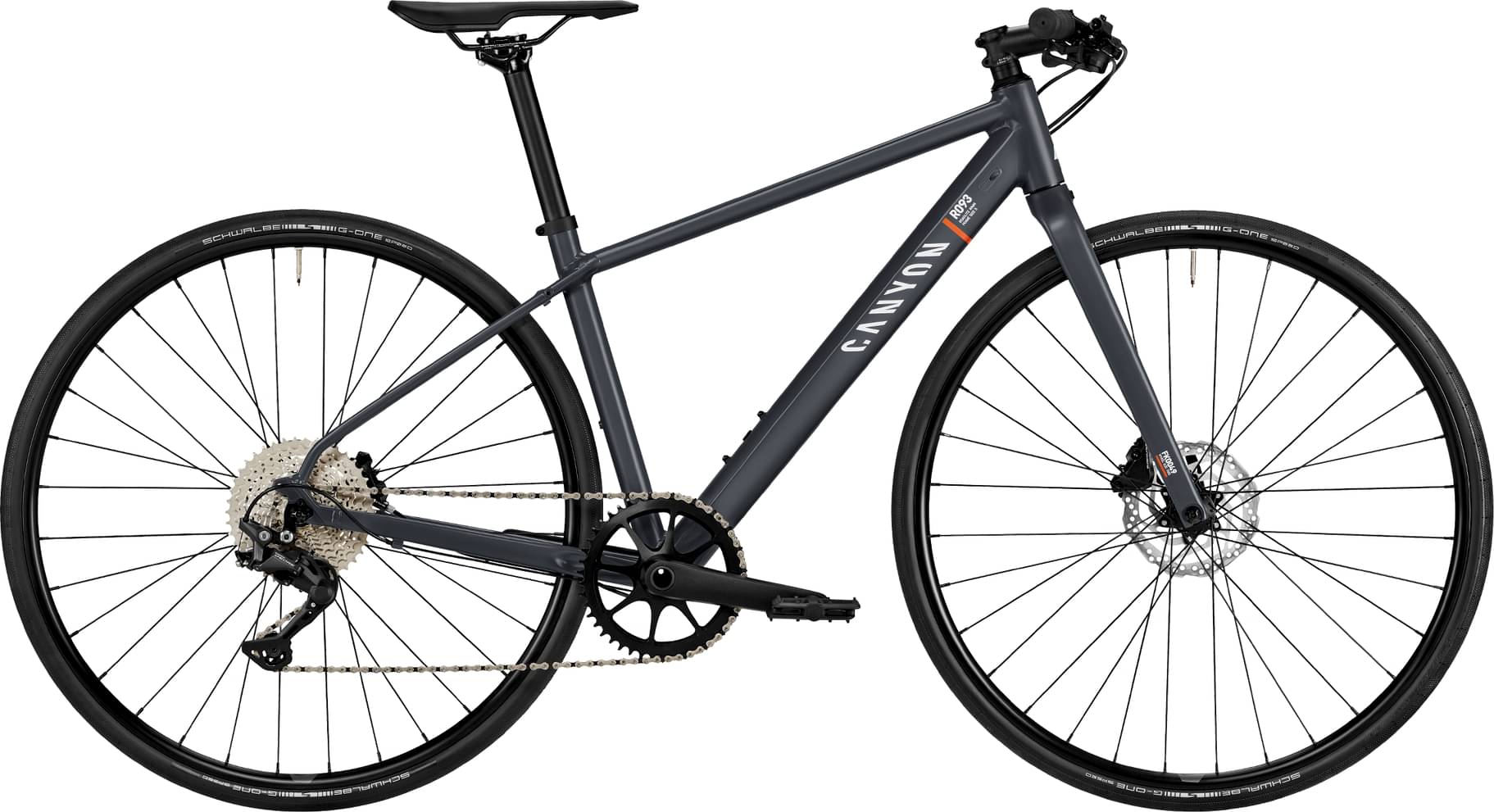

Canyon Roadlite 4 mid-step 2023
2023 Urban
Estimate price |
802$
Weight | 10.18 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset CUES -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 165cm
MD
163cm - 174cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Roadlite WMN AL, Aluminium hybrid frame with a geometry specially designed for female riders. Featuring rear rack mounts., Material: Aluminium (AL)
Suspension Fork
Canyon FK0049 Disc, Lightweight, stiff carbon fork., Material: Carbon (CF)

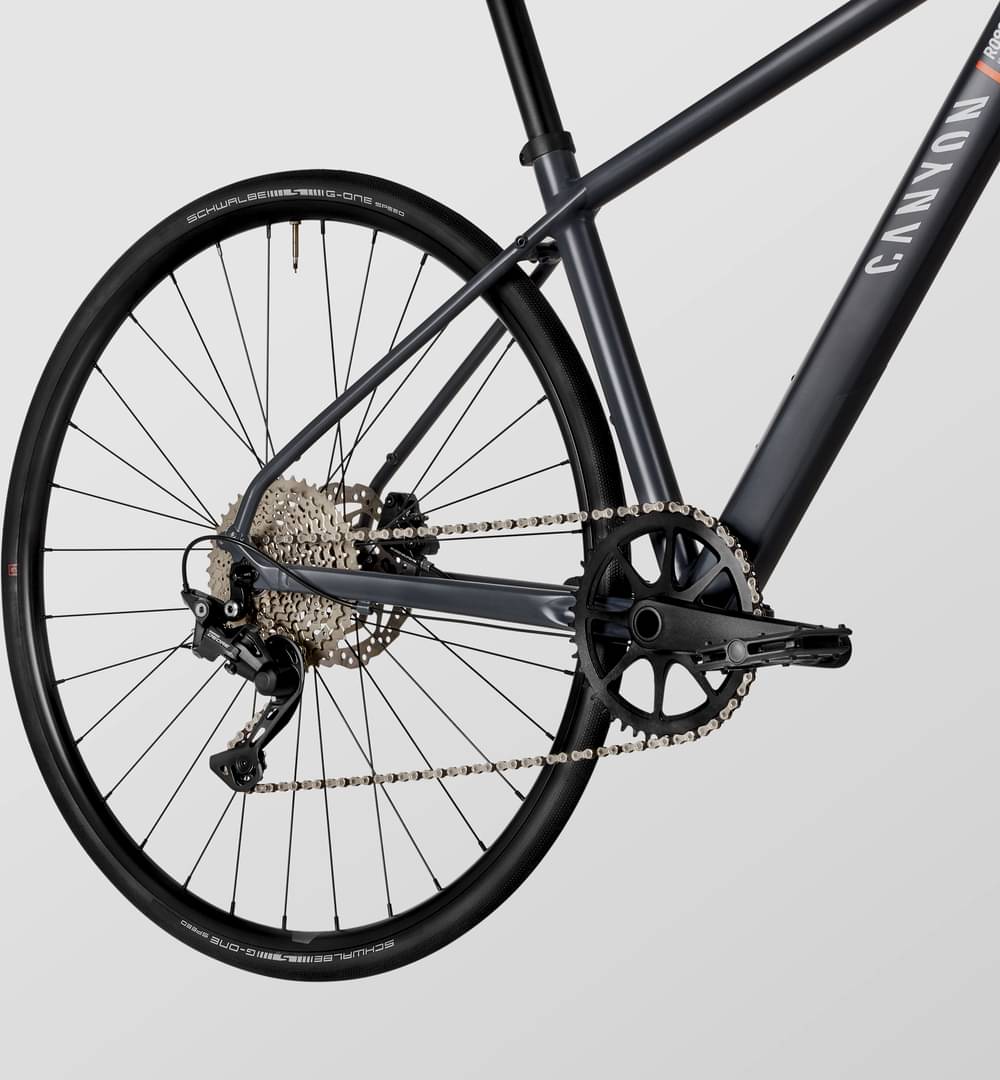

Drivetrain
Rear Derailleur
Shimano CUES U6000
Shift Levers
Shimano CUES U6000
Cassette
Shimano CUES LG300-10, Number of sprockets: 10
Crank
SAMOX TAM37 46T, Number of chainrings: 1
Bottom Bracket
SAMOX Pressfit BB8601, Bottom bracket standard: PF 86
Chain
KMC X10-93 10s
Wheels
Rims
Alex Rims TD19 / Shimano TX505, Rotor mount: Center Lock, Rim height: 17 mm, Inner width: 20 mm | Alex Rims TD19 / Shimano TX505 SH11, Rotor mount: Center Lock, Rim height: 17 mm, Inner width: 20 mm

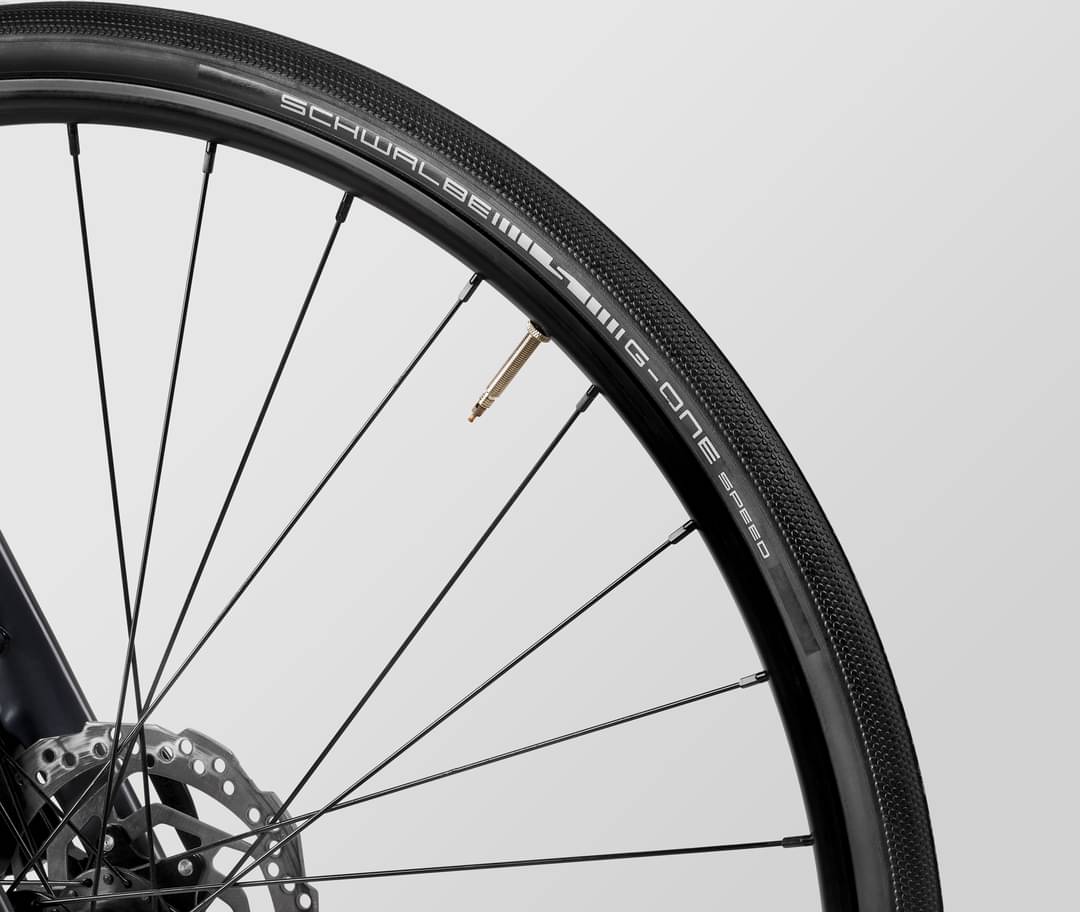

Tires
Schwalbe G-One Speed 30 mm, Width: 30mm, Weight: 500 g
Brakes
Brakes
Shimano MT200 / UR300?
Cockpit
Stem
Iridium Stem, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
Iridium Flatbar, Clamping diameter: 31,8 mm, Width: 600 mm
Grips
Iridium Grips
Seat
Saddle
Canyon Sport Saddle EP1249
Seatpost
Iridium Seatpost, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 270 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.37 mm | 1.4 mm | 1.44 mm |
| Front Center | 602 mm | 613 mm | 631 mm | 645 mm |
| Rake | 46 mm | 47 mm | 46 mm | 46 mm |
| Trail | 63 mm | 62 mm | 64 mm | 64 mm |
| Stack | 535 mm | 556 mm | 584 mm | 608 mm |
| Reach | 392 mm | 407 mm | 416 mm | 422 mm |
| Top Tube Length | 545 mm | 566 mm | 583 mm | 596 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 385 mm | 420 mm | 460 mm | 490 mm |
| Head Tube Angle | 71.25 ° | 72.25 ° | 72.15 ° | 72.15 ° |
| Head Tube Length | 115 mm | 120 mm | 150 mm | 175 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1012 mm | 1019 mm | 1037 mm | 1051 mm |
| Bottom Bracket Drop | 60 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 684 mm | 725 mm | 759 mm | 784 mm |
| Wheels | 650 | 700 | 700 | 700 |
| Rider Max Height | 159 cm | 165 cm | 174 cm | cm |
About this model
Roadlite 4 mid-step is part of the Canyon Roadlite model. Canyon released 63 bikes variations of this model so far. Take a sneak peek at all Canyon Roadlite bikes models from 2023, by clicking here.
Model range prices
Canyon Roadlite 4 2023 is the most affordable bike of this model and has a price of 699$. On the other hand, Canyon Roadlite CF 9 LTD 2023, is the most expensive and costs 3705$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Fitness bikes average price
Our math shows that the average cost of a dependable Fitness bike is 656$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 740$. Doing a quick comparison, we notice that Roadlite 4 mid-step price is 12.8% higher than the average cost of a Fitness bike.
Fitness bikes average weight
Fitness bikes have an average weight of 11.24 kg (24.78 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 10.18 kg (22.44 lbs), Canyon bike is considerably lighter than average. In conclusion, the average Fitness bike weighs 10.41% more than Roadlite 4 mid-step.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Roadlite 4 mid-step model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.

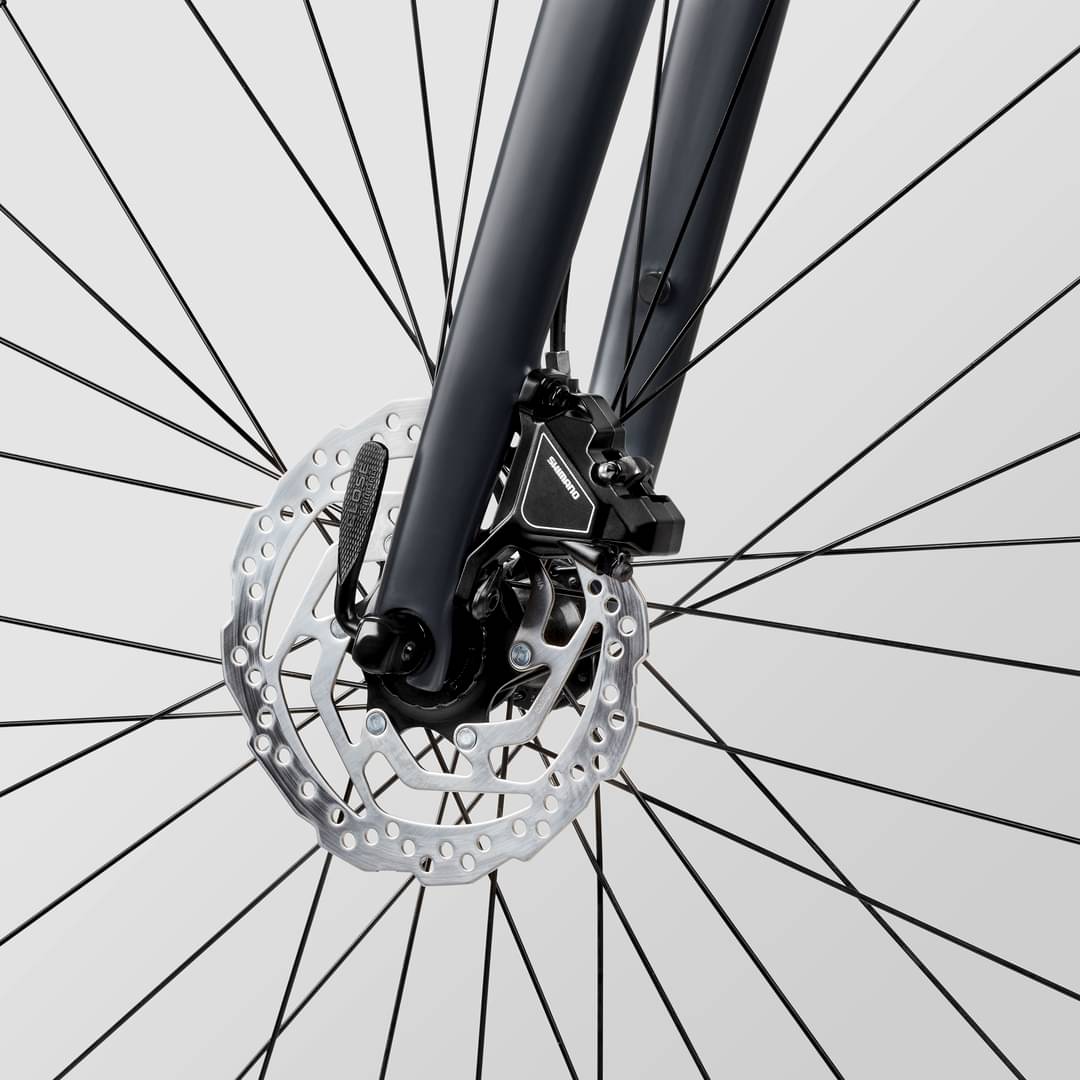

Brakes
When you want to stop the bike in time, the brakes are vital. The Roadlite 4 mid-step has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
