Canyon Roadlite 4 WMN 2023
2023 Urban
Estimate price |
699$
Weight | 10.18 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 165cm
MD
163cm - 174cm
Parts list
Components
Main components, grouped by system.
Bike components

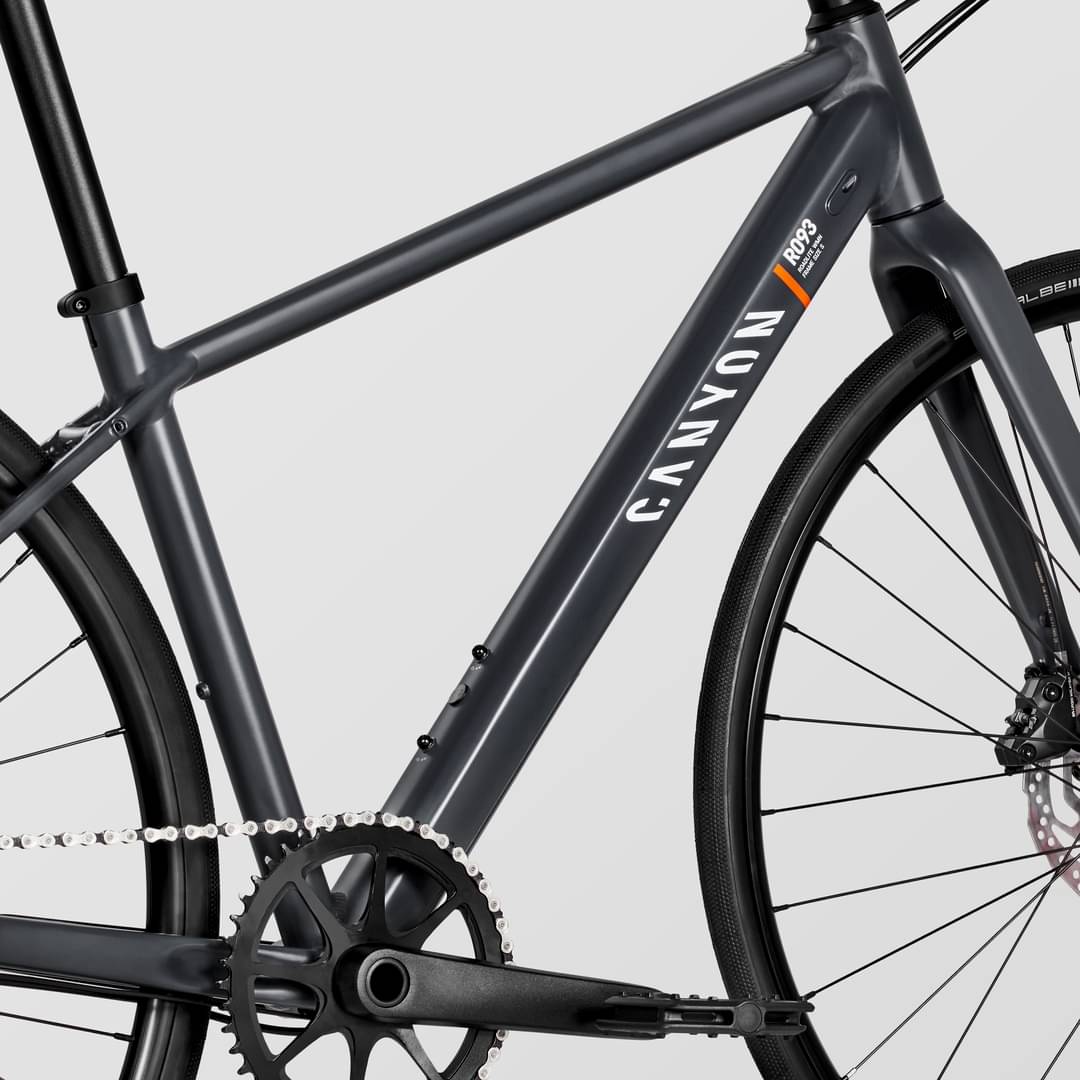

Frame
Frame
Canyon Roadlite WMN AL, Material: Aluminium (AL)
Suspension Fork
Canyon FK0049 Disc, Material: Aluminium (AL)

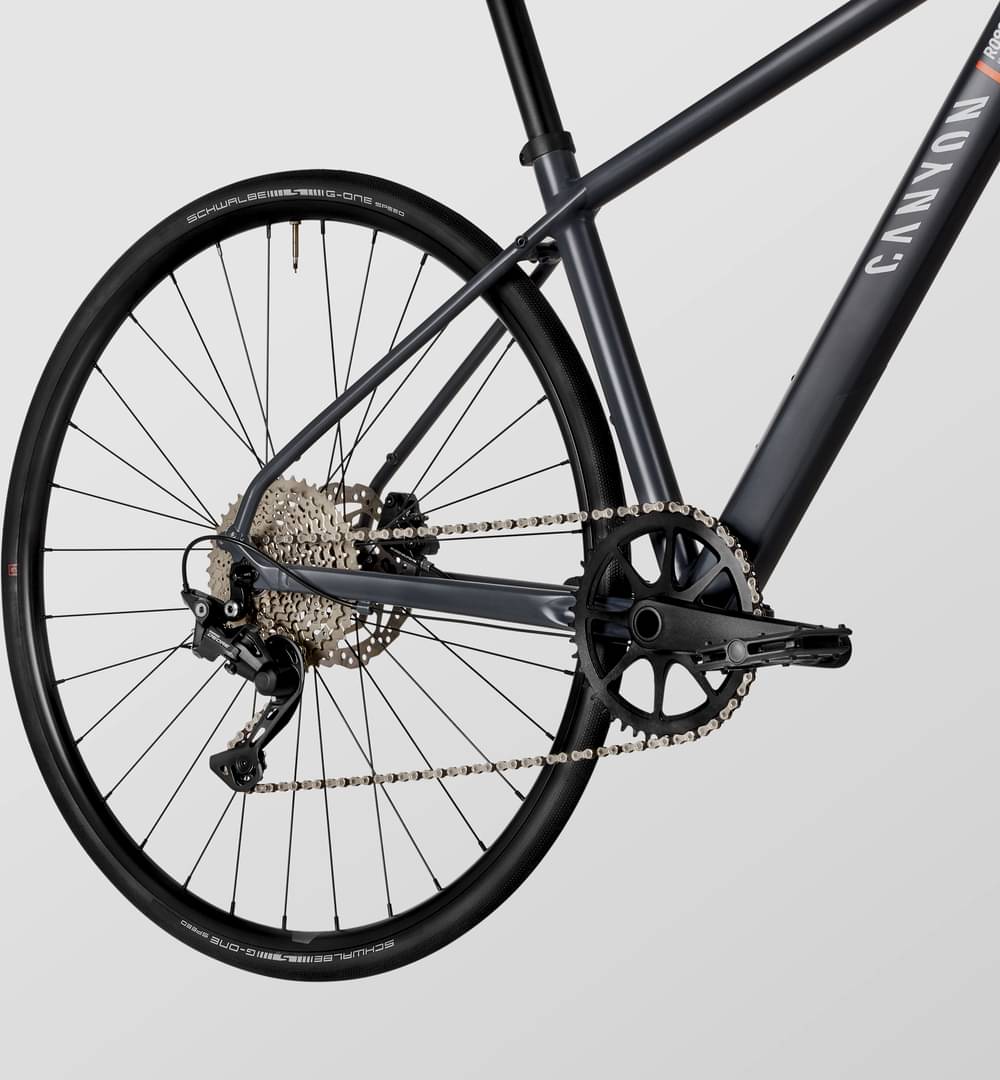

Drivetrain
Rear Derailleur
Shimano Deore M4120, 10/11-speed, Cage length: long, Weight: 286 g
Shift Levers
Shimano Deore M4100, 10-speed
Cassette
Shimano Deore M4100 10-S, Number of sprockets: 10
Crank
SAMOX TAM37 46T, Number of chainrings: 1
Bottom Bracket
SAMOX Pressfit BB8601, Bottom bracket standard: PF 86
Chain
KMC X10-93 10s
Wheels
Rims
Alex Rims TD19 / Shimano TX505, Rotor mount: Center Lock, Rim height: 17 mm, Inner width: 20 mm | Alex Rims TD19 / Shimano TX505 SH11, Rotor mount: Center Lock, Rim height: 17 mm, Inner width: 20 mm

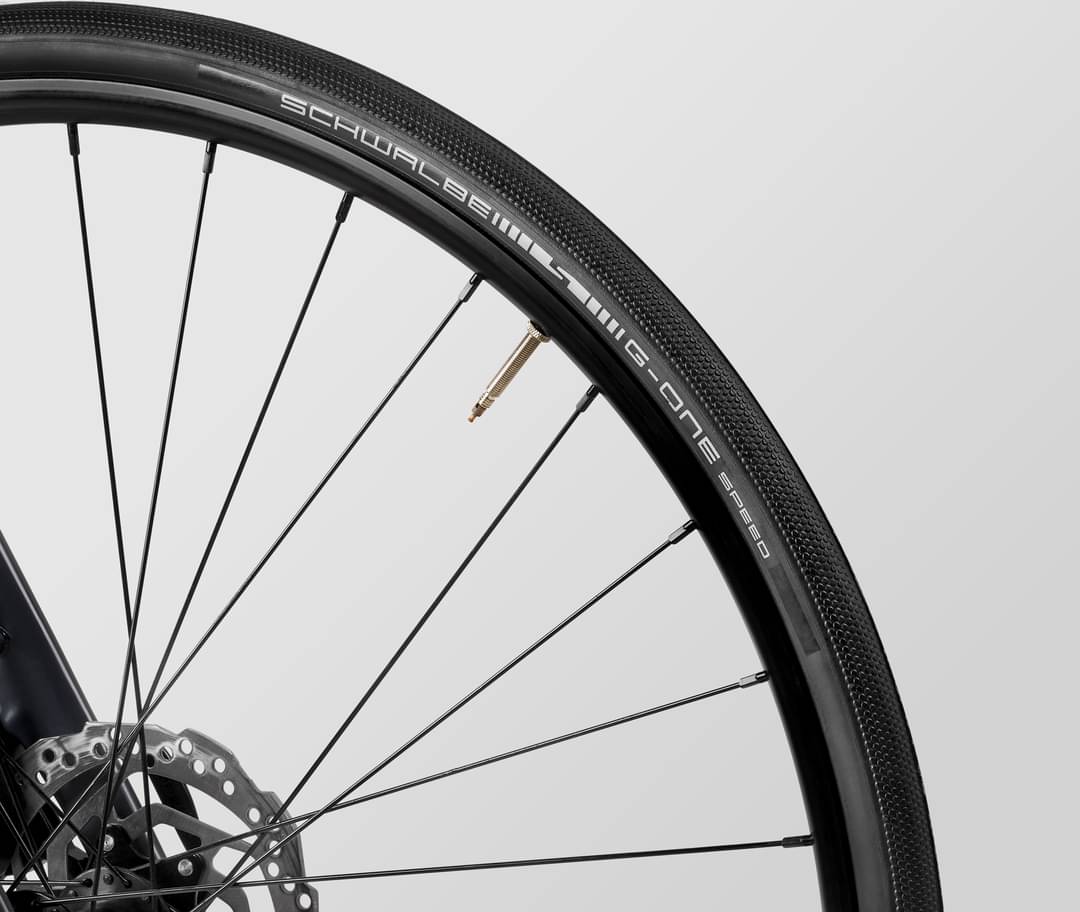

Tires
Schwalbe G-One Speed 30 mm, Width: 30mm, Weight: 500 g

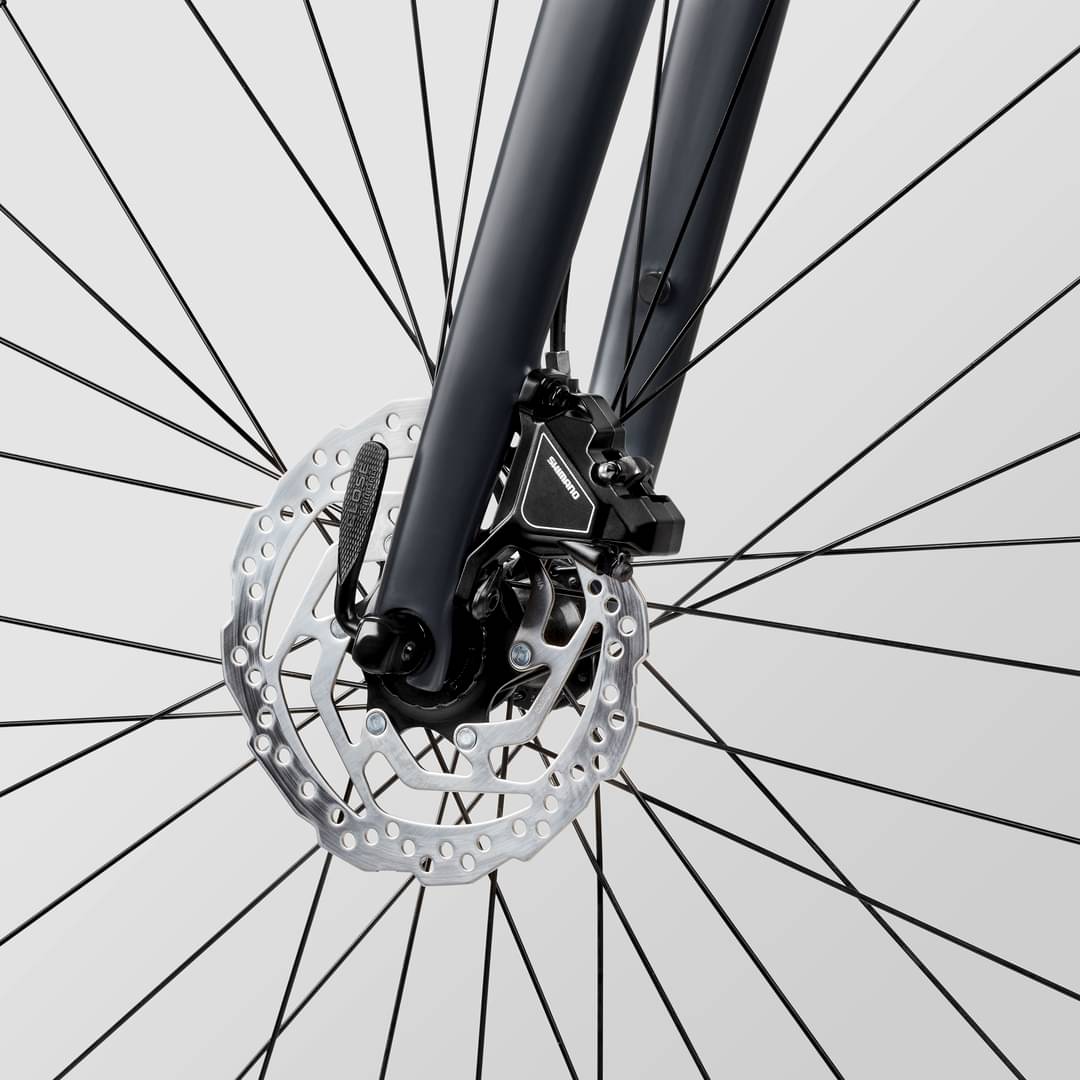

Brakes
Brakes
Shimano MT200 / UR300?
Cockpit
Stem
Iridium Stem, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
Iridium Flatbar, Clamping diameter: 31,8 mm, Width: 600 mm
Grips
Iridium Grips
Seat
Saddle
Canyon Sport Saddle EP1249
Seatpost
Iridium Seatpost, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 270 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.37 mm | 1.4 mm | 1.44 mm |
| Front Center | 602 mm | 613 mm | 631 mm | 645 mm |
| Rake | 46 mm | 47 mm | 46 mm | 46 mm |
| Trail | 63 mm | 62 mm | 64 mm | 64 mm |
| Stack | 535 mm | 556 mm | 584 mm | 608 mm |
| Reach | 392 mm | 407 mm | 416 mm | 422 mm |
| Top Tube Length | 545 mm | 566 mm | 583 mm | 596 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 385 mm | 420 mm | 460 mm | 490 mm |
| Head Tube Angle | 71.25 ° | 72.25 ° | 72.15 ° | 72.15 ° |
| Head Tube Length | 115 mm | 120 mm | 150 mm | 175 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1012 mm | 1019 mm | 1037 mm | 1051 mm |
| Bottom Bracket Drop | 60 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 684 mm | 725 mm | 759 mm | 784 mm |
| Wheels | 650 | 700 | 700 | 700 |
| Rider Max Height | 159 cm | 165 cm | 174 cm | cm |
About this model
Roadlite 4 WMN is part of the Canyon Roadlite model. Canyon released 58 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Canyon Roadlite 4 2023 is the most affordable bike of this model and has a price of 699$. On the other hand, Canyon Roadlite CF 9 LTD 2023, is the most expensive and costs 3715$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fitness bikes
Our math shows that the average cost of a dependable Fitness bike is 656$. However, you could also get a good Fitness bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 699$. Comparing this to the average Fitness bike price, we see that the price is 6.55% higher.
Fitness bikes average weight
Fitness bikes weigh an average of 11.24 kg (24.78 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 10.18 kg (22.44 lbs), Canyon bike is considerably lighter than average. In other words, this model is 10.41% lighter than the average Fitness bike.
Roadlite 4 WMN components
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When it comes to wheels, the Roadlite 4 WMN bike is equipped with the aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Roadlite 4 WMN comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
