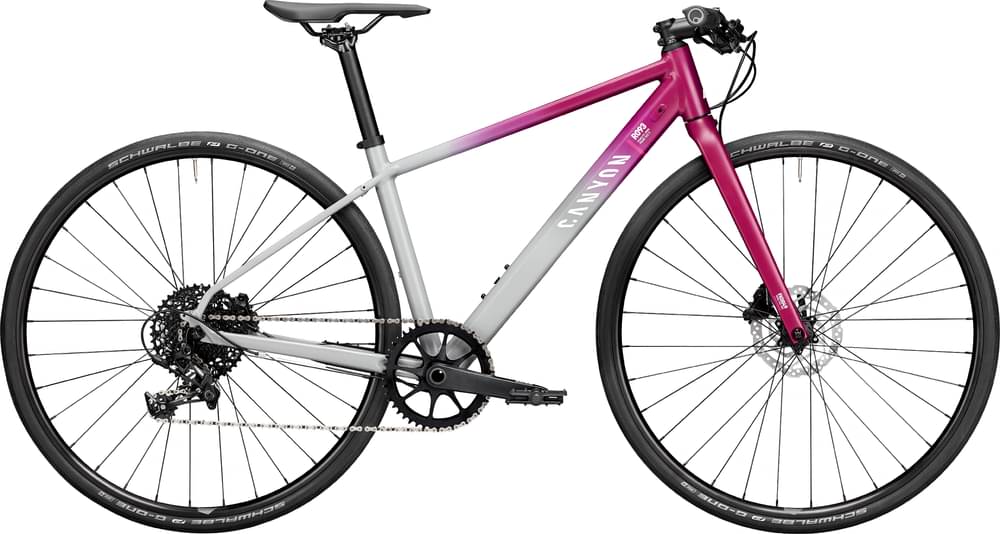

Canyon Roadlite 5 WMN 2022
2022 Urban
Estimate price |
899$
Weight | 9.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 700c -
Groupset Apex 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 163cm
SM
161cm - 171cm
MD
169cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Roadlite WMN AL
Suspension Fork
Canyon FK0049 CF Disc
Drivetrain
Rear Derailleur
SRAM Apex 1 SGS
Shift Levers
SRAM Apex 11s
Cassette
SRAM PG-1130 11-42 11s
Crank
SAMOX TAM37 46T
Bottom Bracket
SAMOX Pressfit BB8601
Chain
KMC X11-93
Wheels
Rims
Alex Rims TD19 / Shimano TX505 | Alex Rims TD19 / Shimano TX505 SH11
Tires
Schwalbe G-One Speed 30 mm
Brakes
Brakes
Shimano MT200 / UR300?
Disk Rotors
Shimano RT10, Rotor diameter: 160 mm.
Cockpit
Stem
Iridium
Handlebar
Iridium Flatbar, Material: Aluminium, Handlebar diameter: 31.8 mm
Grips
Ergon GA3, Premium grips with miniwing design for extra hand support.
Seat
Saddle
Canyon Sport Saddle EP1249
Seatpost
Iridium Seatpost, Alloy seatpost.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.37 mm | 1.37 mm | 1.41 mm | 1.45 mm |
| Front Center | 592 mm | 602 mm | 613 mm | 631 mm | 645 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 71 mm | 63 mm | 64 mm | 64 mm | 64 mm |
| Stack | 515 mm | 529 mm | 550 mm | 579 mm | 602 mm |
| Reach | 369 mm | 386 mm | 401 mm | 410 mm | 416 mm |
| Top Tube Length | 518 mm | 539 mm | 560 mm | 577 mm | 590 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 345 mm | 385 mm | 420 mm | 460 mm | 490 mm |
| Head Tube Angle | 70 ° | 71.25 ° | 72.15 ° | 72.15 ° | 72.15 ° |
| Head Tube Length | 105 mm | 115 mm | 120 mm | 150 mm | 175 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 996 mm | 1006 mm | 1013 mm | 1031 mm | 1045 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 653 mm | 678 mm | 719 mm | 753 mm | 778 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 |
| Rider Max Height | 157 cm | 163 cm | 171 cm | 179 cm | cm |
Model Overview
Roadlite 5 WMN is a Canyon Roadlite model. There are 58 bikes that carry this model name. You can easily view all of the Canyon Roadlite bikes models from 2022, here.
Model range prices
Canyon Roadlite 5 WMN 2022 is the most economical model, with a starting price of 899$. Canyon Roadlite CF 9 LTD 2022 on the other hand costs 3715$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Fitness bikes average price
Our math shows that the average cost of a dependable Fitness bike is 656$. However, this doesn’t mean that if you spend less money on a Fitness bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 899$. Doing a quick comparison, we notice that Roadlite 5 WMN price is 37.04% more expensive than the average cost of a Fitness bike.
Average weight for Fitness bikes
The average weight for Fitness bikes is 11.24 kg (24.78 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Canyon Roadlite 5 WMN it’s weighing 9.8 kg (21.61 lbs). At this weight, is considerably lighter than average. In other words, this model is 14.69% lighter than the average Fitness bike.
Roadlite 5 WMN components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Roadlite 5 WMN model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
