Canyon Roadlite 5 WMN 2023
2023 Urban
Estimate price |
799$
Weight | 10.66 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 165cm
MD
163cm - 174cm
Parts list
Components
Main components, grouped by system.
Bike components

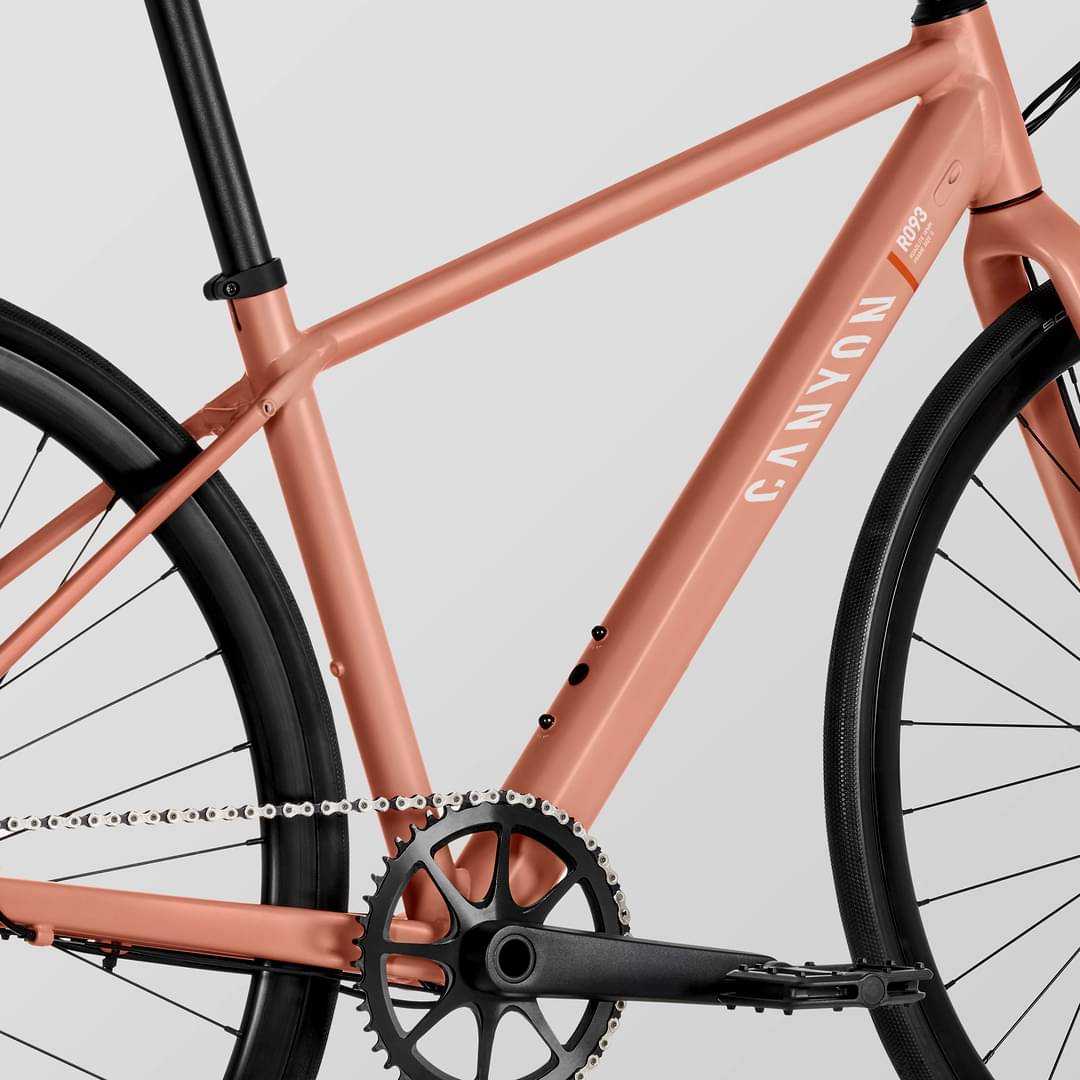

Frame
Frame
Canyon Roadlite WMN AL, Material: Aluminium (AL)
Suspension Fork
Canyon FK0049 CF Disc, Material: Carbon (CF)

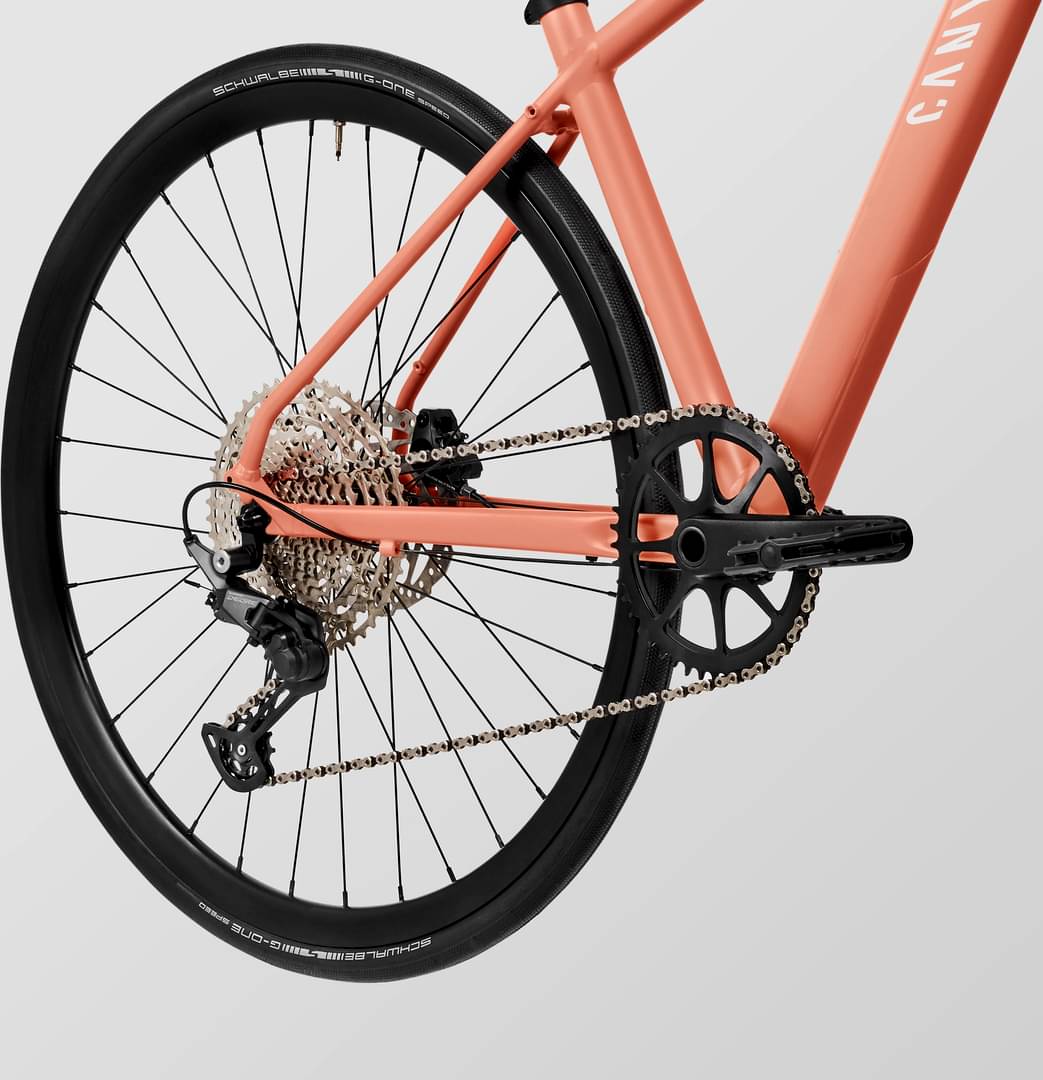

Drivetrain
Rear Derailleur
Shimano Deore M5100 11s, Cage length: long, Weight: 356 g
Shift Levers
Shimano Deore M5100 11s
Cassette
Shimano Deore M5100 11s 11-51, Number of sprockets: 11
Crank
SAMOX TAM37 46T, Number of chainrings: 1
Bottom Bracket
SAMOX Pressfit BB8601, Bottom bracket standard: PF 86
Chain
KMC X11-93
Wheels
Rims
Alex Rims CRD30 / Shimano TX505, Rotor mount: Center Lock, Rim height: 19 mm, Inner width: 19 mm | Alex Rims CRD30 / Shimano TX505 SH11, Rotor mount: Center Lock, Rim height: 19 mm, Inner width: 19 mm

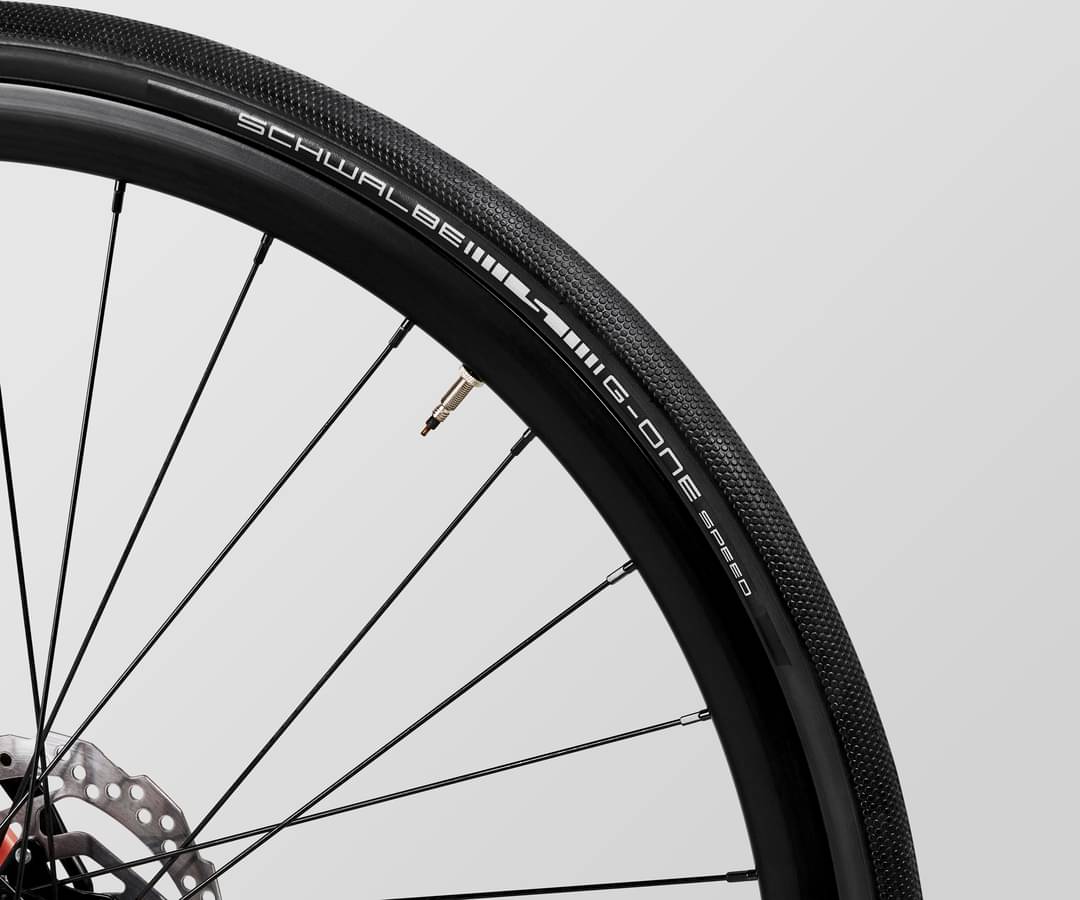

Tires
Schwalbe G-One Speed 30 mm, Width: 30mm, Weight: 500 g
Brakes
Brakes
Shimano MT200 / UR300?
Cockpit
Stem
Iridium Stem, Fork steer tube diameter: 1 1/8"
Handlebar
Iridium Flatbar, Clamping diameter: 31,8 mm, Width: 600 mm
Grips
Ergon GA3
Seat
Saddle
Canyon Sport Saddle EP1249
Seatpost
Iridium Seatpost, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 270 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.37 mm | 1.4 mm | 1.44 mm |
| Front Center | 602 mm | 613 mm | 631 mm | 645 mm |
| Rake | 46 mm | 47 mm | 46 mm | 46 mm |
| Trail | 63 mm | 62 mm | 64 mm | 64 mm |
| Stack | 535 mm | 556 mm | 584 mm | 608 mm |
| Reach | 392 mm | 407 mm | 416 mm | 422 mm |
| Top Tube Length | 545 mm | 566 mm | 583 mm | 596 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 385 mm | 420 mm | 460 mm | 490 mm |
| Head Tube Angle | 71.25 ° | 72.25 ° | 72.15 ° | 72.15 ° |
| Head Tube Length | 115 mm | 120 mm | 150 mm | 175 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1012 mm | 1019 mm | 1037 mm | 1051 mm |
| Bottom Bracket Drop | 60 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 684 mm | 725 mm | 759 mm | 784 mm |
| Wheels | 650 | 700 | 700 | 700 |
| Rider Max Height | 159 cm | 165 cm | 174 cm | cm |
Model Overview
Roadlite 5 WMN is a Canyon Roadlite model. Canyon launched 58 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Canyon Roadlite 4 2023 is the most economical model, with a starting price of 699$. Canyon Roadlite CF 9 LTD 2023 on the other hand costs 3715$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fitness bikes
Our math shows that the average cost of a dependable Fitness bike is 656$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fitness bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Canyon released this model in 2023, its price was 799$. Comparing the average cost of a Fitness bike to this one, you will see that Roadlite 5 WMN price is 21.8% higher.
Fitness bikes average weight
Fitness bikes have an average weight of 11.24 kg (24.78 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
a bit lighter than average, Roadlite 5 WMN has a weight of 10.66 kg (23.5 lbs). In conclusion, the average Fitness bike weighs 5.44% more than Roadlite 5 WMN.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on Roadlite 5 WMN are the aluminum type. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.

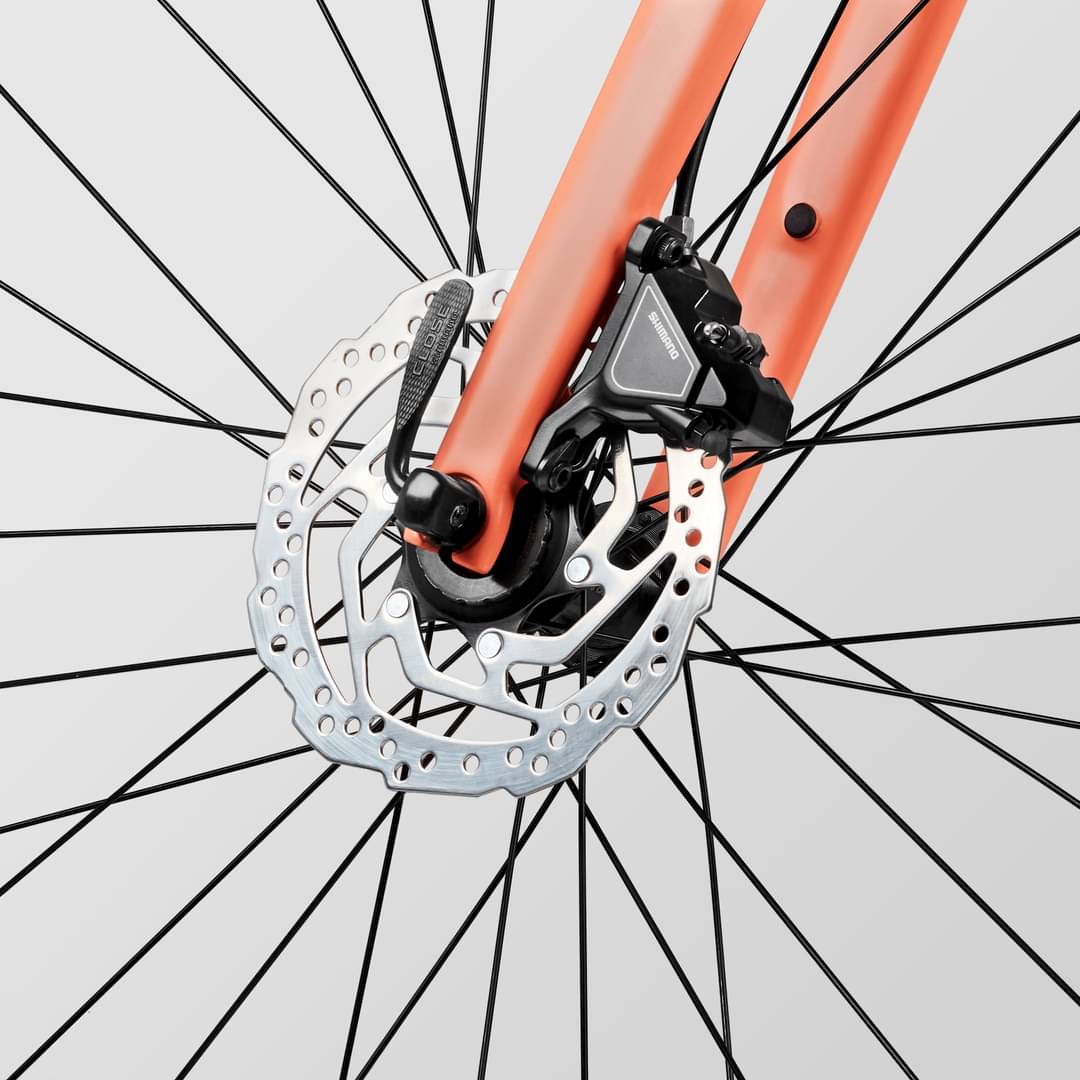

Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
