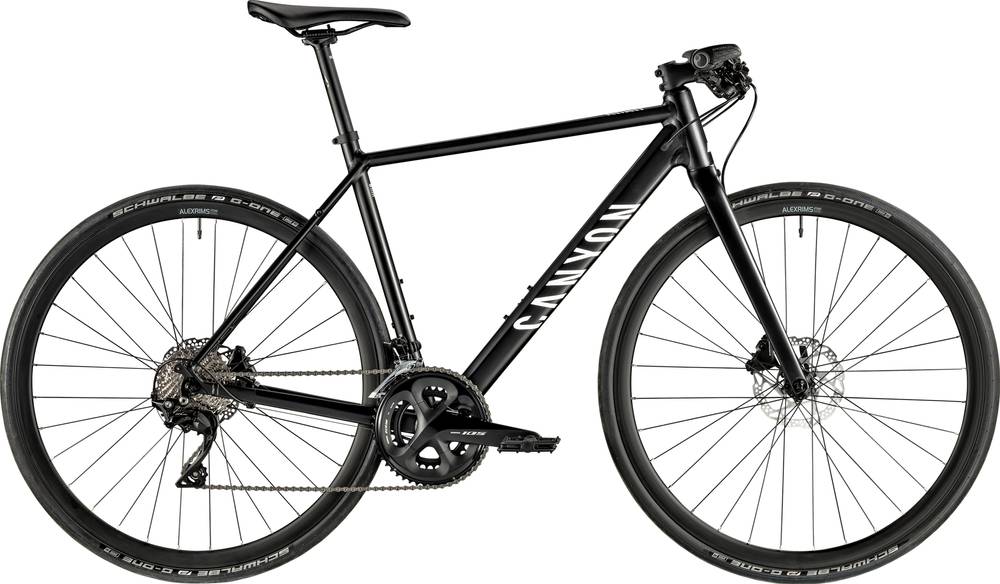

Canyon Roadlite AL 7.0 2019
2019 Urban
Estimate price |
999$
Weight | 10 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 169cm
SM
167cm - 179cm
MD
176cm - 184cm
LG
182cm - 191cm
XL
188cm - 197cm
XXL
195cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Roadlite AL, Material: Aluminium, Axle Dimension: 10 x 135 mm, Brake Mount: Flat Mount
Suspension Fork
Canyon FK0049 CF Disc, Material: Carbon, Steerer: 1 1/8'', Axle Dimension: 9 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
Shimano 105 R7000 GS
Front Derailleur
Shimano 105 R7000
Shift Levers
Shimano 105 RS700 11s | Shimano 105 RS700 2s
Cassette
Shimano HG700 11-34 11s
Crank
Shimano 105 R7000, 50/34
Bottom Bracket
Shimano Pressfit BB-RS500
Chain
Shimano CN-HG601 11s
Pedals
VP Components VP-536
Wheels
Front Hub
Shimano HB-TX505 | Shimano FH-TX505
Rear Hub
Shimano HB-TX505 | Shimano FH-TX505
Rims
Alexrims ATD560 | Shimano TX505, Rim Material: Aluminium, Inner Width: 19 mm, Hub Type: TX505 | Alexrims ATD560 | Shimano TX505 SH11, Rim Material: Aluminium, Inner Width: 19 mm, Hub Type: TX505
Tires
Schwalbe G-One Speed 30 mm
Brakes
Brakes
Shimano MT201 / UR300?
Disk Rotors
Shimano RT54, Disc Mount: Centerlock
Cockpit
Stem
Canyon V15
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Grips
Ergon GS2
Headset
Acros Az-44
Seat
Saddle
Iridium One Fitness
Seatpost
Iridium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.31 mm | 1.35 mm | 1.4 mm | 1.43 mm | 1.44 mm |
| Front Center | 603 mm | 618 mm | 631 mm | 641 mm | 655 mm | 678 mm |
| Rake | 46 mm | 46 mm | 54 mm | 54 mm | 46 mm | 55 mm |
| Trail | 58 mm | 64 mm | 50 mm | 50 mm | 64 mm | 49 mm |
| Stack | 518 mm | 531 mm | 554 mm | 578 mm | 602 mm | 626 mm |
| Reach | 393 mm | 406 mm | 411 mm | 414 mm | 420 mm | 436 mm |
| Top Tube Length | 549 mm | 566 mm | 578 mm | 588 mm | 601 mm | 624 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 442 mm | 482 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 72.2 ° | 72.2 ° | 73 ° | 73 ° | 72.2 ° | 73 ° |
| Head Tube Length | 105 mm | 105 mm | 130 mm | 155 mm | 180 mm | 205 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 1002 mm | 1013 mm | 1026 mm | 1036 mm | 1050 mm | 1074 mm |
| Bottom Bracket Drop | 60 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 167 cm | 176 cm | 182 cm | 188 cm | 195 cm |
| Rider Max Height | 169 cm | 179 cm | 184 cm | 191 cm | 197 cm | 194 cm |
Model Overview
Roadlite AL 7.0 is part of the Canyon Roadlite model. 58 bikes variations carry this model name so far. You can easily view all of the Canyon Roadlite bikes models from 2019, here.
Model range prices
The most economical model, the Canyon Roadlite WMN 6.0 2019 has a starting price of 689$. Canyon Roadlite CF 9.0 LTD 2019 on the other hand is the most expensive at 2999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Fitness bikes average price
Our math shows that the average cost of a dependable Fitness bike is 656$. However, you could also get a good Fitness bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2019 for 999$. Doing a quick comparison, we notice that Roadlite AL 7.0 price is 52.29% more expensive than the average cost of a Fitness bike.
Average weight for Fitness bikes
Fitness bikes have an average weight of 11.24 kg (24.78 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
considerably lighter than average, Roadlite AL 7.0 has a weight of 10 kg (22.05 lbs). In conclusion, the average Fitness bike weighs 12.4% more than Roadlite AL 7.0.
Roadlite AL 7.0 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When it comes to wheels, the Roadlite AL 7.0 bike is equipped with the aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Roadlite AL 7.0 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Roadlite AL 7.0 comes in 6 sizes, that range from 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
