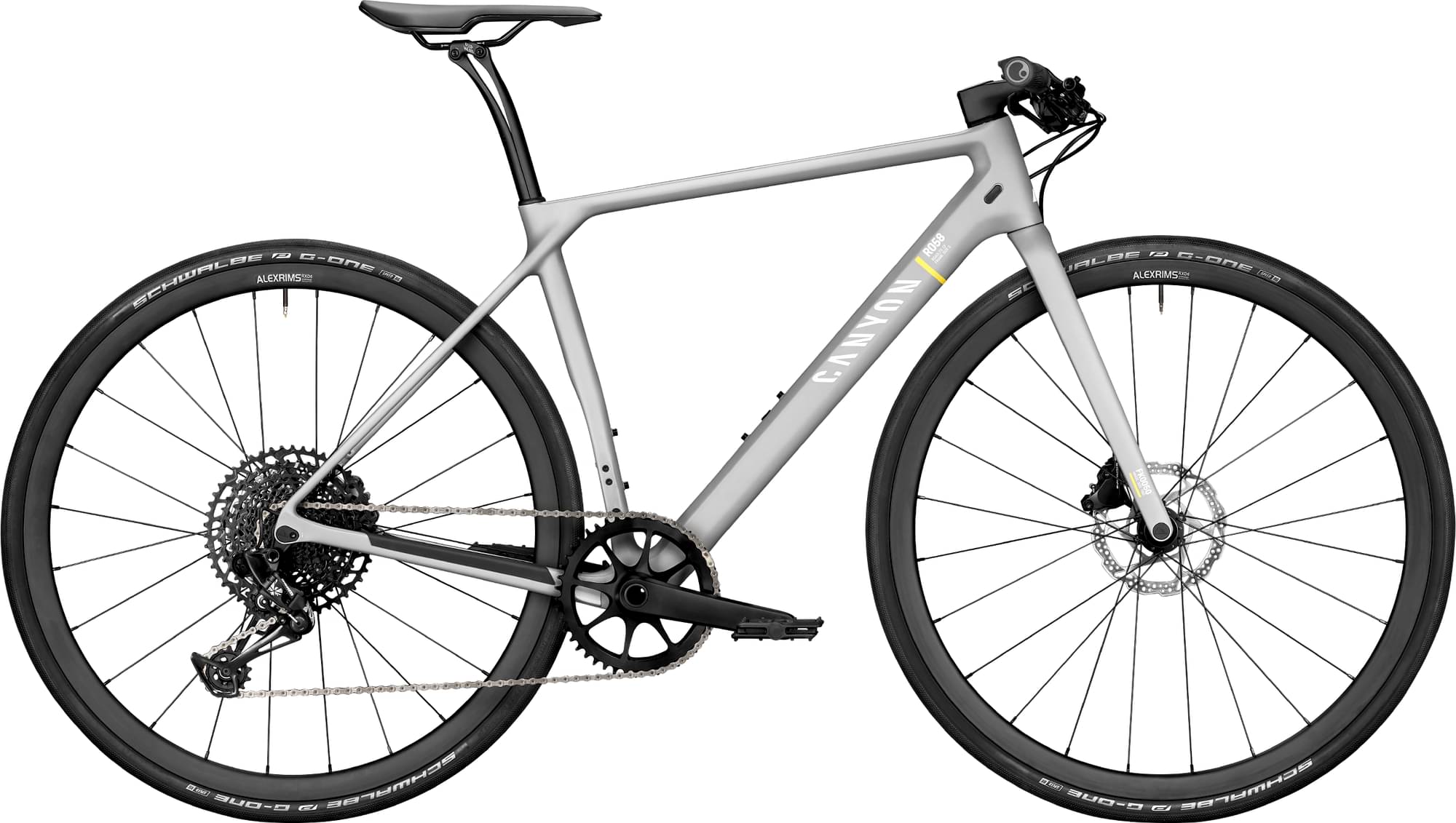

Canyon Roadlite CF 8 WMN 2023
2023 Urban
Estimate price |
2,063$
Weight | 9.11 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset NX Eagle -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
167cm - 179cm
MD
177cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Roadlite CF, Material: Carbon (CF)
Suspension Fork
Canyon FK0050 CF SL Disc, Fork steer tube diameter: 1 1/8", Material: Carbon (CF)
Drivetrain
Rear Derailleur
SRAM NX Eagle, The NX Eagle rear derailleur delivers consistent shifts thanks, in part, to its robust steel/aluminum chassis., Cage length: long
Shift Levers
SRAM NX Eagle Trigger 12s
Cassette
SRAM PG-1230 Eagle 11-50 12s, SRAM's NX Eagle 11-50 cassette packs a wide, 454% gear range into a surprisingly affordable package., Number of sprockets: 12 | SRAM NX Eagle PG-1230 12-speed Cassette
Crank
SAMOX TAM37 46T, Number of chainrings: 1
Bottom Bracket
SAMOX Pressfit BB8601, Bottom bracket standard: PF 86
Chain
SRAM NX Eagle 12s, 12 speed chain with powerlink. | SRAM NX Eagle 12-speed Chain 126 Links
Wheels
Rims
Alexrims RXD6, Rim Material: Aluminium, Rim Height: 30 mm, Inner Width: 19 mm | Alexrims RXD6 SH11, Rim Material: Aluminium, Rim Height: 30 mm, Inner Width: 19 mm
Tires
Schwalbe G-One Speed 30 mm, Width: 30mm | Schwalbe G-One Speed 27.5" & 28" Road Tyre
Brakes
Brakes
Promax DC927, Number of pistons: 2
Cockpit
Grips
Ergon GA3, Premium grips design for extra hand support.
Seat
Saddle
Canyon Sport Saddle EP1249, Canyon Sport Saddle
Seatpost
Canyon S15 VCLS 2.0 CF, Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.34 mm | 1.38 mm | 1.43 mm |
| Front Center | 595 mm | 613 mm | 625 mm | 636 mm |
| Rake | 42 mm | 44 mm | 44 mm | 44 mm |
| Trail | 60 mm | 64 mm | 64 mm | 64 mm |
| Stack | 520 mm | 541 mm | 564 mm | 588 mm |
| Reach | 391 mm | 403 mm | 408 mm | 411 mm |
| Top Tube Length | 548 mm | 566 mm | 578 mm | 588 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 442 mm | 482 mm | 522 mm | 552 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 140 mm | 130 mm | 155 mm | 180 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 994 mm | 1008 mm | 1020 mm | 1031 mm |
| Bottom Bracket Drop | 60 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 724 mm | 761 mm | 793 mm | 819 mm |
| Wheels | 650 | 700 | 700 | 700 |
| Rider Max Height | 169 cm | 179 cm | 185 cm | cm |
About this model
Roadlite CF 8 WMN completes the Canyon Roadlite model. 58 bikes variations carry this model name so far. Take a sneak peek at all Canyon Roadlite bikes models from 2023, by clicking here.
Model range prices
Canyon Roadlite 4 2023 is the most economical model, with a starting price of 699$. Canyon Roadlite CF 9 LTD 2023 on the other hand costs 3715$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Fitness bikes
Our math shows that the average cost of a dependable Fitness bike is 656$. However, you could also get a good Fitness bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1910$. Doing a quick comparison, we notice that Roadlite CF 8 WMN price is 191.16% more expensive than the average cost of a Fitness bike.
Average weight for Fitness bikes
On a deeper look, we notice that the average weight of a Fitness bike is 11.24 kg (24.78 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 9.11 kg (20.08 lbs), the Roadlite CF 8 WMN model is much lighter than average. In conclusion, the average Fitness bike weighs 23.38% more than Roadlite CF 8 WMN.
Roadlite CF 8 WMN components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Roadlite CF 8 WMN model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Roadlite CF 8 WMN is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
