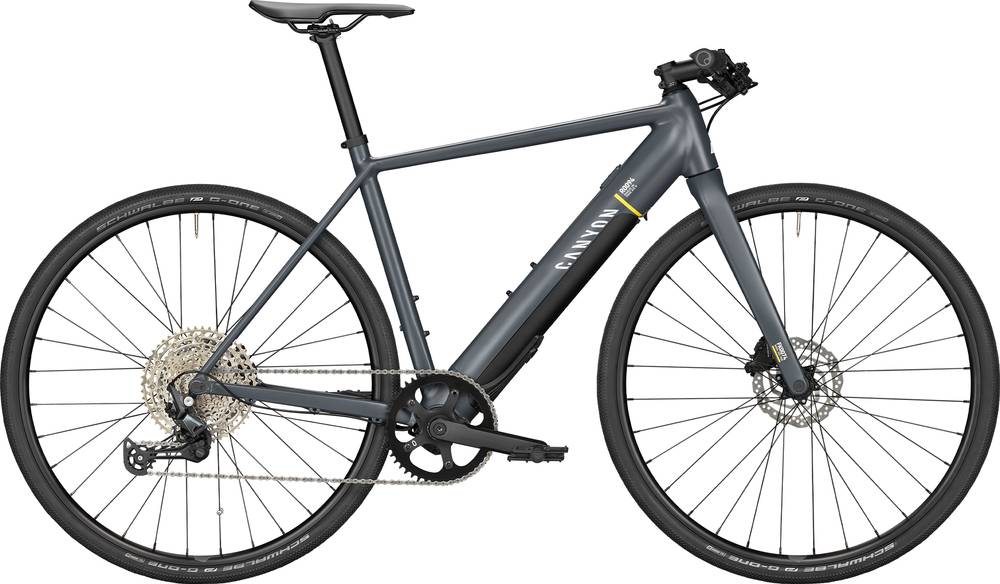

Canyon Roadlite:ON 6 2021
2021 E-bike
Estimate price |
3,210$
Weight | 16.18 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 700c -
Groupset Deore -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery Fazua Evation X 250 Wh, Compact, lightweight battery., Capacity: 252 Wh, Weight: 1.4 kg, Integrated into down tube, Remote-operated wake-up function -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
161cm - 176cm
MD
174cm - 186cm
LG
184cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Roadlite:ON, Lightweight aluminium frame.
Suspension Fork
Canyon FK0074 CF DISC, Lightweight carbon fork. Comfortable, vibration-damping design. Specially designed for disc brake bikes.
Drivetrain
Rear Derailleur
Shimano Deore, 12-speed, 1x12 drivetrain for simpler, intuitive shifting. Long-cage design is compatible with wide-range cassettes.
Shift Levers
Shimano Deore M6100 12s, Right shift lever. Shifts up to 3 gears at a time.
Cassette
Shimano Deore, 12-speed (10-51), Cassette packed with tricke-down performance features. Hyperglide+ tech provides fast, smooth shifting. Beam spider construction cuts weights and boosts stiffness. Gear range: 10-51.
Crank
Samox EC38 48T, E-bike specific crank. Constructed from forged 6061 aluminium.
Chain
Shimano M6100 12-speed
Wheels
Rims
Alexrims TD19 | Shimano MT400 | Alexrims TD19 | Shimano MT400 SH10
Tires
Schwalbe G-One 28" Gravel Tyre
Brakes
Brakes
Shimano MT200, Hydraulic disc brakes. With ergonomic 3-finger levers. | Shimano MT200 / UR300?, Hydraulic disc brakes. With ergonomic 3-finger levers.
Disk Rotors
Shimano RT10, Rotor diameter: 160 mm.
Cockpit
Stem
Iridium
Handlebar
Iridium Flatbar, Material: Aluminium, Handlebar diameter: 31.8 mm
Grips
Ergon GA3, Premium grips with miniwing design for extra hand support.
Seat
Saddle
Canyon Sport Saddle EP1249
Seatpost
Iridium Seatpost, Alloy seatpost.
Motor & Battery
Motor
Fazua RIDE 50 EVATION, Lightweight, advanced electric motor., Power: 250 W, Weight (without battery): 1.92 kg, Motor assist up to 25 kph, Entire drivepack (motor + battery) removable from frame
Battery
Fazua Evation X 250 Wh, Compact, lightweight battery., Capacity: 252 Wh, Weight: 1.4 kg, Integrated into down tube, Remote-operated wake-up function
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.396 mm | 1.355 mm | 1.402 mm | 1.444 mm | 1.488 mm |
| Front Center | 601 mm | 610 mm | 622 mm | 637 mm | 655 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 62 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Stack | 550 mm | 554 mm | 579 mm | 605 mm | 637 mm |
| Reach | 394 mm | 409 mm | 413 mm | 419 mm | 428 mm |
| Top Tube Length | 557 mm | 573 mm | 585 mm | 598 mm | 617 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 522 mm | 552 mm | 592 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 129 mm | 118 mm | 144 mm | 171 mm | 205 mm |
| Chainstay Length | 420 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1014 mm | 1024 mm | 1036 mm | 1051 mm | 1070 mm |
| Bottom Bracket Drop | 60 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 731 mm | 732 mm | 790 mm | 823 mm | 857 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 |
| Rider Max Height | 163 cm | 176 cm | 186 cm | 196 cm | cm |
Model Overview
Roadlite:ON 6 is part of the Canyon E Roadliteon model. There are 17 e-bikes that carry this model name. Take a sneak peek at all Canyon E Roadliteon e-bikes models from 2021, by clicking here.
Model range prices
Canyon Roadlite:ON 6 2021 is the most affordable e-bike of this model and has a price of 2972$. On the other hand, Canyon Roadlite:ON AL 8.0 2021, is the most expensive and costs 4013$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Fitness e-bikes average price
If you want an acceptable Fitness e-bike you should know that the average price is 2351$. However, this doesn’t mean that if you spend less money on a Fitness e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Canyon Roadlite:ON 6 price was 2972$. Comparing the average cost of a Fitness e-bike to this one, you will see that Roadlite:ON 6 price is 26.41% more expensive.
Average weight for Fitness e-bikes
Fitness e-bikes have an average weight of 22.85 kg (50.38 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Roadlite:ON 6 weighs 16.18 kg (35.67 lbs) and is much lighter than the average. In conclusion, the average Fitness e-bike weighs 41.22% more than Roadlite:ON 6.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the Roadlite:ON 6 model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Roadlite:ON 6 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
