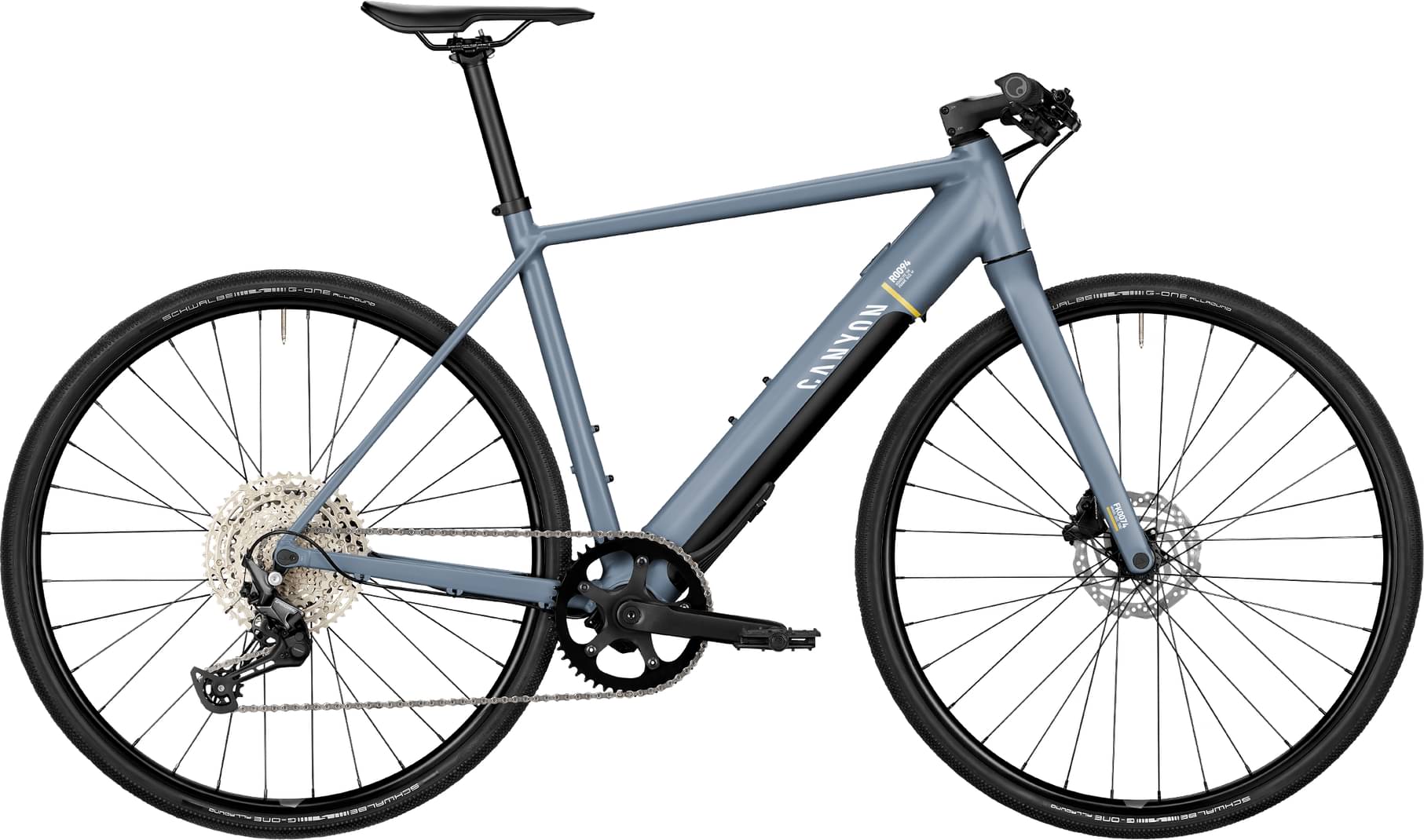

Canyon Roadlite:ON 6 2023
2023 E-bike
Estimate price |
3,325$
Weight | 16.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore -
Suspension Rigid -
Motor Fazua 350W 58Nm mid-drive -
Battery Fazua Evation X, Compact, lightweight battery., Capacity: 252 Wh, Weight: 1.4 kg, Integrated into down tube -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
161cm - 176cm
MD
174cm - 186cm
LG
184cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

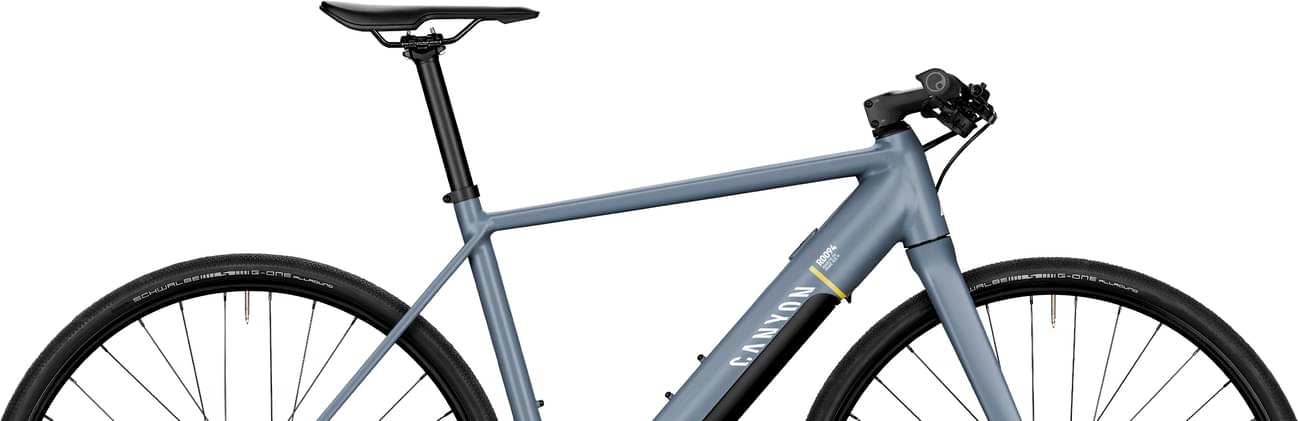

Canyon Roadlite:ON, Lightweight aluminium E-Hybrid frame., Features: superlight tubing, integrated battery design, semi-integrated cable guiding, tapered head tube, forged motor bracket., Material: Aluminium (AL)
Suspension Fork
Canyon FK0074, Material: Carbon (CF)
Drivetrain
Rear Derailleur
Shimano DEORE M6100, 1x12 drivetrain for simpler, intuitive shifting. Long-cage design is compatible with wide-range cassettes.
Shift Levers
Shimano Deore M6100 12s, Right shift lever. Shifts up to 3 gears at a time.
Cassette
Shimano DEORE M6100, Cassette packed with trickle-down performance features. Hyperglide+ tech provides fast, smooth shifting. Beam spider construction cuts weights and boosts stiffness., Gear range: 10-51 | Shimano CS-M6100 Deore 12-speed Cassette 10-51
Crank
Samox EC38 48T, E-bike specific crank. Constructed from forged 6061 aluminium.
Chain
Shimano M6100 12-speed | Shimano SM-CN910 12-speed Quick-Link Chain Connector | Shimano CN-M6100 Deore 12-speed Chain 138 Links
Wheels
Rims
Alexrims TD19 | Shimano MT400, Rotor mount: Center Lock, Wheelsize: 28" | Alexrims TD19 | Shimano MT400 SH10, Rotor mount: Center Lock, Wheelsize: 28"
Tires
Schwalbe G-ONE RaceGuard, Area of Use: Gravel | Schwalbe G-One Allround Race Guard 27.5" Gravel Tyre
Brakes
Brakes
Shimano MT200, Hydraulic disc brakes. With ergonomic 3-finger levers. | Shimano MT200 / UR300?, Hydraulic disc brakes. With ergonomic 3-finger levers.
Cockpit

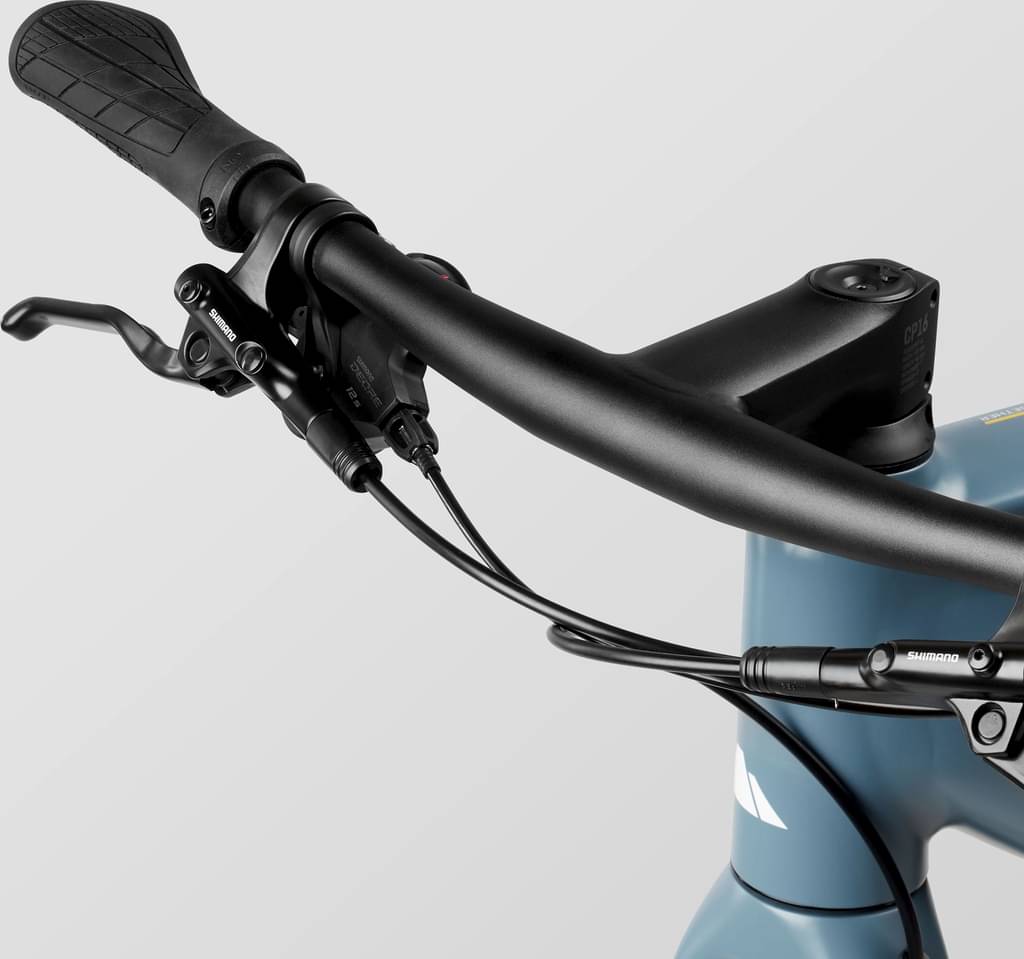

Grips
Ergon GA3, Premium grips design for extra hand support.
Seat
Saddle

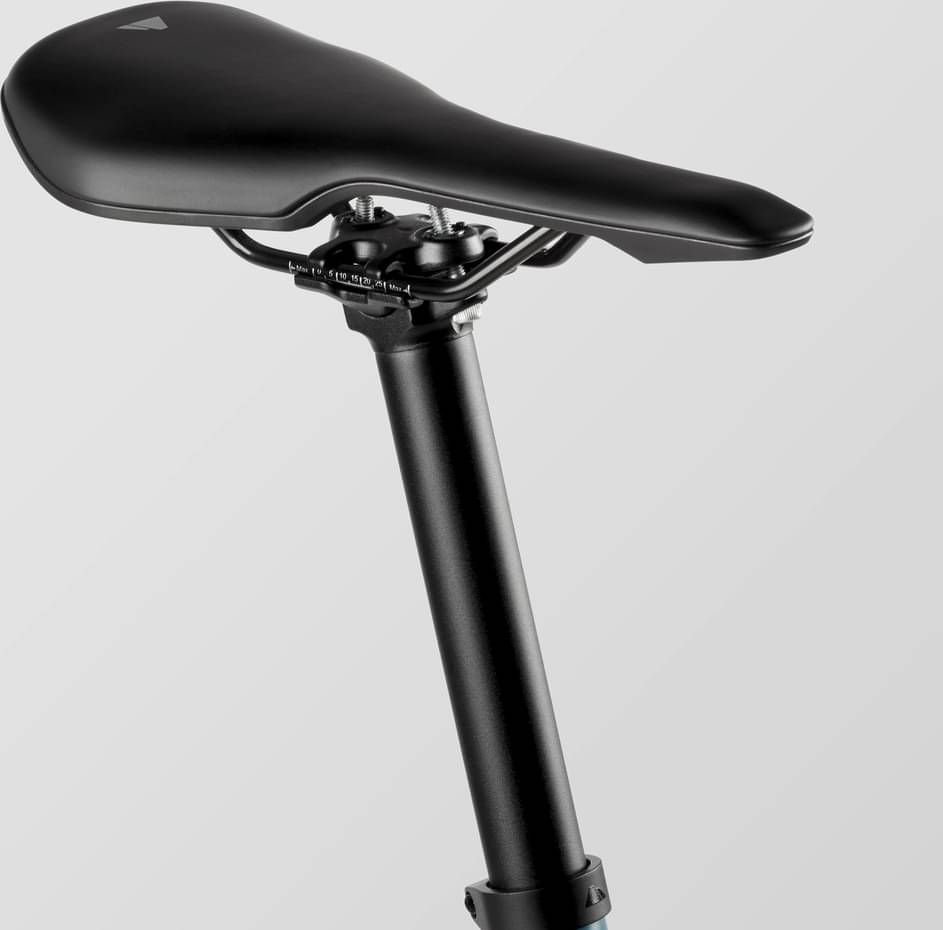

Canyon Sport Saddle EP1249, Canyon Sport Saddle
Seatpost
Iridium Seatpost, Alloy seatpost.
Motor & Battery
Motor

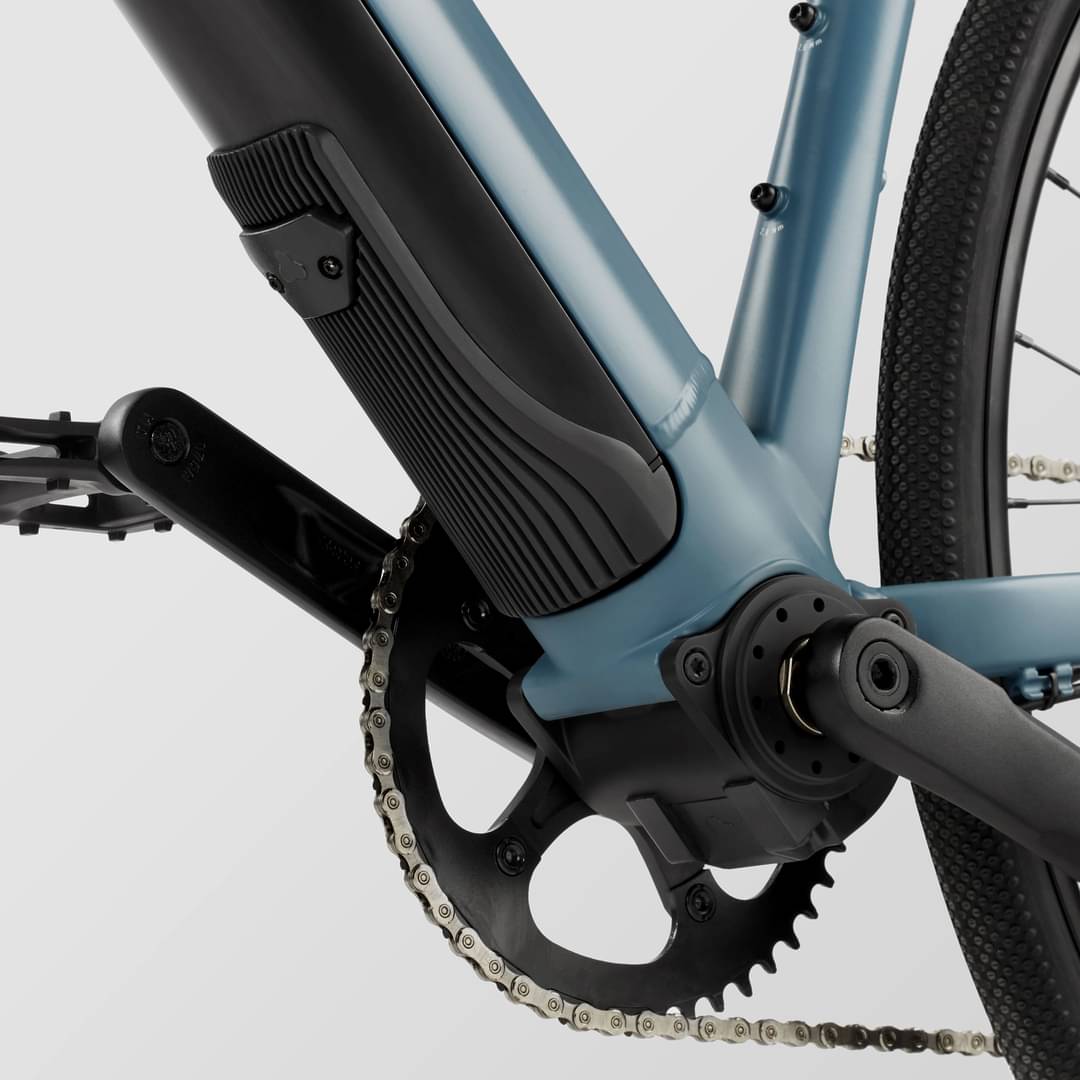

Fazua Evation DU, Smooth drivepack with new housing, lighter design & more torque., Max power: 350 W, Torque: 58 Nm, Weight: 1.8 kg
Battery

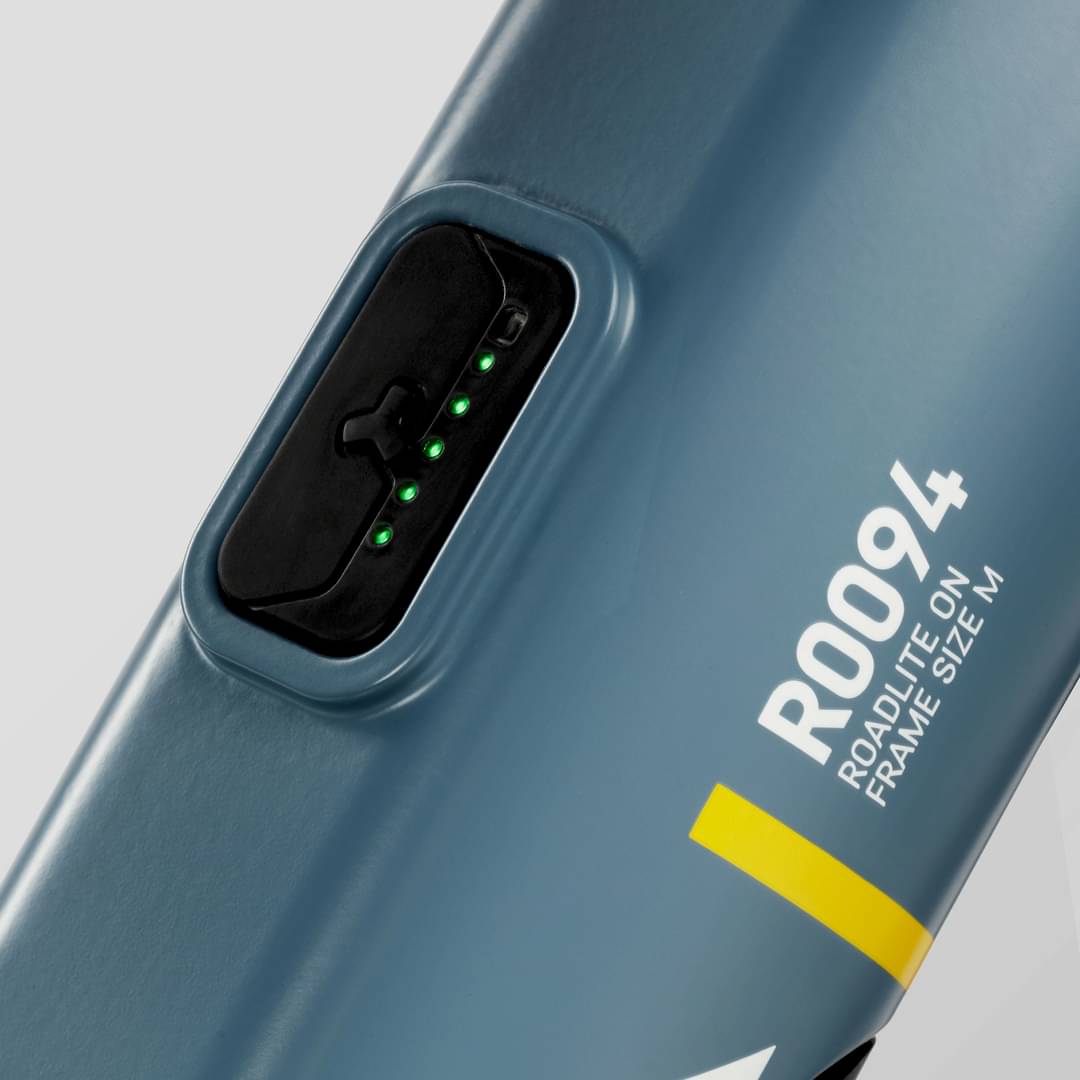

Fazua Evation X, Compact, lightweight battery., Capacity: 252 Wh, Weight: 1.4 kg, Integrated into down tube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.396 mm | 1.355 mm | 1.402 mm | 1.444 mm | 1.488 mm |
| Front Center | 601 mm | 610 mm | 622 mm | 637 mm | 655 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 62 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Stack | 550 mm | 554 mm | 579 mm | 605 mm | 637 mm |
| Reach | 394 mm | 409 mm | 413 mm | 419 mm | 428 mm |
| Top Tube Length | 557 mm | 573 mm | 585 mm | 598 mm | 617 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 522 mm | 552 mm | 592 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 129 mm | 118 mm | 144 mm | 171 mm | 205 mm |
| Chainstay Length | 420 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1014 mm | 1024 mm | 1036 mm | 1051 mm | 1070 mm |
| Bottom Bracket Drop | 60 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 731 mm | 732 mm | 790 mm | 823 mm | 857 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 |
| Rider Max Height | 163 cm | 176 cm | 186 cm | 196 cm | cm |
About this model
Roadlite:ON 6 completes the Canyon E Roadliteon model. 17 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Canyon Roadlite:ON 5 2023 is the most affordable e-bike of this model and has a price of 3078$. On the other hand, Canyon Roadlite:ON CF 9 LTD 2023, is the most expensive and costs 5308$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Fitness e-bikes average price
According to our calculations, the average cost of a Fitness e-bike that is reliable is 2351$. However, this doesn’t mean that if you spend less money on a Fitness e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Canyon released this model in 2023, its price was 3078$. If we compare this with the average Fitness e-bike cost we notice that the price is 30.92% higher.
Fitness e-bikes average weight
If we make a quick analysis of the average weight of a Fitness e-bike, we get 22.85 kg (50.38 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 16.4 kg (36.16 lbs), the Roadlite:ON 6 model is much lighter than average. In short, the average Fitness e-bike weight is 39.33% higher than this one.
Roadlite:ON 6 components
Fork material
Roadlite:ON 6 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the Roadlite:ON 6 e-bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
