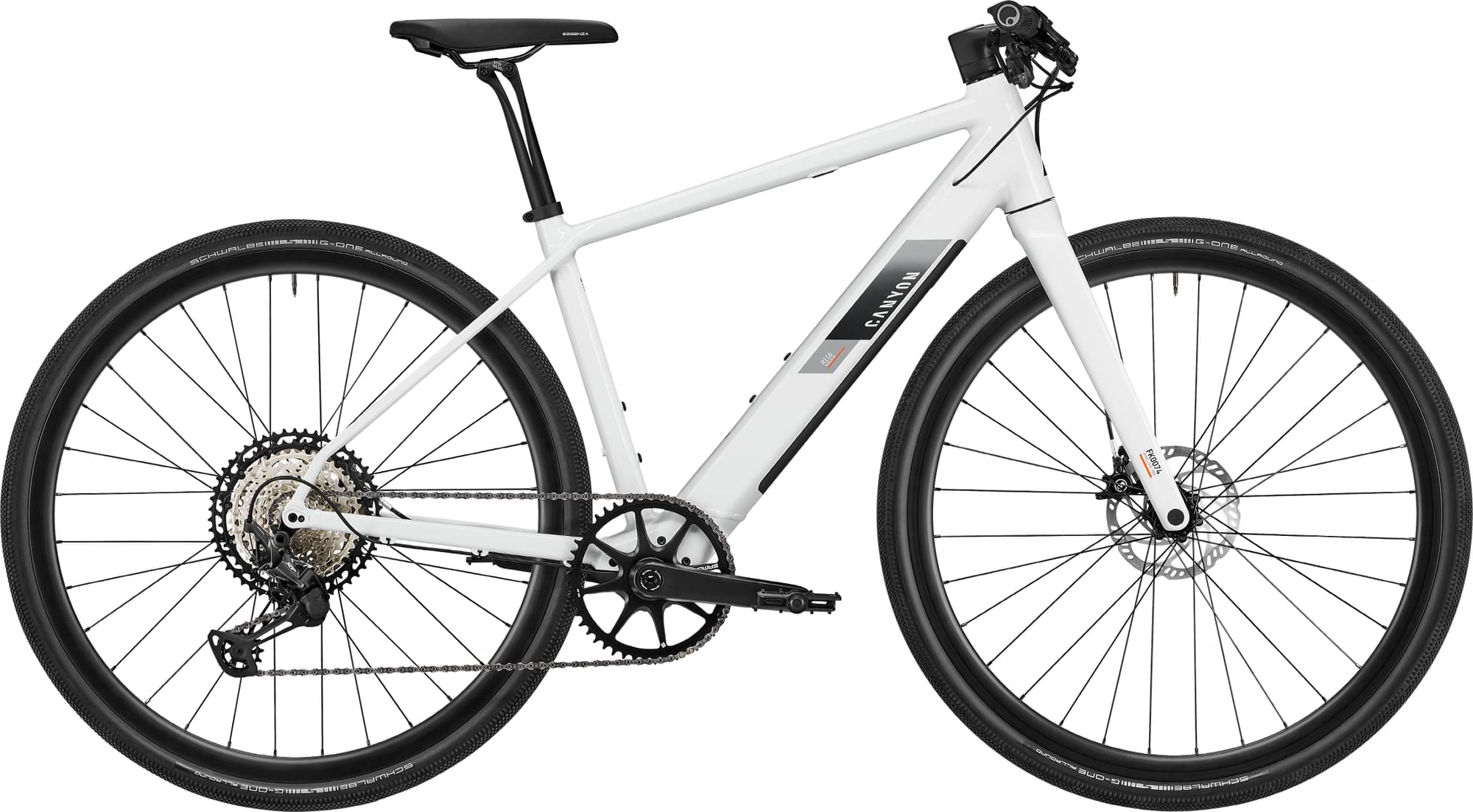

Canyon Roadlite:ON 8 LTD 2022
2022 E-bike
Estimate price |
4,357$
Weight | 15.66 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset XT -
Suspension Rigid -
Motor Fazua 450W mid-drive -
Battery FAZUA ENERGY 430, Compact, lightweight battery., Capacity: 430 Wh, Weight: 2.3 kg, Integrated into down tube -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
169cm - 181cm
LG
179cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Roadlite:ON, Material: Aluminium (AL)
Suspension Fork
Canyon FK0074, Material: Carbon
Drivetrain
Rear Derailleur
Shimano Deore XT M8100 12speed, Precise 1x12 drivetrain.
Shift Levers
Shimano Deore XT, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 20-degrees rotation adjustment, 130 g
Cassette
Shimano XT, 12-speed (10-51), Cassette size: 10-51T. Gear range: 510%.
Crank
Samox EC37F, Number of chainrings: 1
Chain
Shimano CN-M6100 12s
Wheels
Rims
Alexrims CRD30 | Shimano MT410 SH12, Rotor Mount: Center Lock | Alexrims CRD30 | Shimano MT400, Rotor Mount: Center Lock
Tires
Schwalbe G-One Allround 40 mm, Multi-purpose all-road tyre with light tread., Bead: folding, Tyre width: 40 mm, Size: 40-622
Brakes
Brakes
Magura MT Thirty, Number Of Pistons: 2
Disk Rotors
Magura MDR-C
Cockpit
Grips
Ergon GA3, Premium grips design for extra hand support.
Seat
Saddle
Selle Royal Essenza, Gender: Male
Seatpost
Canyon S25 VCLS 2.0 CF, Material: Carbon, Setback: -2 mm / 10 mm, Technology: VCLS 2.0 | Fliphead, Weight: 235 g
Motor & Battery
Motor
FAZUA RIDE 60 DRIVE UNIT, Lightweight, advanced electric motor., Power: 450 W, Weight (without battery): 1.96 kg, Motor assist up to 25 kph
Battery
FAZUA ENERGY 430, Compact, lightweight battery., Capacity: 430 Wh, Weight: 2.3 kg, Integrated into down tube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.5 mm | 1.52 mm | 1.51 mm |
| Front Center | 582 mm | 621 mm | 658 mm | 695 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 71 mm | 71 mm | 71 mm | 71 mm |
| Stack | 543 mm | 585 mm | 628 mm | 663 mm |
| Reach | 363 mm | 390 mm | 414 mm | 439 mm |
| Top Tube Length | 516 mm | 555 mm | 592 mm | 627 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 458 mm | 506 mm | 555 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 129 mm | 160 mm | 205 mm | 242 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 993 mm | 1028 mm | 1066 mm | 1103 mm |
| Bottom Bracket Drop | 60 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 712 mm | 766 mm | 801 mm | 837 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Max Height | 171 cm | 181 cm | 191 cm | cm |
Model Overview
Roadlite:ON 8 LTD is a Canyon E Roadliteon model. Canyon released 17 e-bikes variations of this model so far. You can easily view all of the Canyon E Roadliteon e-bikes models from 2022, here.
Model range prices
Canyon Roadlite:ON AL 7.0 2022 is the most affordable e-bike of this model and has a price of 2699$. On the other hand, Canyon Roadlite:ON 8 LTD 2022, is the most expensive and costs 4034$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Fitness e-bikes average price
According to our calculations, the average cost of a Fitness e-bike that is reliable is 2351$. However, you could also get a good Fitness e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 4034$. Comparing this to the average Fitness e-bike price, we see that the price is 71.59% more expensive.
Fitness e-bikes average weight
Fitness e-bikes have an average weight of 22.85 kg (50.38 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much lighter than average, Roadlite:ON 8 LTD has a weight of 15.66 kg (34.52 lbs). In short, the average Fitness e-bike weight is 45.91% higher than this one.
Roadlite:ON 8 LTD components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The Roadlite:ON 8 LTD 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Roadlite:ON 8 LTD has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
