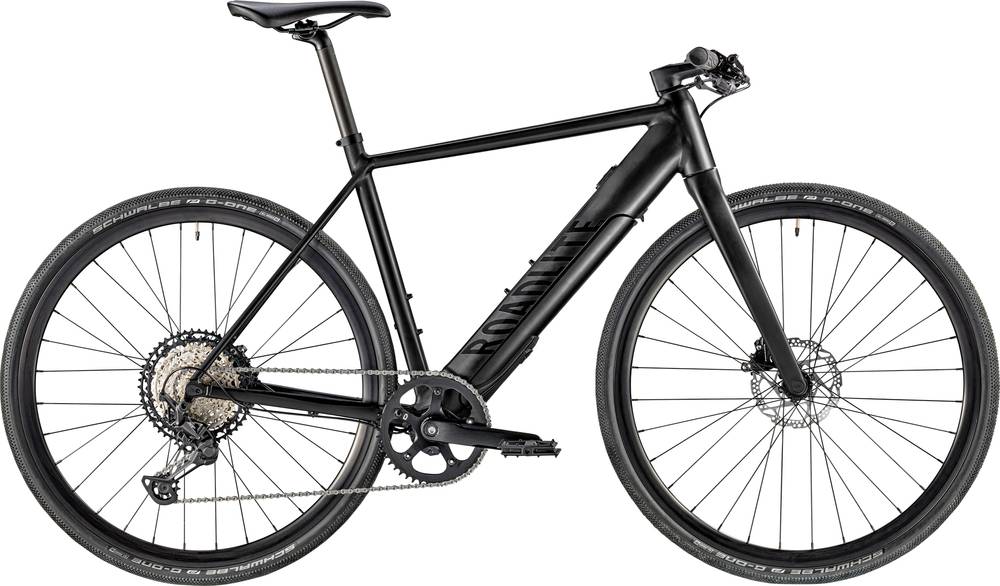

Canyon Roadlite:ON AL 8.0 2020
2020 E-bike
Estimate price |
3,784$
Weight | 15.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 700c -
Groupset XT -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery Fazua Evation 1.0 250 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
161cm - 176cm
MD
174cm - 186cm
LG
184cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Roadlite:ON
Suspension Fork
Canyon FK0074 CF DISC
Drivetrain
Rear Derailleur
Shimano Deore XT M8100 SGS
Shift Levers
SL SHIM XT SL-M8100 12s Clamp
Cassette
Shimano Deore XT M810012 10-51 12s
Crank
Samox EC38 48T 48
Chain
Shimano CN-M7100 12s
Wheels
Rims
Alexrims CRD30 | Shimano MT510 SH12
Tires
Schwalbe G-One Allround 35 mm
Brakes
Brakes
Shimano RS600
Disk Rotors
Shimano RT54, Disc Mount: Centerlock
Cockpit
Grips
Iridium
Seat
Saddle
Iridium Fitness
Seatpost
Canyon SP0041 VCLS CF, Material: Carbon, Setback: 20 mm, Technology: VCLS
Motor & Battery
Motor
Fazua Evation 1.0
Battery
Fazua Evation 1.0 250 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.396 mm | 1.355 mm | 1.402 mm | 1.444 mm | 1.488 mm |
| Front Center | 601 mm | 610 mm | 622 mm | 637 mm | 655 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 62 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Stack | 550 mm | 554 mm | 579 mm | 605 mm | 637 mm |
| Reach | 394 mm | 409 mm | 413 mm | 419 mm | 428 mm |
| Top Tube Length | 557 mm | 573 mm | 585 mm | 598 mm | 617 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 400 mm | 554 mm | 522 mm | 552 mm | 592 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 129 mm | 118 mm | 144 mm | 171 mm | 205 mm |
| Chainstay Length | 420 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1014 mm | 1024 mm | 1036 mm | 1051 mm | 1070 mm |
| Bottom Bracket Drop | 60 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 |
| Rider Max Height | 163 cm | 176 cm | 186 cm | 196 cm | cm |
Model Overview
Roadlite:ON AL 8.0 belongs to the Canyon E Roadliteon model. There are 17 e-bikes that carry this model name. Take a sneak peek at all Canyon E Roadliteon e-bikes models from 2020, by clicking here.
Model range prices
The most economical model, the Canyon Roadlite:ON AL 7.0 2020 has a starting price of 2866$. Canyon Roadlite:ON AL 9.0 2020 on the other hand is the most expensive at 3928$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Fitness e-bikes average price
Our math shows that the average cost of a dependable Fitness e-bike is 2351$. However, you could also get a good Fitness e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Canyon released this model in 2020, its price was 3503$. If we compare this with the average Fitness e-bike cost we notice that the price is 49% higher.
Fitness e-bikes average weight
Fitness e-bikes have an average weight of 22.85 kg (50.38 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Canyon Roadlite:ON AL 8.0 it’s weighing 15.4 kg (33.95 lbs). At this weight, is much lighter than average. In conclusion, the average Fitness e-bike weighs 48.38% more than Roadlite:ON AL 8.0.
Roadlite:ON AL 8.0 components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on Roadlite:ON AL 8.0 are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
