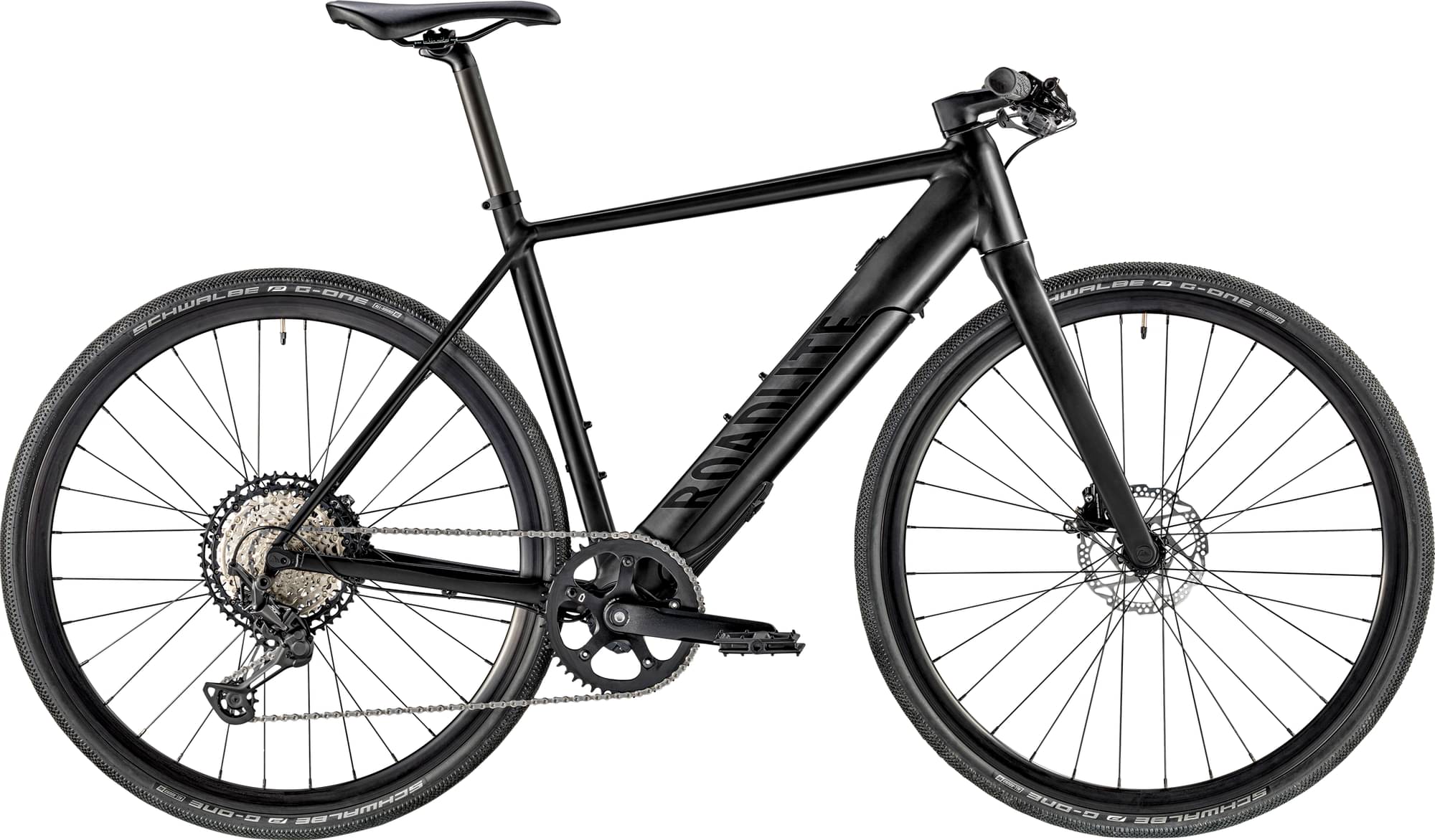

Canyon Roadlite:ON AL 8.0 2023
2023 E-bike
Estimate price |
3,784$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset XT -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery Fazua Evation 1.0, The Fazua Energy 250X battery is light and efficient. A remote makes switching the system on and off simple, without needing to remove the battery. The Fazua-developed Battery Management System (BMS) protects the battery from overcharging, overheating, undervoltage, and short circuiting. -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
161cm - 176cm
MD
174cm - 186cm
LG
184cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Roadlite:ON, Material: Aluminium (AL)
Suspension Fork
Canyon FK0074 CF DISC
Drivetrain
Rear Derailleur
Shimano Deore XT M8100 12speed, Precise 1x12 drivetrain.
Shift Levers
Shimano XT M8100 12s, Right shift lever. With 2-way release tech: shift by pushing or pulling the levers.
Cassette
Shimano XT, 12-speed (10-51), Cassette size: 10-51T, Gear range: 510%
Crank
Samox EC38 48T, Number of chainrings: 1
Chain
Shimano CN-M7100 12s, Chain featuring SIL-TEC ultra-low friction surface treatment on inner plate for precise shifting and improved durability. Extended inner plates also improve chain engagement and retention. With quick link for fast fitting and assembly. | Shimano CN-M7100 12-speed Chain
Wheels
Rims
Alexrims CRD30 | Shimano MT400, Rotor mount: Center Lock, Wheelsize: 28" | Alexrims CRD30 | Shimano MT510 SH12, Rotor mount: Center Lock, Wheelsize: 28"
Tires
Schwalbe G-ONE RaceGuard, Area of Use: Gravel
Brakes
Brakes
Shimano RS600, Hydraulic disc brakes. With ergonomic 3-finger lever.
Cockpit
Grips
Iridium
Seat
Saddle
Iridium Fitness, High-grade saddle developed for endurance riding. With aluminium rails.
Seatpost
Canyon SP-41 CF, Clamp diameter: 30,9 mm
Motor & Battery
Motor
Fazua RIDE 50 EVATION, Lightweight, advanced electric motor., Power: 250 W, Weight (without battery): 1.92 kg, Motor assist up to 25 kph, Entire drivepack (motor + battery) removable from frame
Battery
Fazua Evation 1.0, The Fazua Energy 250X battery is light and efficient. A remote makes switching the system on and off simple, without needing to remove the battery. The Fazua-developed Battery Management System (BMS) protects the battery from overcharging, overheating, undervoltage, and short circuiting.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.396 mm | 1.355 mm | 1.402 mm | 1.444 mm | 1.488 mm |
| Front Center | 601 mm | 610 mm | 622 mm | 637 mm | 655 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 62 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Stack | 550 mm | 554 mm | 579 mm | 605 mm | 637 mm |
| Reach | 394 mm | 409 mm | 413 mm | 419 mm | 428 mm |
| Top Tube Length | 557 mm | 573 mm | 585 mm | 598 mm | 617 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 522 mm | 552 mm | 592 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 129 mm | 118 mm | 144 mm | 171 mm | 205 mm |
| Chainstay Length | 420 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1014 mm | 1024 mm | 1036 mm | 1051 mm | 1070 mm |
| Bottom Bracket Drop | 60 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 |
| Rider Max Height | 163 cm | 176 cm | 186 cm | 196 cm | cm |
Model Overview
Roadlite:ON AL 8.0 is part of the Canyon E Roadliteon model. There are 17 e-bikes that carry this model name. Take a sneak peek at all Canyon E Roadliteon e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Canyon Roadlite:ON 5 2023 has a starting price of 3078$. Canyon Roadlite:ON CF 9 LTD 2023 on the other hand is the most expensive at 5308$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fitness e-bikes
If you want an acceptable Fitness e-bike you should know that the average price is 2351$. However, this doesn’t mean that if you spend less money on a Fitness e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2023 and its price was 3503$. In conclusion, this e-bike price is 49% more expensive than the price of the average Fitness e-bike.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The wheels on Roadlite:ON AL 8.0 are the aluminum type. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
