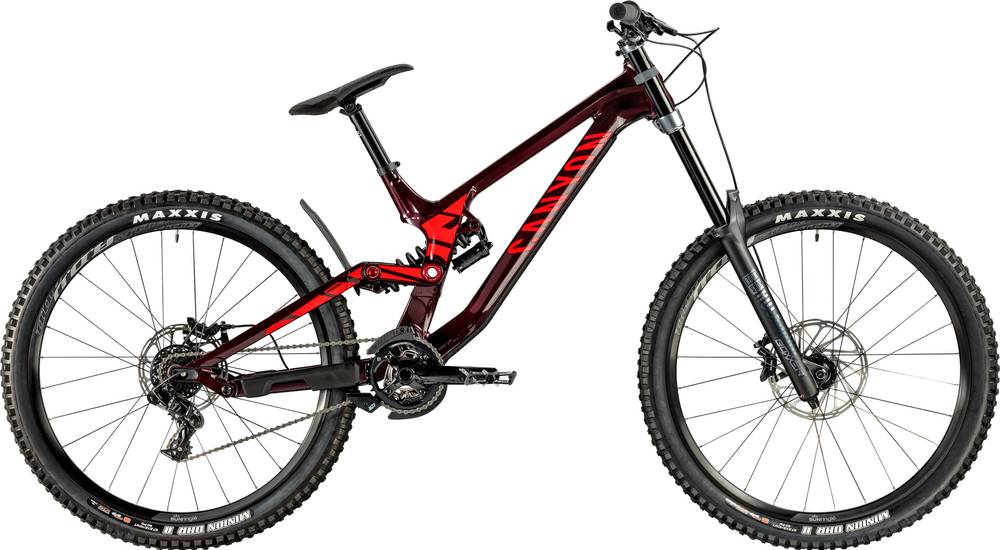

Canyon Sender AL 5.0 2019
2019 Mountain
Estimate price |
3,499$
Weight | 17.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 200mm -
Fork RockShox BoXXer
-
Groupset GX, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Sender AL, Material: Aluminium 6061, Travel: 200 mm, Axle Dimension: 12 x 157 mm, Brake Mount: Post Mount 180
Suspension Fork
RockShox Boxxer RC, Travel: 200 mm, Axle Dimension: 20 x 110 mm
Rear Shock
RockShox Super Deluxe R, Length: 225 x 75
Drivetrain
Rear Derailleur
SRAM GX DH
Shift Levers
SRAM GX Trigger 7s
Cassette
SRAM PG-720 DH 11-25 7s
Crank
Truvativ Descendant DH 36T 36
Bottom Bracket
SRAM BSA GXP XR
Chain
SRAM PC-1110
Pedals
None included
Wheels
Rims
Sun Ringle ADD Comp, Rim Material: Aluminium, Inner Width: 30 mm, Weight: 1530 g | Sun Ringle ADD Comp SH11, Rim Material: Aluminium, Inner Width: 30 mm, Weight: 790 g
Tires
MAXXIS Minion DHR II 2.4'', Compound: 3C Maxx Grip
Brakes
Brakes
SRAM Guide RE
Disk Rotors
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Cockpit
Stem
Race Face Chester
Handlebar
Race Face Chester Riserbar, Material: Aluminium, Rise: 20 mm
Grips
Canyon G5 Flange
Headset
Acros DH
Seat
Saddle
SDG I-Fly
Seatpost
SDG I-Beam
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.426 mm | 1.38 mm | 1.339 mm | 1.302 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 777 mm | 802 mm | 826 mm | 851 mm |
| Rake | 49 mm | 50 mm | 49 mm | 50 mm |
| Trail | 126 mm | 125 mm | 126 mm | 125 mm |
| Stack | 599 mm | 607 mm | 616 mm | 625 mm |
| Reach | 420 mm | 440 mm | 460 mm | 480 mm |
| Top Tube Length | 562 mm | 586 mm | 611 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 400 mm | 450 mm | 450 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1207 mm | 1232 mm | 1256 mm | 1281 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm |
| Standover Height | 735 mm | 740 mm | 743 mm | 747 mm |
| Front Travel | 200 mm | 200 mm | 200 mm | 200 mm |
| Rear Travel | 200 mm | 200 mm | 200 mm | 200 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 199 cm |
Model Overview
Sender AL 5.0 is part of the Canyon Sender model. Canyon launched 33 bikes of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Canyon Sender AL 6.0 2019 is the most affordable bike of this model and has a price of 3184$. On the other hand, Canyon Sender CF 9.0 2019, is the most expensive and costs 6500$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Downhill bikes
According to our math, the average price for a trustworthy Downhill bike is 3391$. However, even if your budget is less than the average, you might still be able to get a top-quality Downhill bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2019 and its price was 3499$. Doing a quick comparison, we notice that Sender AL 5.0 price is 3.18% higher than the average cost of a Downhill bike.
Average weight for Downhill bikes
Downhill bikes weigh an average of 15.89 kg (35.03 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit heavier than average, Sender AL 5.0 has a weight of 17.1 kg (37.7 lbs). To sum up, it’s 7.61% heavier than the average weight of Downhill bikes.
Sender AL 5.0 components
Fork
The fork installed on this bike is the RockShox BoXXer model. The travel on this model is 200mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the RockShox Super Deluxe R model, with a travel of 200mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the Sender AL 5.0 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Sender AL 5.0 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
