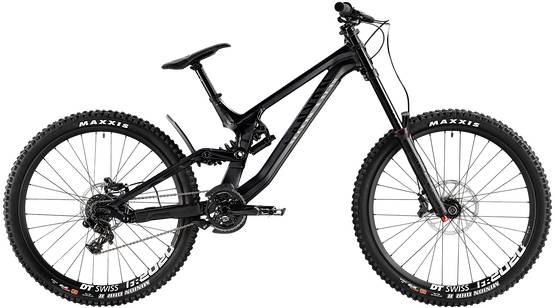

Canyon Sender AL 6.0 2018
2018 Mountain
Estimate price |
2,999$
Weight | 17.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 200mm -
Fork RockShox BoXXer
-
Groupset GX, Truvativ Descendant -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
The 3,700 gram aluminium frame comes with an internal cable channel to keep the lines clean.
Suspension Fork
RockShox Boxxer RC
Rear Shock
RockShox Super Deluxe Coil R, Rebound Adjustement
Drivetrain
Rear Derailleur
SRAM GX DH, 7s, X-Horizon shifting, X-Actuation, X-Sync, 7-speed
Shift Levers
SRAM GX DH Trigger, 7s, SRAM 1X™ X-ACTUATION™ for precise and reliable 11-gear performance, Specifically for downhill, 7-speed
Cassette
SRAM PG-720, 7s, XD™ driver body, Gradation: 11 – 25
Crank
Truvativ Descendant, 7050 series forged aluminium
Bottom Bracket
SRAM GXP
Chain
SRAM PC-1110
Pedals
none included
Wheels
Rims
DT Swiss FR 2020, Ratchet System freehub, Compatible with clincher or tubelesss tyre systems, Internal width: 27.5 mm
Tires
Maxxis Minion DHR II 2.4, FW: 3C MaxxGrip | TR | EXO | 120 TPI, RW: 3C MaxxTerra | TR | EXO | 120 TPI
Brakes
Brakes
SRAM Guide RE
Cockpit
Stem
Race Face Chester
Handlebar
Race Face Chester, Made of cold-drawn, seamless 6061 aluminium, Developed for optimum stiffness to weight ratio, Broad design and newly designed shape for greater control and increased stiffness, Width: 780 mm, Diameter: 31.8 MM
Grips
Canyon G5
Headset
Acros DH
Seat
Saddle
SDG I-Fly Custom, EVA foam shell
Seatpost
SDG Micro I-Beam SP
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.426 mm | 1.38 mm | 1.339 mm | 1.302 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 777 mm | 802 mm | 826 mm | 851 mm |
| Rake | 49 mm | 50 mm | 49 mm | 50 mm |
| Trail | 126 mm | 125 mm | 126 mm | 125 mm |
| Stack | 599 mm | 607 mm | 616 mm | 625 mm |
| Reach | 420 mm | 440 mm | 460 mm | 480 mm |
| Top Tube Length | 562 mm | 586 mm | 611 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 400 mm | 450 mm | 450 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1207 mm | 1232 mm | 1256 mm | 1281 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm |
| Front Travel | 200 mm | 200 mm | 200 mm | 200 mm |
| Rear Travel | 200 mm | 200 mm | 200 mm | 200 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Sender AL 6.0 belongs to the Canyon Sender model. Canyon launched 33 bikes of this model so far. You can easily view all of the Canyon Sender bikes models from 2018, here.
Model range prices
Canyon Sender AL 6.0 2018 is the most affordable bike of this model and has a price of 2999$. On the other hand, Canyon Sender CF 9.0 LTD 2018, is the most expensive and costs 8000$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Downhill bikes
According to our calculations, the average cost of a Downhill bike that is reliable is 3391$. However, even though the average price of a Downhill bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Canyon released this model in 2018, its price was 2999$. In conclusion, this bike price is 13.07% lower than the price of the average Downhill bike.
Downhill bikes average weight
Downhill bikes have an average weight of 15.89 kg (35.03 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 17.4 kg (38.36 lbs), Canyon bike is a bit heavier than average. In other words, this model is 9.5% heavier than the average Downhill bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Sender AL 6.0 components
Fork
The RockShox BoXXer is included from the factory. It has a travel distance of 200mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Canyon Sender AL 6.0 bike has the RockShox Super Deluxe Coil R model installed, and has a travel of 200mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the Sender AL 6.0 bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Sender AL 6.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Canyon Sender AL 6.0 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
