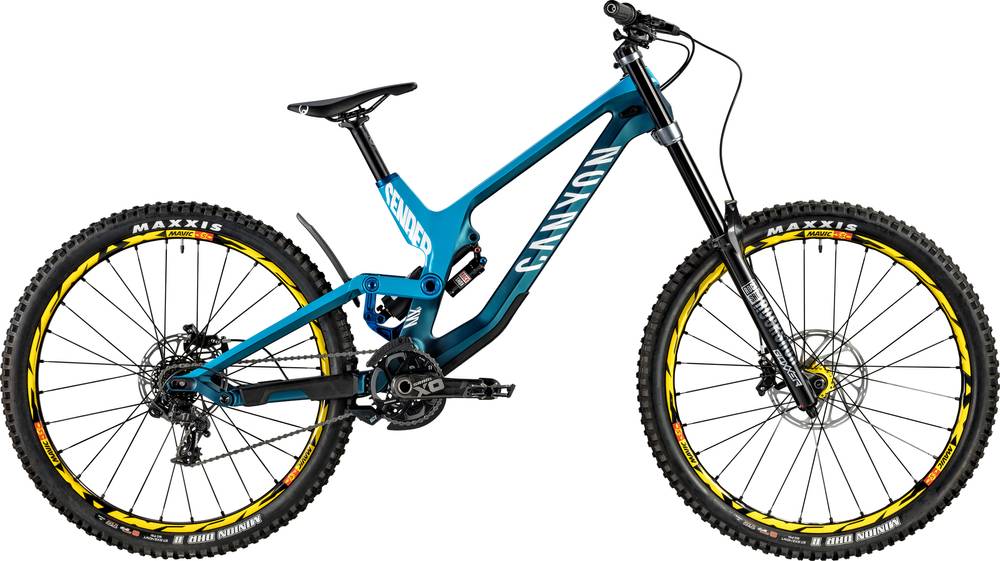

Canyon Sender CF 9.0 Team 2019
2019 Mountain
Estimate price |
5,504$
Weight | 16.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 200mm -
Fork RockShox BoXXer
-
Groupset X01 -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Sender CF, Material: Carbon, Travel: 200 mm, Axle Dimension: 12 x 157 mm, Brake Mount: Post Mount 180
Suspension Fork
RockShox Boxxer World Cup, Travel: 200 mm, Axle Dimension: 20 x 110 mm
Rear Shock
RockShox Vivid R2C, Length: 240 x 76 mm
Drivetrain
Rear Derailleur
SRAM XO1 DH
Shift Levers
SRAM X01 DH Trigger 7s
Cassette
SRAM XG-795 DH 10-24 7s
Crank
SRAM XO1 DH XSYNC 36T 36
Bottom Bracket
SRAM BSA GXP
Chain
SRAM PC 1110 11s
Pedals
None included
Wheels
Rims
Mavic Deemax DH XD, Rim Material: Aluminium, Inner Width: 28 mm, Weight: 1160 g
Tires
MAXXIS Minion DHR II 2.4'', Compound: 3C Maxx Grip
Brakes
Brakes
SRAM Code RSC
Disk Rotors
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Cockpit
Stem
Canyon V22
Handlebar
Canyon H24 Carbon Riserbar, Material: Carbon, Rise: 20 mm
Grips
Ergon GD10
Headset
Acros AZX-227
Seat
Saddle
Ergon SMD20
Seatpost
Canyon G5
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.426 mm | 1.38 mm | 1.339 mm | 1.302 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 777 mm | 802 mm | 826 mm | 851 mm |
| Rake | 49 mm | 50 mm | 49 mm | 50 mm |
| Trail | 126 mm | 125 mm | 126 mm | 125 mm |
| Stack | 599 mm | 607 mm | 616 mm | 625 mm |
| Reach | 420 mm | 440 mm | 460 mm | 480 mm |
| Top Tube Length | 562 mm | 586 mm | 611 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 400 mm | 450 mm | 450 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1207 mm | 1232 mm | 1256 mm | 1281 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm |
| Standover Height | 735 mm | 740 mm | 743 mm | 747 mm |
| Front Travel | 200 mm | 200 mm | 200 mm | 200 mm |
| Rear Travel | 200 mm | 200 mm | 200 mm | 200 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 200 cm |
Model Overview
Sender CF 9.0 Team belongs to the Canyon Sender model. Canyon launched 33 bikes of this model so far. Take a sneak peek at all Canyon Sender bikes models from 2019, by clicking here.
Model range prices
Canyon Sender AL 6.0 2019 is the cheapest bike model and costs 3184$. Canyon Sender CF 9.0 2019 is the most expensive one and costs 6500$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Downhill bikes average price
Our math shows that the average cost of a dependable Downhill bike is 3391$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Canyon released this model in 2019, its price was 5096$. In conclusion, this bike price is 50.28% higher than the price of the average Downhill bike.
Downhill bikes average weight
Downhill bikes weigh an average of 15.89 kg (35.03 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Sender CF 9.0 Team weighs 16.2 kg (35.71 lbs) and is slightly heavier than the average. To sum up, it’s 1.95% heavier than the average weight of Downhill bikes.
Overview of components
Fork
The Sender CF 9.0 Team comes factory-installed with the RockShox BoXXer fork. This has a travel range of 200mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this bike has the RockShox Vivid R2C model, with a travel of 200mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the Sender CF 9.0 Team model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Sender CF 9.0 Team has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
