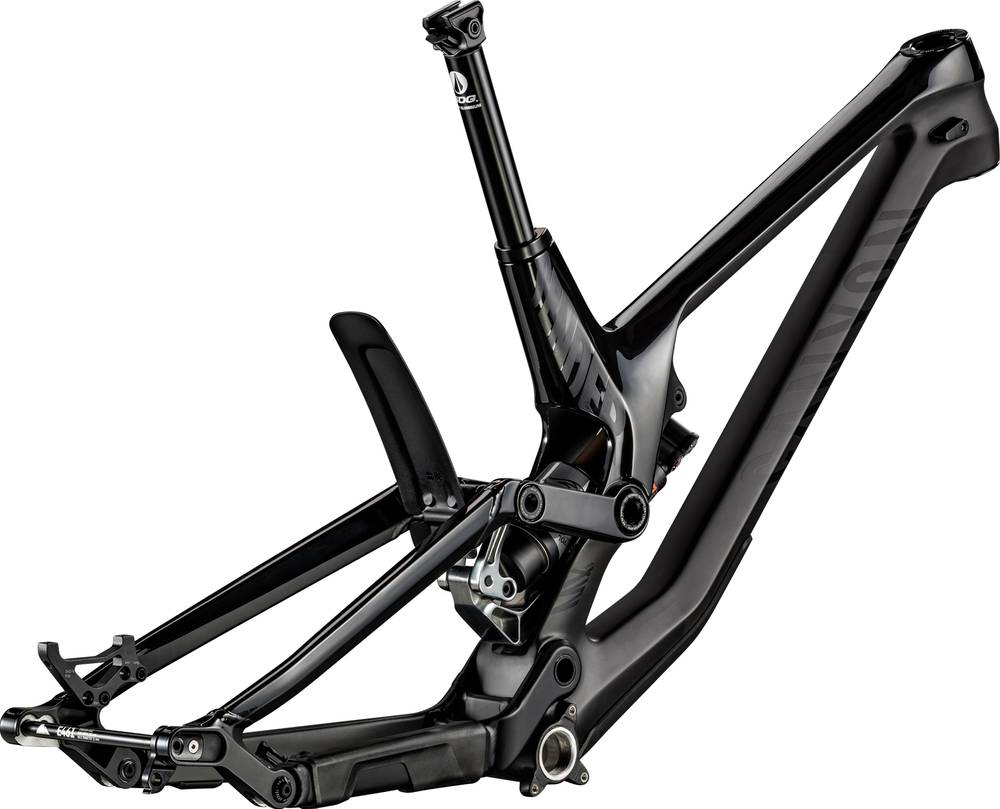

Canyon Sender CF Frameset 2019
2019 Mountain
Estimate price |
2,999$
Weight | 4.3 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 200mm -
Suspension Full
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Sender CF, Material: Carbon, Travel: 200 mm, Axle Dimension: 12 x 157 mm, Brake Mount: Post Mount 180
Rear Shock
FOX FLOAT X2 Factory, Length: 240 x 75 mm
Cockpit
Headset
Acros AZX-227
Seat
Seatpost
SDG I-Beam
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.426 mm | 1.38 mm | 1.339 mm | 1.302 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 777 mm | 802 mm | 826 mm | 851 mm |
| Rake | 49 mm | 50 mm | 49 mm | 50 mm |
| Trail | 126 mm | 125 mm | 126 mm | 125 mm |
| Stack | 599 mm | 607 mm | 616 mm | 625 mm |
| Reach | 420 mm | 440 mm | 460 mm | 480 mm |
| Top Tube Length | 562 mm | 586 mm | 611 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 400 mm | 450 mm | 450 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1207 mm | 1232 mm | 1256 mm | 1281 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 200 cm |
About this model
Sender CF Frameset is a Canyon Sender model. Canyon released 33 frames variations of this model so far. Take a sneak peek at all Canyon Sender frames models from 2019, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Downhill frames average price
If you want to purchase a solid Downhill frame, it is important to know that the average cost is 1923$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
This frame was released in 2019 and its price was 2999$. Comparing this to the average Downhill frame price, we see that the price is 55.95% more expensive.
Average weight for Downhill frames
On a deeper look, we notice that the average weight of a Downhill frame is 4.28 kg (9.44 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly heavier than average, Sender CF Frameset has a weight of 4.3 kg (9.48 lbs). In other words, this model is 0.47% heavier than the average Downhill frame.
Overview of components
Rear Shock
From the factory, it comes with the FOX FLOAT X2 Factory rear shock model, which has a travel of 200mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Sizes
This frame is available in 4 sizes. They vary from 160 cm – 200 cm (5.25 ft – 6.56 ft). In short, you can easily find one that suits you.
