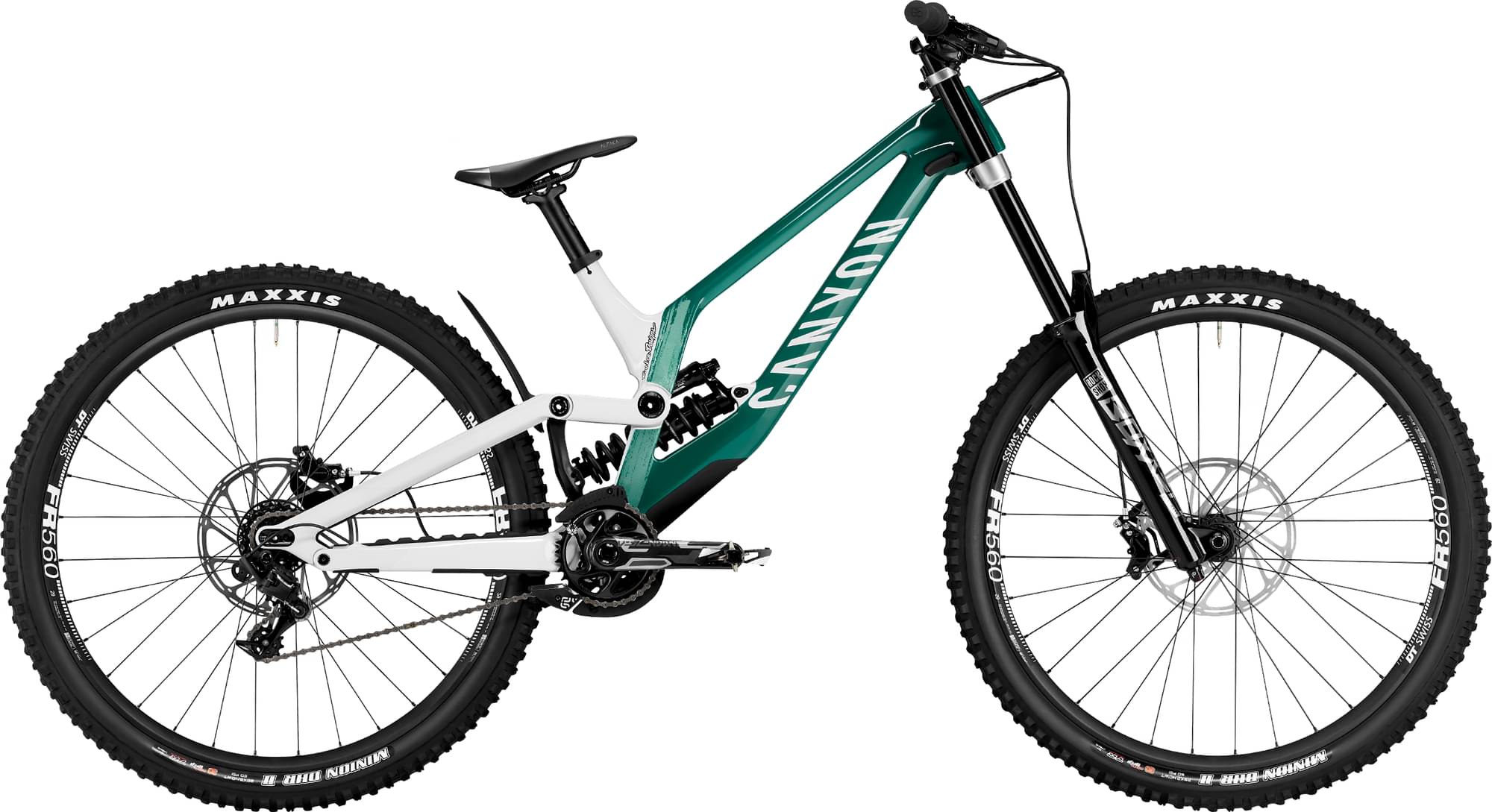

Canyon Sender CFR 29 TLD 2022
2022 Mountain
Estimate price |
6,999$
Weight | 16.38 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 200mm -
Travel Rear 200mm -
Fork RockShox BoXXer Ultimate
-
Groupset X01, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
180cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Sender CFR
Suspension Fork
RockShox Boxxer Ultimate RC2
Rear Shock
RockShox Super Deluxe Ultimate
Drivetrain
Rear Derailleur
SRAM X01 DH
Shift Levers
SRAM X01 DH
Cassette
SRAM XG-795 DH 10-24 7s
Crank
SRAM DESCENDANT DH TROY LEE DESIGN
Bottom Bracket
SRAM BSA DUB
Chain
SRAM PC 1110 11-speed
Chain Guide
e*thirteen LG1 Plus
Pedals
None included
Wheels
Rims
DT Swiss FR 560 240 EXP | DT Swiss FR560 240 EXP
Tires
MAXXIS Minion DHR II 2.4'' Wide Trail
Brakes
Brakes
SRAM Code RSC 4-piston rear brake, SRAM's most powerful and adjustable four-piston brake. Features reach and contact point adjusters | SRAM Code RSC
Cockpit
Stem
Canyon G5
Handlebar
Canyon G5 Riserbar, Material: Aluminium, Rise: 20 mm
Grips
Canyon G5 Grips
Headset
Acros AZX-227
Seat
Saddle
Fizik Gravita Alpaca X5
Seatpost
Canyon G5
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.354 mm | 1.303 mm | 1.247 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm |
| Front Center | 832 mm | 860 mm | 887 mm |
| Rake | 58 mm | 56 mm | 56 mm |
| Trail | 126 mm | 128 mm | 128 mm |
| Stack | 623 mm | 632 mm | 636 mm |
| Reach | 460 mm | 485 mm | 510 mm |
| Top Tube Length | 587 mm | 619 mm | 645 mm |
| Seat Tube Angle | 78.5 ° | 78 ° | 78 ° |
| Seat Tube Length | 400 mm | 420 mm | 440 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 100 mm | 110 mm | 115 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1276 mm | 1304 mm | 1331 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm |
| Standover Height | 746 mm | 750 mm | 755 mm |
| Front Travel | 200 mm | 200 mm | 200 mm |
| Rear Travel | 200 mm | 200 mm | 200 mm |
| Wheels | 29" | 29" | 29" |
| Rider Max Height | 185 cm | 194 cm | cm |
About this model
Sender CFR 29 TLD completes the Canyon Sender model. Canyon launched 33 bikes of this model so far. Take a sneak peek at all Canyon Sender bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Canyon Sender CFR Mullet Underdog 2022 has a starting price of 5308$. Canyon Sender CFR 29 TLD 2022 on the other hand is the most expensive at 6999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Downhill bikes average price
If you want an acceptable Downhill bike you should know that the average price is 3391$. However, this doesn’t mean that if you spend less money on a Downhill bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 6999$. In conclusion, this bike price is 106.4% higher than the price of the average Downhill bike.
Downhill bikes average weight
Downhill bikes weigh an average of 15.89 kg (35.03 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Canyon Sender CFR 29 TLD it’s weighing 16.38 kg (36.11 lbs). At this weight, is slightly heavier than average. In short, the average Downhill bike weight is 3.08% lower than this one.
Overview of components
Fork
The Sender CFR 29 TLD comes factory-installed with the RockShox BoXXer Ultimate fork. This has a travel range of 200mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Canyon Sender CFR 29 TLD bike has the RockShox Super Deluxe Ultimate model installed, and has a travel of 200mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Canyon Sender CFR 29 TLD 2022, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Sender CFR 29 TLD has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Dropper post
Canyon Sender CFR 29 TLD includes a dropper post. Therefore, climbing or descending will be a breeze.
