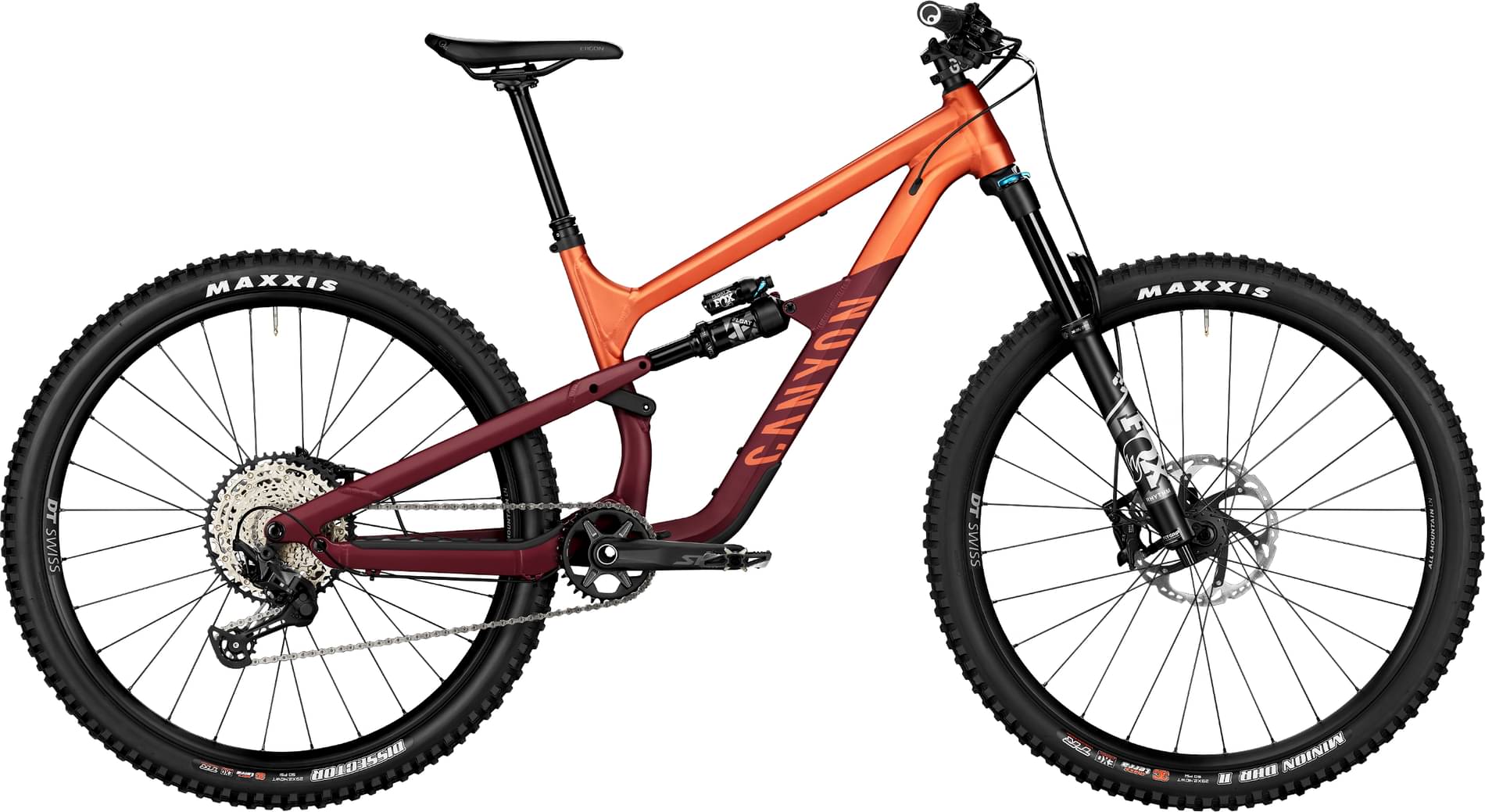

Canyon Spectral 125 AL 6 2023
2023 Mountain
Estimate price |
2,999$
Weight | 15.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 125mm -
Fork Fox Rhythm Float 36
-
Groupset SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
172cm - 185cm
LG
180cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral 125, Playful, short-travel full-sus MTB designed to extract maximum capability from its 125 mm rear travel. Category 4., Material: Aluminium (AL)
Suspension Fork
FOX 36 Rhythm, Axle dimension: 15x110 mm, Stanchion Diameter: 36 mm, Travel: 140 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm
Rear Shock

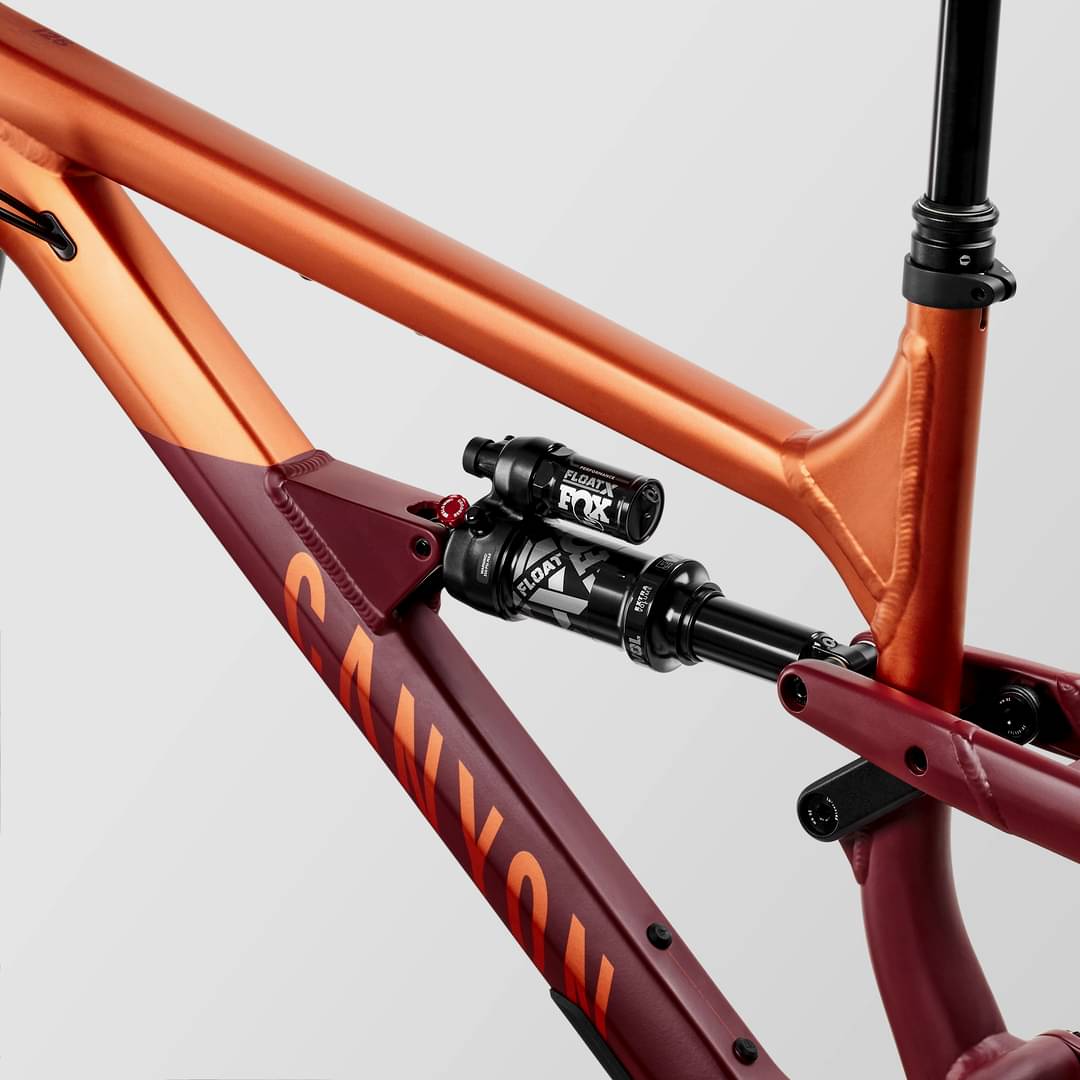

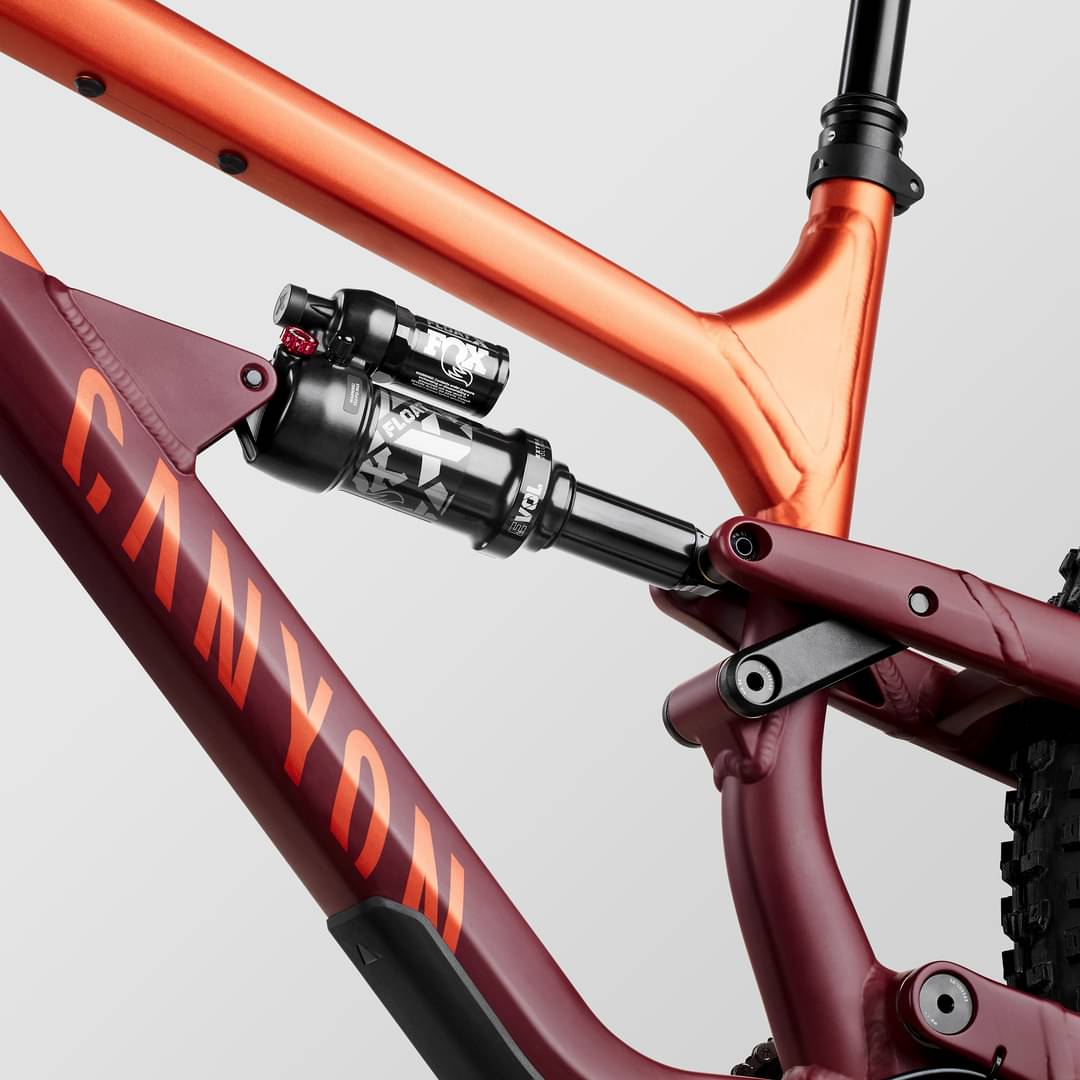

FOX Float X Performance
Drivetrain
Rear Derailleur
Shimano SLX M7100, Cage length: long, Weight: 286 g
Shift Levers
Shimano SLX M7100
Cassette
Shimano SLX M7100, Number of sprockets: 12
Crank
Shimano SLX M7120, Number of chainrings: 1
Bottom Bracket
Token BSA, Bottom bracket standard: BSA 68/73, Weight: 98 g
Chain
Shimano M6100, SIL-TEC treatment for extended offroad durability, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly
Pedals
None included
Wheels
Rims
DT Swiss AM LN 370, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Weight: 1.05 kg | DT Swiss LN AM, Rotor mount: IS 6-bolt, Weight: 1.17 kg
Tires
MAXXIS DISSECTOR, The Dissector tire offers outstanding traction and control. | Maxxis Minion DHR II, Wheelsize: 29", Weight: 955 g
Brakes
Brakes
Shimano SLX M7120
Cockpit
Stem
Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm
Grips
Ergon GE10 Evo Slim
Seat
Saddle
Ergon SM10 Enduro, Developed on the Enduro World Series, the SM10 gives you max freedom of movement in technical terrain., On certain models, this saddle may be substituted for an alternate, equivalent Selle San Marco model., Potentially affected models include:, Spectral 6 27 (Model #3184), Spectral 6 29 (Model #3185)
Seatpost
Iridium Dropper, The Iridium dropper post offers 150-200mm of on-the-fly seat height adjustability., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 600 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.36 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 768 mm | 795 mm | 824 mm | 853 mm |
| Rake | 43 mm | 43 mm | 42 mm | 41 mm |
| Trail | 135 mm | 135 mm | 136 mm | 137 mm |
| Stack | 613 mm | 617 mm | 627 mm | 636 mm |
| Reach | 430 mm | 455 mm | 481 mm | 506 mm |
| Top Tube Length | 578 mm | 604 mm | 631 mm | 658 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 395 mm | 420 mm | 435 mm | 460 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 115 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1198 mm | 1225 mm | 1254 mm | 1283 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 752 mm | 756 mm | 760 mm | 764 mm |
| Front Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Rear Travel | 125 mm | 125 mm | 125 mm | 125 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 177 cm | 185 cm | 194 cm | cm |
Model Overview
Spectral 125 AL 6 belongs to the Canyon Spectral 125 model. There are 12 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Canyon Spectral 125 AL 5 2023 is the most economical model, with a starting price of 2799$. Canyon Spectral 125 CF LTD 2023 on the other hand costs 7962$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2023 and its price was 2999$. Comparing the average cost of a Trail bike to this one, you will see that Spectral 125 AL 6 price is 8.58% higher.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Spectral 125 AL 6 weighs 15.4 kg (33.95 lbs) and is much heavier than the average. To sum up, it’s 18.64% heavier than the average weight of Trail bikes.
Spectral 125 AL 6 components
Fork
The Fox Rhythm Float 36 is included from the factory. It has a travel distance of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the FOX Float X Performance model, with a travel of 125mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Spectral 125 AL 6 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Spectral 125 AL 6 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
Canyon Spectral 125 AL 6 includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
