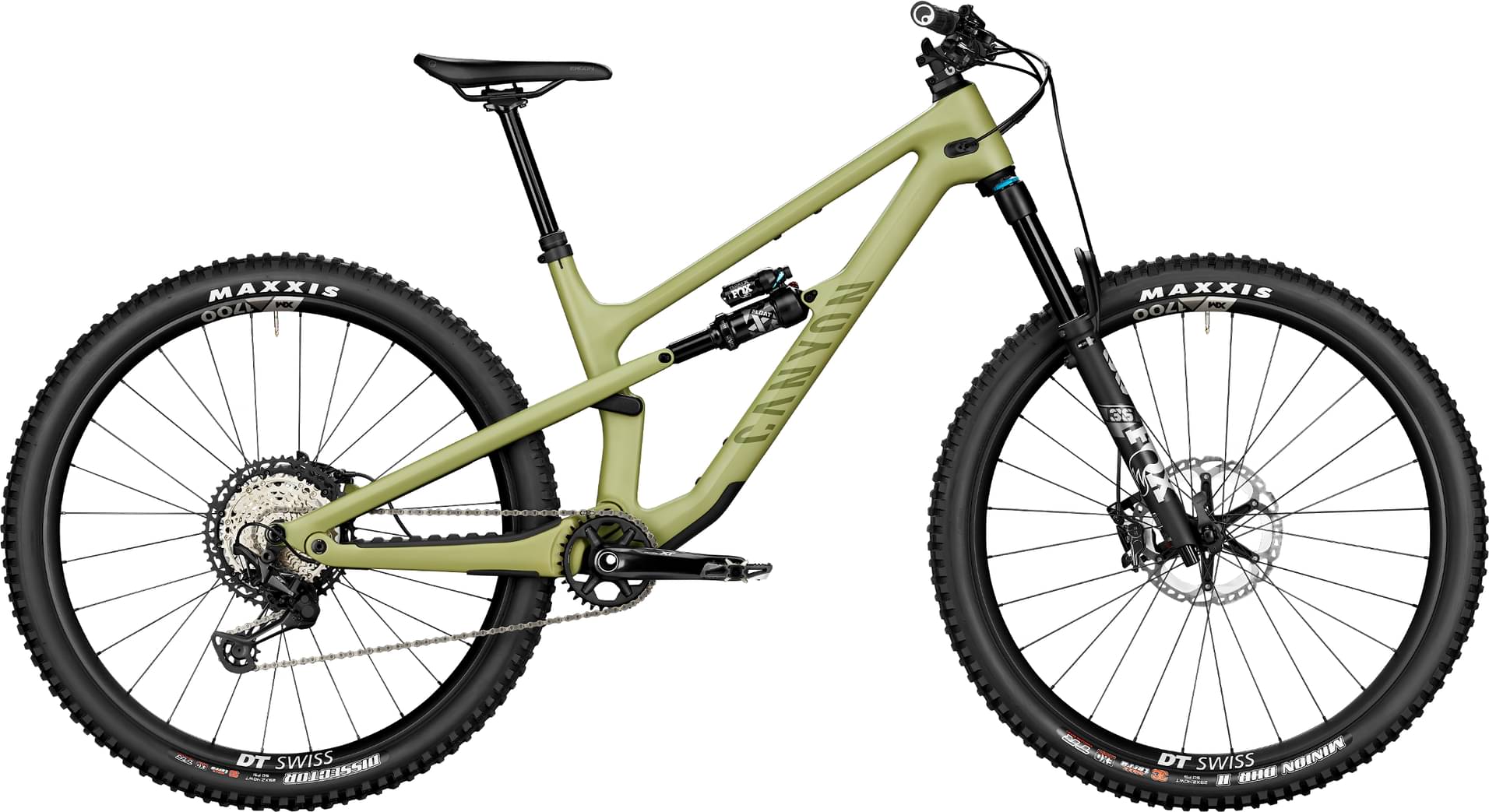

Canyon Spectral 125 CF 8 2023
2023 Mountain
Estimate price |
4,099$
Weight | 13.78 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 125mm -
Fork Fox Performance Elite Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
172cm - 185cm
LG
180cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral 125 CF, Lightweight, capable, agile short-travel MTB designed to extract maximum capability from its 125 mm rear travel. Category 4., Material: Carbon (CF)
Suspension Fork
FOX 36 Performance Elite, Axle dimension: 15x110 mm, Stanchion Diameter: 35 mm, Travel: 140 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm, Weight: 1.70 kg
Rear Shock
FOX Float X Performance
Drivetrain
Rear Derailleur
Shimano DEORE XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano DEORE XT M8100
Cassette
Shimano DEORE XT M8100, Number of sprockets: 12
Crank
Shimano DEORE XT M8120, Number of chainrings: 1
Bottom Bracket
Shimano MT800, Bottom bracket standard: BSA 68/73, Weight: 100 g
Chain
Shimano M7100
Pedals
None included
Wheels
Rims
DT Swiss XM 1700, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Rim height: 21 mm, Inner width: 30 mm, Weight: 10 g | DT Swiss XM 1700, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Rim height: 21 mm, Weight: 10 g
Tires
MAXXIS DISSECTOR, The Dissector tire offers outstanding traction and control. | Maxxis Minion DHR II, Wheelsize: 29", Weight: 955 g
Brakes
Brakes
Shimano DEORE XT M8120
Cockpit
Stem
Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm
Grips
Ergon GE10 Evo Slim
Seat
Saddle
Ergon SM10 Enduro Comp
Seatpost
Canyon G5, Clamp diameter: 30,9 mm, Material: Aluminium (AL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 765 mm | 795 mm | 824 mm | 853 mm |
| Rake | 43 mm | 43 mm | 42 mm | 41 mm |
| Trail | 135 mm | 135 mm | 136 mm | 137 mm |
| Stack | 608 mm | 617 mm | 627 mm | 636 mm |
| Reach | 430 mm | 455 mm | 481 mm | 506 mm |
| Top Tube Length | 582 mm | 610 mm | 637 mm | 664 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 395 mm | 420 mm | 435 mm | 460 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1195 mm | 1225 mm | 1254 mm | 1283 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 751 mm | 757 mm | 758 mm | 763 mm |
| Front Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Rear Travel | 125 mm | 125 mm | 125 mm | 125 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 177 cm | 185 cm | 194 cm | cm |
Model Overview
Spectral 125 CF 8 completes the Canyon Spectral 125 model. Canyon released 12 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Canyon Spectral 125 AL 5 2023 is the cheapest bike model and costs 2799$. Canyon Spectral 125 CF LTD 2023 is the most expensive one and costs 7962$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 4099$. If we compare this with the average Trail bike cost we notice that the price is 48.41% more expensive.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 13.78 kg (30.38 lbs), Canyon bike is a bit heavier than average. To sum up, it’s 6.16% heavier than the average weight of Trail bikes.
Spectral 125 CF 8 components
Fork
The Fox Performance Elite Float 36 is included from the factory. It has a travel distance of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.

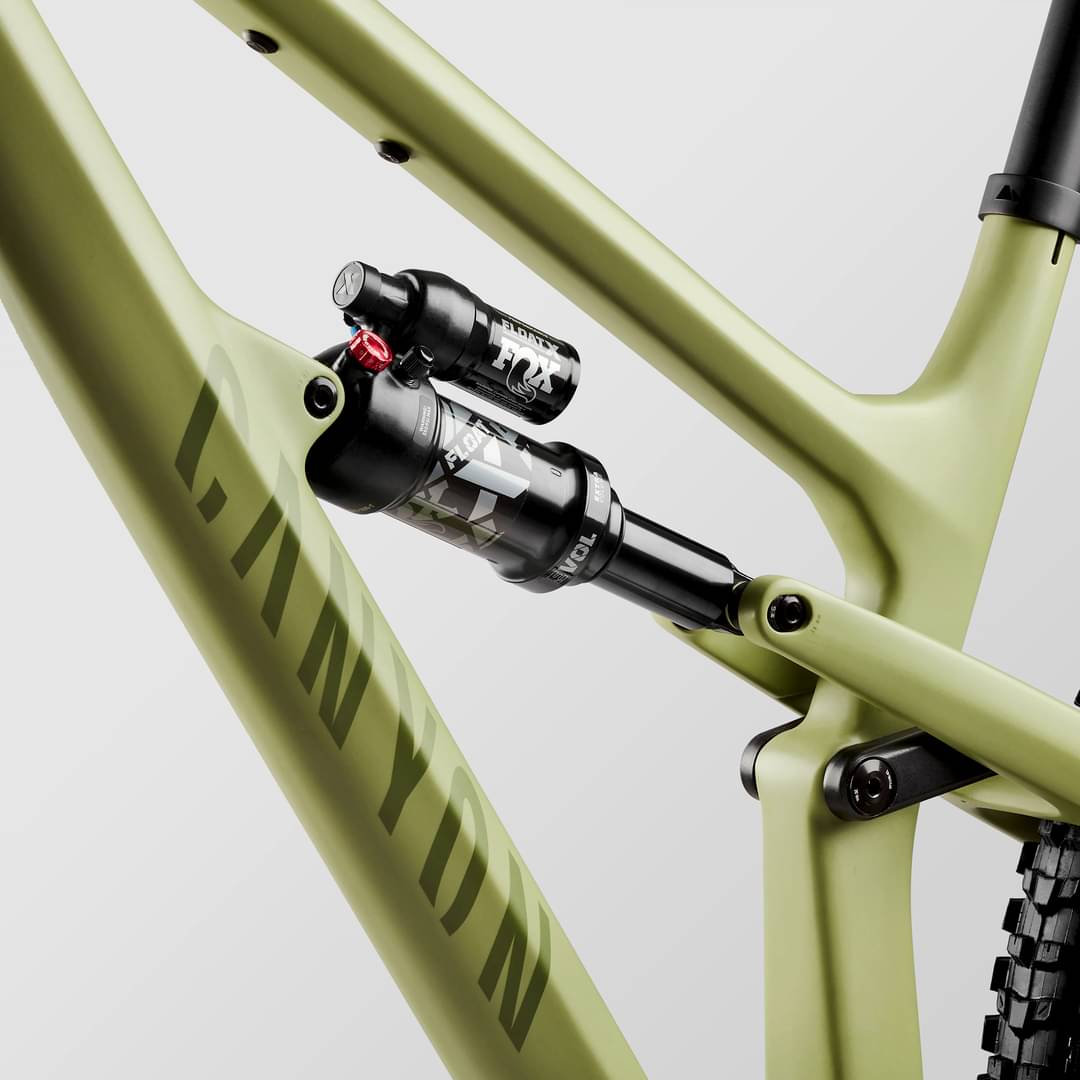

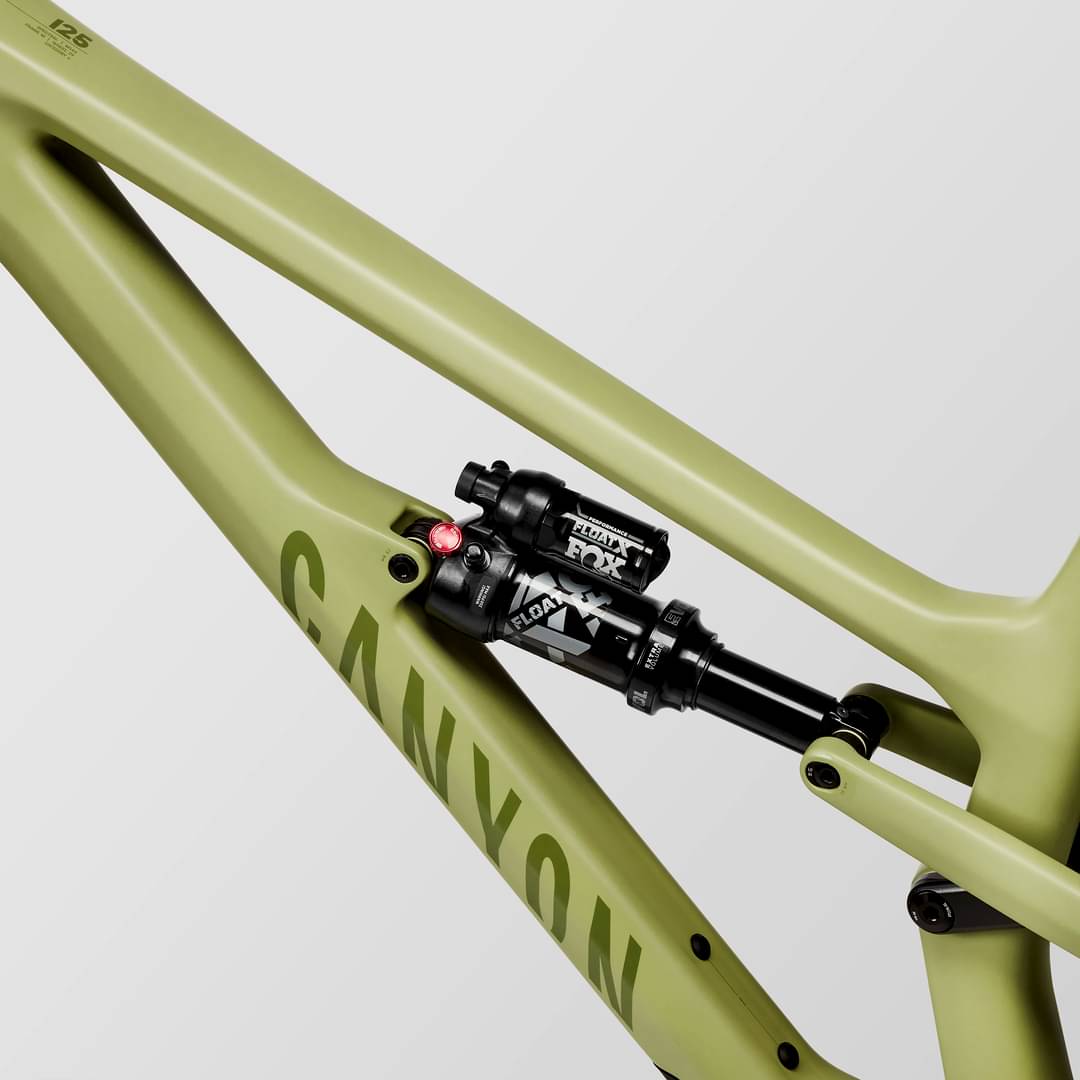

Rear Shock
The Spectral 125 CF 8 has a rear shock with a travel of 125mm. The model FOX Float X Performance is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Canyon Spectral 125 CF 8 2023, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Spectral 125 CF 8 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Dropper post
Canyon Spectral 125 CF 8 comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
