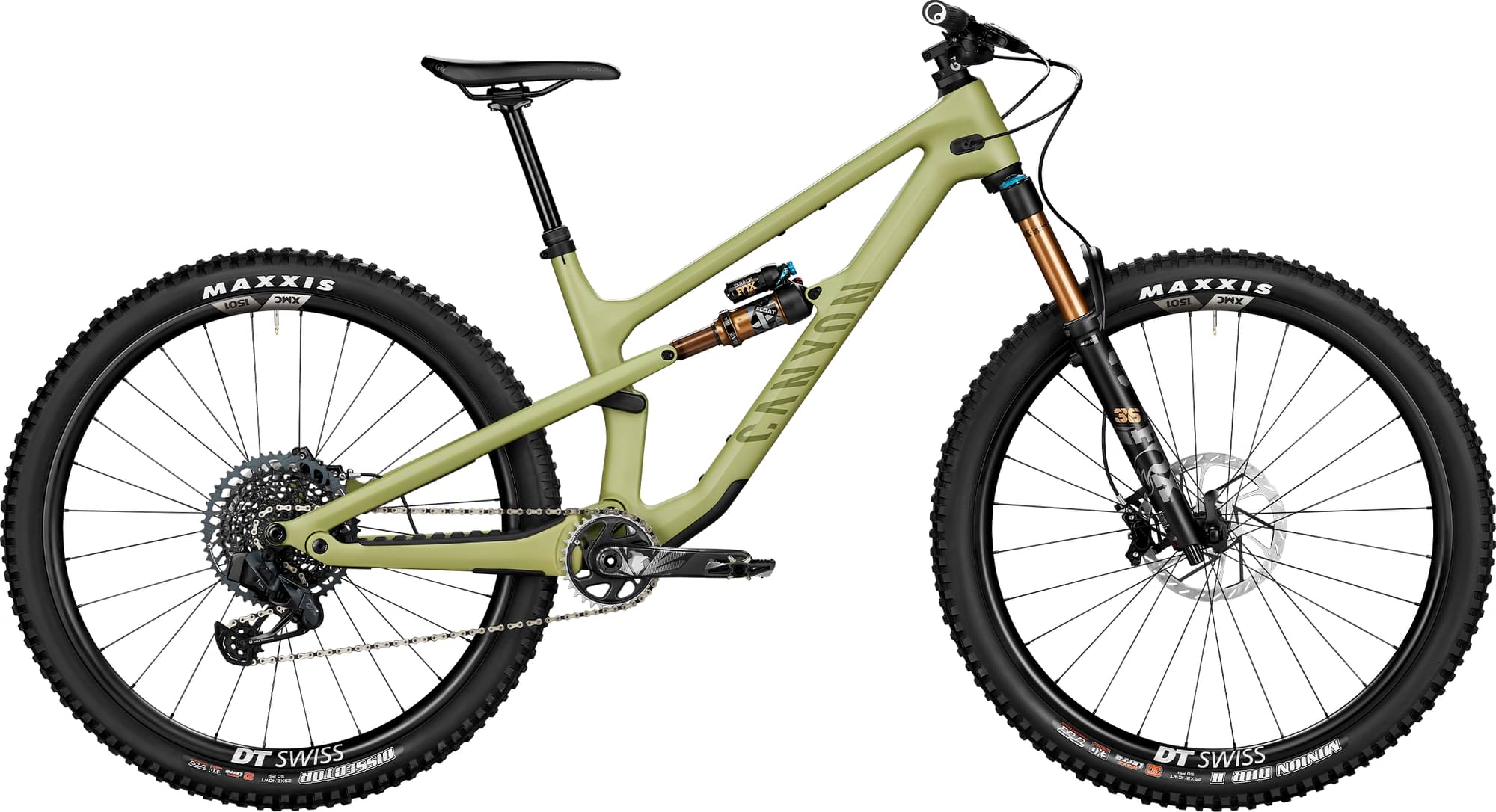

Canyon Spectral 125 CF 9 2023
2023 Mountain
Estimate price |
6,299$
Weight | 13.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 125mm -
Fork Fox Factory Float 36
-
Groupset GX Eagle AXS, X1 -
Suspension Full -
Battery SRAM Powerpack -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
172cm - 185cm
LG
180cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spectral CF 125
Suspension Fork
FOX 36 Factory
Rear Shock
FOX Float X Factory
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS 12s, Next-gen wireless 1x12 groupset. App-configurable.
Shift Levers
SRAM GX Eagle AXS Controller
Cassette
SRAM GX Eagle, 12-speed (10-52), Cassette size: 10-52T, Gear range: 520%
Crank
SRAM X1 CF Eagle
Bottom Bracket
SRAM BSA DUB
Chain
SRAM GX Eagle 12-speed, Flowlink inner plate design reduces friction, solid pin construction, PowerLock tool-less master link.
Pedals
None included
Wheels
Rims
DT Swiss XMC 1501 | DT Swiss XMC1501 29", Internal rim width: 30 mm, Axle dimensions: boost,12 x 148 mm
Tires
Maxxis Dissector 2.4", The Dissector tire offers outstanding traction and control. | Maxxis Minion DHRII 3C MaxxTerra EXO 2,4x29“
Brakes
Brakes
SRAM Code RSC
Cockpit
Stem
Canyon G5 Stem
Handlebar
Canyon G5 Riser Bar
Grips
Ergon GE1 Evo
Seat
Saddle
Ergon SM10 Enduro Comp
Seatpost
G5 Adjustable Dropper Post
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 765 mm | 795 mm | 824 mm | 853 mm |
| Rake | 43 mm | 43 mm | 42 mm | 41 mm |
| Trail | 135 mm | 135 mm | 136 mm | 137 mm |
| Stack | 608 mm | 617 mm | 627 mm | 636 mm |
| Reach | 430 mm | 455 mm | 481 mm | 506 mm |
| Top Tube Length | 582 mm | 610 mm | 637 mm | 664 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 395 mm | 420 mm | 435 mm | 460 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1195 mm | 1225 mm | 1254 mm | 1283 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 752 mm | 756 mm | 760 mm | 764 mm |
| Front Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Rear Travel | 125 mm | 125 mm | 125 mm | 125 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 177 cm | 185 cm | 194 cm | cm |
Model Overview
Spectral 125 CF 9 is part of the Canyon Spectral 125 model. There are 12 bikes that carry this model name. Take a sneak peek at all Canyon Spectral 125 bikes models from 2023, by clicking here.
Model range prices
Canyon Spectral 125 AL 5 2023 is the most affordable bike of this model and has a price of 2799$. On the other hand, Canyon Spectral 125 CF LTD 2023, is the most expensive and costs 7962$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Canyon Spectral 125 CF 9 price was 6299$. Comparing this to the average Trail bike price, we see that the price is 128.06% more expensive.
Average weight for Trail bikes
Trail bikes have an average weight of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Spectral 125 CF 9 weighs 13.8 kg (30.42 lbs) and is a bit heavier than the average. To sum up, it’s 6.32% heavier than the average weight of Trail bikes.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the FOX Float X Factory model, with a travel of 125mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the Spectral 125 CF 9 bike is equipped with the 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Spectral 125 CF 9 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
The Canyon model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
