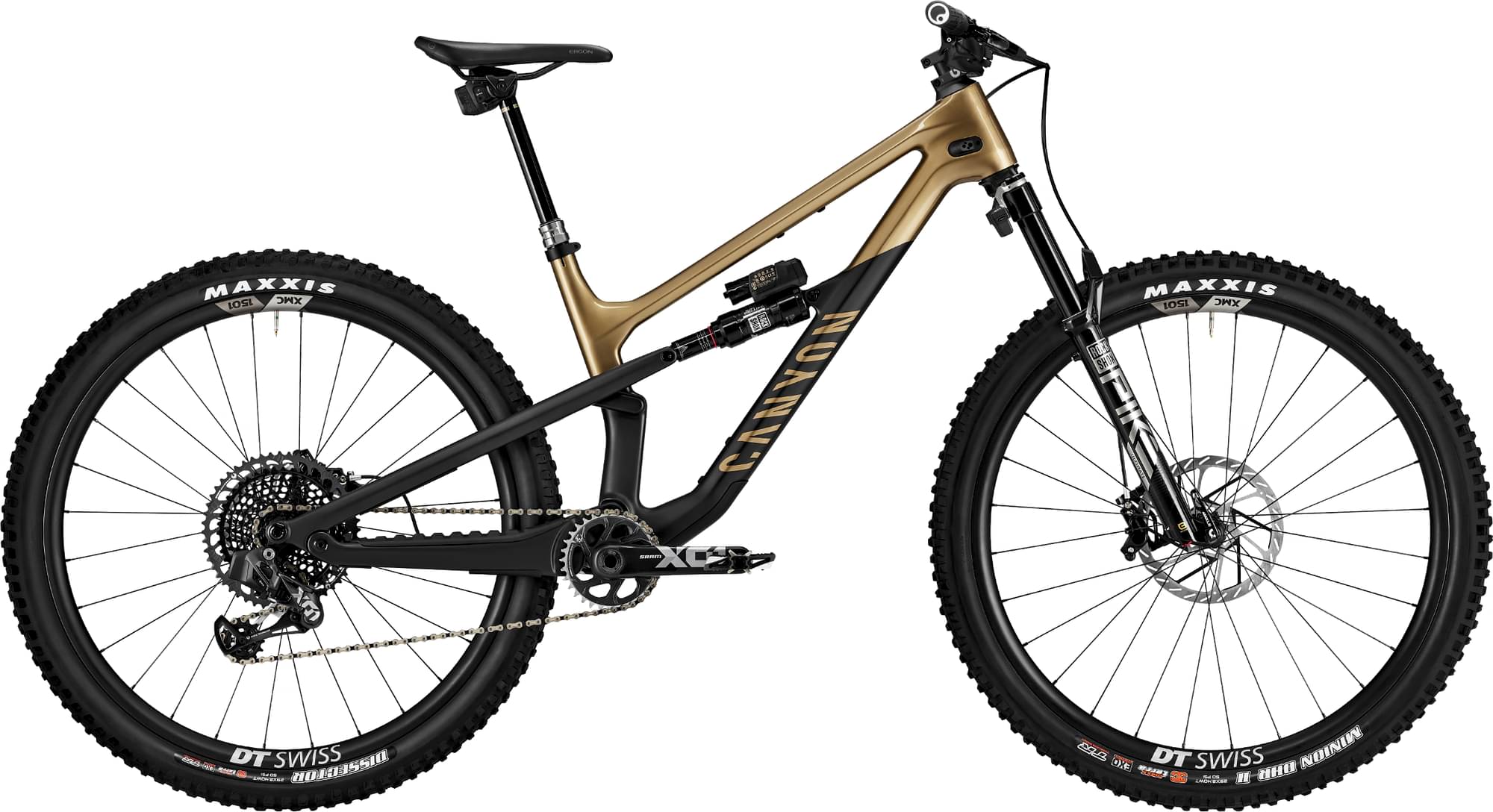

Canyon Spectral 125 CF LTD 2022
2022 Mountain
Estimate price |
8,601$
Weight | 13.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 125mm -
Fork RockShox Pike Ultimate Flight Attendant
-
Groupset X01 Eagle AXS -
Suspension Full, Electronic -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
172cm - 185cm
LG
180cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral 125 CF
Suspension Fork
RockShox Pike Ultimate Flight Attendant, Light air-spring fork., Through axle dimensions: 15x110 mm, Travel: 140 mm, Fork steer tube diameter: 1 1/8" - 1 1/4"
Rear Shock
RockShox Super Deluxe Ultimate Flight Attendant
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS, Precise 1x12 rear derailleur with wireless AXS technology.
Shift Levers
SRAM Eagle AXS Rocker 12s
Cassette
SRAM XG Eagle 10-52, All the range you need to climb the biggest mountains, courtesy of SRAM's 10-52, 12-speed cassette. | SRAM Eagle XG-1295 12-speed Cassette
Crank
SRAM X01 Eagle Flight Attendant, Number of chainrings: 1
Bottom Bracket
SRAM BSA DUB, Hassle-free SRAM DUB threaded bottom bracket., Bottom bracket standard: BSA 73
Chain
SRAM GX Eagle 12-speed, Flowlink inner plate design reduces friction, solid pin construction, PowerLock tool-less master link. | SRAM GX EAGLE 12-speed Chain 126L
Pedals
None included
Wheels
Rims
DT Swiss XMC 1501, Light, durable, high-end 29-inch carbon wheel., Tubeless-ready, Internal rim width: 30 mm, Axle dimensions: 15 x 110 mm, Rotor mount: IS 6-bolt | DT Swiss XMC1501 29", Light, durable, high-end 29-inch carbon wheel. Tubeless-ready. With reliable Ratchet EXP freewheel., Internal rim width: 30 mm, Axle dimensions: boost,12 x 148 mm
Tires
Maxxis Dissector 2.4", The Dissector rear tire offers outstanding traction and braking control., Width: 2.4" | Maxxis Minion DHRII 3C MaxxTerra EXO 2,4x29“, Wheelsize: 29"
Brakes
Brakes
SRAM Code RSC, Powerful rear brake. With tool-free reach and bite point adjustment. | SRAM Code RSC
Cockpit
Stem
Canyon G5 Stem, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Clamping diameter: 31,8 mm
Handlebar
Canyon G5 Carbon Riserbar, Material: Carbon, Rise: 30 mm
Grips
Ergon GE1 Evo
Seat
Saddle
Ergon SM10 Enduro Comp
Seatpost
RockShox Reverb AXS, Clamp diameter: 30,9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 765 mm | 795 mm | 824 mm | 853 mm |
| Rake | 43 mm | 43 mm | 42 mm | 41 mm |
| Trail | 135 mm | 135 mm | 136 mm | 137 mm |
| Stack | 608 mm | 617 mm | 627 mm | 636 mm |
| Reach | 430 mm | 455 mm | 481 mm | 506 mm |
| Top Tube Length | 582 mm | 610 mm | 637 mm | 664 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 395 mm | 420 mm | 435 mm | 460 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1195 mm | 1225 mm | 1254 mm | 1283 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 751 mm | 757 mm | 758 mm | 763 mm |
| Front Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Rear Travel | 125 mm | 125 mm | 125 mm | 125 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 177 cm | 185 cm | 194 cm | cm |
Model Overview
Spectral 125 CF LTD completes the Canyon Spectral 125 model. 12 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Canyon Spectral 125 AL 5 2022 is the most economical model, with a starting price of 2653$. Canyon Spectral 125 CF LTD 2022 on the other hand costs 7962$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Canyon released this model in 2022, its price was 7962$. Comparing this to the average Trail bike price, we see that the price is 188.27% more expensive.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Canyon Spectral 125 CF LTD it’s weighing 13.4 kg (29.54 lbs). At this weight, is slightly heavier than average. To sum up, it’s 3.24% heavier than the average weight of Trail bikes.
Overview of components
Fork
This bike has the RockShox Pike Ultimate Flight Attendant fork installed. The fork’s travel is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the RockShox Super Deluxe Ultimate Flight Attendant rear shock model, which has a travel of 125mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Canyon Spectral 125 CF LTD 2022, has a 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Spectral 125 CF LTD comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Spectral 125 CF LTD. Therefore, climbing or descending will be a breeze.
