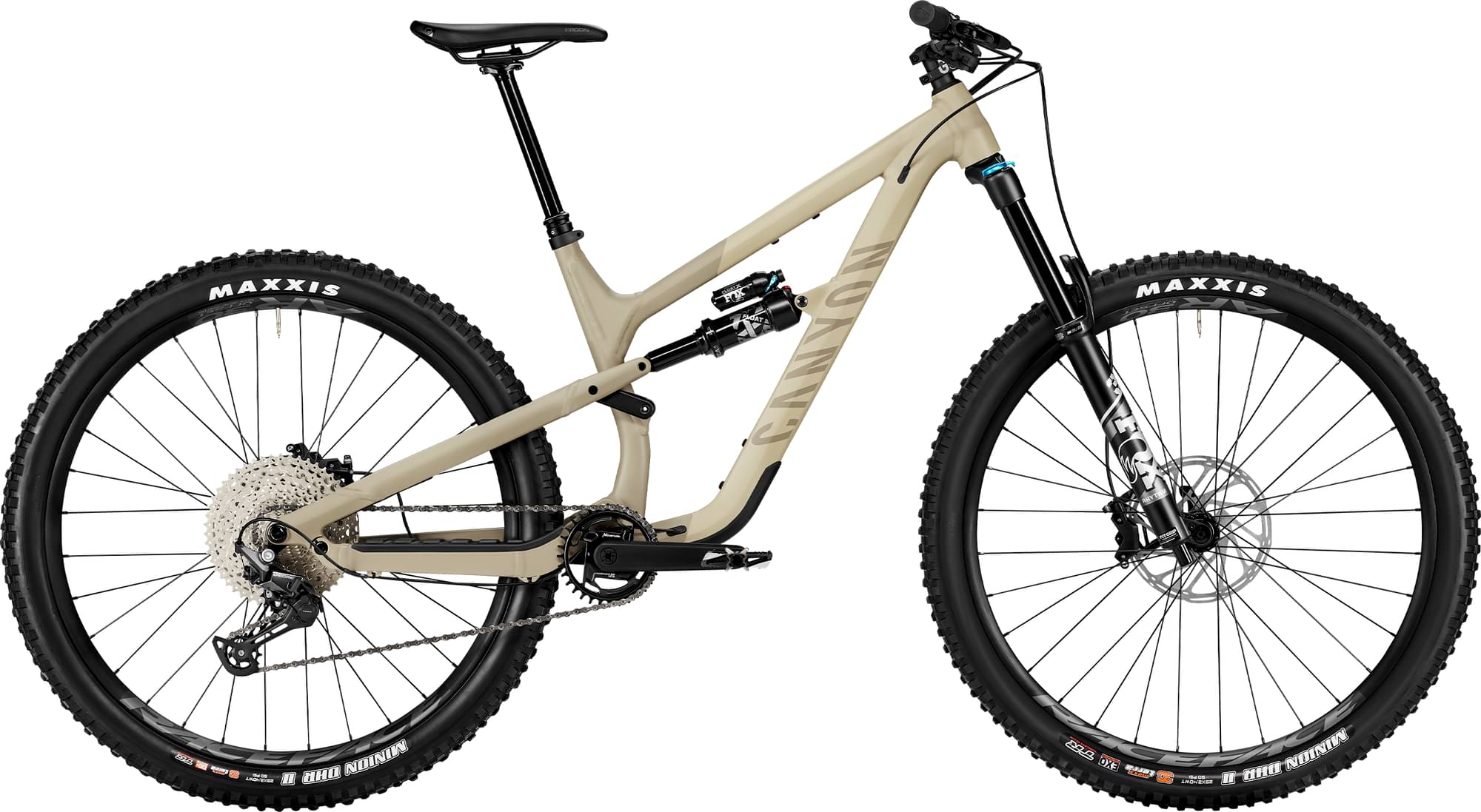

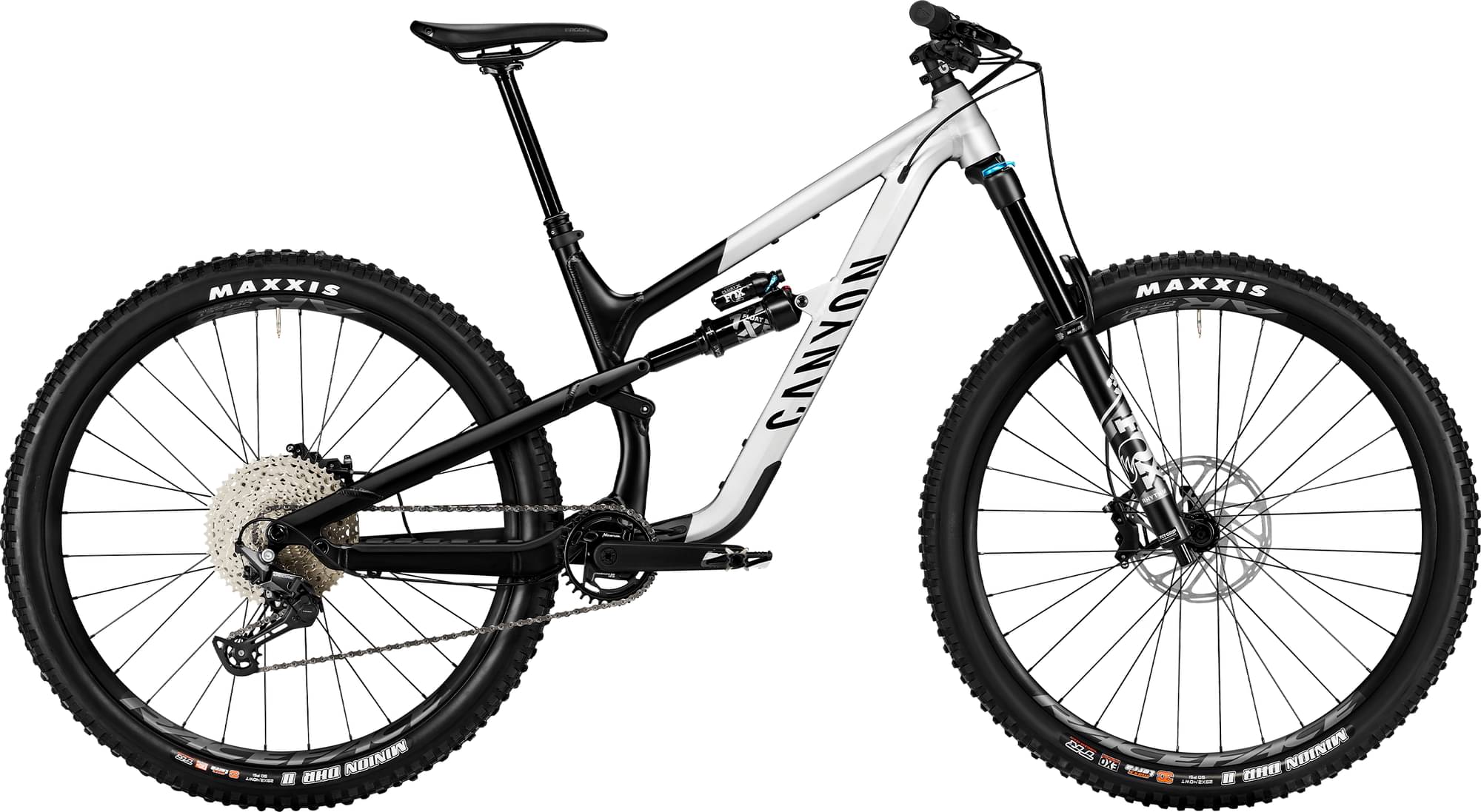

Canyon Spectral 29 5 2022
2022 Mountain
Estimate price |
2,866$
Weight | 16.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Rhythm Float 36
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
180cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral AL, Aluminium frame with optimised frame forms for increased stiffness and strength with thinner walls. Category 4., Axle dimension: 12x148 mm, Material: Aluminium (AL)
Suspension Fork
FOX 36 Rhythm Grip, Axle dimension: 15x110 mm, Stanchion Diameter: 36 mm, Travel: 160 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm
Rear Shock
FOX FLOAT X Performance
Drivetrain
Rear Derailleur
Shimano Deore, 12-speed, 1x12 drivetrain for simpler, intuitive shifting. Long-cage design is compatible with wide-range cassettes.
Shift Levers
Shimano Deore M6100 12speed, Rear derailleur shifter, 12-speed, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 10-degrees rotation adjustment, 133 g
Cassette
SunRace CSMZ800 12s 11-51T
Crank
Miranda Delta, Number of chainrings: 1
Bottom Bracket
Shimano BB-MT501
Chain
Shimano CN-M6100 12s
Pedals
None included
Wheels
Rims
Alexrims DR850, Rotor mount: Center Lock
Tires
Maxxis Minion DHRII 3C MaxxTerra EXO 2,4x29“, Wheelsize: 29" | Maxxis Minion DHRII 3C MaxxTerra EXO+ 2,4x29, Width: 2,4" | Maxxis Minion DHR II EXO+ 3C MaxxTerra WT 29" x 2.4" MTB Tyre
Brakes
Brakes
SRAM DB8, Robust and dependable stopping power as well as a low maintenance hydraulic system make for a reliable brake that you can set and forget. | SRAM DB8
Cockpit
Stem
Canyon G5 Stem, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Clamping Diameter: 31,8 mm
Handlebar
Canyon G5 Riser Bar, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping Diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm
Grips
Canyon G5 Grips, Get huge grip, with or without gloves. The clamp guarantees a tight lock on the bar.
Seat
Saddle
Ergon SM10 Enduro Comp, Developed on the Enduro World Series, the SM10 gives you max freedom of movement in technical terrain.
Seatpost
Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.31 mm | 1.27 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm |
| Front Center | 786 mm | 816 mm | 845 mm |
| Rake | 38 mm | 38 mm | 37 mm |
| Trail | 140 mm | 140 mm | 141 mm |
| Stack | 617 mm | 626 mm | 636 mm |
| Reach | 452 mm | 477 mm | 502 mm |
| Top Tube Length | 598 mm | 626 mm | 653 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1218 mm | 1248 mm | 1277 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm |
| Standover Height | 757 mm | 763 mm | 767 mm |
| Front Travel | 160 mm | 160 mm | 160 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm |
| Wheels | 29" | 29" | 29" |
| Rider Max Height | 185 cm | 194 cm | cm |
About this model
Spectral 29 5 completes the Canyon Spectral model. There are 97 bikes that carry this model name. You can easily view all of the Canyon Spectral bikes models from 2022, here.
Model range prices
Canyon Spectral 27 AL 5 2022 is the cheapest bike model and costs 2653$. Canyon Spectral LTD AXS 29 2022 is the most expensive one and costs 8493$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2653$. In conclusion, this bike price is 35.66% lower than the price of the average Enduro bike.
Enduro bikes average weight
On a deeper look, we notice that the average weight of an Enduro bike is 14.27 kg (31.46 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Canyon Spectral 29 5 it’s weighing 16.2 kg (35.71 lbs). At this weight, is considerably heavier than average. To sum up, it’s 13.52% heavier than the average weight of Enduro bikes.
Overview of components
Fork
The Fox Rhythm Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is FOX FLOAT X Performance, with a travel distance of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Spectral 29 5 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Spectral 29 5 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Spectral 29 5. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
