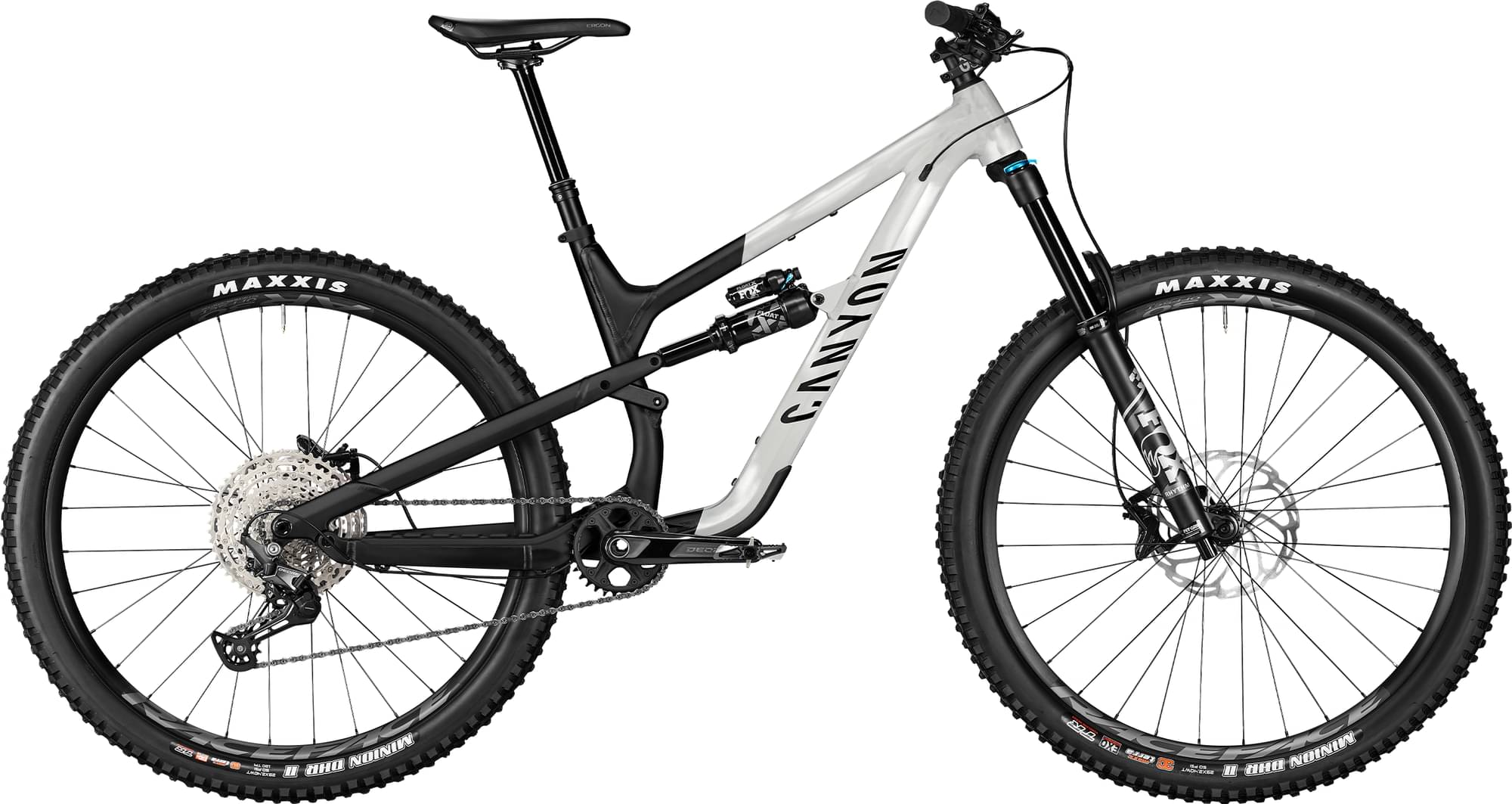

Canyon Spectral 29 AL 5 2022
2022 Mountain
Estimate price |
2,981$
Weight | 16 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Rhythm Float 36
-
Groupset Deore, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral AL
Suspension Fork
FOX 36 Rhythm Grip
Rear Shock
FOX FLOAT X Performance
Drivetrain
Rear Derailleur
Shimano Deore, 12-speed, 1x12 drivetrain for simpler, intuitive shifting. Long-cage design is compatible with wide-range cassettes.
Shift Levers
Shimano Deore M6100 12speed, Rear derailleur shifter, 12-speed, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 10-degrees rotation adjustment, 133 g
Cassette
SunRace CSMZ800 12s 11-51T
Crank
Race Face RIDE
Bottom Bracket
Race Face BSA Cinch
Chain
Shimano CN-M6100 12s
Pedals
None included
Wheels
Rims
Alexrims DR850
Tires
Maxxis Minion DHRII 3C MaxxTerra EXO 2,4x29“ | MAXXIS MINION DHR II 3C MaxxTerra Exo+
Brakes
Brakes
SRAM DB8
Disk Rotors
SRAM Centerline, 200mm, SRAM's 200mm Centerline front rotor ensures you always have stopping power to spare.
Cockpit
Stem
Canyon G5 Stem
Handlebar
Canyon G5 Riser Bar
Grips
Canyon G5 Grips
Seat
Saddle
Ergon SM10 Enduro Comp, Developed on the Enduro World Series, the SM10 gives you max freedom of movement in technical terrain.
Seatpost
Iridium Dropper Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.31 mm | 1.27 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm |
| Front Center | 786 mm | 816 mm | 845 mm |
| Rake | 38 mm | 38 mm | 37 mm |
| Trail | 140 mm | 140 mm | 141 mm |
| Stack | 617 mm | 626 mm | 636 mm |
| Reach | 452 mm | 477 mm | 502 mm |
| Top Tube Length | 598 mm | 626 mm | 653 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1218 mm | 1248 mm | 1277 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm |
| Standover Height | 754 mm | 760 mm | 764 mm |
| Front Travel | 160 mm | 160 mm | 160 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm |
| Wheels | 29" | 29" | 29" |
| Rider Max Height | 184 cm | 193 cm | cm |
Model Overview
Spectral 29 AL 5 belongs to the Canyon Spectral model. Canyon launched 97 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Canyon Spectral 27 AL 5 2022 is the most economical model, with a starting price of 2653$. Canyon Spectral LTD AXS 29 2022 on the other hand costs 8493$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro bikes average price
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2022 and its price was 2760$. Comparing this to the average Enduro bike price, we see that the price is 30.4% lower.
Enduro bikes average weight
On a deeper look, we notice that the average weight of an Enduro bike is 14.27 kg (31.46 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Spectral 29 AL 5 weighs 16 kg (35.27 lbs) and is considerably heavier than the average. In short, the average Enduro bike weight is 12.12% lower than this one.
Overview of components
Fork
Canyon Spectral 29 AL 5 2022 bike is equipped with the Fox Rhythm Float 36 fork, and has 160mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Spectral 29 AL 5 has a rear shock with a travel of 150mm. The model FOX FLOAT X Performance is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Canyon Spectral 29 AL 5 2022, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
The Canyon model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
