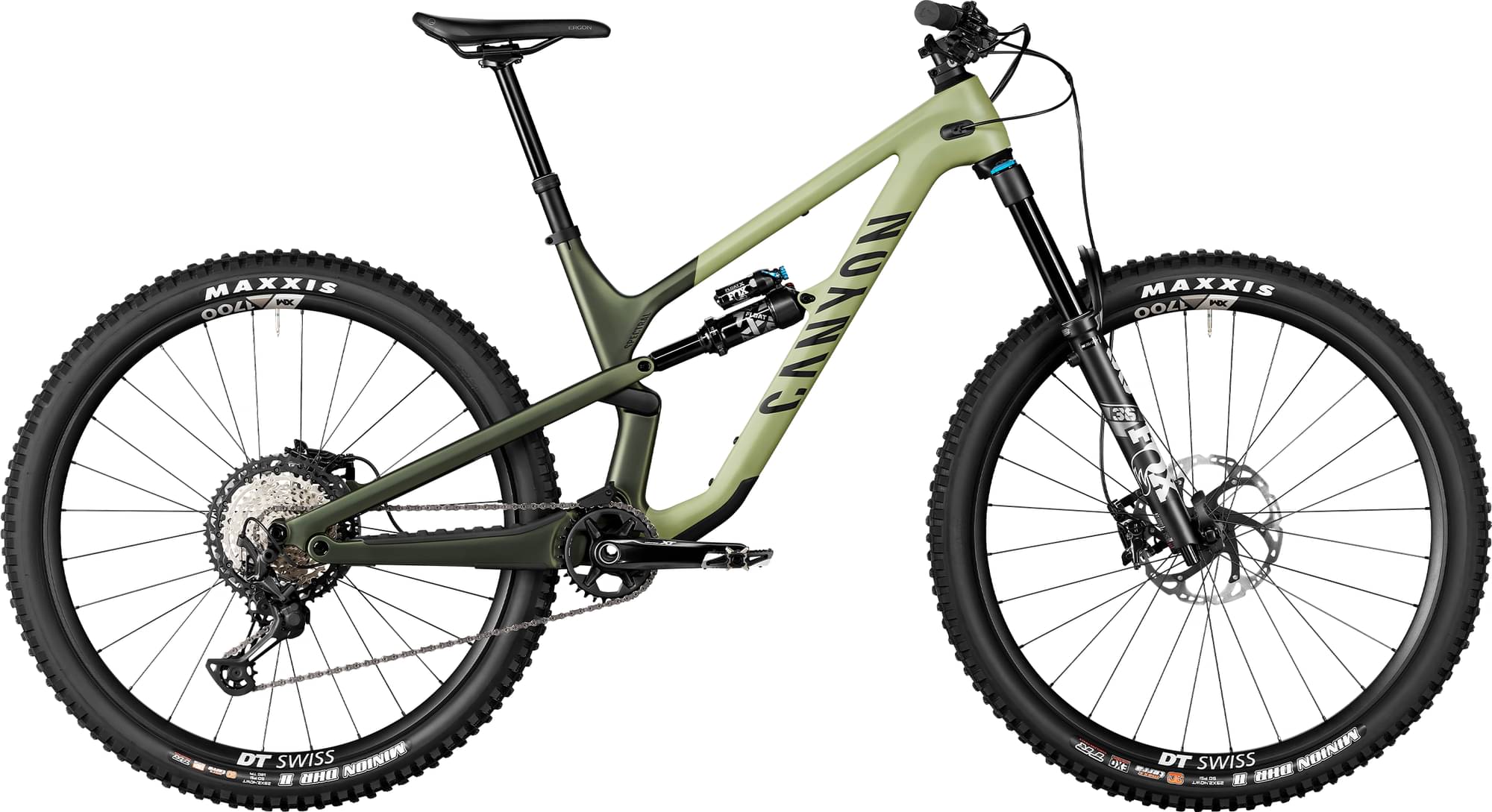

Canyon Spectral 29 CF 8 2022
2022 Mountain
Estimate price |
5,160$
Weight | 14.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Elite Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral CF 29, Full-carbon frame with optimised stiffness-to-weight ratio. With Flip Chip system for simple geometry adjustment. Category 4.
Suspension Fork
FOX 36 Performance Elite Grip 2, Part of our "shred" spec, the FOX 36 Performance Elite gives hard-charging riders total control on the roughest tracks. Offset: 44 mm
Rear Shock
FOX Float X Performance Elite
Drivetrain
Rear Derailleur
Shimano Deore XT M8100 12speed, Precise 1x12 drivetrain.
Shift Levers
Shimano Deore XT, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 20-degrees rotation adjustment, 130 g
Cassette
Shimano XT, 12-speed (10-51), Cassette size: 10-51T. Gear range: 510%.
Crank
Shimano XT M8120 32T
Bottom Bracket
Shimano MT800, Threaded, Hassle-free Shimano Hollowtech II threaded bottom bracket
Chain
Shimano M6100 12-speed, SIL-TEC treatment for extended offroad durability, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly
Chain Guide
Canyon Chainguide
Pedals
None included
Wheels
Rims
DT Swiss XM1700 29" | DT Swiss XM1700 29", DT Swiss' XM1700 wheelset is plenty strong. Features include wide (30mm) aluminum rims and DT's Ratchet-drive, Boost hubs.
Tires
Maxxis Minion DHRII 3C MaxxTerra EXO 2,4x29“ | MAXXIS MINION DHR II 3C MaxxTerra Exo+
Brakes
Brakes
Shimano XT M8120, High-power 4-piston brake, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 410 g | Shimano Deore XT M8120, High-power 4-piston brake, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 410 g
Disk Rotors
Shimano RT86, 203mm, A big (203mm) Shimano RT86 brake rotor delivers equally big stopping power.
Cockpit
Stem
Canyon G5 Stem
Handlebar
Canyon G5 Riser Bar
Grips
Canyon G5 Grips
Seat
Saddle
Ergon SM10 Enduro Comp
Seatpost
G5 Adjustable Dropper Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.37 mm | 1.32 mm | 1.27 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 758 mm | 787 mm | 816 mm | 846 mm |
| Rake | 41 mm | 39 mm | 39 mm | 39 mm |
| Trail | 137 mm | 139 mm | 139 mm | 139 mm |
| Stack | 606 mm | 619 mm | 628 mm | 637 mm |
| Reach | 426 mm | 451 mm | 476 mm | 501 mm |
| Top Tube Length | 577 mm | 604 mm | 631 mm | 658 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 395 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1188 mm | 1217 mm | 1246 mm | 1276 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 746 mm | 753 mm | 758 mm | 770 mm |
| Front Travel | 160 mm | 160 mm | 160 mm | 160 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 176 cm | 184 cm | 193 cm | cm |
About this model
Spectral 29 CF 8 is part of the Canyon Spectral model. There are 97 bikes that carry this model name. Take a sneak peek at all Canyon Spectral bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Canyon Spectral 27 AL 5 2022 has a starting price of 2653$. Canyon Spectral LTD AXS 29 2022 on the other hand is the most expensive at 8493$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 4777$. If we compare this with the average Enduro bike cost we notice that the price is 32.73% more expensive.
Average weight for Enduro bikes
Enduro bikes weigh an average of 14.27 kg (31.46 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Spectral 29 CF 8 weighs 14.3 kg (31.53 lbs) and is slightly heavier than the average. To sum up, it’s 0.21% heavier than the average weight of Enduro bikes.
Overview of components
Fork
Canyon Spectral 29 CF 8 2022 bike is equipped with the Fox Performance Elite Float 36 fork, and has 160mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the FOX Float X Performance Elite rear shock model, which has a travel of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on Spectral 29 CF 8 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Spectral 29 CF 8 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Dropper post
The Canyon model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
