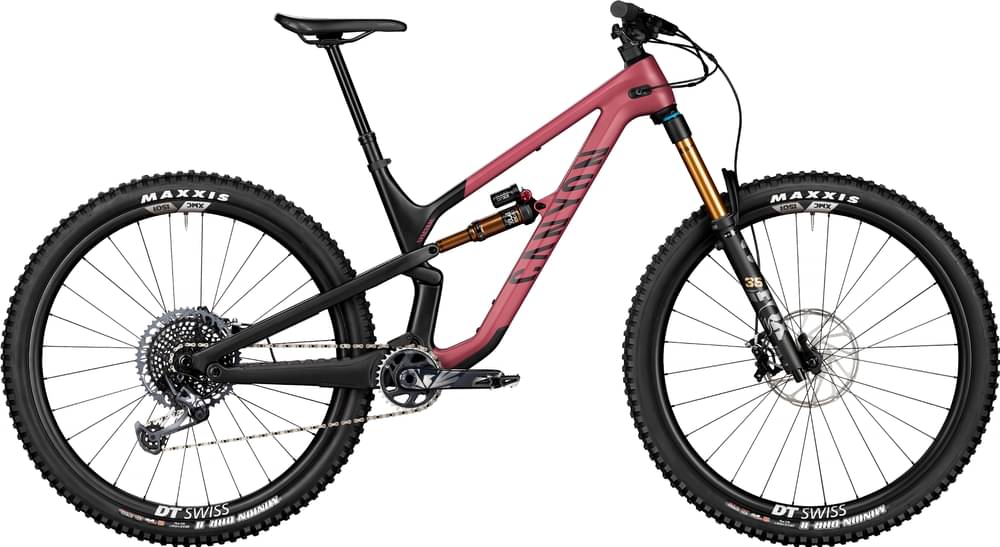

Canyon Spectral 29 CF 9 — US 2021
2021 Mountain
Estimate price |
6,299$
Weight | 13.24 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral CF 29
Suspension Fork
Fox 36 Factory 29", Part of our "shred" spec, the top-of-the-line FOX 36 Factory fork gives hard-charging riders total control in all conditions. Offset: 44 mm
Rear Shock
Fox DPX2 Factory, FOX’s DPX2 Factory piggyback shock (230 x 60 mm) is smooth and consistent on the longest and roughest descents.
Drivetrain
Rear Derailleur
SRAM X01 Eagle, SRAM X01 Eagle 12-speed rear derailleur delivers quick and precise shifts.
Shift Levers
SRAM X01 Eagle, 12-speed, Aimed at aggressive trail riders, Eagle X01 pairs premium materials and design for years of accurate shifts under pressure.
Cassette
SRAM XG Eagle 10-52, All the range you need to climb the biggest mountains, courtesy of SRAM's 10-52, 12-speed cassette.
Crank
SRAM X1 Eagle Carbon, 32T, SRAM X01 Eagle crankset with 32-tooth chainring and 170mm crankarms for plenty of pedaling clearance.
Bottom Bracket
SRAM BSA DUB, Hassle-free SRAM DUB threaded bottom bracket.
Chain
SRAM GX Eagle 12-speed, FLOW LINK inner plate design reduces friction, solid pin construction, PowerLock tool-less master link
Pedals
None included
Wheels
Rims
DT Swiss XMC 1501 Carbon, Ultralight and strong, DT Swiss carbon XMC 1501 wheelset features wide (30mm) carbon rims and classic DT 240 ratchet-drive hubs. | DT Swiss XMC1501 29", Ultralight and strong, DT's carbon XMC 1501 wheelset features wide (30mm) carbon rims and classic DT 240 ratchet-drive hubs.
Tires
Maxxis Minion DHF, 2.5", EXO casing, Tubeless Ready design | MAXXIS Minion DHR II 2.4'', MAXXIS DHRII 2.4" rear tire provides outstanding grip and braking control.
Brakes
Brakes
SRAM G2 RSC, SRAM G2 RSC disc brakes offer outstanding power, control, as well as both reach and contact-point adjusters. | SRAM G2 RSC
Disk Rotors
SRAM Centerline, 180mm, Diameter: 180 mm. | SRAM Centerline, 200mm, SRAM's 200mm Centerline front rotor ensures you always have stopping power to spare.
Cockpit
Stem
Canyon G5 Stem 40mm, The Canyon G5 stem (40mm extension) is both incredibly strong and beautifully designed.
Handlebar
Canyon G5 Carbon Riser Bar, Our carbon-fiber G5 Riser bar offers the perfect combination of width (780mm) and rise (30mm).
Grips
Canyon G5 Grips, Canyon's G5 Lock-On grips are comfortable and secure.
Seat
Saddle
Ergon SM10 Enduro Comp
Seatpost
OneUp Components V2, Durable dropper post. Up to 180 mm of saddle height adjustment with the push of a button. Additional tuning option: reduce the travel by 10 or 20 mm depending on your preference.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.35 mm | 1.3 mm | 1.25 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 758 mm | 787 mm | 816 mm | 846 mm |
| Rake | 44 mm | 43 mm | 43 mm | 44 mm |
| Trail | 130 mm | 131 mm | 131 mm | 130 mm |
| Stack | 606 mm | 615 mm | 624 mm | 633 mm |
| Reach | 430 mm | 455 mm | 480 mm | 505 mm |
| Top Tube Length | 577 mm | 604 mm | 631 mm | 658 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 395 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1188 mm | 1217 mm | 1246 mm | 1276 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 746 mm | 757 mm | 758 mm | 770 mm |
| Front Travel | 160 mm | 160 mm | 160 mm | 160 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 176 cm | 184 cm | 193 cm | cm |
Model Overview
Spectral 29 CF 9 — US is a Canyon Spectral model. 97 bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Canyon Spectral 5 2021 is the cheapest bike model and costs 2271$. Canyon Spectral 29 LTD 2021 is the most expensive one and costs 6688$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2021 for 6299$. In conclusion, this bike price is 75.02% higher than the price of the average Enduro bike.
Average weight for Enduro bikes
On a deeper look, we notice that the average weight of an Enduro bike is 14.27 kg (31.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit lighter than average, Spectral 29 CF 9 — US has a weight of 13.24 kg (29.19 lbs). In conclusion, the average Enduro bike weighs 7.78% more than Spectral 29 CF 9 — US.
Overview of components
Fork
The Spectral 29 CF 9 — US comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the Fox DPX2 Factory model, with a travel of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the Spectral 29 CF 9 — US bike is equipped with the 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Spectral 29 CF 9 — US comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Dropper post
Canyon Spectral 29 CF 9 — US includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
