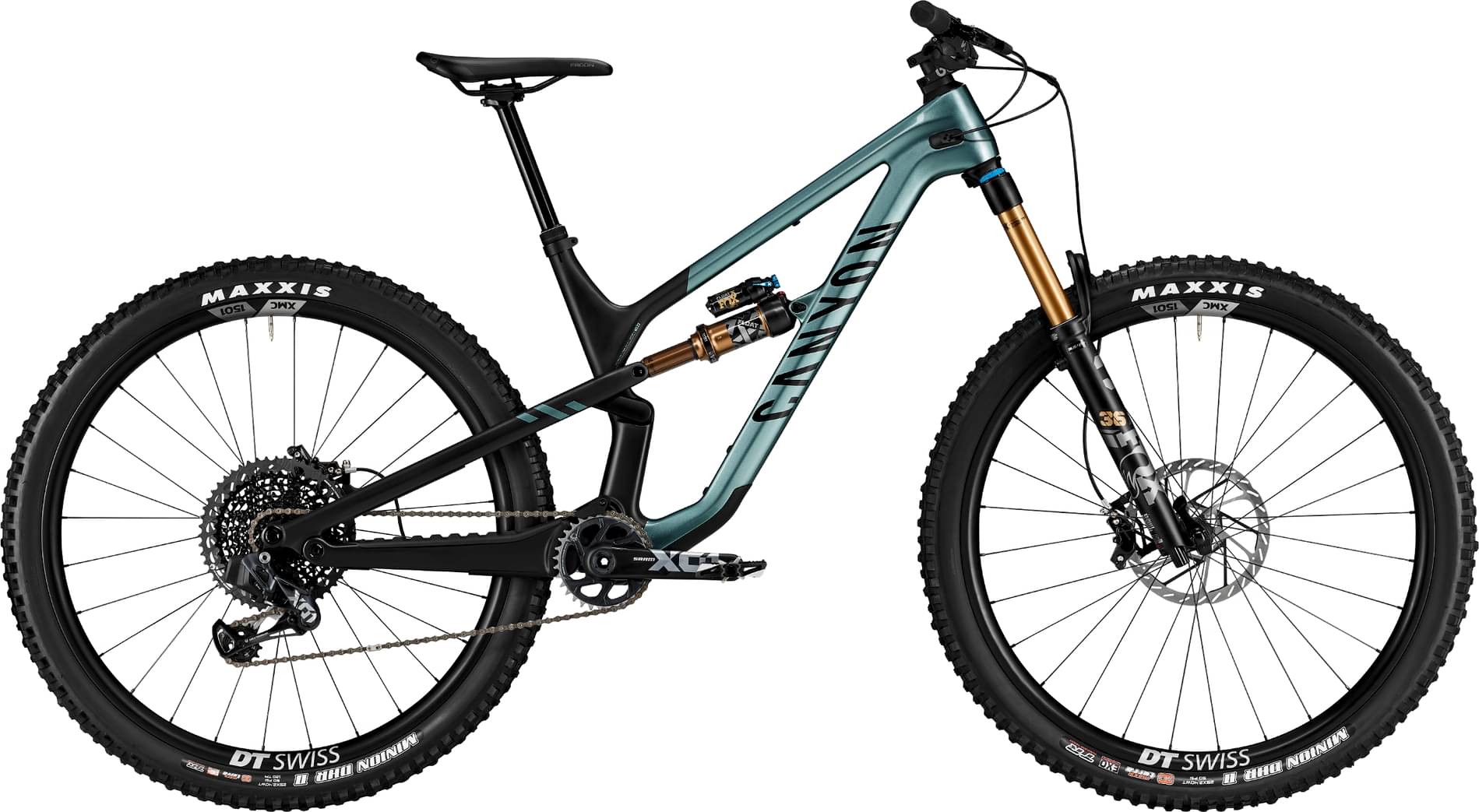

Canyon Spectral 29 CFR 2023
2023 Mountain
Estimate price |
6,499$
Weight | 13.76 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle AXS -
Suspension Full -
Battery SRAM Powerpack -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
172cm - 185cm
LG
180cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral CFR, The Spectral CFR uses the most advanced carbon materials and layup to save 300 g over the CF models, with no loss of stiffness., Axle dimension: 12x148 mm, Material: Carbon (CF)
Suspension Fork
FOX 36 Factory Grip2, Axle dimension: 15x110 mm, Stanchion Diameter: 36 mm, Travel: 160 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm, Weight: 1.97 kg
Rear Shock
FOX Float X Factory EVOL
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS
Shift Levers
SRAM Eagle AXS Controller
Cassette
SRAM GX Eagle, 12-speed (10-52), Number of sprockets: 12
Crank
SRAM X01 Eagle, Number of chainrings: 1
Bottom Bracket
SRAM BSA DUB, Bottom bracket standard: BSA 73, Weight: 87 g
Chain
SRAM SX Eagle 12s
Chain Guide
Canyon EP1266-01 ISCG05 Plate | Canyon GP0293-02
Pedals
None included
Wheels
Rims
DT Swiss XMC 1501, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Rim height: 25 mm, Inner width: 30 mm, Weight: 864 g | DT Swiss XMC 1501, Axle dimension: 12x148 mm, Rotor mount: IS 6-bolt, Rim height: 25 mm, Inner width: 30 mm, Weight: 940 g
Tires
Maxxis Minion DHR II, Wheelsize: 29", Weight: 955 g | Maxxis Minion DHRII, Width: 2,4", Weight: 1.08 kg
Brakes
Brakes
SRAM Code RSC
Cockpit
Stem
Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm
Grips
Canyon G5
Seat
Saddle
Ergon SM10 Enduro Comp
Seatpost
Canyon G5, Clamp diameter: 30,9 mm, Material: Aluminium (AL)
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.32 mm | 1.27 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 762 mm | 791 mm | 820 mm | 850 mm |
| Rake | 42 mm | 41 mm | 41 mm | 42 mm |
| Trail | 136 mm | 137 mm | 137 mm | 136 mm |
| Stack | 610 mm | 619 mm | 628 mm | 637 mm |
| Reach | 426 mm | 451 mm | 476 mm | 501 mm |
| Top Tube Length | 578 mm | 605 mm | 632 mm | 659 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 395 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1192 mm | 1221 mm | 1250 mm | 1280 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 750 mm | 757 mm | 762 mm | 774 mm |
| Front Travel | 160 mm | 160 mm | 160 mm | 160 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 177 cm | 185 cm | 194 cm | cm |
Model Overview
Spectral 29 CFR is a Canyon Spectral model. 97 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Canyon Spectral 4 2023 is the most economical model, with a starting price of 2299$. Canyon Spectral 29 CFR 2023 on the other hand costs 6499$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2023 and its price was 6499$. If we compare this with the average Enduro bike cost we notice that the price is 80.58% higher.
Enduro bikes average weight
If we make a quick analysis of the average weight of an Enduro bike, we get 14.27 kg (31.46 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly lighter than average, Spectral 29 CFR has a weight of 13.76 kg (30.34 lbs). In conclusion, the average Enduro bike weighs 3.71% more than Spectral 29 CFR.
Spectral 29 CFR components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.

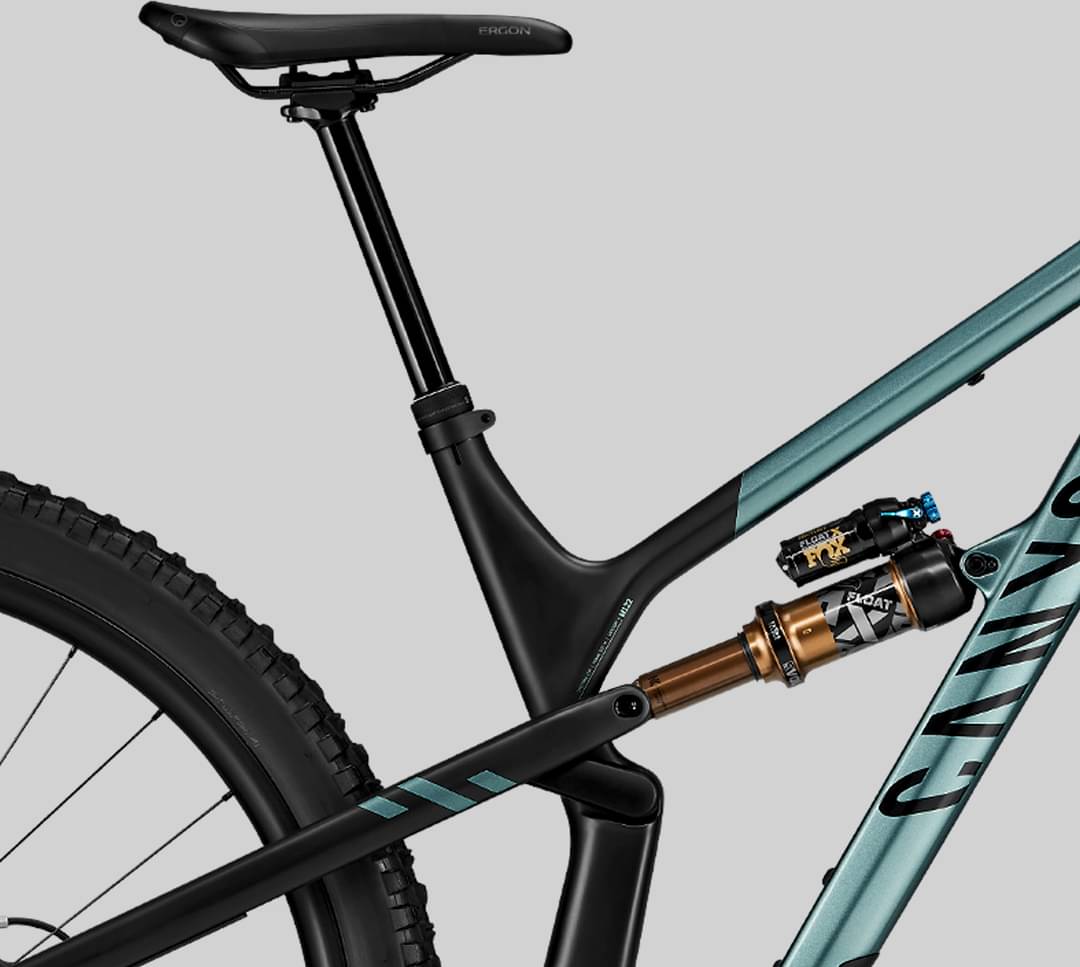

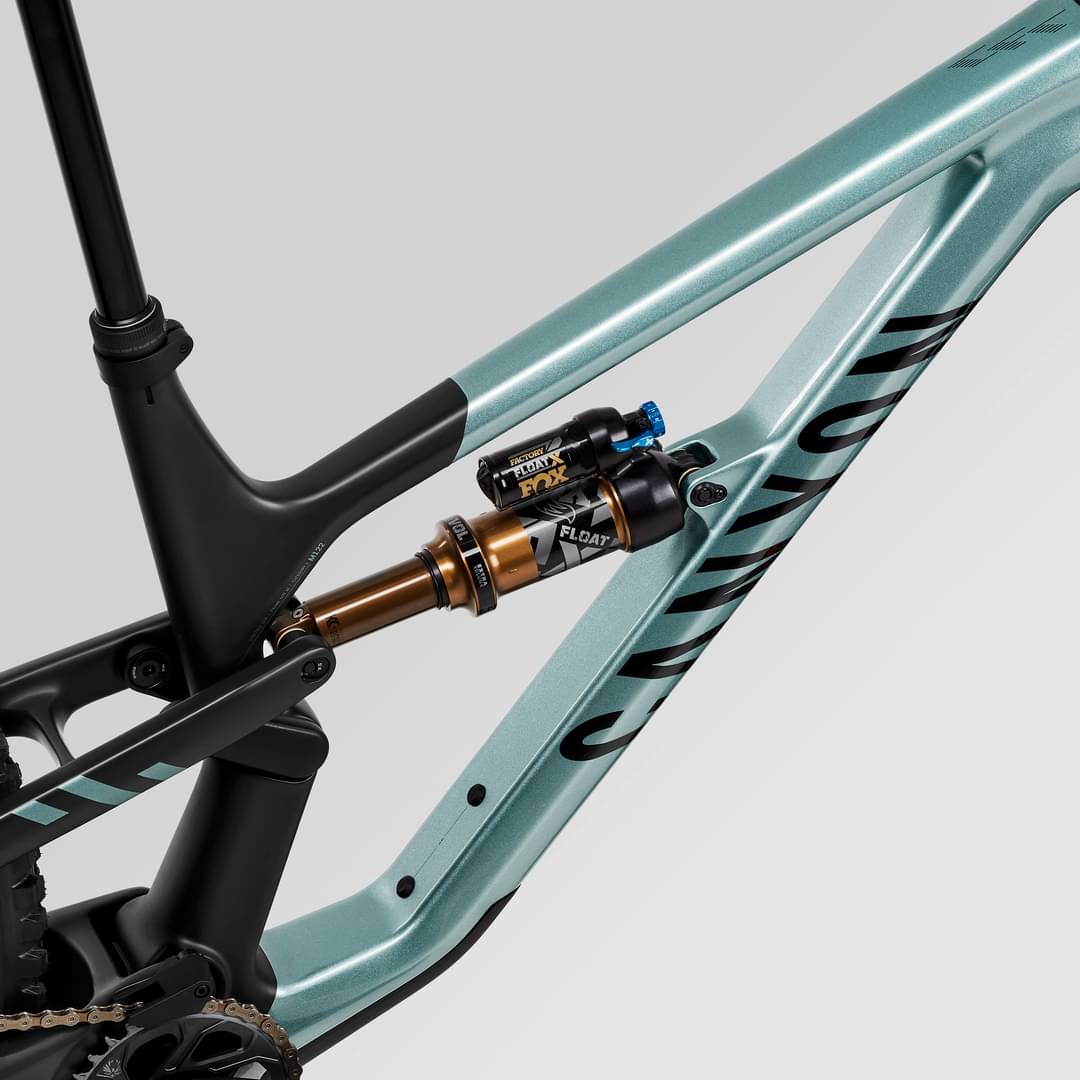

Rear Shock
The shock that’s installed on this bike is FOX Float X Factory EVOL, with a travel distance of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the Spectral 29 CFR bike is equipped with the 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Spectral 29 CFR is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
The Canyon model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
