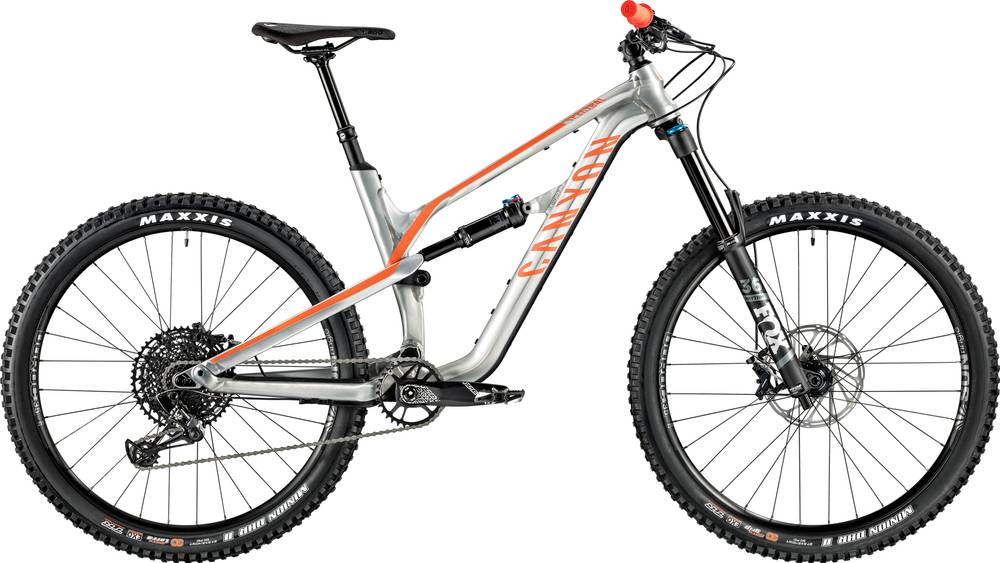

Canyon Spectral AL 5.0 2019
2019 Mountain
Estimate price |
2,407$
Weight | 14.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Rhythm Float 36
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
161cm - 171cm
MD
169cm - 179cm
LG
177cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral AL, Material: Aluminium 6061, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Suspension Fork
FOX 36 Rhythm, Travel: 160 mm, Technology: GRIP, Axle Dimension: 15 x 110 mm
Rear Shock
FOX FLOAT DPS Performance, Length: 230 x 65 mm
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle Trigger 12s, Clamp: MMX
Cassette
SRAM PG-1230 Eagle 11-50 12s
Crank
Truvativ Descendant 6K DUB 32T 32
Bottom Bracket
SRAM Pressfit DUB
Chain
SRAM NX Eagle 12s
Pedals
None included
Wheels
Rims
Sun Ringle Duroc SH11, Rim Material: Aluminium, Inner Width: 35 mm, Weight: 998 g
Tires
MAXXIS Minion DHR II 2.4'', Casing: Exo, Compound: 3C Maxx Terra, Technology: Tubeless ready
Brakes
Brakes
SRAM Guide T
Disk Rotors
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Cockpit
Stem
Race Face Aeffect
Handlebar
Race Face Aeffect Riserbar, Material: Aluminium, Rise: 20 mm
Grips
Canyon G5 Flange
Seat
Saddle
SDG Fly MTN
Seatpost
Iridium Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.4 mm | 1.37 mm | 1.38 mm | 1.36 mm |
| Bottom Bracket Height | 328 mm | 328 mm | 333 mm | 333 mm | 333 mm |
| Front Center | 693 mm | 710 mm | 743 mm | 775 mm | 806 mm |
| Rake | 39 mm | 38 mm | 39 mm | 38 mm | 38 mm |
| Trail | 116 mm | 117 mm | 116 mm | 117 mm | 117 mm |
| Stack | 590 mm | 590 mm | 607 mm | 636 mm | 657 mm |
| Reach | 402 mm | 421 mm | 442 mm | 462 mm | 484 mm |
| Top Tube Length | 562 mm | 584 mm | 607 mm | 635 mm | 663 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 385 mm | 425 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 88 mm | 84 mm | 116 mm | 143 mm | 170 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1124 mm | 1141 mm | 1174 mm | 1206 mm | 1237 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 22 mm | 22 mm | 22 mm |
| Standover Height | 737 mm | 744 mm | 765 mm | 785 mm | 799 mm |
| Front Travel | 160 mm | 160 mm | 160 mm | 160 mm | 160 mm |
| Rear Travel | 140 mm | 140 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Max Height | 163 cm | 171 cm | 179 cm | 187 cm | cm |
About this model
Spectral AL 5.0 is a Canyon Spectral model. 97 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Canyon Spectral WMN AL 4.0 2019 is the cheapest bike model and costs 1910$. Canyon Spectral CFR 9.0 LTD 2019 is the most expensive one and costs 7500$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro bikes average price
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2019 for 2229$. Doing a quick comparison, we notice that Spectral AL 5.0 price is 61.46% lower than the average cost of an Enduro bike.
Enduro bikes average weight
Enduro bikes weigh an average of 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 14.8 kg (32.63 lbs), Canyon bike is slightly heavier than average. In conclusion, the average Enduro bike weighs 3.71% less than Spectral AL 5.0.
Overview of components
Fork
Canyon Spectral AL 5.0 2019 bike is equipped with the Fox Rhythm Float 36 fork, and has 160mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Canyon Spectral AL 5.0 bike has the FOX FLOAT DPS Performance model installed, and has a travel of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The Spectral AL 5.0 2019 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
The Canyon model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
