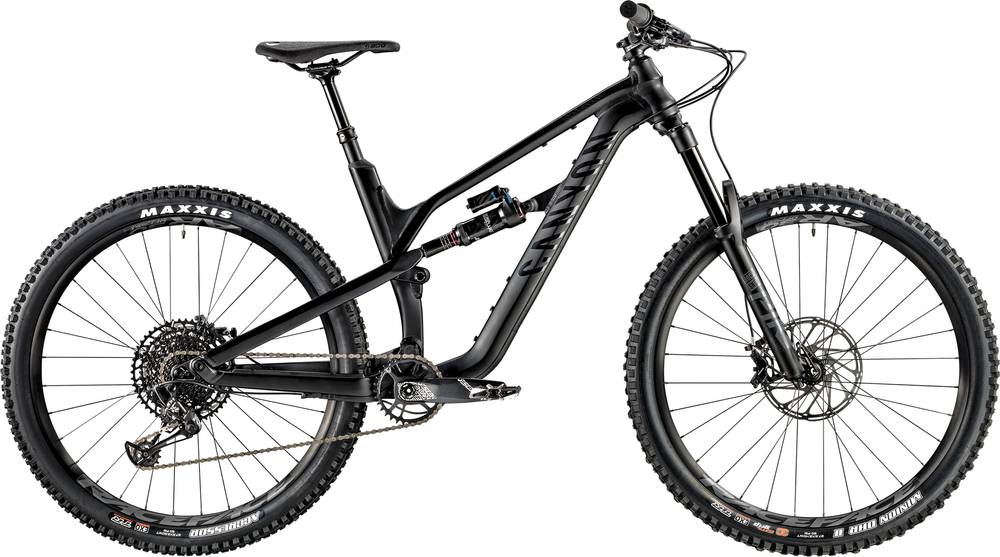

Canyon Spectral AL 5.0 2020
2020 Mountain
Estimate price |
2,899$
Weight | 14.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Pike Select
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
161cm - 171cm
MD
169cm - 179cm
LG
177cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral AL, Material: Aluminium 6061, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Suspension Fork
RockShox Pike Select, Travel: 160 mm, Technology: Charger RC, Axle Dimension: 15 x 110 mm
Rear Shock
Super Deluxe Select+ RT
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle Trigger 12s, Clamp: MMX
Cassette
SRAM PG-1210 Eagle 11-50 12s
Crank
Truvativ Descendant 6K DUB 32T 32
Bottom Bracket
SRAM Pressfit DUB
Chain
SRAM SX Eagle 12s
Pedals
None included
Wheels
Rims
RaceFace AR30 | RaceFace AR30 | Shimano MT400 SH11
Tires
MAXXIS Minion DHR II 2.4'', Casing: Exo, Compound: 3C Maxx Grip, Technology: Tubeless ready | "MAXXIS Aggressor 2.5"""
Brakes
Brakes
SRAM Guide T
Disk Rotors
SRAM Centerline Rounded Edges, Disc Mount: Centerlock
Cockpit
Stem
Race Face Ride
Handlebar
Race Face Ride Riserbar, Material: Aluminium, Rise: 20 mm
Grips
Canyon G5 Flange
Seat
Saddle
SDG Fly MTN
Seatpost
Iridium Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.4 mm | 1.37 mm | 1.38 mm | 1.36 mm |
| Bottom Bracket Height | 328 mm | 328 mm | 333 mm | 333 mm | 333 mm |
| Front Center | 693 mm | 710 mm | 743 mm | 775 mm | 806 mm |
| Rake | 39 mm | 38 mm | 39 mm | 38 mm | 38 mm |
| Trail | 116 mm | 117 mm | 116 mm | 117 mm | 117 mm |
| Stack | 590 mm | 590 mm | 607 mm | 636 mm | 657 mm |
| Reach | 402 mm | 421 mm | 442 mm | 462 mm | 484 mm |
| Top Tube Length | 562 mm | 584 mm | 607 mm | 635 mm | 663 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 385 mm | 425 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 88 mm | 84 mm | 116 mm | 143 mm | 170 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1124 mm | 1141 mm | 1174 mm | 1206 mm | 1237 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 22 mm | 22 mm | 22 mm |
| Standover Height | 726 mm | 732 mm | 762 mm | 732 mm | 792 mm |
| Front Travel | 160 mm | 160 mm | 160 mm | 160 mm | 160 mm |
| Rear Travel | 140 mm | 140 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Max Height | 163 cm | 171 cm | 179 cm | 187 cm | cm |
About this model
Spectral AL 5.0 is a Canyon Spectral model. 97 bikes variations carry this model name so far. Take a sneak peek at all Canyon Spectral bikes models from 2020, by clicking here.
Model range prices
Canyon Spectral WMN AL 4.0 2020 is the most economical model, with a starting price of 2016$. Canyon Spectral CFR 9.0 2020 on the other hand costs 6499$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2020 for 2899$. In conclusion, this bike price is 24.15% lower than the price of the average Enduro bike.
Average weight for Enduro bikes
On a deeper look, we notice that the average weight of an Enduro bike is 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Canyon Spectral AL 5.0 it’s weighing 14.5 kg (31.97 lbs). At this weight, is slightly heavier than average. In other words, this model is 1.61% heavier than the average Enduro bike.
Spectral AL 5.0 components
Fork
Canyon Spectral AL 5.0 2020 bike is equipped with the RockShox Pike Select fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the Super Deluxe Select+ RT model, with a travel of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the Spectral AL 5.0 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Spectral AL 5.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Dropper post
The Canyon model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
