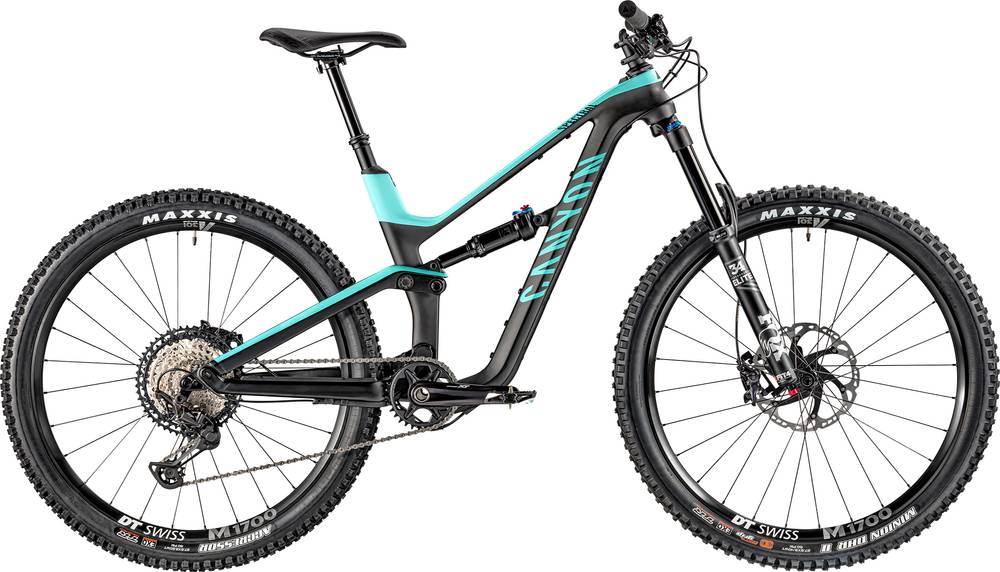

Canyon Spectral WMN CF 8.0 2020
2020 Mountain
Estimate price |
4,013$
Weight | 13.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Elite Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral WMN CF, Material: Carbon, Travel: 140 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Suspension Fork
FOX 34 Performance Elite, Travel: 150 mm, Technology: FIT4, Axle Dimension: 15 x 110 mm
Rear Shock
FOX FLOAT DPS Performance Elite, Length: 210 x 55 mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8100 SGS
Shift Levers
Shimano Deore XT M8100 12s, Clamp: I-Spec EV
Cassette
Shimano Deore XT M810012 10-51 12s
Crank
Shimano Deore XT M8100 32T 32
Bottom Bracket
Shimano Pressfit BB71
Pedals
None included
Wheels
Rims
DT Swiss M 1700, Rim Material: Aluminium, Inner Width: 30 mm, Weight: 866 g | DT Swiss M 1700 SH12, Rim Material: Aluminium, Inner Width: 30 mm, Freewheel: Ratchet, Weight: 931 g
Tires
MAXXIS Minion DHR II 2.4'', Casing: Exo, Compound: 3C Maxx Grip, Technology: Tubeless ready | "MAXXIS Aggressor 2.5"""
Brakes
Brakes
Shimano Deore XT M8120
Disk Rotors
Shimano RT86, Disc Mount: 6-Hole
Cockpit
Stem
Canyon G5
Handlebar
Canyon G5 Riserbar, Material: Aluminium, Rise: 20 mm
Grips
Canyon G5
Seat
Saddle
SGD Allure
Seatpost
SP FOX TRANSFER PFE RM 1X 30,9X456 150
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.46 mm | 1.41 mm |
| Bottom Bracket Height | 333 mm | 332 mm | 336 mm |
| Front Center | 672 mm | 693 mm | 731 mm |
| Rake | 42 mm | 43 mm | 43 mm |
| Trail | 113 mm | 112 mm | 111 mm |
| Stack | 583 mm | 583 mm | 602 mm |
| Reach | 377 mm | 398 mm | 427 mm |
| Top Tube Length | 554 mm | 571 mm | 599 mm |
| Seat Tube Angle | 73.1 ° | 73.4 ° | 74 ° |
| Seat Tube Length | 385 mm | 425 mm | 440 mm |
| Head Tube Angle | 65.9 ° | 65.9 ° | 66 ° |
| Head Tube Length | 85 mm | 84 mm | 109 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1103 mm | 1124 mm | 1162 mm |
| Bottom Bracket Drop | 22 mm | 23 mm | 19 mm |
| Standover Height | 715 mm | 719 mm | 743 mm |
| Front Travel | 150 mm | 150 mm | 150 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm |
| Wheels | 27" | 27" | 27" |
| Rider Max Height | 167 cm | 176 cm | cm |
About this model
Spectral WMN CF 8.0 is a Canyon Spectral model. 97 bikes variations carry this model name so far. Take a sneak peek at all Canyon Spectral bikes models from 2020, by clicking here.
Model range prices
The most economical model, the Canyon Spectral WMN AL 4.0 2020 has a starting price of 2016$. Canyon Spectral CFR 9.0 2020 on the other hand is the most expensive at 6499$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Canyon released this model in 2020, its price was 3715$. Comparing this to the average Trail bike price, we see that the price is 34.5% higher.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 13.4 kg (29.54 lbs), the Spectral WMN CF 8.0 model is slightly heavier than average. In other words, this model is 3.24% heavier than the average Trail bike.
Spectral WMN CF 8.0 components
Fork
This bike has the Fox Performance Elite Float 34 fork installed. The fork’s travel is 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Canyon Spectral WMN CF 8.0 bike has the FOX FLOAT DPS Performance Elite model installed, and has a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on Spectral WMN CF 8.0 are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the Spectral WMN CF 8.0. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
