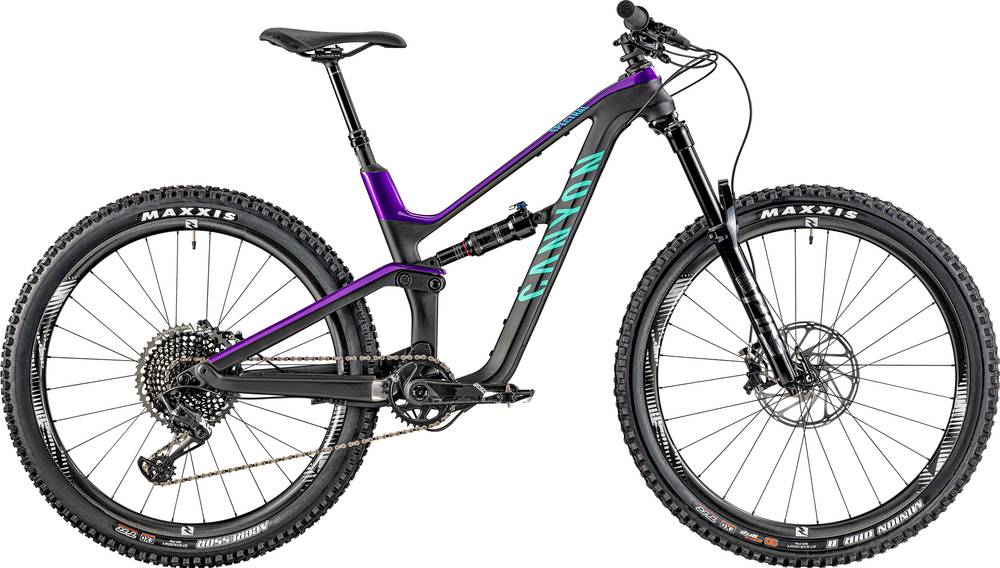

Canyon Spectral WMN CFR 9.0 2020
2020 Mountain
Estimate price |
5,504$
Weight | 12.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Pike Select
-
Groupset X01 Eagle, Truvativ Descendant Carbon -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral WMN CFR, Material: Carbon, Travel: 140 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Suspension Fork
RockShox Pike Select Ultimate
Rear Shock
Deluxe Ultimate RCT
Drivetrain
Rear Derailleur
SRAM XO1 Eagle
Shift Levers
SRAM X01 Eagle Trigger 12s
Cassette
SRAM XG-1295 Eagle 10-50 12s
Crank
Truvativ Descendant Carbon DUB 32T 32
Bottom Bracket
SRAM Pressfit DUB
Pedals
None included
Wheels
Rims
Reynolds TR 307, Rim Material: Carbon, Inner Width: 30 mm, Weight: 512 g | Reynolds TR 307 XD, Rim Material: Carbon, Inner Width: 30 mm, Weight: 1108 g
Tires
MAXXIS Minion DHR II 2.4'', Casing: Exo, Compound: 3C Maxx Grip, Technology: Tubeless ready | "MAXXIS Aggressor 2.5"""
Brakes
Brakes
SRAM G2 RSC
Disk Rotors
SRAM Centerline Rounded Edges, Disc Mount: Centerlock
Cockpit
Stem
Canyon G5
Handlebar
Canyon H24 Carbon Riserbar, Material: Carbon, Rise: 20 mm
Grips
Canyon G5 Flange
Seat
Saddle
SGD Allure
Seatpost
RockShox Reverb Stealth 1X
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.46 mm | 1.41 mm |
| Bottom Bracket Height | 333 mm | 332 mm | 336 mm |
| Front Center | 672 mm | 693 mm | 731 mm |
| Rake | 42 mm | 43 mm | 43 mm |
| Trail | 113 mm | 112 mm | 111 mm |
| Stack | 583 mm | 583 mm | 602 mm |
| Reach | 377 mm | 398 mm | 427 mm |
| Top Tube Length | 554 mm | 571 mm | 599 mm |
| Seat Tube Angle | 73.1 ° | 73.4 ° | 74 ° |
| Seat Tube Length | 385 mm | 425 mm | 440 mm |
| Head Tube Angle | 65.9 ° | 65.9 ° | 66 ° |
| Head Tube Length | 85 mm | 84 mm | 109 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1103 mm | 1124 mm | 1162 mm |
| Bottom Bracket Drop | 22 mm | 23 mm | 19 mm |
| Standover Height | 715 mm | 719 mm | 743 mm |
| Front Travel | 150 mm | 150 mm | 150 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm |
| Wheels | 27" | 27" | 27" |
| Rider Max Height | 167 cm | 176 cm | cm |
Model Overview
Spectral WMN CFR 9.0 belongs to the Canyon Spectral model. 97 bikes variations carry this model name so far. Take a sneak peek at all Canyon Spectral bikes models from 2020, by clicking here.
Model range prices
The most economical model, the Canyon Spectral WMN AL 4.0 2020 has a starting price of 2016$. Canyon Spectral CFR 9.0 2020 on the other hand is the most expensive at 6499$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Canyon Spectral WMN CFR 9.0 price was 5096$. If we compare this with the average Trail bike cost we notice that the price is 84.5% higher.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 12.9 kg (28.44 lbs), Canyon bike is slightly lighter than average. To sum up, it’s 0.62% lighter than the average weight of Trail bikes.
Overview of components
Fork
The Spectral WMN CFR 9.0 comes factory-installed with the RockShox Pike Select fork. This has a travel range of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the Deluxe Ultimate RCT model, with a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The Spectral WMN CFR 9.0 2020 bike is equipped with 27.5″ carbon wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Spectral WMN CFR 9.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
Canyon Spectral WMN CFR 9.0 includes a dropper post. Therefore, climbing or descending will be a breeze.
